2003 TOYOTA SOLARA Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
292003 MY SOLARA (OM33573U)
If any of the door is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key or wireless
remote control transmitter. CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail light comes on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for another door, trunk and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

’03 SOLARA_U (L/O 0207)
302003 MY SOLARA (OM33573U)
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely. The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp
illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.

’03 SOLARA_U (L/O 0207)
312003 MY SOLARA (OM33573U)
Sliding operation
Tilting operation
To operate the moon roof, use the
switch beside the personal light.
The moon roof works when the ignition
switch is in the “ON” position. However, if
all the doors are closed, it works for 43
seconds even after the ignition switch is
turned off. It stops working when any of
the doors are opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will fully open. To stop the roof
partway, push the switch on either the
“SLIDE OPEN” or “TILT UP” side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “TILT
UP” side.
The roof will fully close. To stop the roof
partway, push the switch on either the
“TILT UP” or “SLIDE OPEN” side briefly. Tilting operation—
To tilt up: Push the switch on the “TILT
UP” side.
The roof will tilt up fully. To stop the roof
partway, push the switch on either the
“TILT UP” or “SLIDE OPEN” side briefly.
To lower: Push the switch on the “SLIDE
OPEN” side.
The roof will fully close. To stop the roof
partway, push the switch on either the
“SLIDE OPEN” or “TILT UP” side briefly.
Jam protection function (closing opera-
tion only):
During closing operation, the
moon roof stops and opens half way if
something gets caught between the moon
roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
Electric moon roof

’03 SOLARA_U (L/O 0207)
322003 MY SOLARA (OM33573U)

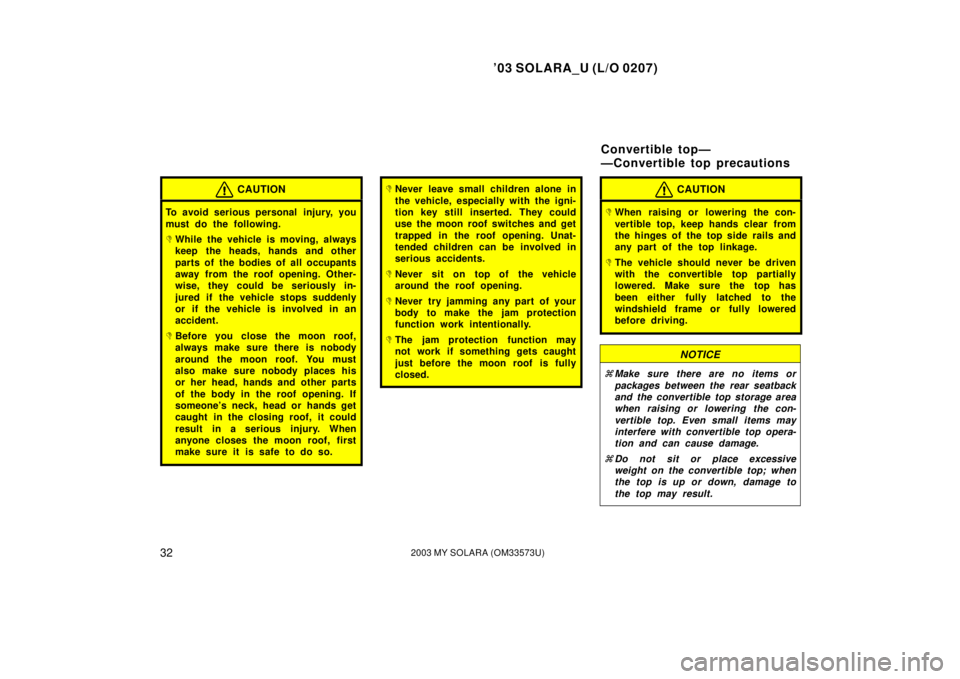

CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in a serious injury. When
anyone closes the moon roof, first
make sure it is safe to do so.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can be involved in
serious accidents.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.
CAUTION
When raising or lowering the con-
vertible top, keep hands clear from
the hinges of the top side rails and
any part of the top linkage.
The vehicle should never be driven
with the convertible top partially
lowered. Make sure the top has
been either fully latched to the
windshield frame or fully lowered
before driving.
NOTICE
Make sure there are no items or
packages between the rear seatback
and the convertible top storage area
when raising or lowering the con-
vertible top. Even small items may
interfere with convertible top opera-
tion and can cause damage.
 Do not sit or place excessive
weight on the convertible top; when
the top is up or down, damage to
the top may result.
Convertible top—
—Convertible top precautions

’03 SOLARA_U (L/O 0207)
332003 MY SOLARA (OM33573U)
To prevent from damaging the con-
vertible top material, do not raise
or lower the convertible top when
the temperature is below 0 C (32 F)
or the convertible top is frozen. If
necessary to do so, warm the ve-
hicle in a heated garage prior to
operating the convertible top mech-
anism.
 Do not lower the convertible top if
the top is damp or wet. Possible
interior water damage, water stains
or mildew of the top material may
result.
 When the convertible top is com-
pletely lowered, keep the rear win-
dow defogger turned off to avoid
damage to the convertible top.
LOWERING THE CONVERTIBLE TOP
The ignition switch must be in the “ON”
position to operate the convertible top.
1. Lower the sun visors and pull the latch handles fully backward.
Visually check that the hooks of latch
handles are not hooked.2. Push the convertible top control switch on the “OPEN” side until the
convertible top and windshield frame
are disengaged. Then retract the
latch handles.
3. Push and hold the convertible top control switch on the “OPEN” side
until the convertible top is complete-
ly lowered. Raise the sun visors.
The side windows and quarter windows
will go completely down when the convert-
ible top control switch is operated on the
“OPEN” side.
If the convertible top does not lower, see
“If the convertible top does not raise or
lower” in Section 4 for instructions.
—Lowering the convertible top

’03 SOLARA_U (L/O 0207)
342003 MY SOLARA (OM33573U)
INSTALLING THE TOP BOOT
The top boot is used to cover and conceal
the completely lowered convertible top. It
is folded up and stored in the trunk.
4. Insert the top boot retainer in the underside of the body molding and
place the top boot over the lowered
convertible top.5. Insert the tabs of the top boot ends
into the slots on the quarter trims.
Check that the tabs and quarter
trims are engaged.6. Tuck the top boot edge behind therear seat belt slots and under the
quarter trims.

’03 SOLARA_U (L/O 0207)
352003 MY SOLARA (OM33573U)
7. Tuck the top boot edge under the
body moldings.8. Insert the top boot edge into thegutter behind the rear seatback.REMOVING THE TOP BOOT
1. Pull out the top boot edge from the gutter behind the rear seatback.
—Raising the convertible top

’03 SOLARA_U (L/O 0207)
362003 MY SOLARA (OM33573U)
2. Pull out the top boot edge from un-
der the body moldings.3. Pull out the top boot edge from be-hind the rear seat belt slots and un-
der the quarter trims.4. Pull out the tabs of the top bootends from the quarter trims.
