2003 TOYOTA SOLARA Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
52003 MY SOLARA (OM33573U)

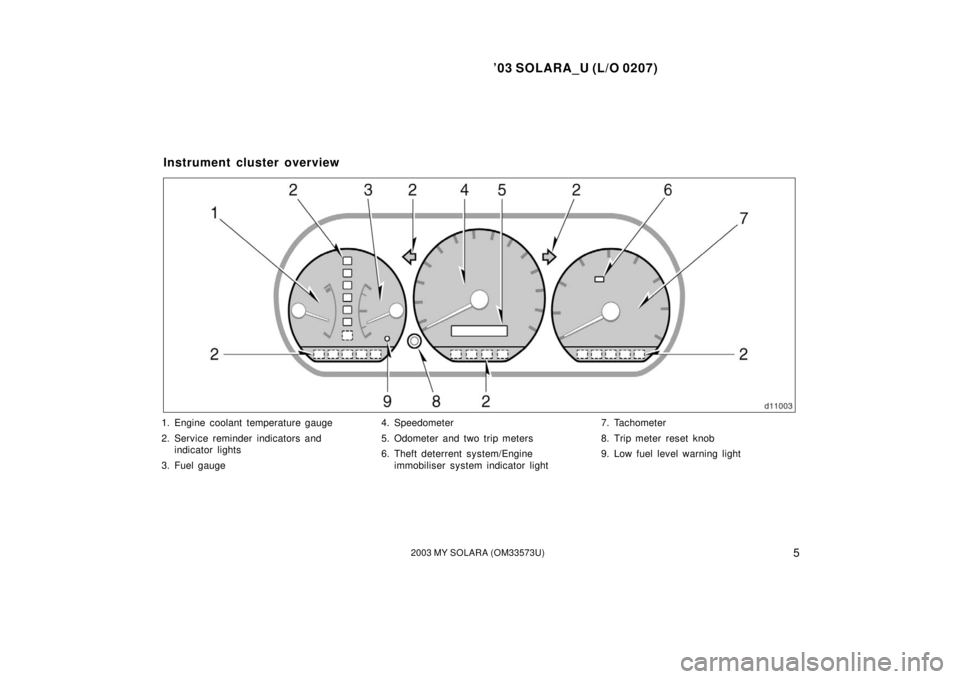

1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Fuel gauge 4. Speedometer
5. Odometer and two trip meters
6. Theft deterrent system/Engine
immobiliser system indicator light 7. Tachometer
8. Trip meter reset knob
9. Low fuel level warning light
Instrument cluster overview

’03 SOLARA_U (L/O 0207)
62003 MY SOLARA (OM33573U)
Brake system warning light∗
1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Antilock brake system warning light∗1
Open door warning light∗1
Rear light failure warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Traction control system off indicator/warning
light∗1
Front passenger ’s seat belt reminder light∗1
Overdriveoff indicator light
Headlight high beam indicator light Turn signal indicator lights
or
Automatic transmission indicator lights
Indicator symbols on the instrument panel

’03 SOLARA_U (L/O 0207)
72003 MY SOLARA (OM33573U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 15.
∗2: If this light flashes, see “Cruise control” in Section 16. Slip indicator light
Cruise control indicator light∗
2

’03 SOLARA_U (L/O 0207)
82003 MY SOLARA (OM33573U)

’03 SOLARA_U (L/O 0207)
92003 MY SOLARA (OM33573U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobiliser system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Convertible top 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 2

’03 SOLARA_U (L/O 0207)
102003 MY SOLARA (OM33573U)

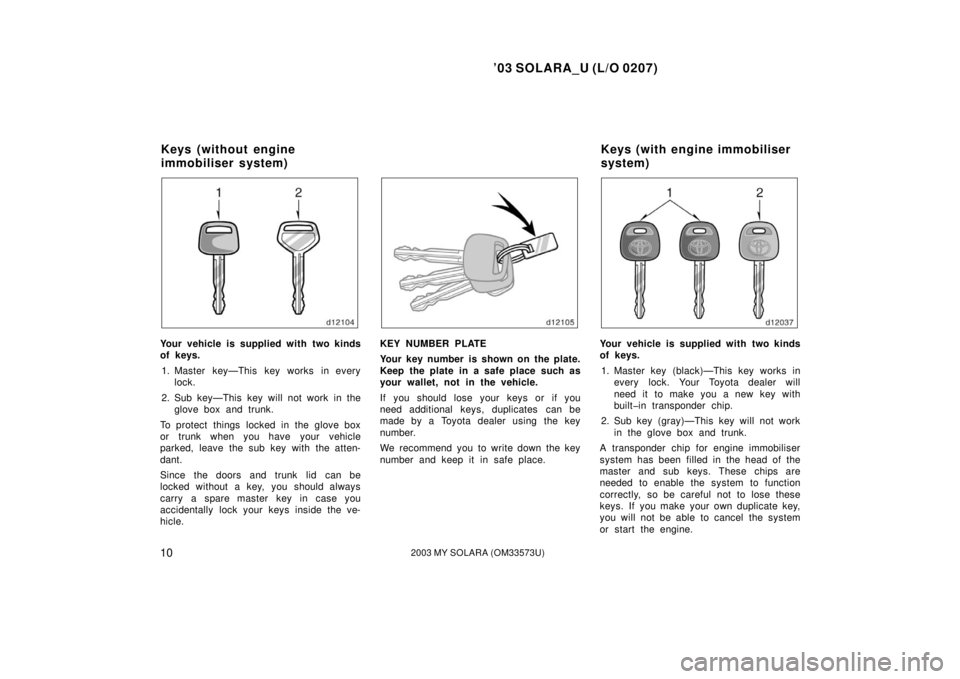

Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every lock.
2. Sub key—This key will not work in the glove box and trunk.
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys. 1. Master key (black)—This key works in every lock. Your Toyota dealer will
need it to make you a new key with
builtin transponder chip.
2. Sub key (gray)—This key will not work in the glove box and trunk.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system) Keys (with engine immobiliser
system)

’03 SOLARA_U (L/O 0207)
112003 MY SOLARA (OM33573U)
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.

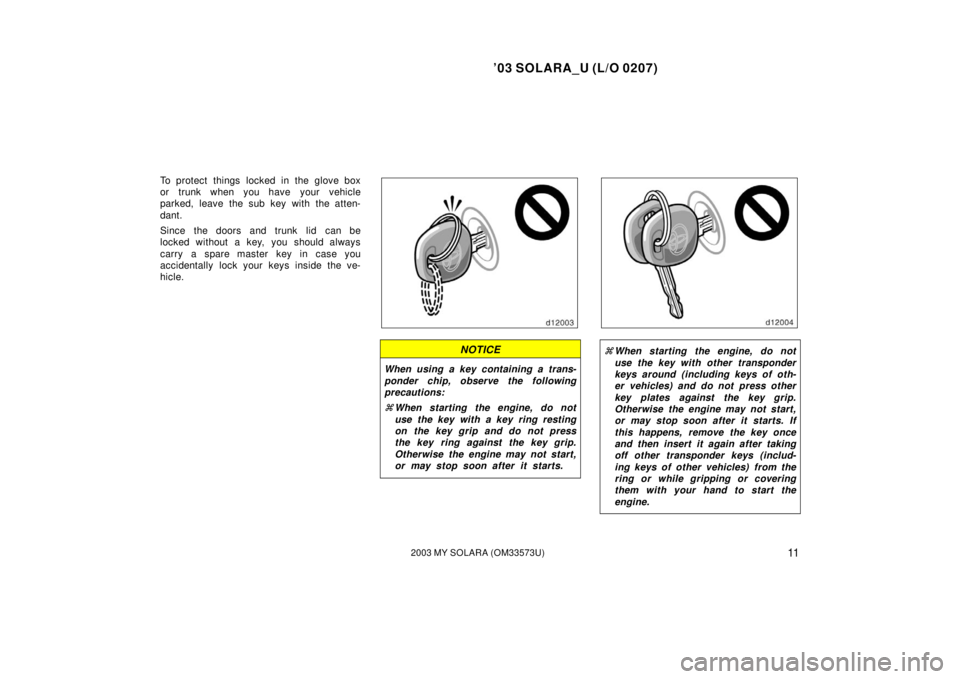

NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’03 SOLARA_U (L/O 0207)
122003 MY SOLARA (OM33573U)
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
