2003 TOYOTA SOLARA Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
2692003 MY SOLARA (OM33573U)

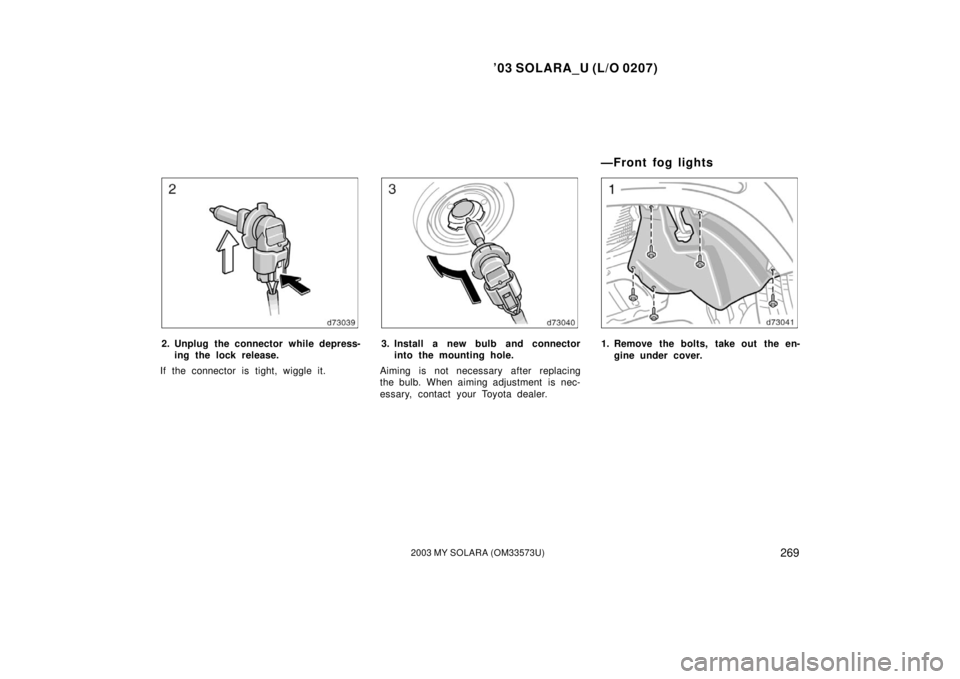

2. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Remove the bolts, take out the en- gine under cover.
—Front fog lights

’03 SOLARA_U (L/O 0207)
2702003 MY SOLARA (OM33573U)

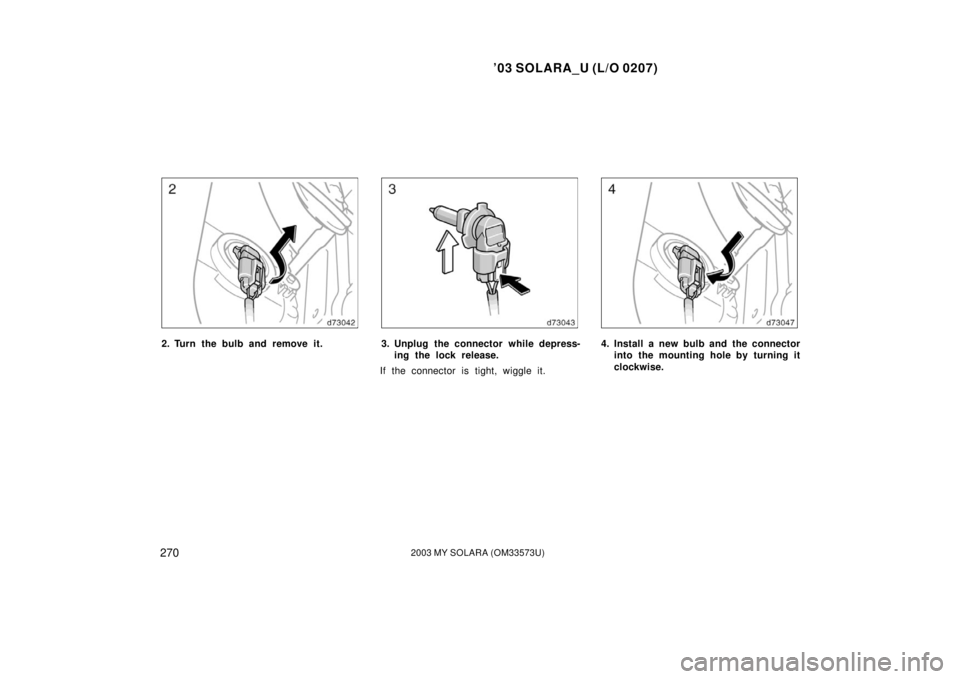

2. Turn the bulb and remove it.3. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.4. Install a new bulb and the connector into the mounting hole by turning it
clockwise.

’03 SOLARA_U (L/O 0207)
2712003 MY SOLARA (OM33573U)

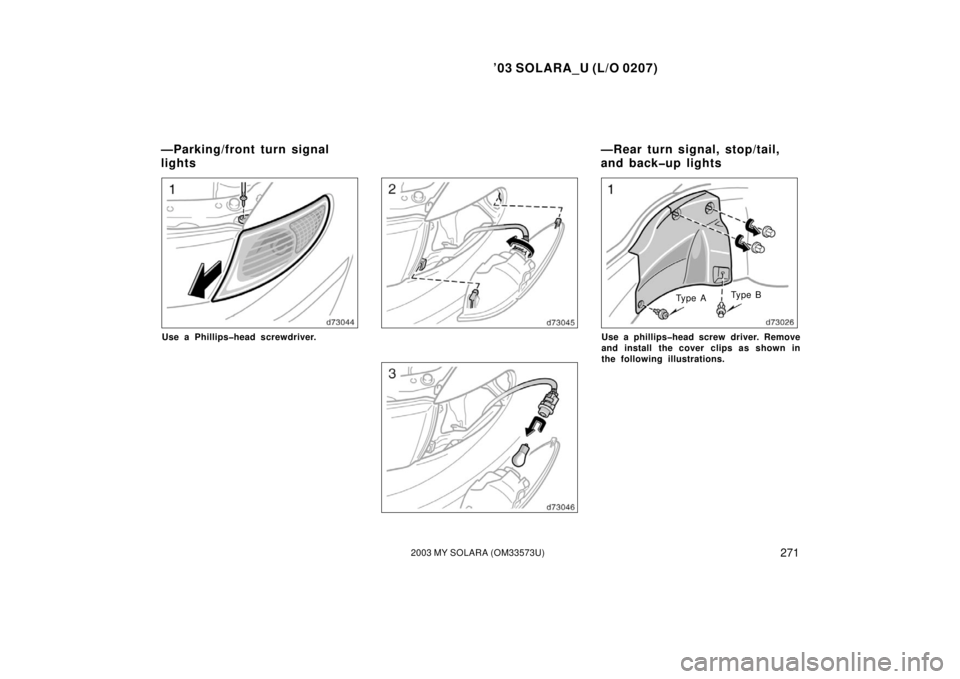

Use a Phillipshead screwdriver.
Ty p e ATy p e B
Use a phillipshead screw driver. Remove
and install the cover clips as shown in
the following illustrations.
—Parking/front turn signal
lights —Rear turn signal, stop/tail,
and backup lights

’03 SOLARA_U (L/O 0207)
2722003 MY SOLARA (OM33573U)

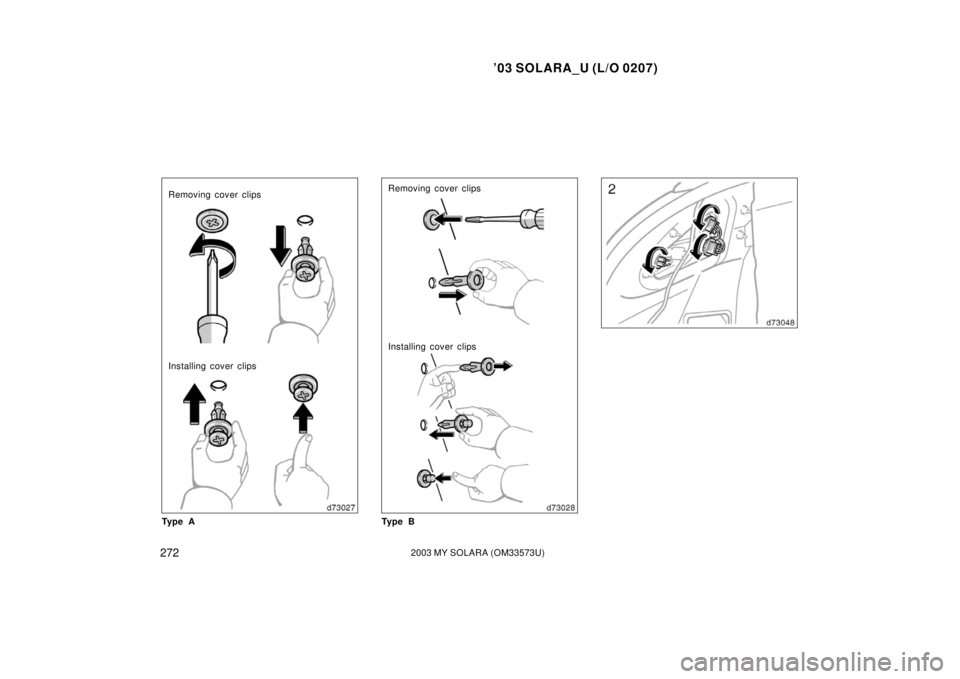

Removing cover clips
Installing cover clips
Ty p e ARemoving cover clips
Installing cover clips
Ty p e B

’03 SOLARA_U (L/O 0207)
2732003 MY SOLARA (OM33573U)

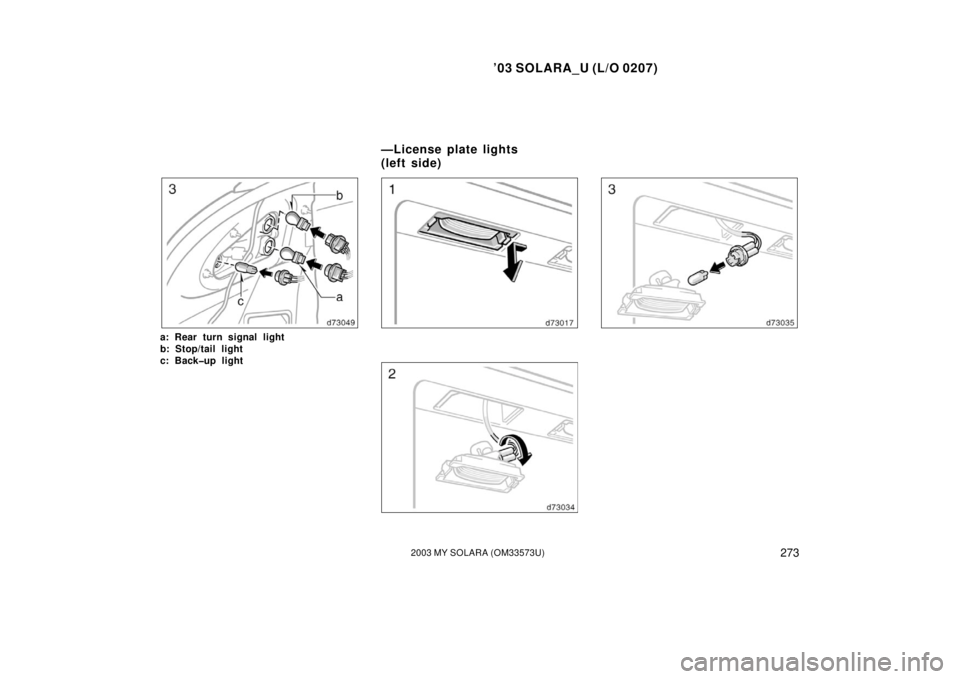

a: Rear turn signal light
b: Stop/tail light
c: Backup light
—License plate lights
( lef t sid e)

’03 SOLARA_U (L/O 0207)
2742003 MY SOLARA (OM33573U)

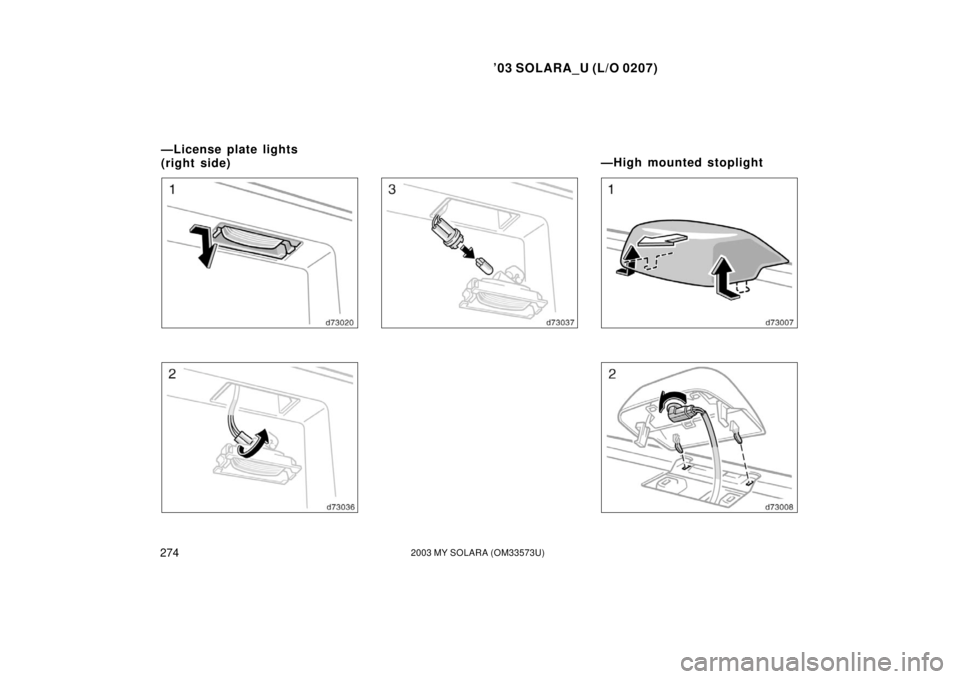

—License plate lights
(right side) —High mounted stoplight

’03 SOLARA_U (L/O 0207)
2752003 MY SOLARA (OM33573U)

’03 SOLARA_U (L/O 0207)
2762003 MY SOLARA (OM33573U)
