2003 TOYOTA SOLARA Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
852003 MY SOLARA (OM33573U)

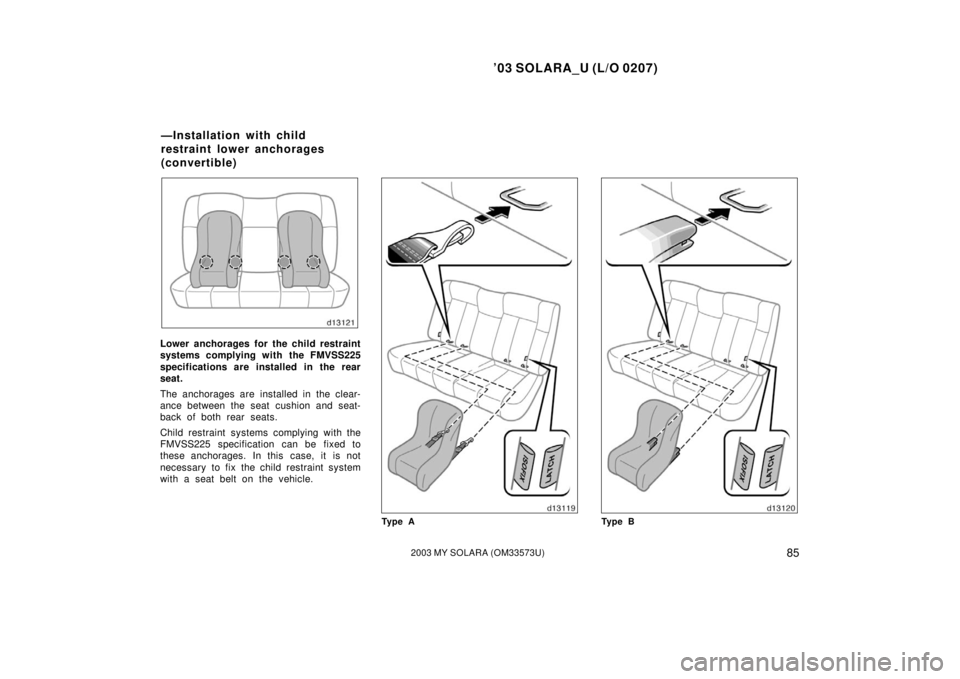

Lower anchorages for the child restraint
systems complying with the FMVSS225
specifications are installed in the rear
seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both rear seats.
Child restraint systems complying with the
FMVSS225 specification can be fixed to
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
Ty p e ATy p e B
—Installation with child
restraint lower anchorages
(convertible)

’03 SOLARA_U (L/O 0207)
862003 MY SOLARA (OM33573U)
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —
1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the tag on the
seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the tag on the
seatback.
2. Latch the buckles onto the anchor- ages.
For the installation details, refer to the
instruction manual equipped with each
product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages and
that the seat belt is not caught.
Push and pull the child restraint
system in different directions to
make sure it is secure. Follow all
the installation instructions pro-
vided by its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. This can cause death or
serious injury to a child and front
passenger in case of a sudden

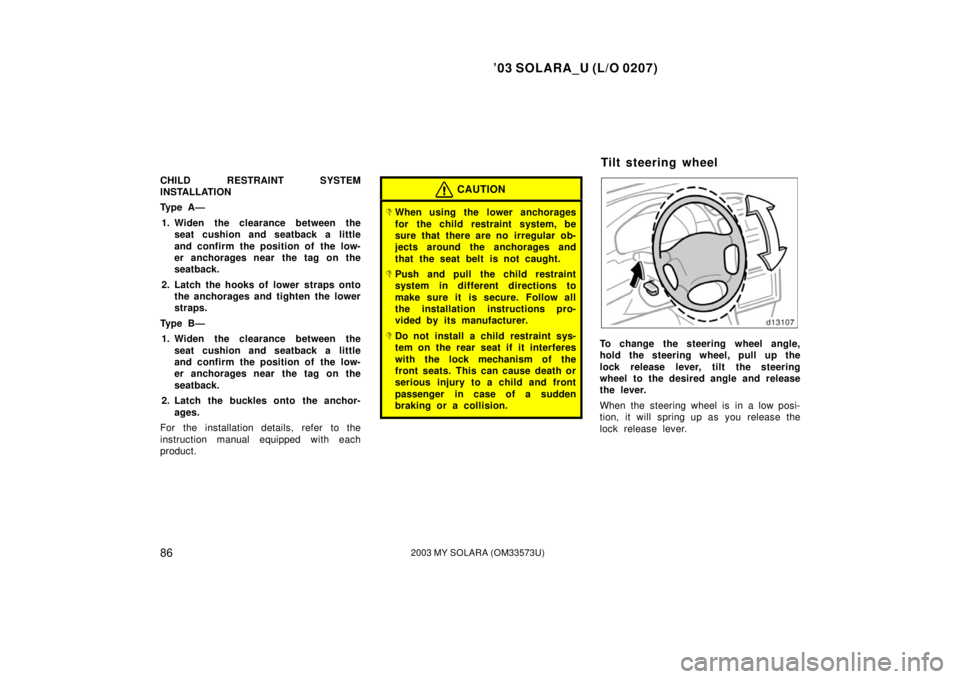

braking or a collision.To change the steering wheel angle,
hold the steering wheel, pull up the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
Tilt steering wheel

’03 SOLARA_U (L/O 0207)
872003 MY SOLARA (OM33573U)
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.

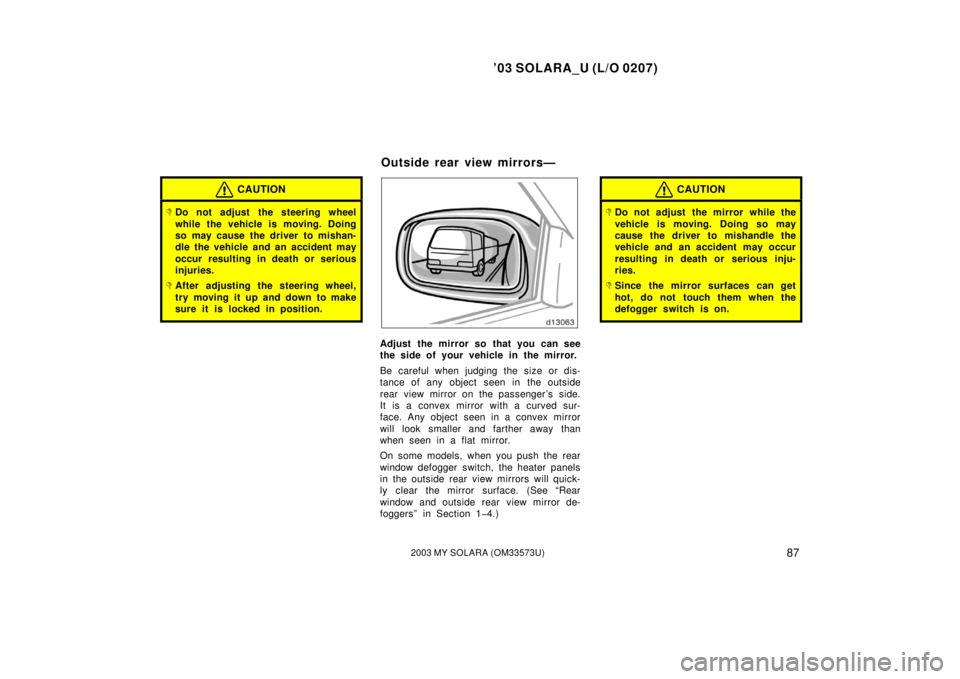

Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface. (See “Rear
window and outside rear view mirror de-
foggers” in Section 14.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, do not touch them when the
defogger switch is on.
Outside rear view mirrors—

’03 SOLARA_U (L/O 0207)
882003 MY SOLARA (OM33573U)
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Place the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrap the mir-
ror face. Use a spray deicer to free
the mirror.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
—Power rear view mirror
control Antiglare inside rear view
mirror

’03 SOLARA_U (L/O 0207)
892003 MY SOLARA (OM33573U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.

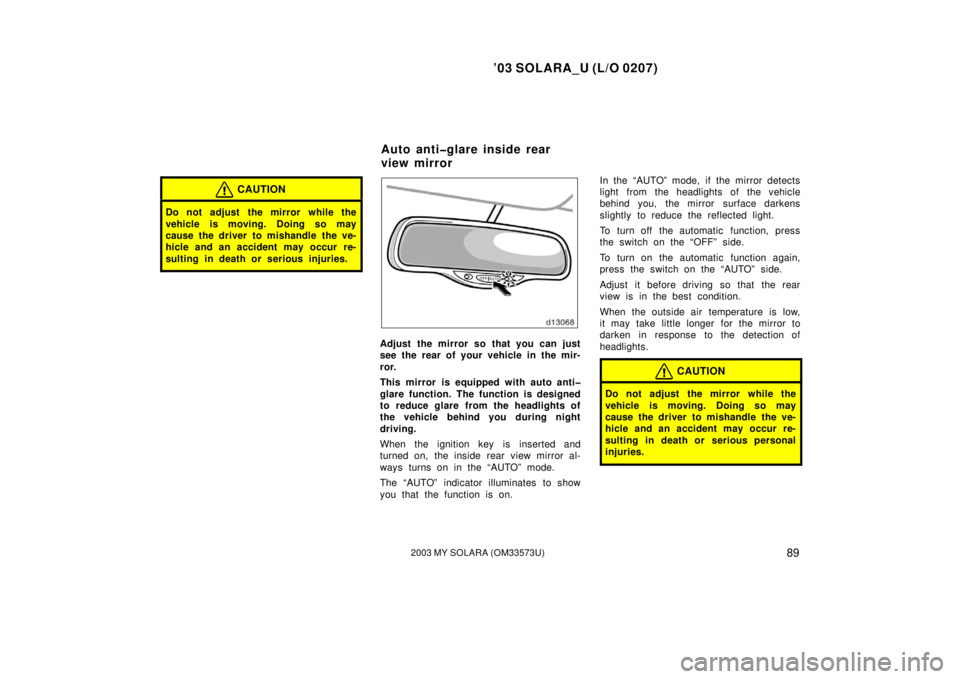

This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the “AUTO” mode.
The “AUTO” indicator illuminates to show
you that the function is on. In the “AUTO” mode, if the mirror detects
light from the headlights of the vehicle
behind you, the mirror surface darkens
slightly to reduce the reflected light.
To turn off the automatic function, press
the switch on the “OFF” side.
To turn on the automatic function again,
press the switch on the “AUTO” side.
Adjust it before driving so that the rear
view is in the best condition.
When the outside air temperature is low,
it may take little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious personal
injuries.
Auto antiglare inside rear
view mirror

’03 SOLARA_U (L/O 0207)
902003 MY SOLARA (OM33573U)

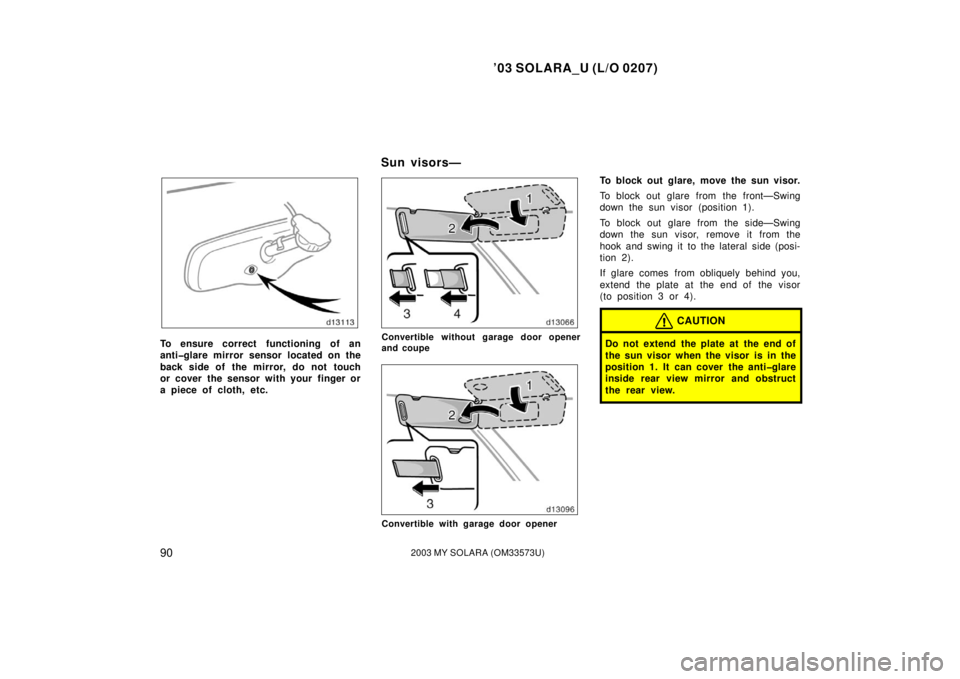

To ensure correct functioning of an
antiglare mirror sensor located on the
back side of the mirror, do not touch
or cover the sensor with your finger or
a piece of cloth, etc.Convertible without garage door opener
and coupe
Convertible with garage door opener
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3 or 4).
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
Sun visors—

’03 SOLARA_U (L/O 0207)
912003 MY SOLARA (OM33573U)

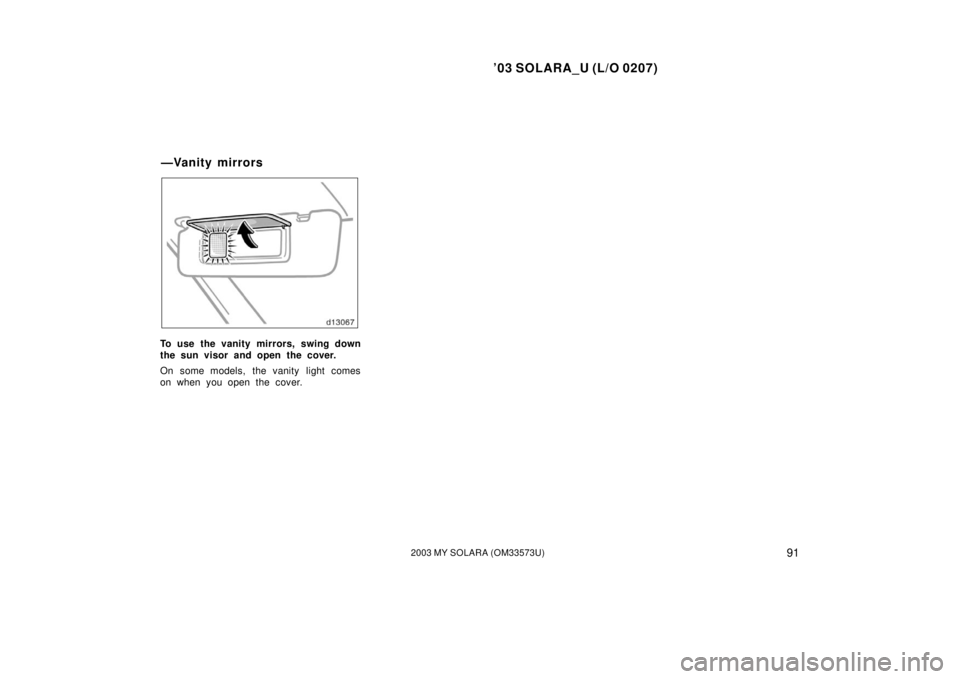

To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
—Vanity mirrors

’03 SOLARA_U (L/O 0207)
922003 MY SOLARA (OM33573U)
