2003 TOYOTA SOLARA Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
452003 MY SOLARA (OM33573U)
(A) FOLDING REAR SEAT
1. Pull up the seatback security lock lever 1 to the unlock position.
2. Pull up the lock release button 2.
3. Fold down the seatback.
Each seatback can be folded separately.
This will enlarge the trunk as far as the
front seatbacks. See “ Luggage stowage
precautions” in Section 2 for precautions
in loading luggage.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.(B) PREVENTING DAMAGE TO REAR CENTER SEAT BELT WEBBING
When folding down the left seatback, if
the luggage loaded in the enlarged
trunk will damage the webbing of the
rear center seat belt, disconnect the
rear center seat belt to prevent damage. 1. Insert the tab 1 or tab of the outside seat belt into the bucklerelease but-
ton to release the tab 2, and allow
the belt to retract.
Folddown rear seat

’03 SOLARA_U (L/O 0207)
462003 MY SOLARA (OM33573U)
CAUTION
Disconnect the rear center seat belt
only under the above mentioned cir-
cumstances; do not disconnect it in
other circumstances.
2. Allow the belt to fully retract and
insert tabs 1 and 2 into the slot.3. After returning the seatback to theupright position, make sure to cor-
rectly connect the center seat belt
for ready use.
Insert tab 2 into the buckle 3.
You will hear a click when the tab locks
into the buckle.

’03 SOLARA_U (L/O 0207)
472003 MY SOLARA (OM33573U)
CAUTION
Be careful not to mix up the proper
match of tab and buckle. (See “Seat
belts” in this section for proper
matching of the buckles and tabs.)
After inserting the tab, make sure
the tab and buckle are locked.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
Make sure the belt is not twisted or
caught in the seatback and that it
is arranged in the proper position
for ready use.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
To turn on the seat heater, push the
switch.
At this time, the indicator light will illu-
minate to indicate the seat heater is
operating.
The key must be in the “ON” position.
Push the switch once again to turn the
seat heater off.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or handicapped
persons
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Seat heaters

’03 SOLARA_U (L/O 0207)
482003 MY SOLARA (OM33573U)
NOTICE
Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
You can also move the head restraint for-
ward or backward. If such adjustment is
desired, pull or push the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Head restraints

’03 SOLARA_U (L/O 0207)
492003 MY SOLARA (OM33573U)
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Seat belts—
—Seat belt precautions

’03 SOLARA_U (L/O 0207)
502003 MY SOLARA (OM33573U)
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See “Cleaning the interior”
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

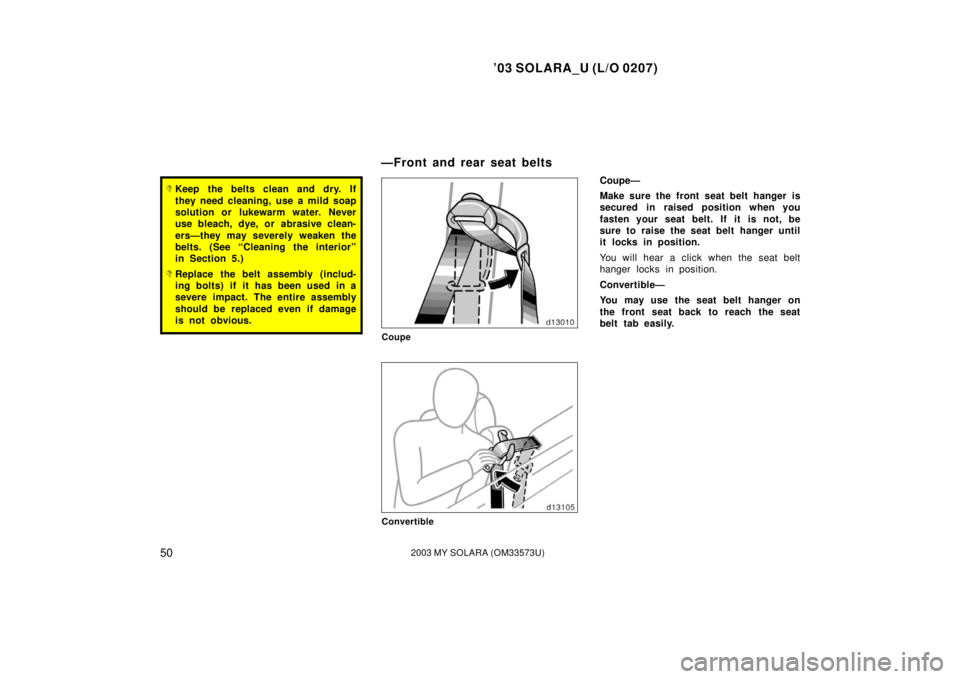

Coupe
Convertible
Coupe—
Make sure the front seat belt hanger is
secured in raised position when you
fasten your seat belt. If it is not, be
sure to raise the seat belt hanger until
it locks in position.
You will hear a click when the seat belt
hanger locks in position.
Convertible—
You may use the seat belt hanger on
the front seat back to reach the seat
belt tab easily.
—Front and rear seat belts

’03 SOLARA_U (L/O 0207)
512003 MY SOLARA (OM33573U)

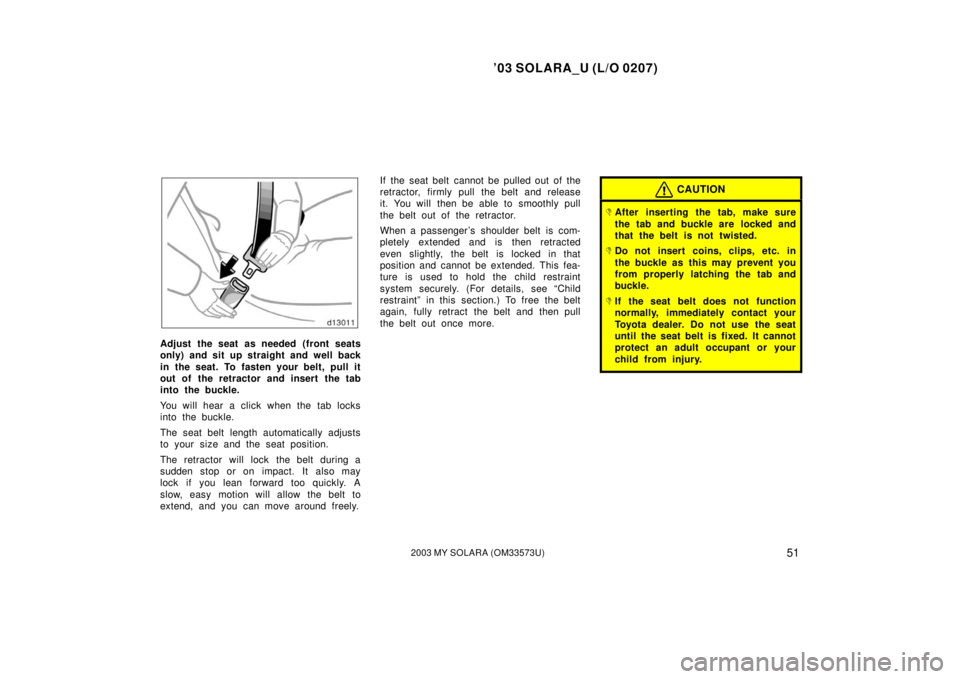

Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.

’03 SOLARA_U (L/O 0207)
522003 MY SOLARA (OM33573U)
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on hips
as possible.
For your safety, do not place the
shoulder belt under your arm.
To release the belt, press the bucklere-
lease button and allow the belt to re-
tract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.
