2003 TOYOTA SOLARA Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
1572003 MY SOLARA (OM33573U)
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

’03 SOLARA_U (L/O 0207)
1582003 MY SOLARA (OM33573U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

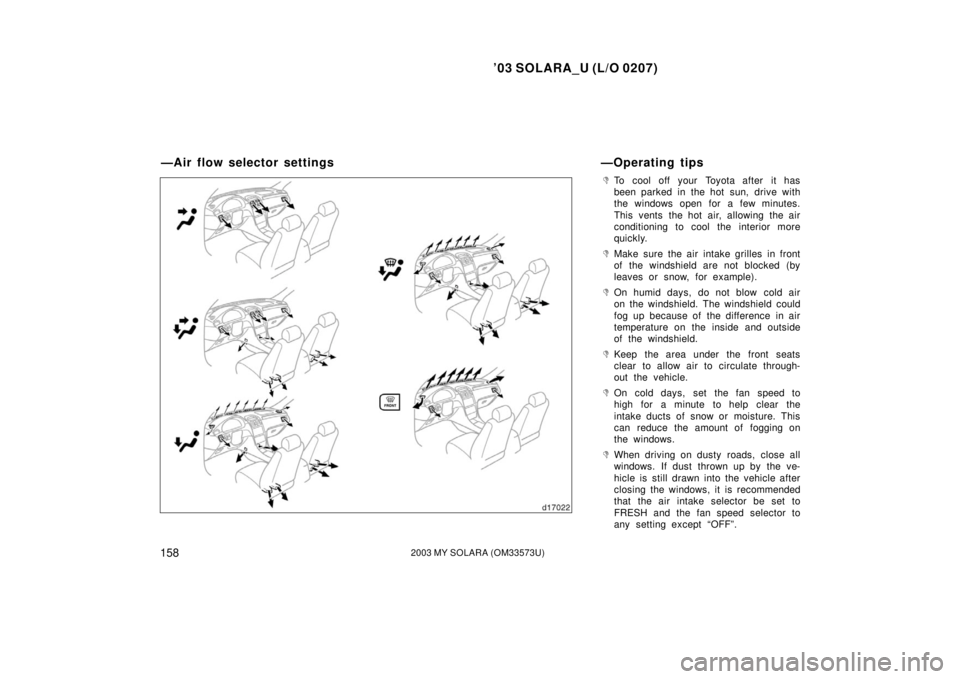

—Air flow selector settings—Operating tips

’03 SOLARA_U (L/O 0207)
1592003 MY SOLARA (OM33573U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
Heating
For best results, set controls to:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.
Air conditioning
For best results, set controls to:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—ON
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
(to the left)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.
Ventilation
For best results, set controls to:
For automatic operation—
Press in the “AUTO” button.
Temperature— To w a r d s COLD
(to the left)
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
(to the left)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF

’03 SOLARA_U (L/O 0207)
1602003 MY SOLARA (OM33573U)
Defogging and defrosting—
—The inside of the windshield
For best results, set controls to:
For automatic operation—
Temperature— To w a r d s WARM
(to the right) to heat;
COLD (to the left) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
(to the right) to heat;
COLD (to the left) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air intake
selector button once again. Pressing the windshield button turns on
the defrosterlinked air conditioning. At
this time, the “A/C” button indicator comes
on regardless of whether or not the “A/C”
button is pressed in. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
—The outside of the windshield
For best results, set controls to:
For automatic operation—
Temperature— To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air intake
selector button once again.
Pressing the windshield button turns on
the defrosterlinked air conditioning. At
this time, the “A/C” button indicator comes
on regardless of whether or not the “A/C”
button is pressed in. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

’03 SOLARA_U (L/O 0207)
1612003 MY SOLARA (OM33573U)
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
Side vents

’03 SOLARA_U (L/O 0207)
1622003 MY SOLARA (OM33573U)

’03 SOLARA_U (L/O 0207)
1632003 MY SOLARA (OM33573U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature gauge 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Garage door opener box 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary box 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Cup holder 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Floor mat 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

’03 SOLARA_U (L/O 0207)
1642003 MY SOLARA (OM33573U)

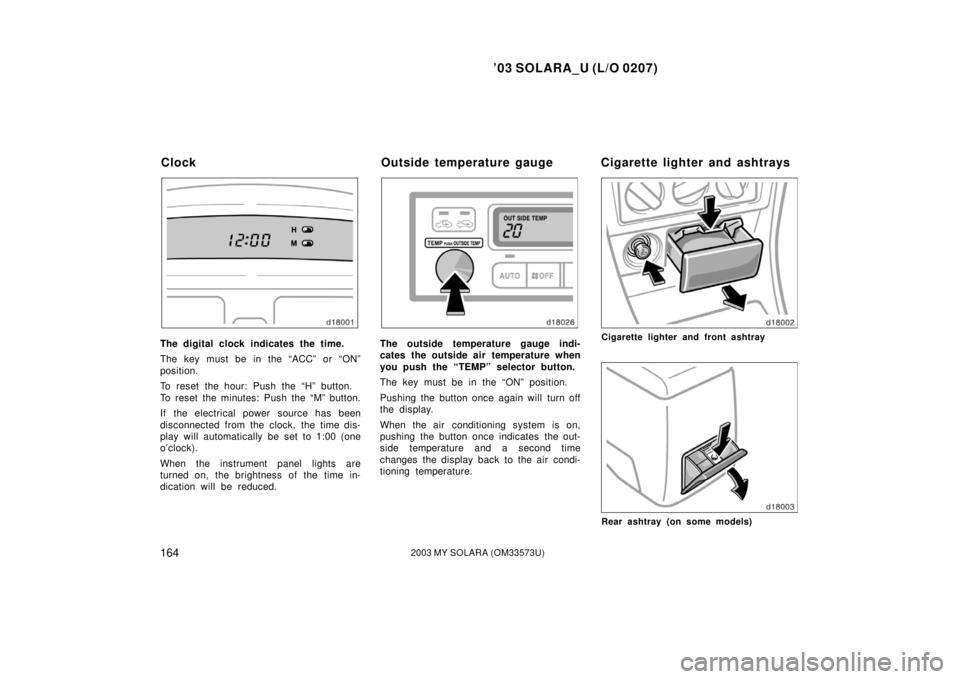

The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.The outside temperature gauge indi-
cates the outside air temperature when
you push the “TEMP” selector button.
The key must be in the “ON” position.
Pushing the button once again will turn off
the display.
When the air conditioning system is on,
pushing the button once indicates the out-
side temperature and a second time
changes the display back to the air condi-
tioning temperature.Cigarette lighter and front ashtray
Rear ashtray (on some models)
Clock Outside temperature gauge Cigarette lighter and ashtrays
