2003 TOYOTA SOLARA Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
372003 MY SOLARA (OM33573U)

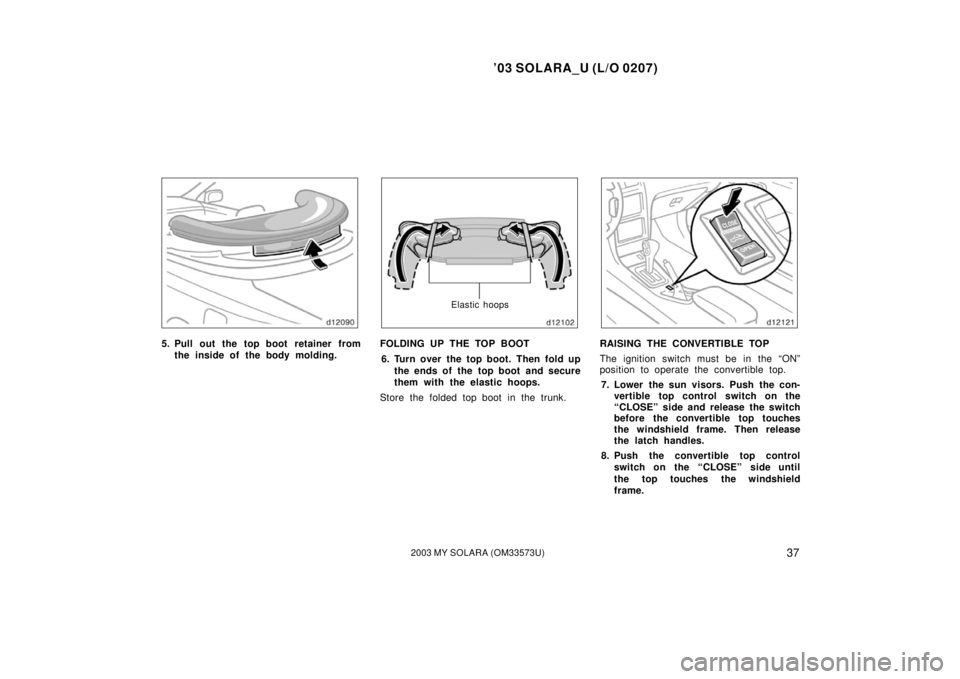

5. Pull out the top boot retainer from
the inside of the body molding.
Elastic hoops
FOLDING UP THE TOP BOOT
6. Turn over the top boot. Then fold up the ends of the top boot and secure
them with the elastic hoops.
Store the folded top boot in the trunk.RAISING THE CONVERTIBLE TOP
The ignition switch must be in the “ON”
position to operate the convertible top. 7. Lower the sun visors. Push the con- vertible top control switch on the
“CLOSE” side and release the switch
before the convertible top touches
the windshield frame. Then release
the latch handles.
8. Push the convertible top control switch on the “CLOSE” side until
the top touches the windshield
frame.

’03 SOLARA_U (L/O 0207)
382003 MY SOLARA (OM33573U)
The side windows go partially down and
quarter windows go completely down when
the windows are closed and the convert-
ible top control switch is operated on the
“CLOSE” side.
If the convertible top does not raise, see
“If the convertible top does not raise or
lower” in Section 4 for instructions.

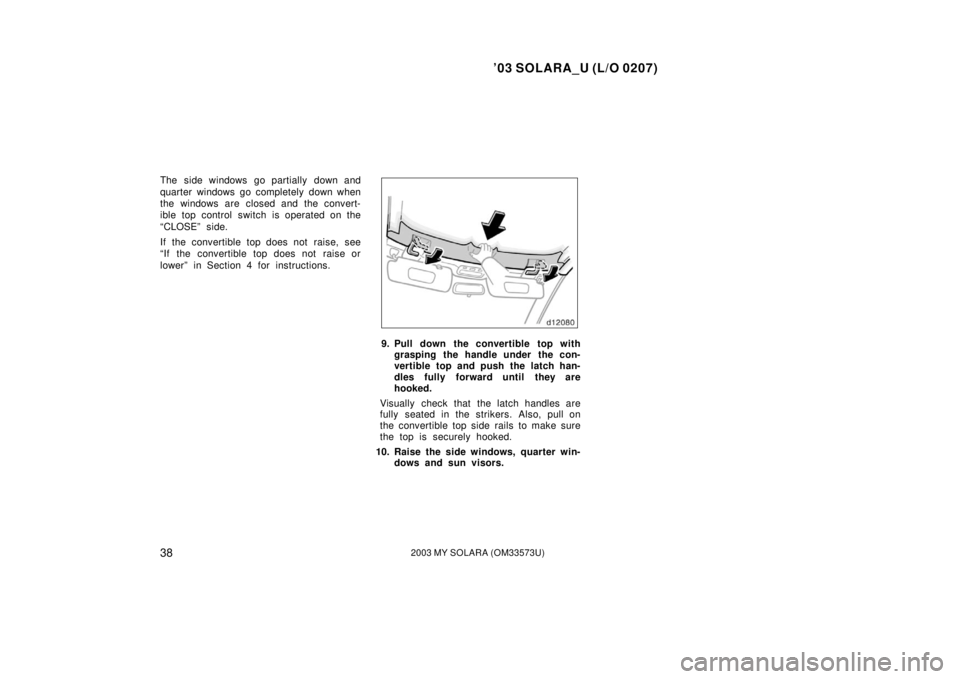

9. Pull down the convertible top with
grasping the handle under the con-
vertible top and push the latch han-
dles fully forward until they are
hooked.
Visually check that the latch handles are
fully seated in the strikers. Also, pull on
the convertible top side rails to make sure
the top is securely hooked.
10. Raise the side windows, quarter win- dows and sun visors.

’03 SOLARA_U (L/O 0207)
392003 MY SOLARA (OM33573U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Folddown rear seat 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Seat heaters 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 57
. . . . . . . . . . . . . . . . . . .
SRS side airbags 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Child restraint 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Antiglare inside rear view mirror 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto antiglare inside rear view mirror 89
. . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 3

’03 SOLARA_U (L/O 0207)
402003 MY SOLARA (OM33573U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

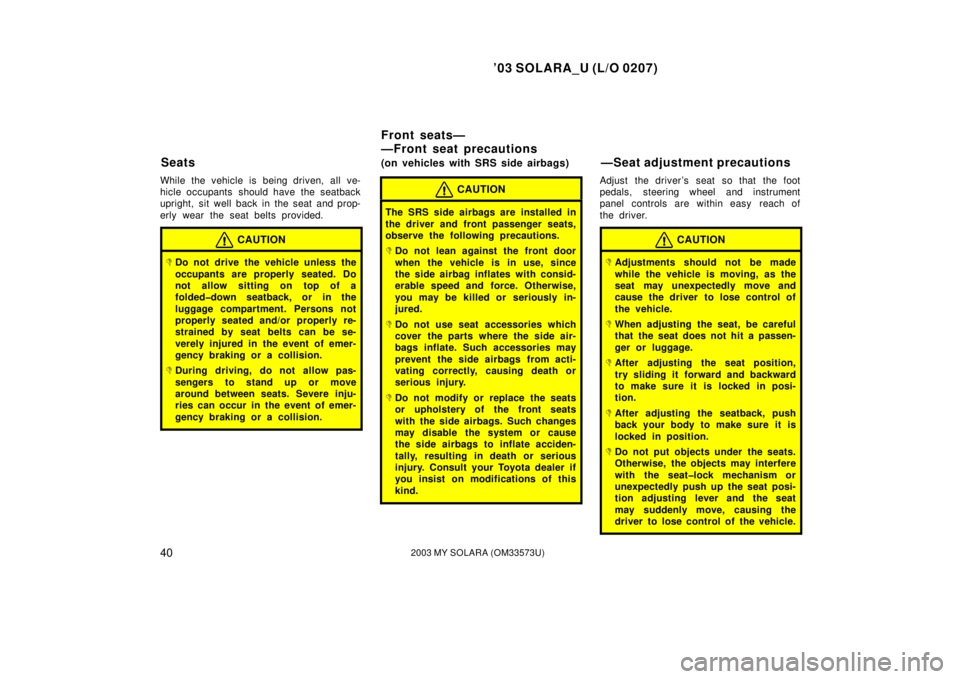

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
foldeddown seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats,
observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the front seats
with the side airbags. Such changes
may disable the system or cause
the side airbags to inflate acciden-
tally, resulting in death or serious
injury. Consult your Toyota dealer if
you insist on modifications of this
kind.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
Seats Front seats—
—Front seat precautions (on vehicles with SRS side airbags)—Seat adjustment precautions

’03 SOLARA_U (L/O 0207)
412003 MY SOLARA (OM33573U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, you
may catch and injure your hands or
fingers.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. DRIVER’S SEAT LUMBAR SUPPORT ADJUSTING LEVER
Pull the lever upward or forward.
3. DRIVER’S SEAT CUSHION ANGLE ADJUSTING KNOB (FOR FRONT)
Turn the knob either way. 4. DRIVER’S SEAT CUSHION ANGLE ADJUSTING KNOB (FOR REAR)
Turn the knob either way.
5. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

’03 SOLARA_U (L/O 0207)
422003 MY SOLARA (OM33573U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.

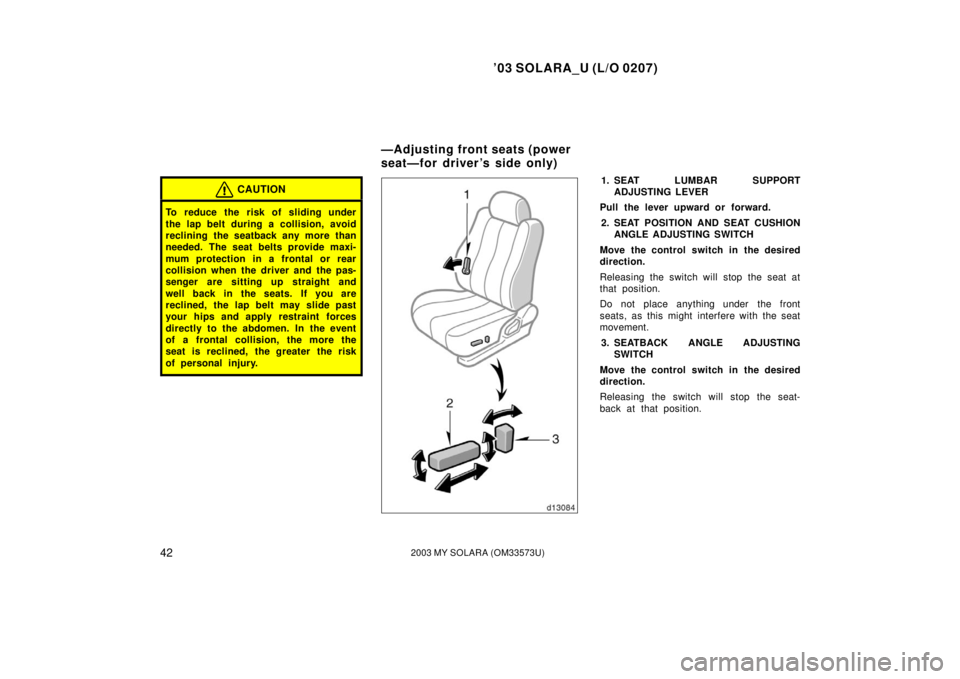

1. SEAT LUMBAR SUPPORT
ADJUSTING LEVER
Pull the lever upward or forward.
2. SEAT POSITION AND SEAT CUSHION ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 3. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat—for driver ’s side only)

’03 SOLARA_U (L/O 0207)
432003 MY SOLARA (OM33573U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.

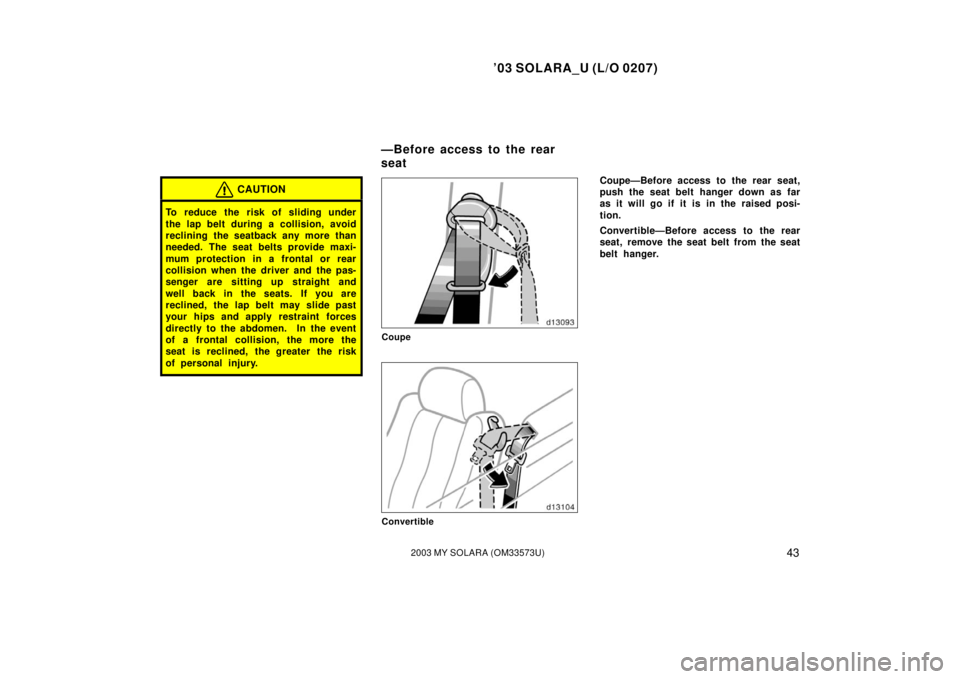

Coupe
Convertible
Coupe—Before access to the rear seat,
push the seat belt hanger down as far
as it will go if it is in the raised posi-
tion.
Convertible—Before access to the rear
seat, remove the seat belt from the seat
belt hanger.
—Before access to the rear
seat

’03 SOLARA_U (L/O 0207)
442003 MY SOLARA (OM33573U)

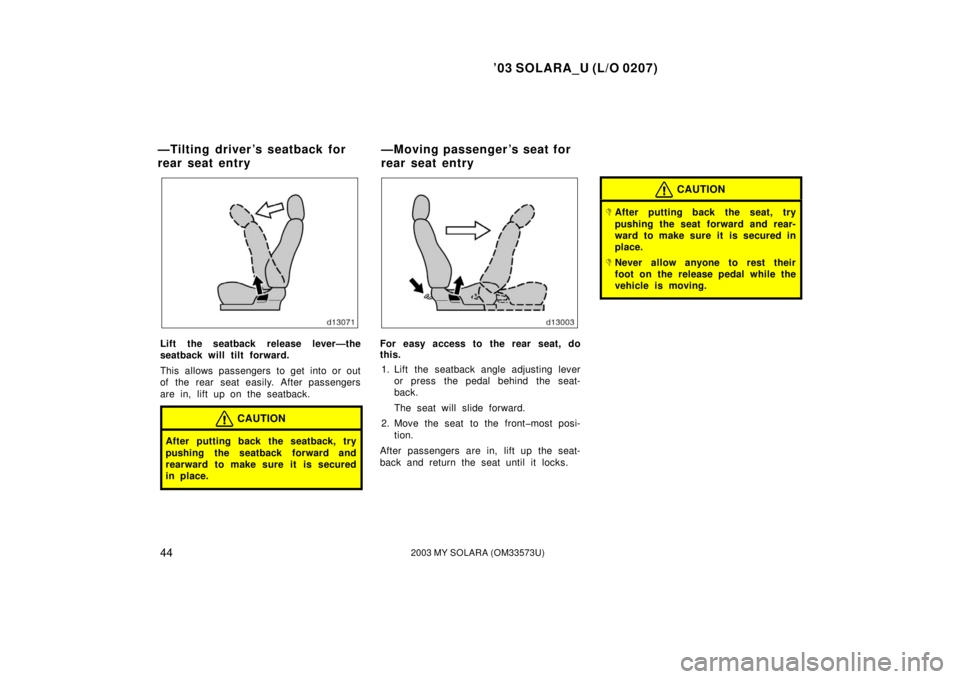

Lift the seatback release lever—the
seatback will tilt forward.
This allows passengers to get into or out
of the rear seat easily. After passengers
are in, lift up on the seatback.
CAUTION
After putting back the seatback, try
pushing the seatback forward and
rearward to make sure it is secured
in place.
For easy access to the rear seat, do
this.
1. Lift the seatback angle adjusting lever or press the pedal behind the seat-
back.
The seat will slide forward.
2. Move the seat to the frontmost posi- tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Never allow anyone to rest their
foot on the release pedal while the
vehicle is moving.
—Tilting driver ’s seatback for
rear seat entry —Moving passenger ’s seat for
rear seat entry
