EC-84
[QR]
TROUBLE DIAGNOSIS

INT/A TEMP SE
[°C] or [°F]××
The intake air temperature (determined by
the signal voltage of the intake air tempera-
ture sensor) is indicated.
START SIGNAL
[ON/OFF]××

Indicates start signal status [ON/OFF] com-
puted by the ECM according to the signals
of engine speed and battery voltage.
After starting the engine, [OFF] is dis-
played regardless of the starter sig-
nal.
CLSD THL POS
[ON/OFF]××

Indicates idle position [ON/OFF] computed
by ECM according to the accelerator pedal
position sensor signal.
AIR COND SIG
[ON/OFF]××

Indicates [ON/OFF] condition of the air con-
ditioner switch as determined by the air
conditioner signal.
P/N POSI SW
[ON/OFF]××

Indicates [ON/OFF] condition from the park/
neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××

[ON/OFF] condition of the power steering
system (determined by the power steering
pressure sensor signal) is indicated.
LOAD SIGNAL
[ON/OFF]××

Indicates [ON/OFF] condition from the elec-
trical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF]×

Indicates [ON/OFF] condition from ignition
switch.
HEATER FAN SW
[ON/OFF]×

Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]×

Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1
[msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
When the engine is stopped, a cer-
tain computed value is indicated.
IGN TIMING [BTDC]×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a cer-
tain value is indicated.
PURG VOL C/V [%]

Indicates the EVAP canister purge volume
control solenoid valve control value com-
puted by the ECM according to the input
signals.

The opening becomes larger as the value
increases.
INT/V TIM (B1) [°CA]

Indicates [°CA] of intake camshaft
advanced angle.
INT/V SOL (B1) [%]

The control value of the intake valve timing
control solenoid valve (determined by ECM
according to the input signal) is indicated.

The advance angle becomes larger as the
value increases
AIR COND RLY
[ON/OFF]×

The air conditioner relay control condition
(determined by ECM according to the input
signals) is indicated. Monitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

TROUBLE DIAGNOSIS
EC-85
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.FUEL PUMP RLY
[ON/OFF]×

Indicates the fuel pump relay control condi-
tion determined by ECM according to the
input signals.
THRTL RELAY
[ON/OFF]×

Indicates the throttle control motor relay
control condition determined by the ECM
according to the input signals.
COOLING FAN
[HI/MID/LOW/OFF]

The control condition of the cooling fan
(determined by ECM according to the input
signals) is indicated.
HI... High speed operation
MID... Middle speed operation
LOW... Low speed operation
OFF... Stop
HO2S1 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated
oxygen sensor 1 heater determined by
ECM according to the input signals.
HO2S2 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated
oxygen sensor 2 heater determined by
ECM according to the input signals.
VEHICLE SPEED
[km/h] or [MPH]×

The vehicle speed computed from the vehi-
cle speed signal sent from TCM is dis-
played.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume
learning
YET: Idle air volume learning has not been
performed yet.
CMPLT: Idle air volume learning has
already been performed successfully.
O2SEN HTR DTY
[%]

Indicates the heated oxygen sensor 1
heater control value computed by the ECM
according to the input signals.
AC PRESS SEN [V]

The signal voltage from the refrigerant
pressure sensor is displayed.
Voltage [V]

Voltage, frequency, duty cycle or pulse
width measured by the probe.

Only “#” is displayed if item is unable
to be measured.

Figures with “#”s are temporary ones.
They are the same figures as an
actual piece of data which was just
previously measured. Frequency
[msec], [Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOWMonitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

EC-86
[QR]
TROUBLE DIAGNOSIS

DATA MONITOR (SPEC) MODE
Monitored Item
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
Monitored item [Unit]ECM
INPUT
SIGNALSMAIN
SIGNALSDescription Remarks
ENG SPEED [rpm]×

Indicates the engine speed computed
from the signals of the crankshaft posi-
tion sensor (POS) and camshaft position
sensor (PHASE).
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow
sensor specification is displayed.
When engine is running specification
range is indicated.
B/FUEL SCHDL
[msec]

“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.

When engine is running specification
range is indicated.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.
When engine is running specification
range is indicated.

This data also includes the data for the
air-fuel ratio learning control.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION

Engine: Return to the original
trouble condition

Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Fuel injector

Heated oxygen sensor 1
IGNITION TIM-
ING

Engine: Return to the original
trouble condition

Timing light: Set

Retard the ignition timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Perform Idle Air Volume Learning.
POWER BAL-
ANCE

Engine: After warming up, idle
the engine.

Air conditioner switch OFF

Shift lever: P or N

Cut off each fuel injector signal
one at a time using CONSULT-II.Engine runs rough or dies.

Harness and connectors

Compression

Fuel injector

Power transistor

Spark plug

Ignition coil
COOLING FAN*

Ignition switch: ON

Turn the cooling fan LOW, MID,
HI, OFF with CONSULT-II.Cooling fan moves and stops.

Harness and connectors

Cooling fan motor

IPDM E/R
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector
FUEL PUMP
RELAY

Ignition switch: ON (Engine
stopped)

Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the operat-
ing sound.
Harness and connectors

Fuel pump relay

EC-90
[QR]
TROUBLE DIAGNOSIS

CONSULT-II Reference Value in Data Monitor ModeBBS005C9
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indica-
tion.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-95, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-95, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1 See EC-95, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S

Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)

Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S2 (B1)

Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no load0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)

Engine: After warming upMaintaining engine speed at 2,000
rpmLEAN ←→ RICH
Changes more than 5 times dur-
ing 10 seconds.
HO2S2 MNTR (B1)

Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no loadLEAN ←→ RICH
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication.
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.65 - 0.87V
Accelerator pedal: Fully depressed More than 4.3V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.56 - 0.96V
Accelerator pedal: Fully depressed More than 4.0V
THRTL SEN 1
THRTL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V

Shift lever: D Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS

Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly
depressedOFF
AIR COND SIG

Engine: After warming up, idle the
engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW

Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF
PW/ST SIGNAL

Engine: After warming up, idle the
engineSteering wheel: Not being turned OFF
Steering wheel: Being turned ON

EC-92
[QR]
TROUBLE DIAGNOSIS

*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminal voltage signal.COOLING FAN

Engine: After warming up, idle the
engine

Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F)LOW
Engine coolant temperature is
100°C (212°F) or moreHIGH

Engine: After warming up, idle the
engine

Air conditioner switch: ON

Refrigerant pressure is less than
1,280 kPa (12.80 bar, 13.05 kg/
cm2, 185.6 psi)Engine coolant temperature is 94°C
(201°F) or lessLOW
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F)MID
Engine coolant temperature is
100°C (212°F) or moreHIGH
HO2S1 HTR (B1)

Engine: After warming up

Engine speed: Below 3,600 rpmON

Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)

Engine speed: Below 3,800 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no load.ON

Engine speed: Above 3,800 rpm OFF
VEHICLE SPEED

Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication
O2SEN HTR DTY

Engine coolant temperature when engine started: More than 80°C
(176°F)

Engine speed: below 3,600 rpmApprox. 50%
AC PRESS SEN

Engine: Idle

Both A/C switch and blower fan switch: ON (Compressor operates)1.0 - 4.0V MONITOR ITEM CONDITION SPECIFICATION

TROUBLE DIAGNOSIS
EC-93
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

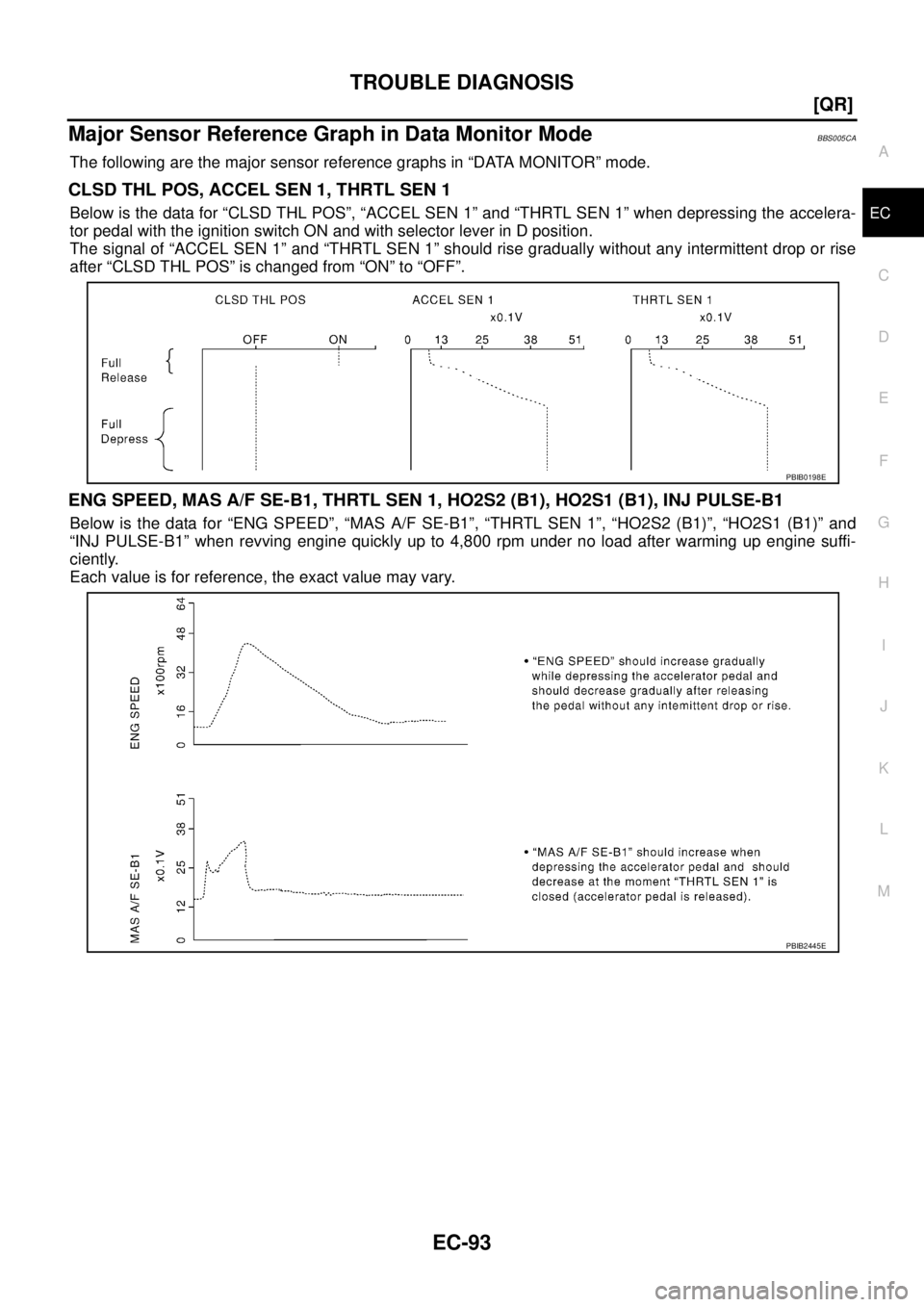

Major Sensor Reference Graph in Data Monitor ModeBBS005CA
The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch ON and with selector lever in D position.
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.
ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1
Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)”, “HO2S1 (B1)” and
“INJ PULSE-B1” when revving engine quickly up to 4,800 rpm under no load after warming up engine suffi-
ciently.
Each value is for reference, the exact value may vary.
PBIB0198E
PBIB2445E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-95
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionBBS005CB
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MI.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionBBS005CC

Vehicle driven distance: More than 5,000 km (3,107 miles)

Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30°C (68 - 86°F)

Engine coolant temperature: 75 - 95°C (167 - 203°F)

Engine speed: Idle

Transmission: Warmed-up
–After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID TEMP SE” (A/T
fluid temperature sensor signal) indicates more than 60°C (140°F).

Electrical load: Not applied
–Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureBBS005CD
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-40, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-
B1” in “DATA MONITOR (SPEC)” mode with CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-96, "
Diagnostic Procedure" .
SEF601Z

EC-100
[QR]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

10. DETECT MALFUNCTIONING PART
1. Check the following.
–Ignition coil and its circuit (Refer to EC-329, "IGNITION SIGNAL" .)
–Fuel injector and its circuit (Refer to EC-289, "FUEL INJECTOR" .)
–Intake air leakage
–Low compression pressure (Refer to EM-65, "CHECKING COMPRESSION PRESSURE" .)
2. If NG, repair or replace the malfunctioning part.
If OK, replace fuel injector. (It may be caused by leakage from fuel injector or clogging.)
>> GO TO 11.
11 . CHECK “A/F ALPHA-B1”
1. Start engine.
2. Select “A/F ALPHA-B1” in “DATA MONITOR (SPEC)” mode, and make sure that the each indication is
within the SP value.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
12. CHECK HEATED OXYGEN SENSOR 1 FUNCTION
1. Run engine at about 2,000 rpm for about 2 minutes under no load.
2. Select “HO2S1 MNTR (B1)”, in “DATA MONITOR” mode.
3. Running engine at 2,000 rpm under no load (The engine is
warmed up to normal operating temperature.), check that the
monitor fluctuates between LEAN and RICH more than 5 times
during 10 seconds.
OK or NG
OK >> GO TO 15.
NG >> GO TO 13.
13. CHECK HEATED OXYGEN SENSOR 1 CIRCUIT
Check heated oxygen sensor 1 and its circuit. (Refer to EC-143, "
DTC P0132 HO2S1" .)
>> GO TO 14.
14. CHECK “A/F ALPHA-B1”
1. Start engine.
2. Select “A/F ALPHA-B1” in “DATA MONITOR (SPEC)” mode, and make sure that the each indication is
within the SP value.
OK or NG
OK >>INSPECTION END
NG >> GO TO 15.1 time : RICH → LEAN → RICH
2 times : RICH → LEAN → RICH → LEAN → RICH
SEF820Y
