ON BOARD DIAGNOSTIC (OBD) SYSTEM

*1: 1st trip DTC No. is the same as DTC No.
*2: In Diagnostic Test Mode II (Self-diagnostic results).
*3: The troubleshooting for this DTC needs CONSULT-II.
*4: When engine is running.
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DTC number) is displayed for the latest self-diagnostic
result obtained. If the ECM memory was cleared previously, and the 1st trip DTC did not reoccur, the 1st trip
DTC will not be displayed.
If a malfunction is detected during the 1st trip, the 1st trip DTC is stored in the ECM memory. The MI will not
light up (two trip detection logic). If the same malfunction is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are stored in the ECM memory and the MI lights up. In other words,
the DTC is stored in the ECM memory and the MI lights up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
TP SEN 2/CIRC P0123 0123 1×EC-136
HO2S1 (B1) P0132 0132 2×EC-143
HO2S1 (B1) P0134 0134 2×EC-150
TP SEN 1/CIRC P0222 0222 1×EC-157
TP SEN 1/CIRC P0223 0223 1×EC-157
KNOCK SEN/CIRC-B1 P0327 0327 2 —EC-164
KNOCK SEN/CIRC-B1 P0328 0328 2 —EC-164
CKP SEN/CIRCUIT P0335 0335 2×EC-169
CMP SEN/CIRC-B1 P0340 0340 2×EC-176
VEH SPEED SEN/CIRC P0500 0500 2×EC-183
PW ST P SEN/CIRC P0550 0550 2 —EC-185
ECM P0605 0605 1 or 2× or —EC-190
ECM BACK UP/CIRCUIT P1065 1065 2×EC-193
ETC ACTR P1121 1121 1×EC-197
ETC FUNCTION/CIRC P1122 1122 1×EC-200
ETC MOT PWR P1124 1124 1×EC-207
ETC MOT PWR P1126 1126 1×EC-207
ETC MOT P1128 1128 1×EC-213
ENG OVER TEMP P1217 1217 1×EC-218
CTP LEARNING P1225 1225 2 —EC-229
CTP LEARNING P1226 1226 2 —EC-231
SENSOR POWER/CIRC P1229 1229 1×EC-233
NATS MALFUNCTION P1610 - P1615 1610 - 1615 2 —EC-32
P-N POS SW/CIRCUIT P1706 1706 2×EC-238
V/SP SEN (A/T OUT) P1720 1720 2 —EC-243
BRAKE SW/CIRCUIT P1805 1805 1×EC-245
APP SEN 1/CIRC P2122 2122 1×EC-251
APP SEN 1/CIRC P2123 2123 1×EC-251
APP SEN 2/CIRC P2127 2127 1×EC-258
APP SEN 2/CIRC P2128 2128 1×EC-258
TP SENSOR P2135 2135 1×EC-265
APP SENSOR P2138 2138 1×EC-272
Items
(CONSULT-II screen terms)DTC*1
Trip MIReference
page
CONSULT-II
ECM*2

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-37
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

When there is an open circuit on MI circuit, the ECM can not warn the driver by lighting up MI when there is
trouble on engine control system.
Therefore, when Electrical controlled throttle and part of the ECM related diagnoses are continuously detected
as NG for 5-trips, ECM warns the driver that engine control system has trouble and MI circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands the
driver to repair the trouble.
MI Flashing without DTC
If the ECM is in Diagnostic Test Mode II, MI may flash when engine is running. In this case, check ECM diag-
nostic test mode. EC-37, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .
How to switch the diagnostic test (function) modes, and details of the above functions are described later, EC-
37 .
The following emission-related diagnostic information is cleared when the ECM memory is erased.

Diagnostic trouble codes

1st trip diagnostic trouble codes

Freeze frame data

1st trip freeze frame data

Others
HOW TO SWITCH DIAGNOSTIC TEST MODE
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.
Diagnostic Test
ModeKEY and ENG.
StatusFunction Explanation of Function
Mode I Ignition switch in
ON position
Engine stoppedBULB CHECK This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit.
Engine running MALFUNCTION
WARNINGThis is a usual driving condition. When a malfunction is
detected twice in two consecutive driving cycles (two trip
detection logic), the MI will light up to inform the driver that
a malfunction has been detected.
The following malfunctions will light up or blink the MI in
the 1st trip.

One trip detection diagnoses
Mode II Ignition switch in
ON position
Engine stoppedSELF-DIAGNOSTIC
RESULTSThis function allows DTCs and 1st trip DTCs to be read.
Engine running HEATED OXYGEN SENSOR 1
MONITORThis function allows the fuel mixture condition (lean or
rich), monitored by heated oxygen sensor 1, to be read.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

EC-38
[QR]
ON BOARD DIAGNOSTIC (OBD) SYSTEM


Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.

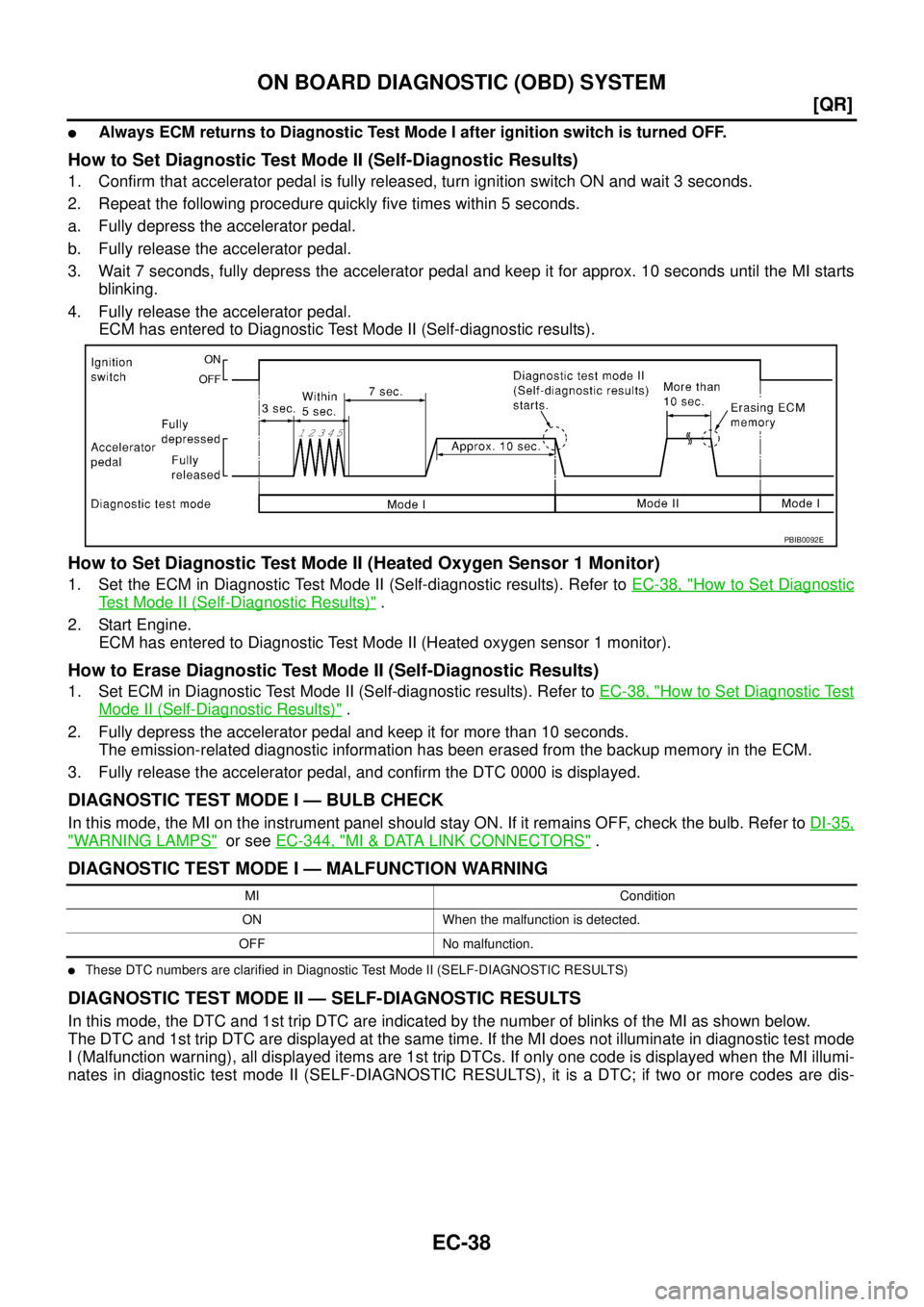

How to Set Diagnostic Test Mode II (Self-Diagnostic Results)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MI starts
blinking.
4. Fully release the accelerator pedal.
ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
How to Set Diagnostic Test Mode II (Heated Oxygen Sensor 1 Monitor)
1. Set the ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-38, "How to Set Diagnostic
Test Mode II (Self-Diagnostic Results)" .
2. Start Engine.
ECM has entered to Diagnostic Test Mode II (Heated oxygen sensor 1 monitor).
How to Erase Diagnostic Test Mode II (Self-Diagnostic Results)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-38, "How to Set Diagnostic Test
Mode II (Self-Diagnostic Results)" .
2. Fully depress the accelerator pedal and keep it for more than 10 seconds.
The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
DIAGNOSTIC TEST MODE I — BULB CHECK
In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to DI-35,
"WARNING LAMPS" or see EC-344, "MI & DATA LINK CONNECTORS" .
DIAGNOSTIC TEST MODE I — MALFUNCTION WARNING

These DTC numbers are clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
DIAGNOSTIC TEST MODE II — SELF-DIAGNOSTIC RESULTS
In this mode, the DTC and 1st trip DTC are indicated by the number of blinks of the MI as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MI does not illuminate in diagnostic test mode
I (Malfunction warning), all displayed items are 1st trip DTCs. If only one code is displayed when the MI illumi-
nates in diagnostic test mode II (SELF-DIAGNOSTIC RESULTS), it is a DTC; if two or more codes are dis-
PBIB0092E
MI Condition
ON When the malfunction is detected.
OFF No malfunction.

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-39
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

played, they may be either DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These unidentified
codes can be identified by using the CONSULT-II. A DTC will be used as an example for how to read a code.
A particular trouble code can be identified by the number of four-digit numeral flashes. The “zero” is indicated
by the number of ten flashes. The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds
consisting of an ON (0.6-second) - OFF (0.6-second) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classified by their DTC numbers. The DTC 0000 refers to no mal-
function. (See EC-10, "
INDEX FOR DTC" )
How to Erase Diagnostic Test Mode II (Self-Diagnostic Results)
The DTC can be erased from the back up memory in the ECM by depressing accelerator pedal. Refer to EC-
37, "HOW TO SWITCH DIAGNOSTIC TEST MODE" .

If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.

Be careful not to erase the stored memory before starting trouble diagnoses.
DIAGNOSTIC TEST MODE II — HEATED OXYGEN SENSOR 1 MONITOR
In this mode, the MI displays the condition of the fuel mixture (lean or rich) which is monitored by the heated
oxygen sensor 1.
*: Maintains conditions just before switching to open loop.
To check the heated oxygen sensor 1 function, start engine in the Diagnostic Test Mode II and warm it up until
engine coolant temperature indicator points to the middle of the gauge.
Next run engine at about 2,000 rpm for about 2 minutes under no-load conditions. Then make sure that the MI
comes ON more than 5 times within 10 seconds with engine running at 2,000 rpm under no-load.
PBIA3905E
MI Fuel mixture condition in the exhaust gas Air fuel ratio feedback control condition
ON Lean
Closed loop system
OFF Rich
*Remains ON or OFF Any condition Open loop system

EC-42
[QR]
BASIC SERVICE PROCEDURE

6. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-47, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes >> GO TO 7.
No >> 1. Follow the instruction of Idle Air Volume Learning.
2. GO TO 4.
7. CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Refer to EC-45, "
IDLE SPEED" .
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
Refer to EC-45, "
IDLE SPEED" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the Following.

Check camshaft position sensor (PHASE) and circuit. Refer to EC-176 .

Check crankshaft position sensor (POS) and circuit. Refer to EC-169 .
OK or NG
OK >> GO TO 9.
NG >> 1. Repair or replace.
2. GO TO 4.
9. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-139,
"NATS(Nissan Anti-Theft System)" .
>> GO TO 4. 700 ± 50 rpm (in P or N position)
700 ± 50 rpm (in P or N position)

BASIC SERVICE PROCEDURE
EC-45
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

17. DETECT MALFUNCTIONING PART
Check the following.

Check camshaft position sensor (PHASE) and circuit. Refer to EC-176 .

Check crankshaft position sensor (POS) and circuit. Refer to EC-169 .
OK or NG
OK >> GO TO 18.
NG >> 1. Repair or replace.
2. GO TO 4.
18. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-139,
"NATS(Nissan Anti-Theft System)" .
>> GO TO 4.
Idle Speed and Ignition Timing CheckBBS005BU

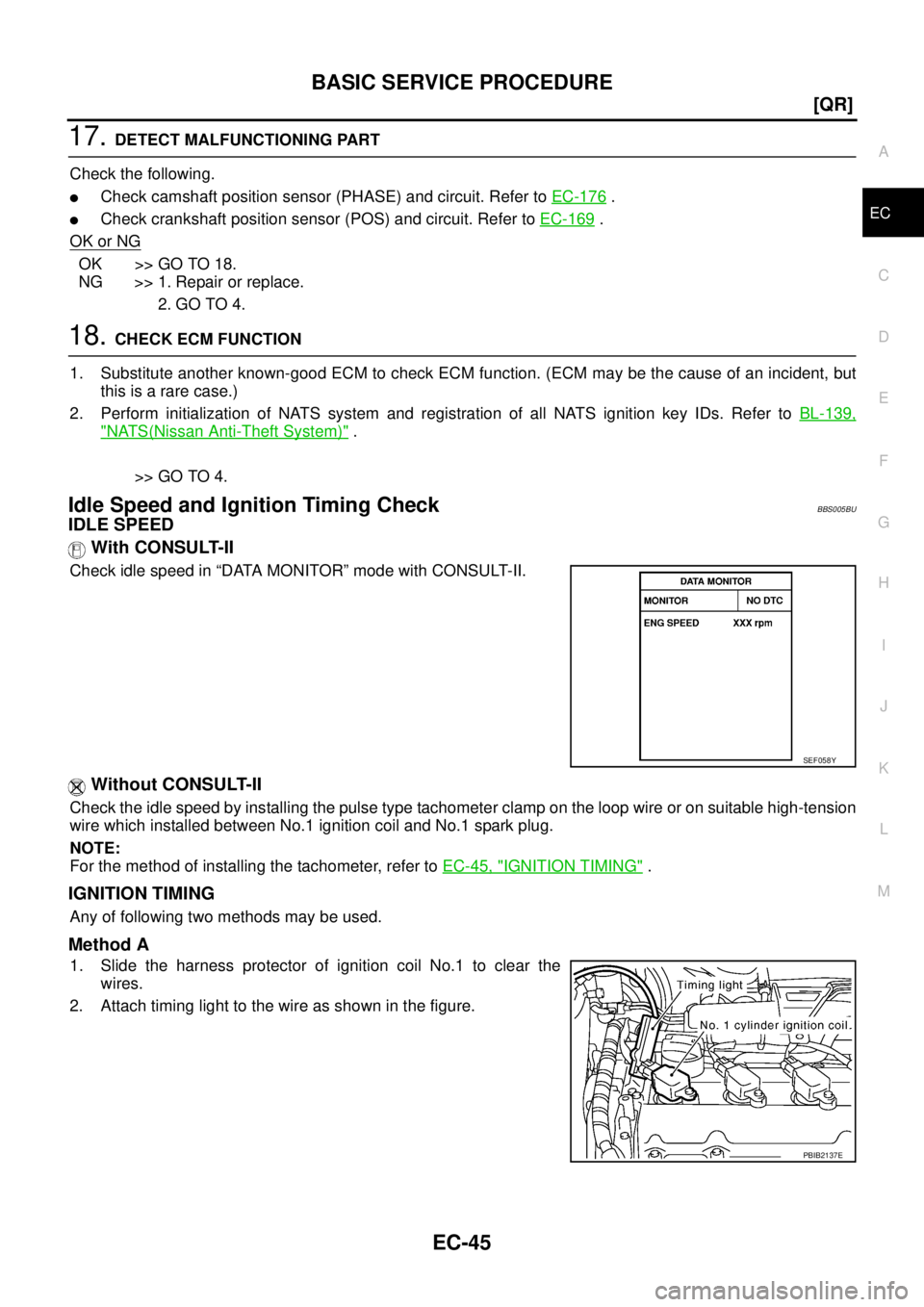

IDLE SPEED
With CONSULT-II
Check idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check the idle speed by installing the pulse type tachometer clamp on the loop wire or on suitable high-tension
wire which installed between No.1 ignition coil and No.1 spark plug.
NOTE:
For the method of installing the tachometer, refer to EC-45, "
IGNITION TIMING" .
IGNITION TIMING
Any of following two methods may be used.
Method A
1. Slide the harness protector of ignition coil No.1 to clear the
wires.
2. Attach timing light to the wire as shown in the figure.
SEF058Y
PBIB2137E

BASIC SERVICE PROCEDURE
EC-47
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. Check ignition timing.
Procedure After Replacing ECMBBS005KR
When replacing ECM, the following procedure must be performed.
1. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-142, "
ECM
Re-Communicating Function" .
2. Perform EC-47, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
Throttle Valve Closed Position Learning" .
4. Perform EC-47, "
Idle Air Volume Learning" .
Accelerator Pedal Released Position LearningBBS005BV
DESCRIPTION
Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
Throttle Valve Closed Position LearningBBS005BW
DESCRIPTION
Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
Idle Air Volume LearningBBS005BX
DESCRIPTION
Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:

Each time electric throttle control actuator or ECM is replaced.

Idle speed or ignition timing is out of specification.
PREPARATION
Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.

Battery voltage: More than 12.9V (At idle)

Engine coolant temperature: 70 - 95°C (158 - 203°F)
PBIB2177E

EC-48
[QR]
BASIC SERVICE PROCEDURE


PNP switch: ON

Electric load switch: OFF
(Air conditioner, head lamp, rear window defogger)

Steering wheel: Neutral (Straight-ahead position)

Vehicle speed: Stopped

Transmission: Warmed-up
With CONSULT-II: Drive vehicle until “FLUID TEMP SE” in “DATA MONITOR” mode of “A/T” system indi-
cates less than 0.9V.
Without CONSULT-II: Drive vehicle for 10 minutes.
OPERATION PROCEDURE
With CONSULT-II
1. Perform EC-47, "Accelerator Pedal Released Position Learning" .
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
6. Touch “START” and wait 20 seconds.
7. Make sure that “CMPLT” is displayed on CONSULT-II screen. If
“CMPLT” is not displayed, Idle Air Volume Learning will not be
carried out successfully. In this case, find the cause of the inci-
dent by referring to the DIAGNOSTIC PROCEDURE below.
8. Rev up the engine two or three times and make sure that idle
speed and ignition timing are within the specifications.
Without CONSULT-II
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.
SEF217Z
SEF454Y
ITEM SPECIFICATION
Idle speed 700±50 rpm (in P or N position)
Ignition timing 15±5° BTDC (in P or N position)
MBIB0238E
