2003 NISSAN TEANA engine

AV-86
INTEGRATED COLOR DISPLAY SYSTEM

OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “MUTE” button, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self-diagnosis mode is started, a short beep will be heard.)
4. The initial diagnosis screen is displayed.
5. The item of “DCU Failure Diagnosis” and “DCU Confirmation”
can be selected.

Select each item with “FM” button and “AM” button of A/C and
AV switch, and then determine by “CD·CHG” button.

When pressing “3 RANDOM” button of A/C and AV switch,
return to the previous screen.
SKIB8825E
SKIB0829E
SKIB1985E

INTEGRATED COLOR DISPLAY SYSTEM
AV-95
C
D
E
F
G
H
I
J
L
MA
B
AV

Vehicle Width and Distance Guiding Line CorrectionBKS00282
DESCRIPTION
CONSULT-II is used to modify the guiding lines of the width of vehicle and the distance from rear end of vehi-
cle on the rear view monitor when these lines are derated from the actual width and/or distance, because of
rear view camera replacement, etc.
VEHICLE WIDTH AND DISTANCE GUIDING LINE CORRECTION PROCEDURE
1. Create a correction line to modify the guiding lines inside moni-
tors. Draw lines on the rearward area of the vehicle passing
through the following points: 250 mm (9.84 in) from both sides of
the vehicle, and 0.5 m (1.64 ft), 1 m (3.28 ft), 2 m (6.56 ft), and 3
m (9.84 ft) from the rear end of the bumper.
2. Connect CONSULT-II and CONSULT-II CONVERTER, and then
touch “REARVIEW CAMERA” on “SELECT SYSTEM” screen.
WARNING:
Correct the guiding line with the engine stopped for safety.
3. Shift selector lever to R position.
SKIB4106E
BCIA0030E
SKIA6103E

BL-2 Check Door Lock Actuator Output Signal ............... 39
Check Door Lock Actuator Circuit .......................... 40
(DRIVER SIDE AND REAR LH) .......................... 40
(PASSENGER SIDE AND REAR RH) ................. 41
Check Door Unlock Sensor .................................... 42
FUEL FILLER LID OPENER ..................................... 44
Component Part and Harness Connector Location ... 44
Wiring Diagram –F/LID– ......................................... 45
REMOTE KEYLESS ENTRY SYSTEM ..................... 46
Component Parts and Harness Connector Location ... 46
System Description ................................................. 46
INPUTS ............................................................... 46
OPERATED PROCEDURE ................................. 47
CAN Communication System Description .............. 48
CAN Communication Unit ....................................... 48
Schematic ............................................................... 49
Wiring Diagram — KEYLES— ................................ 50
FIG. 1 ................................................................... 50
FIG. 2 ................................................................... 51
FIG. 3 ................................................................... 52
Terminals and Reference Value for BCM ................ 53
Terminals and Reference Value for IPDM E/R ........ 54
CONSULT-II Function (BCM) .................................. 54
CONSULT-II START PROCEDURE .................... 54
CONSULT-II APPLICATION ITEMS .................... 54
Work Flow ............................................................... 56
Trouble Diagnosis Symptom Chart ......................... 56
Check Key Fob Battery and Function ..................... 57
Check ACC Switch ................................................. 58
Check Door Switch ................................................. 59
CHECK DOOR SWITCH (EXCEPT TRUNK
ROOM LAMP SWITCH) ...................................... 59
CHECK TRUNK ROOM LAMP SWITCH ............ 61
Check Key Switch ................................................... 63
Check Hazard Function .......................................... 64
Check Map Lamp and Ignition Keyhole Illumination
Function .................................................................. 64
ID Code Entry Procedure ....................................... 64
KEY FOB ID SET UP WITH CONSULT-II ........... 64
KEY FOB ID SET UP WITHOUT CONSULT-II .... 66
Key Fob Battery Replacement ................................ 67
INTELLIGENT KEY SYSTEM ................................... 68
Component Parts and Harness Connector Location ... 68
System Description ................................................. 70
DOOR LOCK/UNLOCK, TRUNK OPEN FUNC-
TION .................................................................... 70
REMOTE KEYLESS ENTRY FUNCTIONS ......... 71
ENGINE START FUNCTION ............................... 72
WARNING AND ALARM FUNCTION .................. 73
CHANGE SETTINGS FUNCTION ....................... 76
INTELLIGENT KEY REGISTRATION .................. 76
STEERING LOCK UNIT REGISTRATION .......... 77
CAN Communication System Description .............. 77
CAN Communication Unit ....................................... 77
Schematic ............................................................... 78
Wiring Diagram — I/KEY— .................................... 80
Terminals and Reference Value for Intelligent Key
Unit ......................................................................... 88
Terminals and Reference Value for Steering Lock Unit .......................................................................... 90
Terminals and Reference Value for BCM ................ 90
Diagnosis Procedure ............................................... 91
WORK FLOW ...................................................... 91
ENGINE START FUNCTION DIAGNOSTIC
PROCEDURE ...................................................... 92
CONSULT-II Functions (INTELLIGENT KEY) ......... 93
CONSULT-II Inspection Procedure ......................... 93
BASIC OPERATION ............................................ 93
CONSULT-II Application Items ................................ 93
SELF-DIAGNOSTIC RESULTS ........................... 93
DATA MONITOR .................................................. 93
WORK SUPPORT ............................................... 94
ACTIVE TEST ...................................................... 95
Trouble Diagnosis Symptom Chart ......................... 96
ALL FUNCTIONS OF THE INTELLIGENT KEY
ARE NOT OPERATING ....................................... 96
REMOTE KEYLESS ENTRY FUNCTION MAL-
FUNCTION .......................................................... 96
DOOR LOCK FUNCTION MALFUNCTION ......... 97
TRUNK OPEN FUNCTION MALFUNCTION ....... 97
HAZARD REMINDER FUNCTION MALFUNC-
TION .................................................................... 98
ENGINE START FUNCTION MALFUNCTION .... 98
WARNING CHIME FUNCTION MALFUNCTION ... 99
Check CAN Communication System ....................100
Check Intelligent Key Unit Power Supply and
Ground Circuit .......................................................100
Check Key Switch (Intelligent Key Unit Input) .......101
Check Key Switch (BCM Input) .............................102
Check Ignition knob Switch ...................................103
Check Door Switch ...............................................105
CHECK DOOR SWITCH (EXCEPT TRUNK
ROOM LAMP SWITCH) .....................................105
CHECK TRUNK ROOM LAMP SWITCH ...........107
Check Door Request Switch .................................109
Check Intelligent Key Warning Buzzer .................. 111
Check Outside Key Antenna .................................112
Check Inside Key Antenna ....................................114
Check Steering Lock Unit ......................................115
Check Headlamp Function ....................................117
Removal and Installation of Intelligent Key Unit ....117
REMOVAL ..........................................................117
INSTALLATION ..................................................117
Intelligent Key Battery Replacement .....................117
DISASSEMBLY AND ASSEMBLY OF INTELLI-
GENT KEY .........................................................117
INTELLIGENT KEY BATTERY INSPECTION ...118
DOOR ......................................................................119
Fitting Adjustment .................................................119
FRONT DOOR ...................................................119
REAR DOOR .....................................................119
STRIKER ADJUSTMENT ..................................120
Removal and Installation of Front Door ................120
REMOVAL ..........................................................120
INSTALLATION ..................................................120
Removal and Installation of Rear Door .................120
REMOVAL ..........................................................121

BL-4
INDEX FOR DTC

INDEX FOR DTCPFP:00024
DTC No. Index BIS001TQ
NOTE:
When CAN COMM CIRCUIT [U1000] or CONTROL UNIT (CAN) [U1010] displayed, give priority to performing
trouble diagnosis.
INTELLIGENT KEY / NATS I-KEY
*: It is possible to display it only with the program card only for the engine immobilizer system.
NATS V5.0
The program card only for the engine immobilizer system is necessary for the following display item.
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition
NO DTC NO DTC —
U1000 CAN COMM CIRCUITWhen Intelligent Key unit is not transmitting or receiving CAN communication signal for
2 seconds or more.
U1010 CONTROL UNIT (CAN) When detecting error during the initial diagnosis of CAN controller of Intelligent Key unit.
B2013* STRG COMM CIRCUIT Communication malfunction with steering lock unit is detected.
B2552* INTELLGENT KEY Internal malfunction is detected in Intelligent Key unit.
B2590* DISCORD BCM-I-KEY The ID verification results between Intelligent Key unit and BCM are NG.
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition
NO DTC NO DTC —
—DON’T ERASE BEFORE
CHECKING END DIAGThere is the engine trouble diagnosis information in ECM. (ECM trouble diagnosis is nec-
essary separately)
P1610 LOCK MODEThe immobilizer switches to the mode that prevents the engine from being started. If the
ID verification between BCM and ECM is NG, the ID verification malfunction between
remote control starter and BCM may be detected 5 time or more.
P1611 ID DISCORD, IMM-ECM The ID verification results between BCM and ECM are NG. The registration is necessary.
P1612 CHAIN OF ECM-IMMU Communication impossible between ECM and NATS IMMU.
P1614 CHAIN OF IMMU-KEY NATS IMMU cannot receive the key ID signal.
P1615 DIFFERENCE OF KEYNATS IMMU can receive the key ID signal but the result of ID verification between key ID
and NATS IMMU is NG.

BL-6
PREPARATION

PREPARATIONPFP:00002
Commercial Service ToolsBIS000VL
Tool name Description
Engine ear Location the noise
Power tool Loosening bolts and nuts
SIIA0995E
PBIC0191E

BL-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES

DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T models, drive position on A/T models).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Engine Ear or mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to BL-9, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape are available through your authorized Nissan Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
Each item can be ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60 × 85 mm (2.36 × 3.35 in)/76884-71L02: 15 ×
25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick, 50
× 50 mm (1.97 × 1.97 in)
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.18 × 1.97 in)

BL-10
SQUEAK AND RATTLE TROUBLE DIAGNOSES

TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. Trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. Rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

BL-16
HOOD

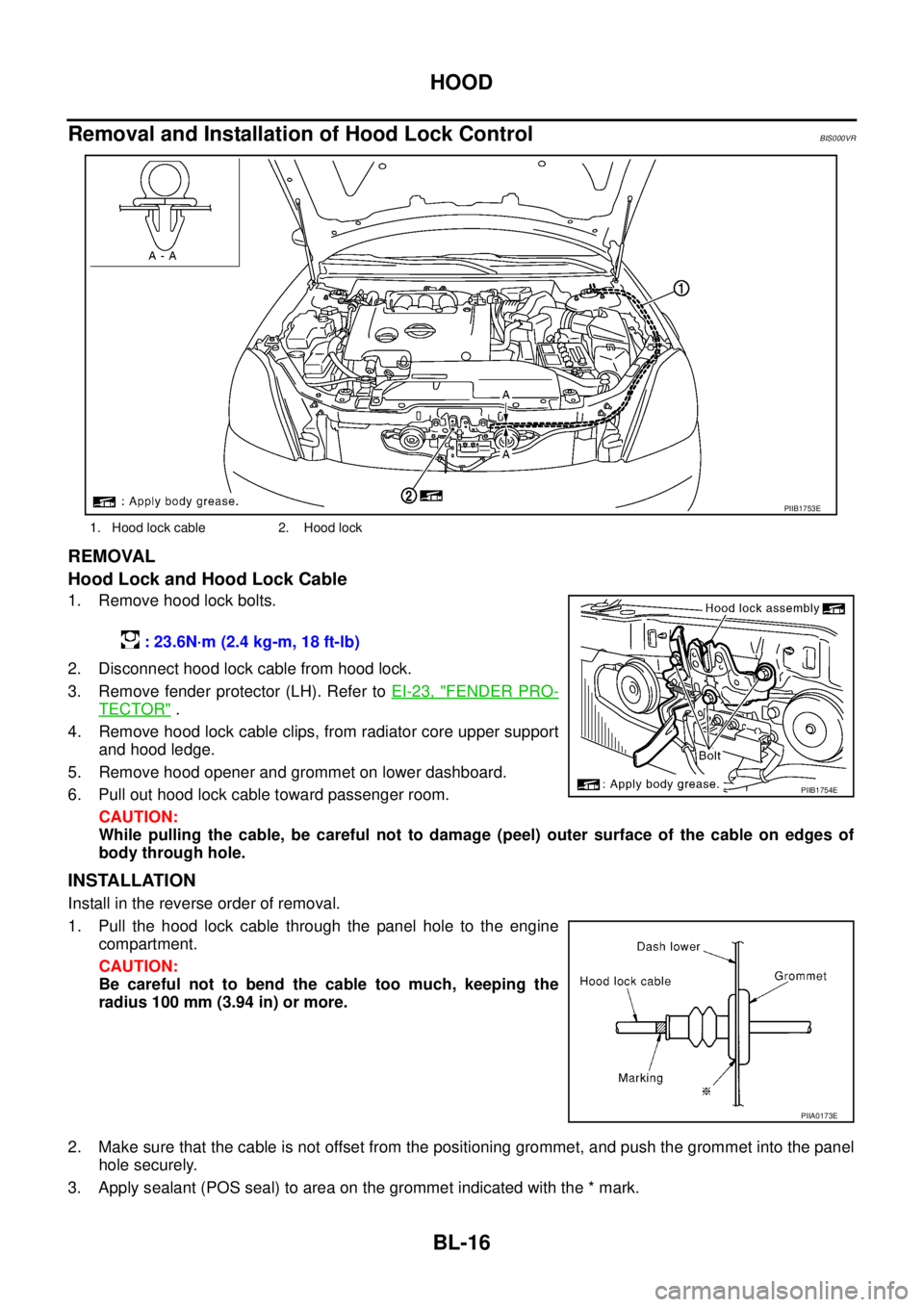

Removal and Installation of Hood Lock ControlBIS000VR
REMOVAL
Hood Lock and Hood Lock Cable
1. Remove hood lock bolts.
2. Disconnect hood lock cable from hood lock.
3. Remove fender protector (LH). Refer to EI-23, "
FENDER PRO-
TECTOR" .
4. Remove hood lock cable clips, from radiator core upper support
and hood ledge.
5. Remove hood opener and grommet on lower dashboard.
6. Pull out hood lock cable toward passenger room.
CAUTION:
While pulling the cable, be careful not to damage (peel) outer surface of the cable on edges of
body through hole.
INSTALLATION
Install in the reverse order of removal.
1. Pull the hood lock cable through the panel hole to the engine
compartment.
CAUTION:
Be careful not to bend the cable too much, keeping the
radius 100 mm (3.94 in) or more.
2. Make sure that the cable is not offset from the positioning grommet, and push the grommet into the panel
hole securely.
3. Apply sealant (POS seal) to area on the grommet indicated with the * mark.
1. Hood lock cable 2. Hood lock
PIIB1753E
: 23.6N·m (2.4 kg-m, 18 ft-lb)
PIIB1754E
PIIA0173E
