HEATER & COOLING UNIT ASSEMBLY
ATC-119
C
D
E
F
G
H
I
K
L
MA
B
AT C

HEATER & COOLING UNIT ASSEMBLYPFP:27110
Removal and InstallationBJS000HH
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Drain coolant from cooling system. Refer to CO-10, "
Changing Engine Coolant" (QR engine) or CO-34,
"Changing Engine Coolant" (VQ engine).
3. Remove extension cowl top lower panel. Refer to EI-21, "
COWL TOP" .

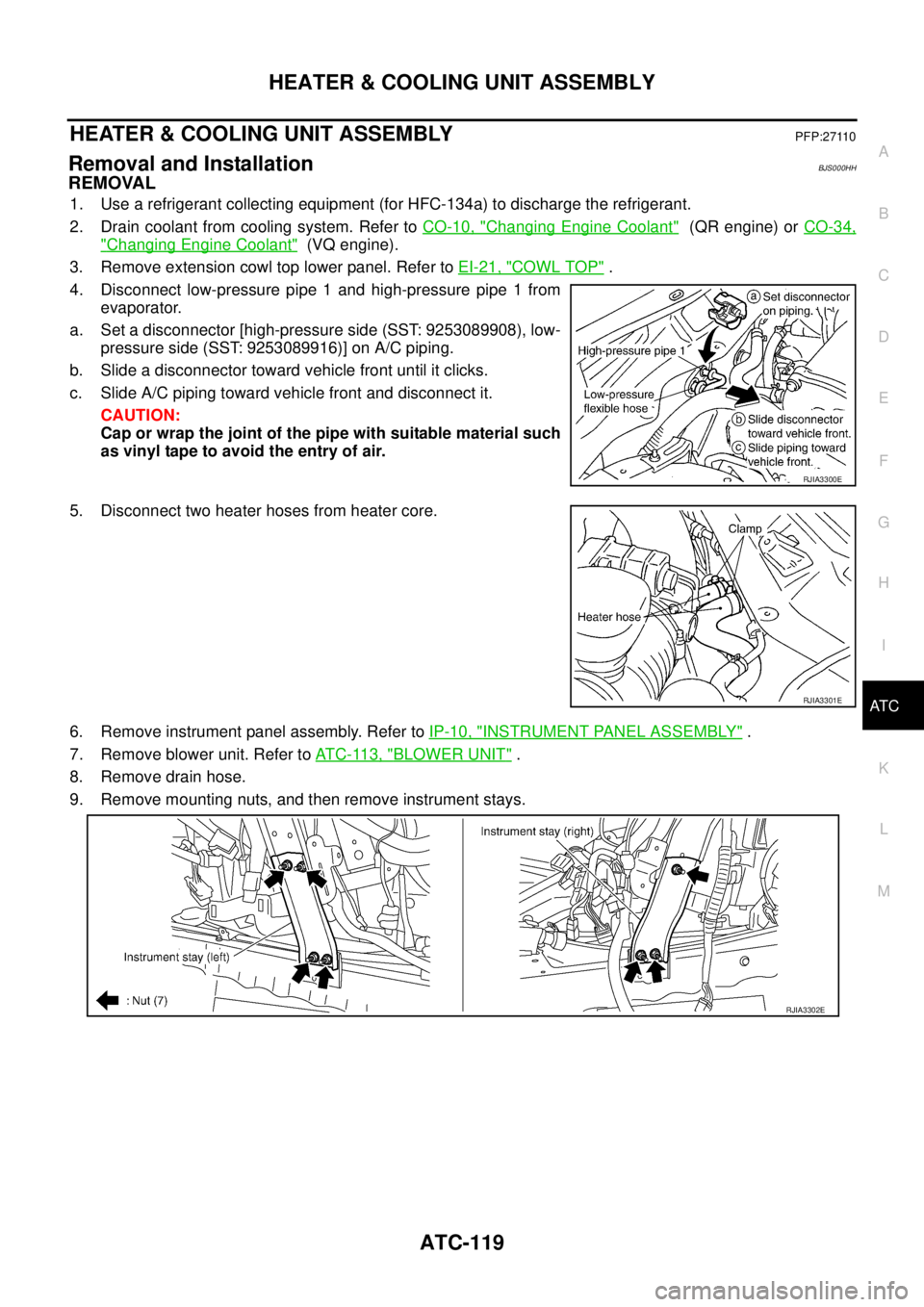

4. Disconnect low-pressure pipe 1 and high-pressure pipe 1 from
evaporator.
a. Set a disconnector [high-pressure side (SST: 9253089908), low-
pressure side (SST: 9253089916)] on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
5. Disconnect two heater hoses from heater core.
6. Remove instrument panel assembly. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
7. Remove blower unit. Refer to AT C - 11 3 , "
BLOWER UNIT" .
8. Remove drain hose.
9. Remove mounting nuts, and then remove instrument stays.
RJIA3300E
RJIA3301E
RJIA3302E

ATC-120
HEATER & COOLING UNIT ASSEMBLY

10. Remove mounting bolts from heater & cooling unit.
11. Remove steering column mounting nuts.
12. Remove steering member mounting bolts.
13. Remove steering member, and then remove heater & cooling unit.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

Insert piping securely until a click is heard.

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

When recharging refrigerant, check for leaks.
NOTE:

When filling radiator with coolant, refer to CO-10, "Changing Engine Coolant" (QR engine) or CO-34,
"Changing Engine Coolant" (VQ engine).

Recharge the refrigerant.
RJIA3303E
RJIA3304E

REFRIGERANT LINES
ATC-133
C
D
E
F
G
H
I
K
L
MA
B
AT C

ComponentsBJS000HO

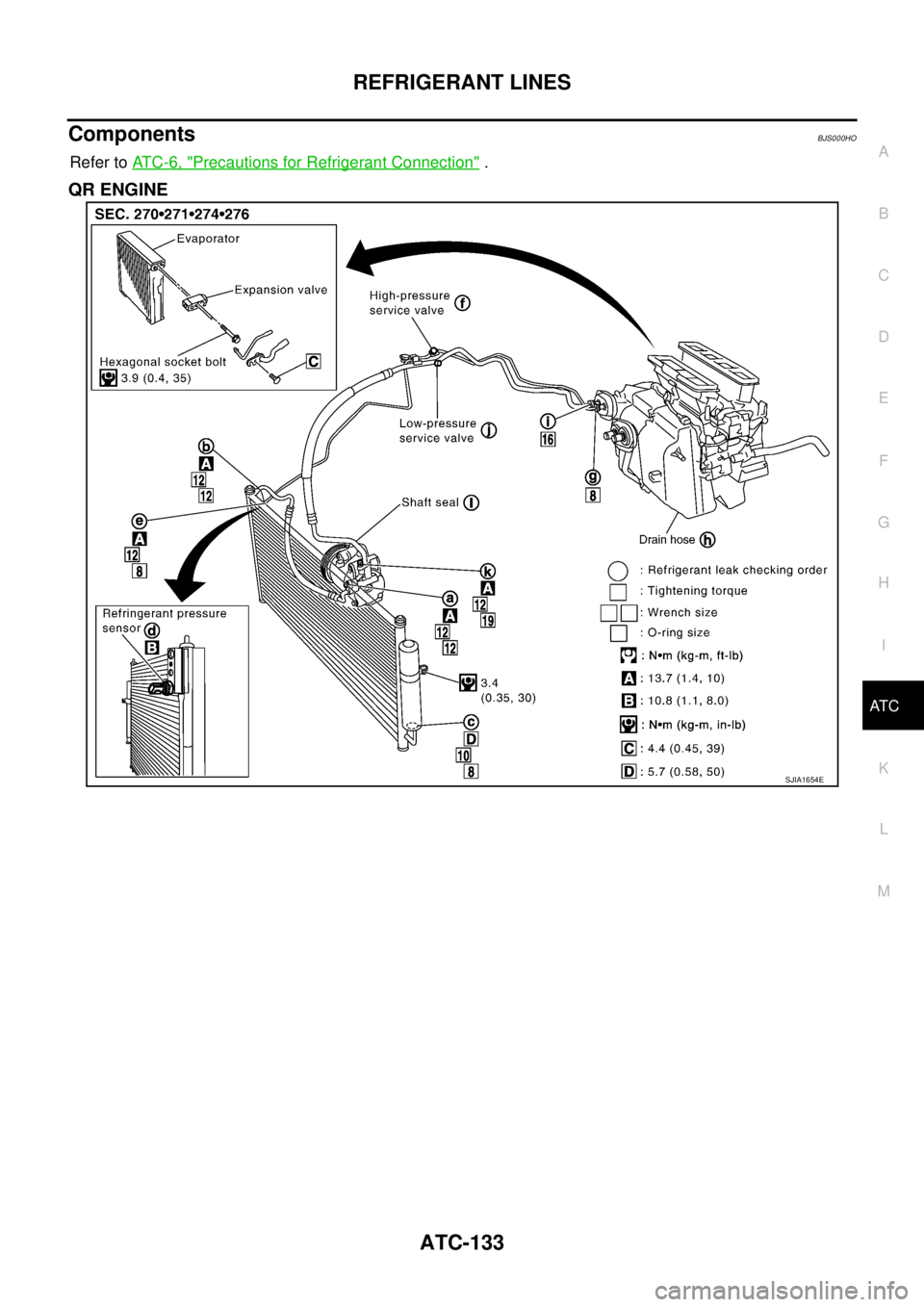

Refer to AT C - 6 , "Precautions for Refrigerant Connection" .
QR ENGINE
SJIA1654E

ATC-134
REFRIGERANT LINES

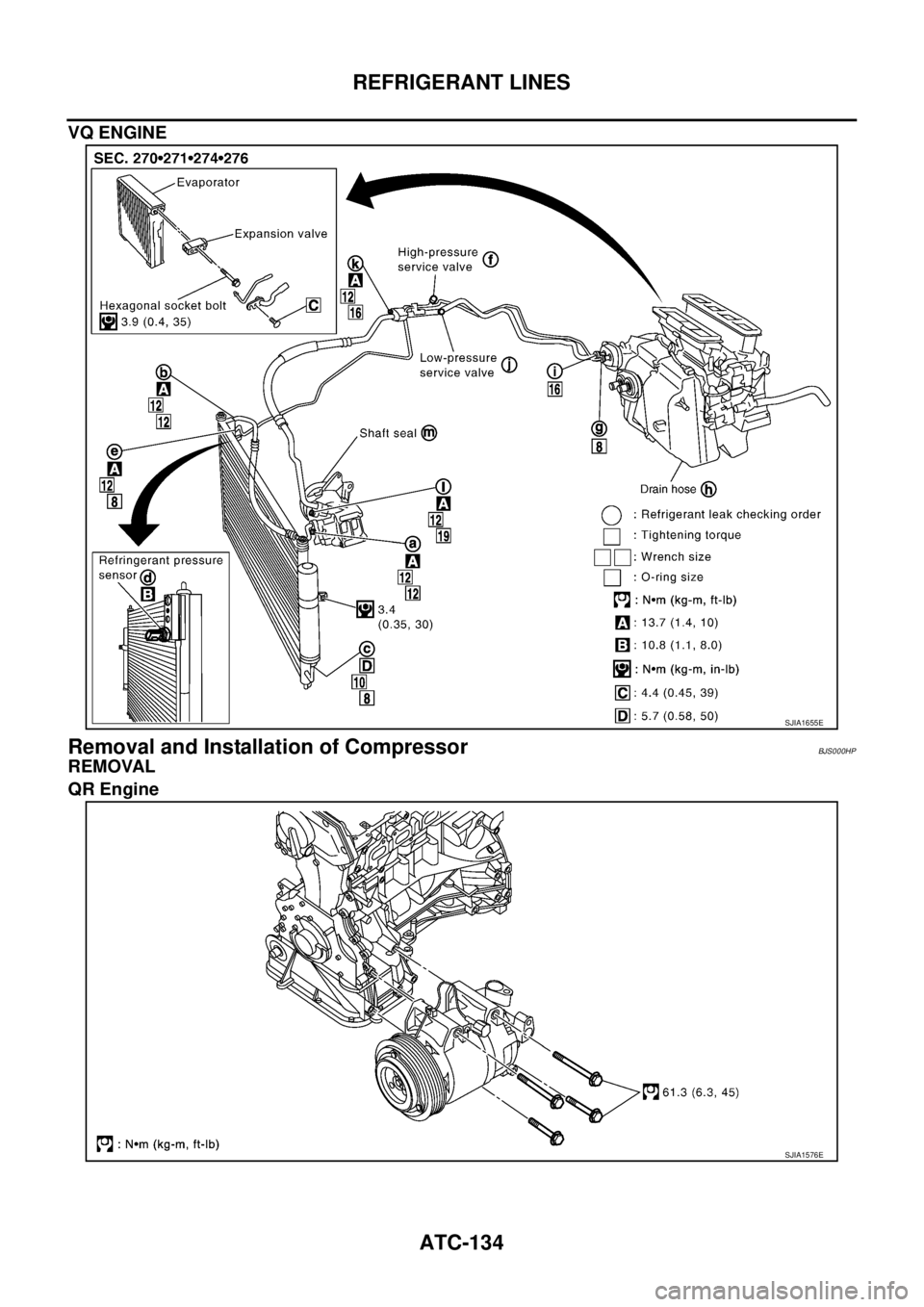

VQ ENGINE
Removal and Installation of CompressorBJS000HP

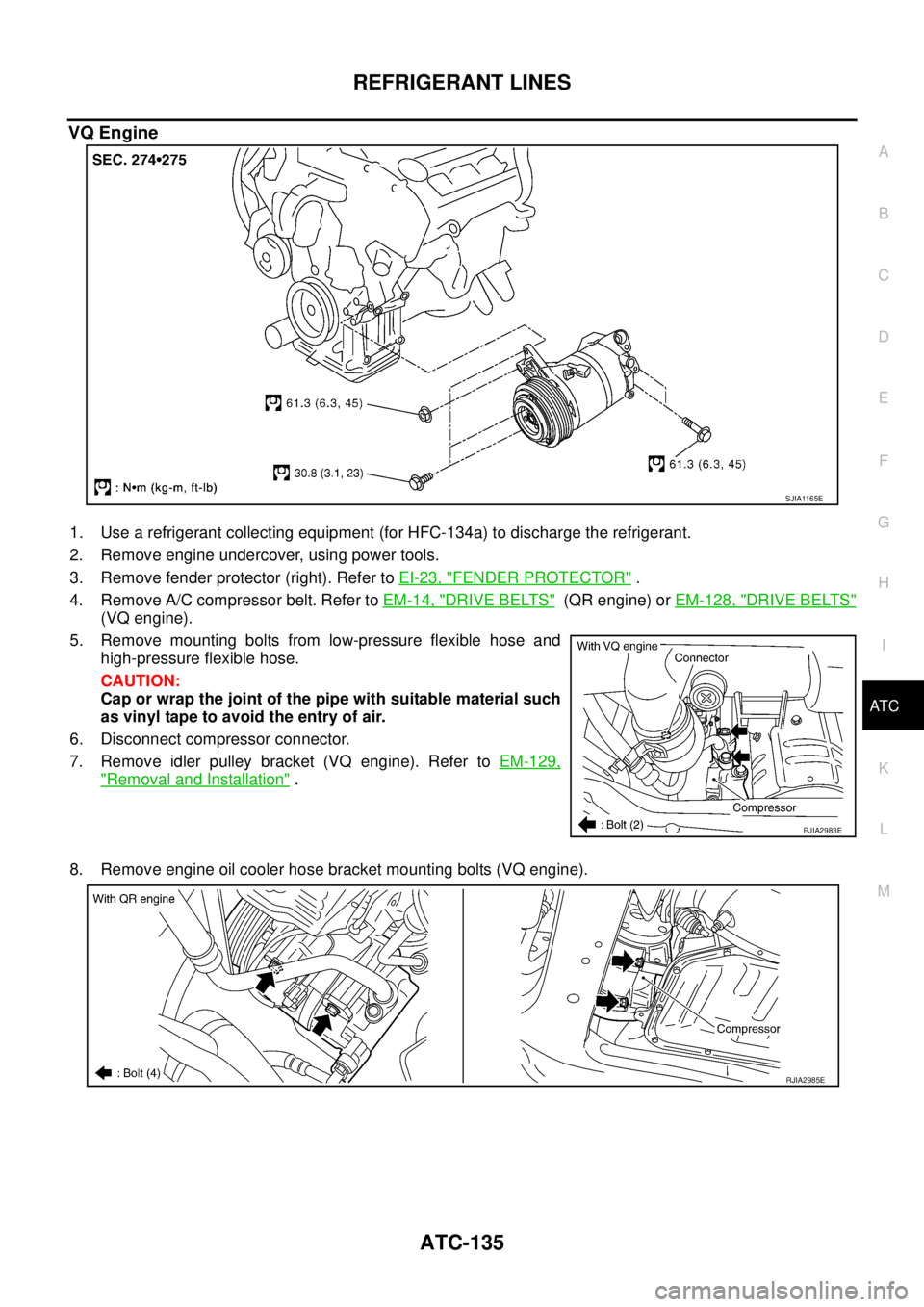

REMOVAL
QR Engine
SJIA1655E
SJIA1576E

REFRIGERANT LINES
ATC-135
C
D
E
F
G
H
I
K
L
MA
B
AT C

VQ Engine
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove engine undercover, using power tools.
3. Remove fender protector (right). Refer to EI-23, "
FENDER PROTECTOR" .
4. Remove A/C compressor belt. Refer to EM-14, "
DRIVE BELTS" (QR engine) or EM-128, "DRIVE BELTS"
(VQ engine).
5. Remove mounting bolts from low-pressure flexible hose and
high-pressure flexible hose.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
6. Disconnect compressor connector.
7. Remove idler pulley bracket (VQ engine). Refer to EM-129,
"Removal and Installation" .
8. Remove engine oil cooler hose bracket mounting bolts (VQ engine).
SJIA1165E
RJIA2983E
RJIA2985E

REFRIGERANT LINES
ATC-137
C
D
E
F
G
H
I
K
L
MA
B
AT C

Removal and Installation of Low-pressure Flexible Hose and Low-pressure Pipe
1
BJS000HR
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove extension cowl top lower panel. Refer to EI-21, "
COWL TOP" .
3. Remove mounting bolts and clips.
4. Disconnect one-touch joints of low-pressure flexible hose and
low-pressure pipe 1.
a. Set a disconnector [high-pressure side (SST: 9253089908), low-
pressure side (SST: 9253089916)] on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
5. Remove low-pressure pipe 1 (VQ engine).
6. Remove mounting bolt from low-pressure flexible hose.
7. Remove low-pressure flexible hose.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

Insert piping securely until a click is heard.

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

When recharging refrigerant, check for leaks.
RJIA3322E
RJIA3300E
RJIA2986E

REFRIGERANT LINES
ATC-139
C
D
E
F
G
H
I
K
L
MA
B
AT C

Removal and Installation of High-pressure Pipe 1 (Engine Compartment)BJS000HT
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove extension cowl top lower panel. Refer to EI-21, "
COWL TOP" .
3. Remove low-pressure flexible hose and low-pressure pipe 1 (VQ engine). Refer to ATC-137, "
Removal
and Installation of Low-pressure Flexible Hose and Low-pressure Pipe 1" .
4. Remove radiator reservoir tank. Refer to CO-13, "
RADIATOR" (QR engine) or CO-37, "RADIATOR" (VQ
engine).
5. Remove IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R" .
6. Remove power steering oil reservoir tank mounting nuts.
7. Remove vehicle harness connector from bracket.
8. Remove high-pressure pipe 1 from clips.
9. Remove high-pressure flexible hose from vehicle clips.
10. Disconnect one-touch joints of high-pressure pipe 1.
a. Set a disconnector (SST: 9253089908) on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
11. Remove mounting bolt, and then remove high-pressure pipe 1.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

Insert piping securely until a click is heard.

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

When recharging refrigerant, check for leaks.
RJIA2232E
RJIA3300E
RJIA1853E

ATC-142
REFRIGERANT LINES

Removal and Installation of CondenserBJS000HV
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" (QR engine) or EM-131, "AIR
CLEANER AND AIR DUCT" (VQ engine).
3. Remove front grille. Refer to EI-20, "
FRONT GRILLE" .
4. Remove battery. Refer to SC-4, "
BATTERY" .
5. Remove mounting bolts, and then remove battery tray.
6. Remove mounting bolt from high-pressure flexible hose and
high-pressure pipe1.
7. Disconnect high-pressure flexible hose and high-pressure pipe
1 from condenser.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
8. Disconnect refrigerant pressure sensor connector.
9. Remove mounting bolts from condenser.
10. Remove condenser bracket.
11. Remove engine room harness clips from radiator core upper
support.
12. Remove engine room harness mounting resin nuts.
13. Remove radiator upper mount.
RJIA2301E
RJIA1853E
RJIA2233E
RJIA3326E
