2003 NISSAN ALMERA N16 DIAGRAM

AT-166
[EURO-OBD]

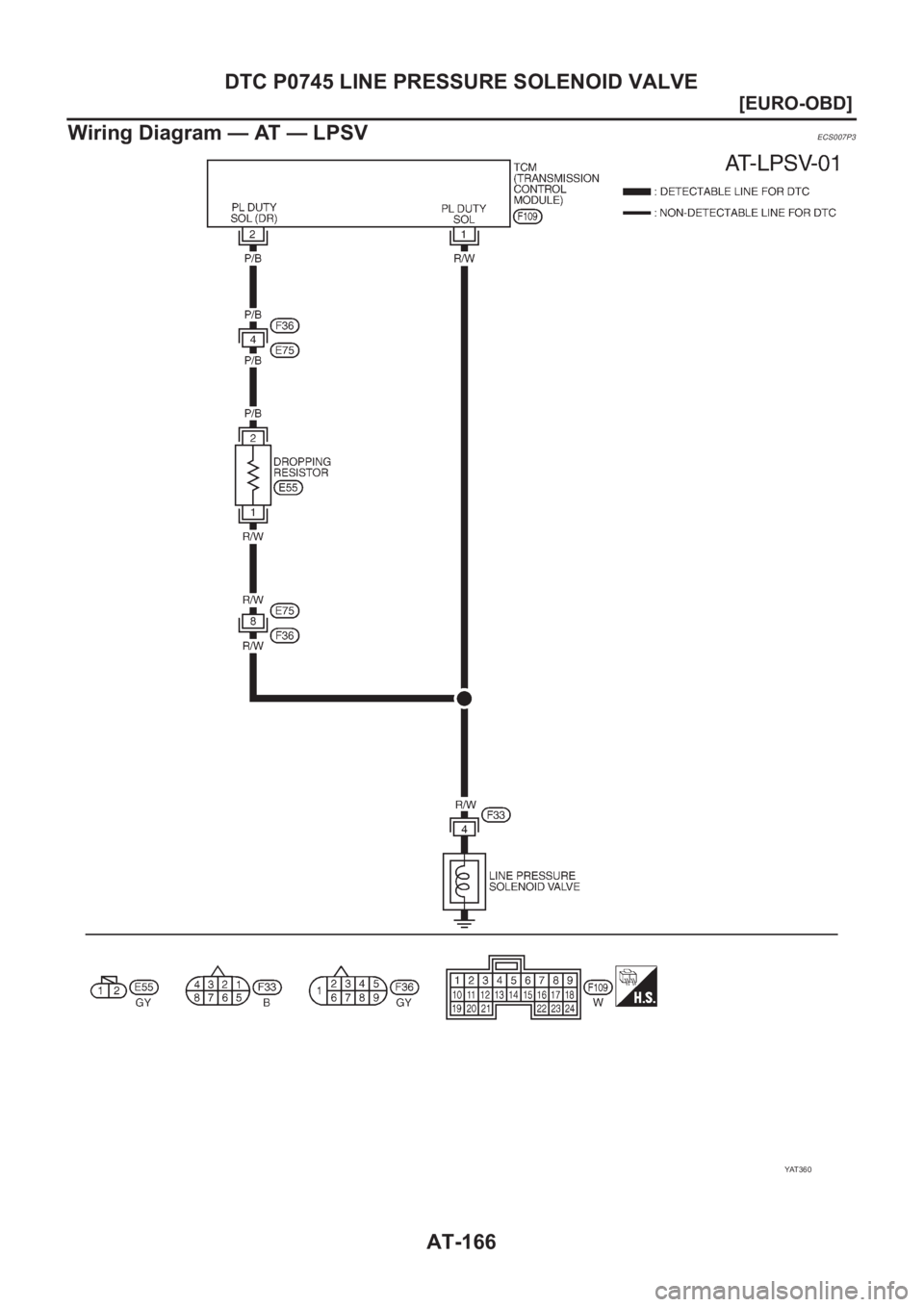

DTC P0745 LINE PRESSURE SOLENOID VALVE
Wiring Diagram — AT — LPSV
ECS007P3
YAT 3 6 0

DTC P0750 SHIFT SOLENOID VALVE A
AT-173
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — SSV/AECS007P7
YAT 2 4 1

AT-178
[EURO-OBD]

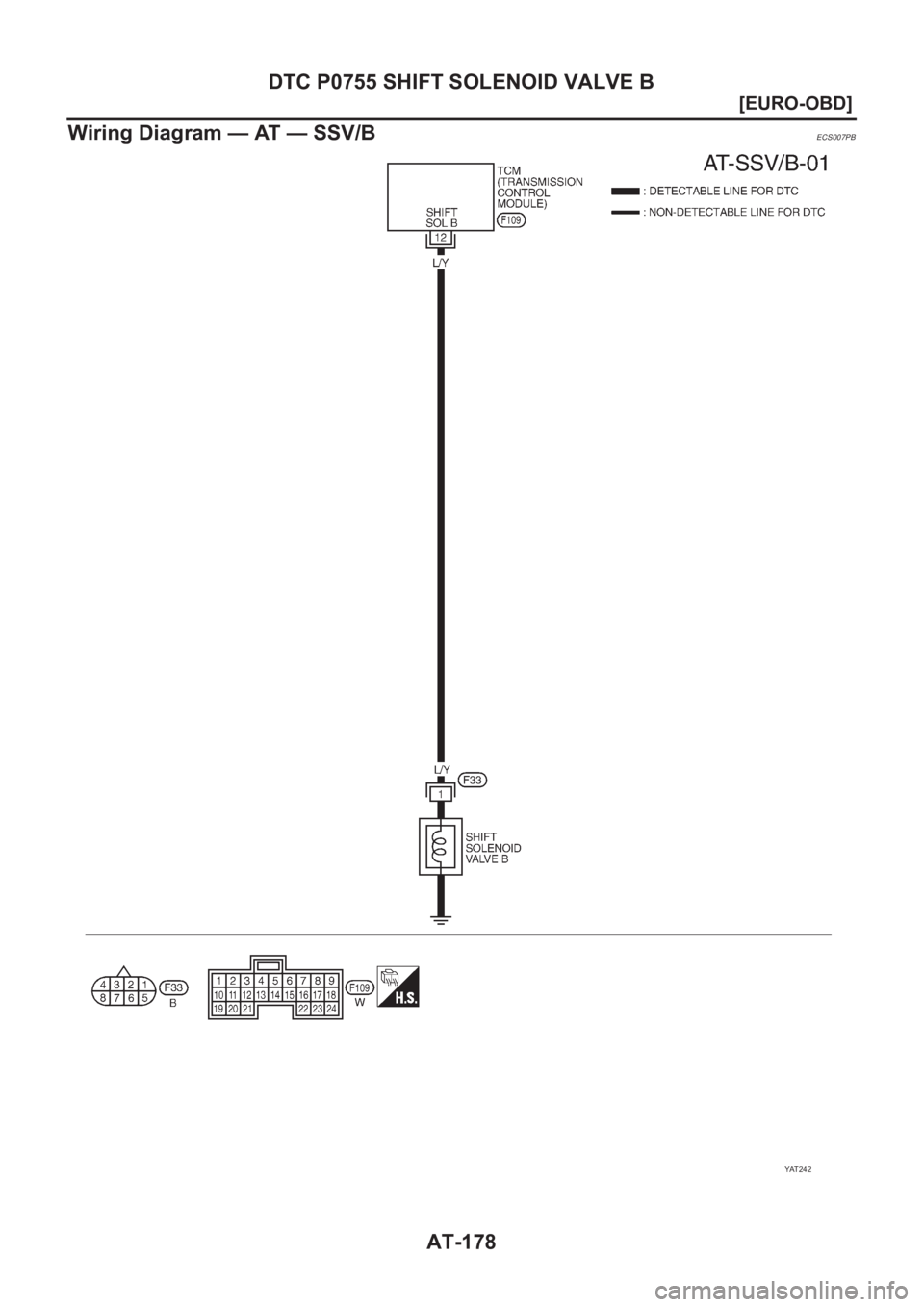

DTC P0755 SHIFT SOLENOID VALVE B
Wiring Diagram — AT — SSV/B
ECS007PB
YAT 2 4 2

AT-184
[EURO-OBD]

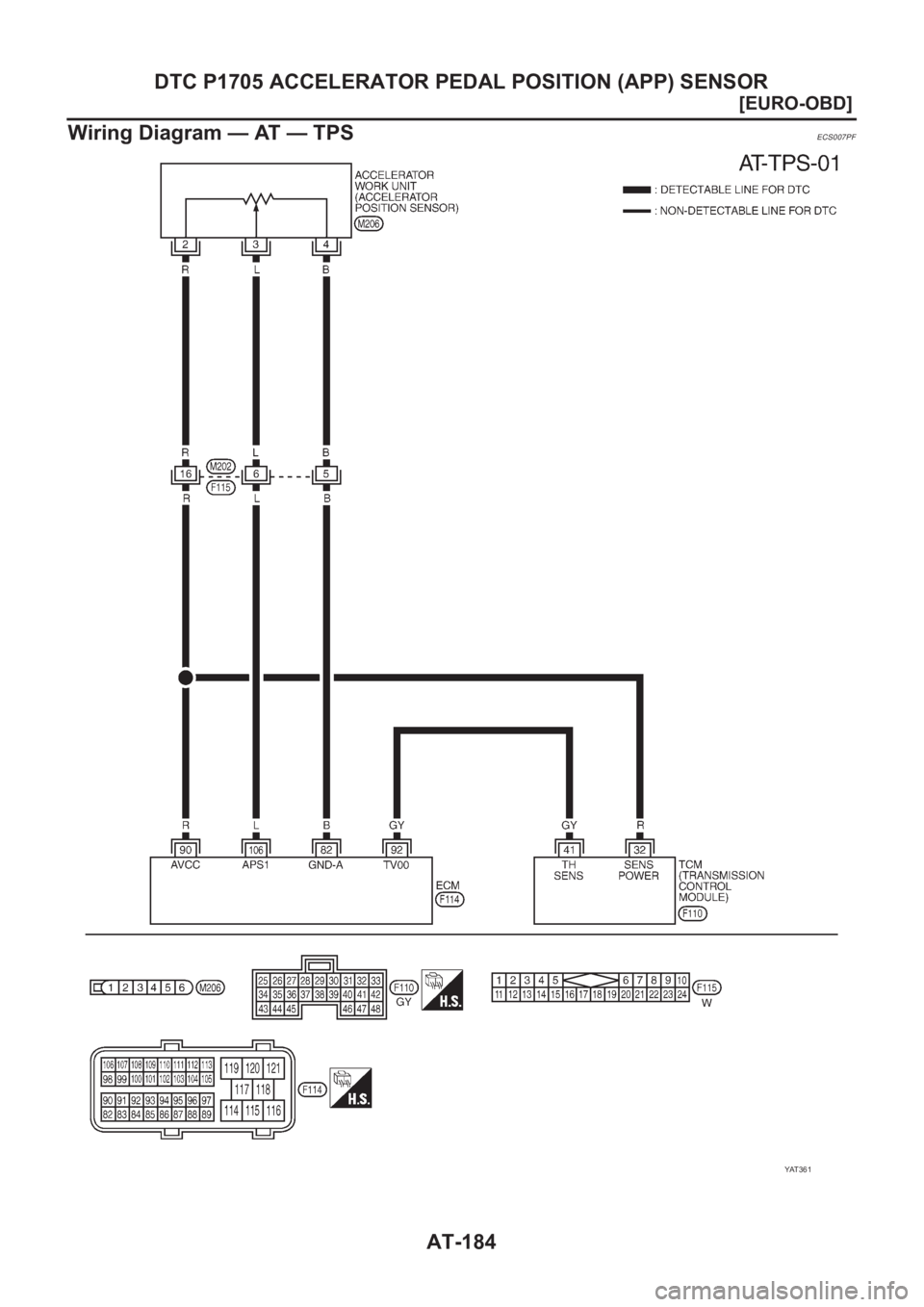

DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR
Wiring Diagram — AT — TPS
ECS007PF
YAT 3 6 1

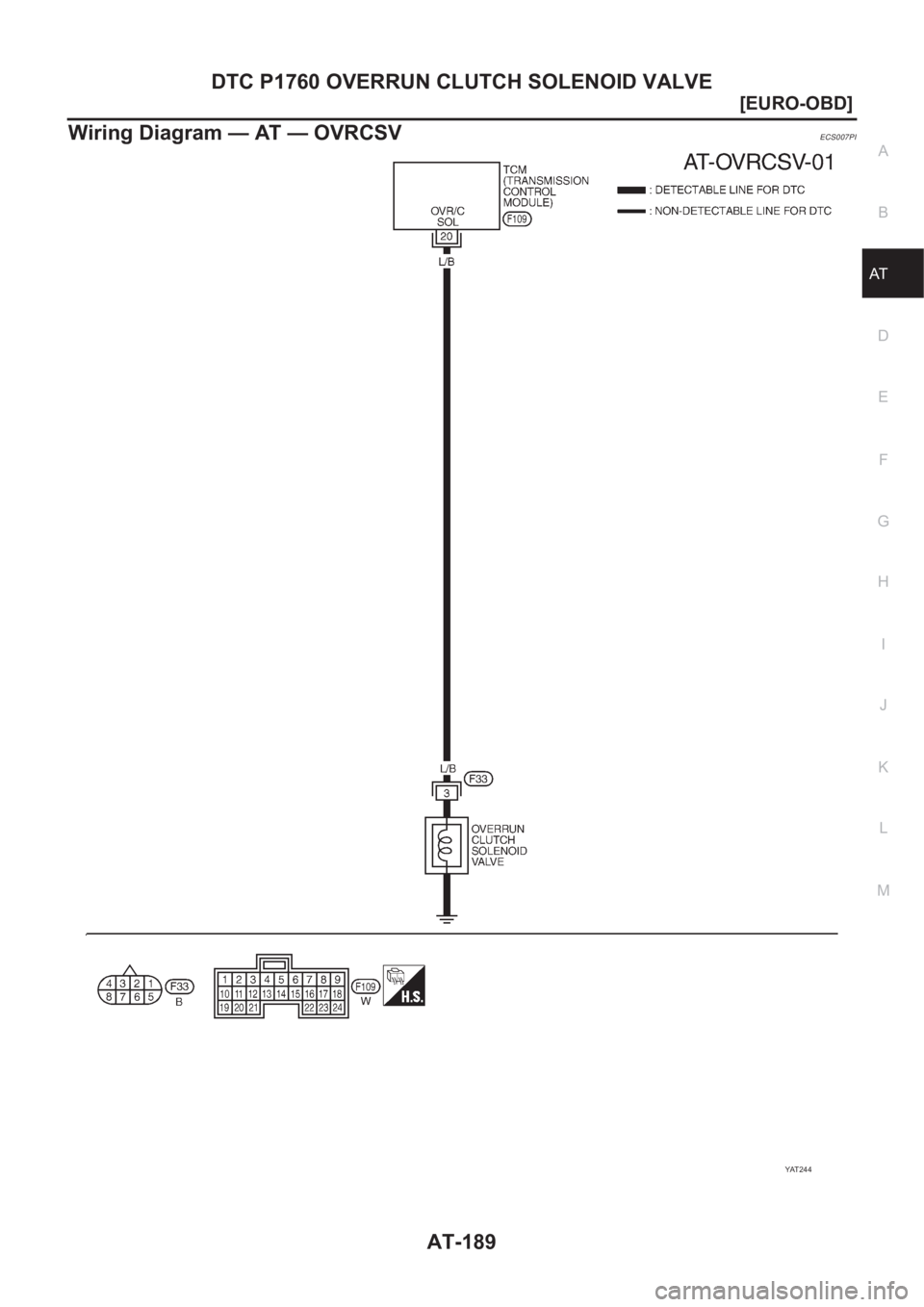

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-189
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — OVRCSVECS007PI
YAT 2 4 4

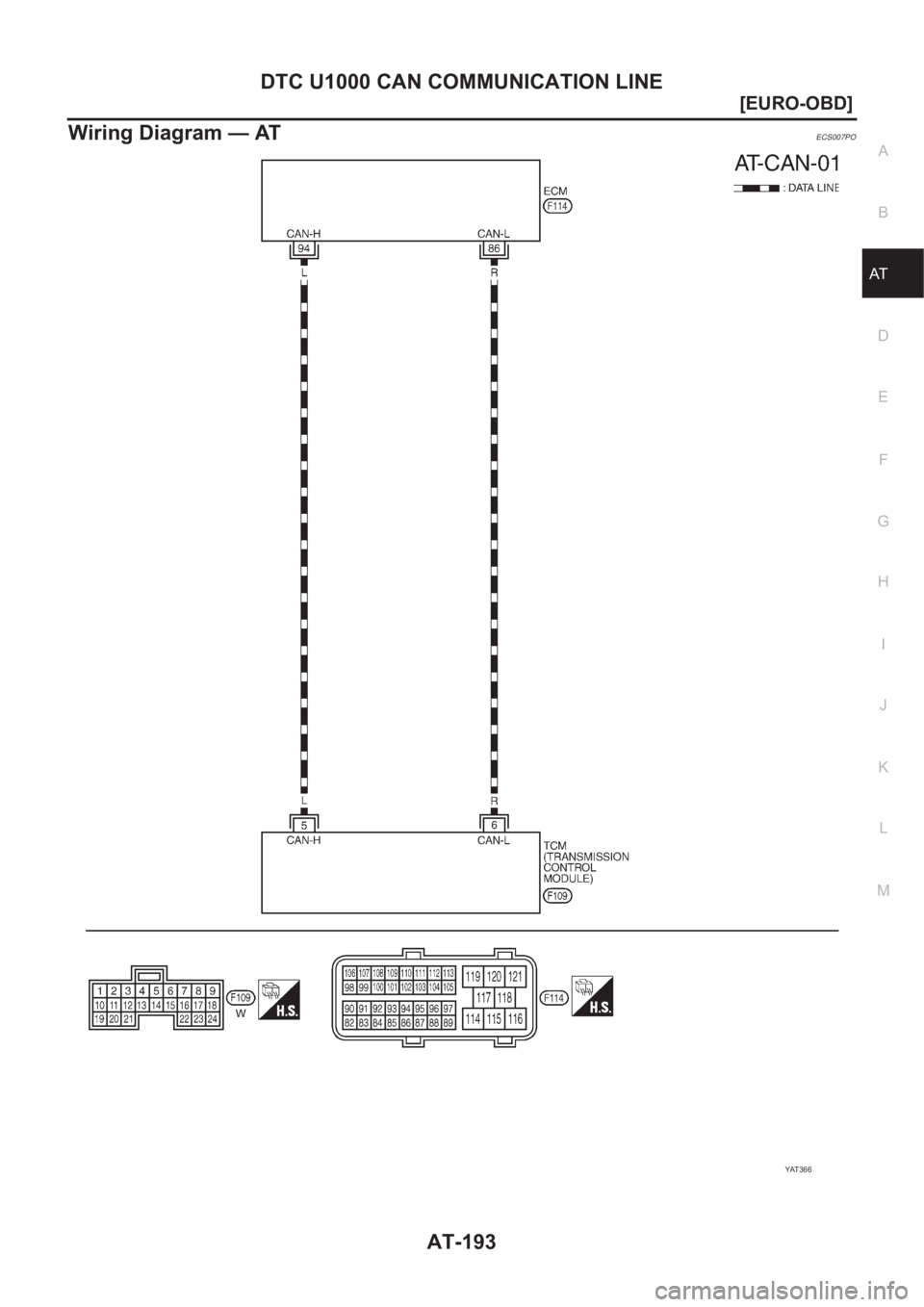

DTC U1000 CAN COMMUNICATION LINE
AT-193
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT ECS007PO
YAT 3 6 6

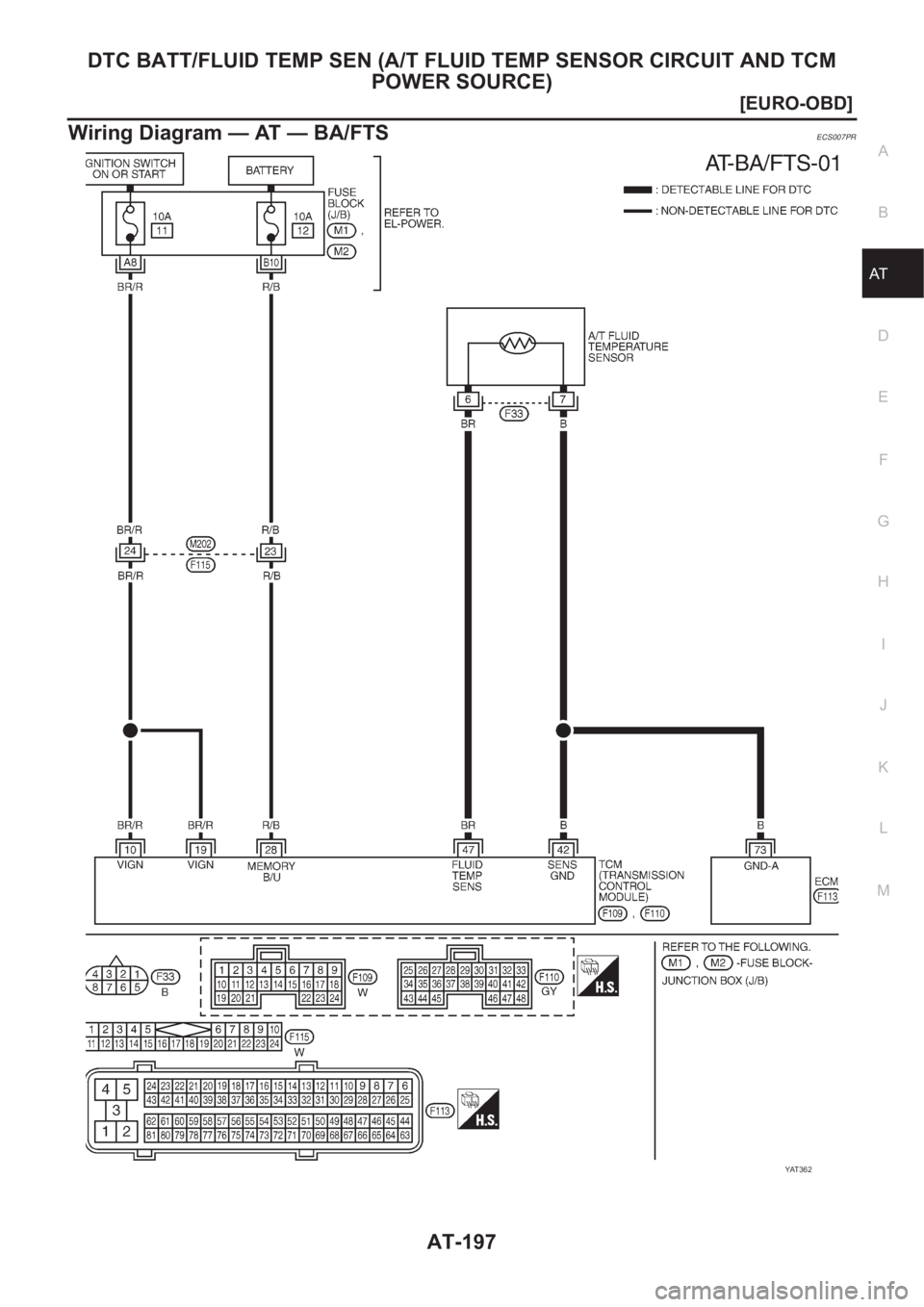

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-197
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — BA/FTSECS007PR
YAT 3 6 2

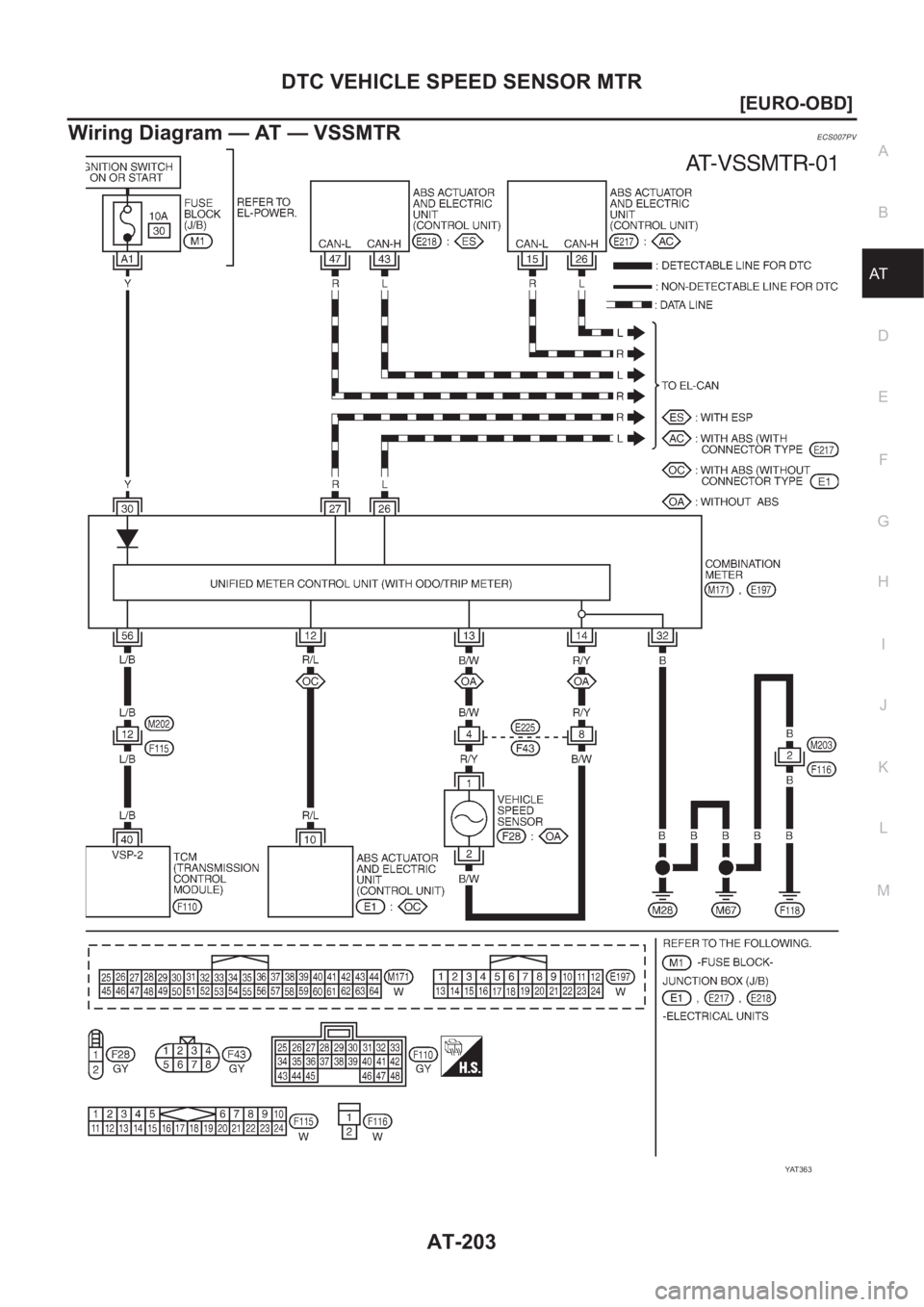

DTC VEHICLE SPEED SENSOR MTR
AT-203
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — VSSMTRECS007PV
YAT 3 6 3
