2003 NISSAN ALMERA N16 DIAGRAM

AT-354
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
Wiring Diagram — AT — TPS
ECS007RU
YAT 3 6 1

SHIFT SOLENOID VALVE A
AT-359
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — SSV/AECS007RX
YAT 2 4 1

AT-364
[ALL]
SHIFT SOLENOID VALVE B
Wiring Diagram — AT — SSV/B
ECS007S1
YAT 2 4 2

OVERRUN CLUTCH SOLENOID VALVE
AT-369
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — OVRCSVECS007S5
YAT 2 4 4

AT-374
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
Wiring Diagram — AT — TCV
ECS007S9
YAT 2 3 9

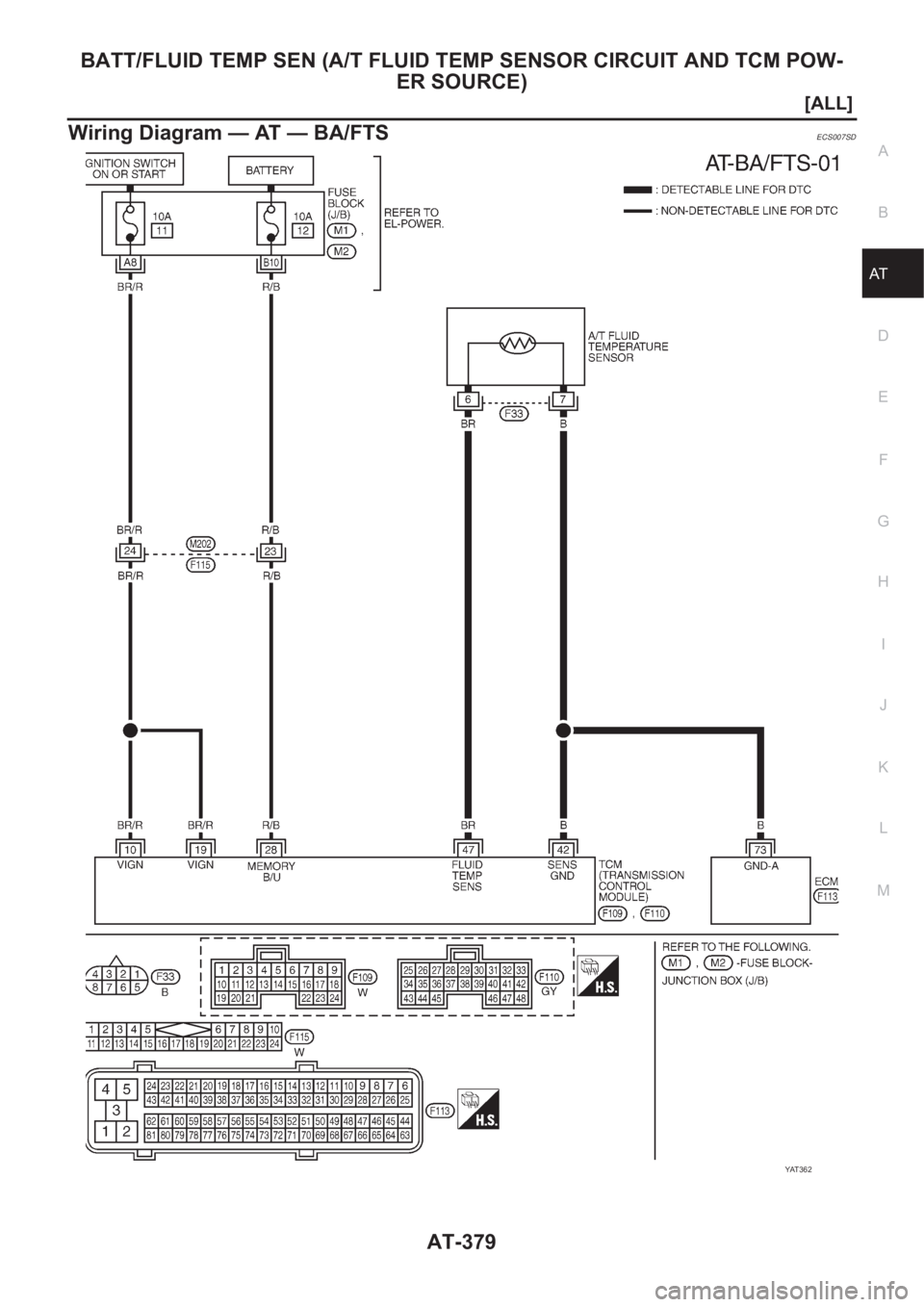

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-379
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — BA/FTSECS007SD
YAT 3 6 2

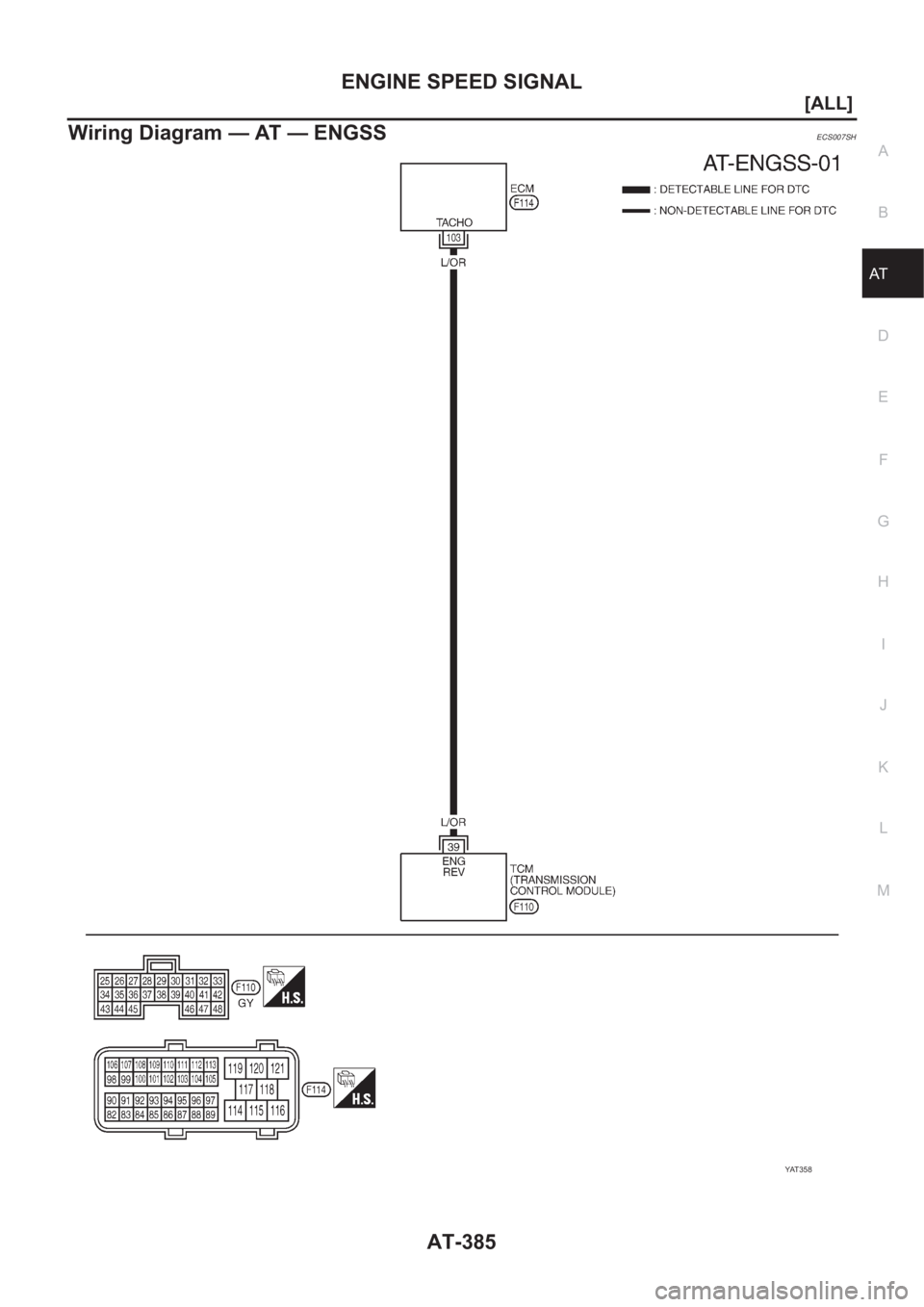

ENGINE SPEED SIGNAL
AT-385
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — ENGSSECS007SH
YAT 3 5 8

AT-390
[ALL]

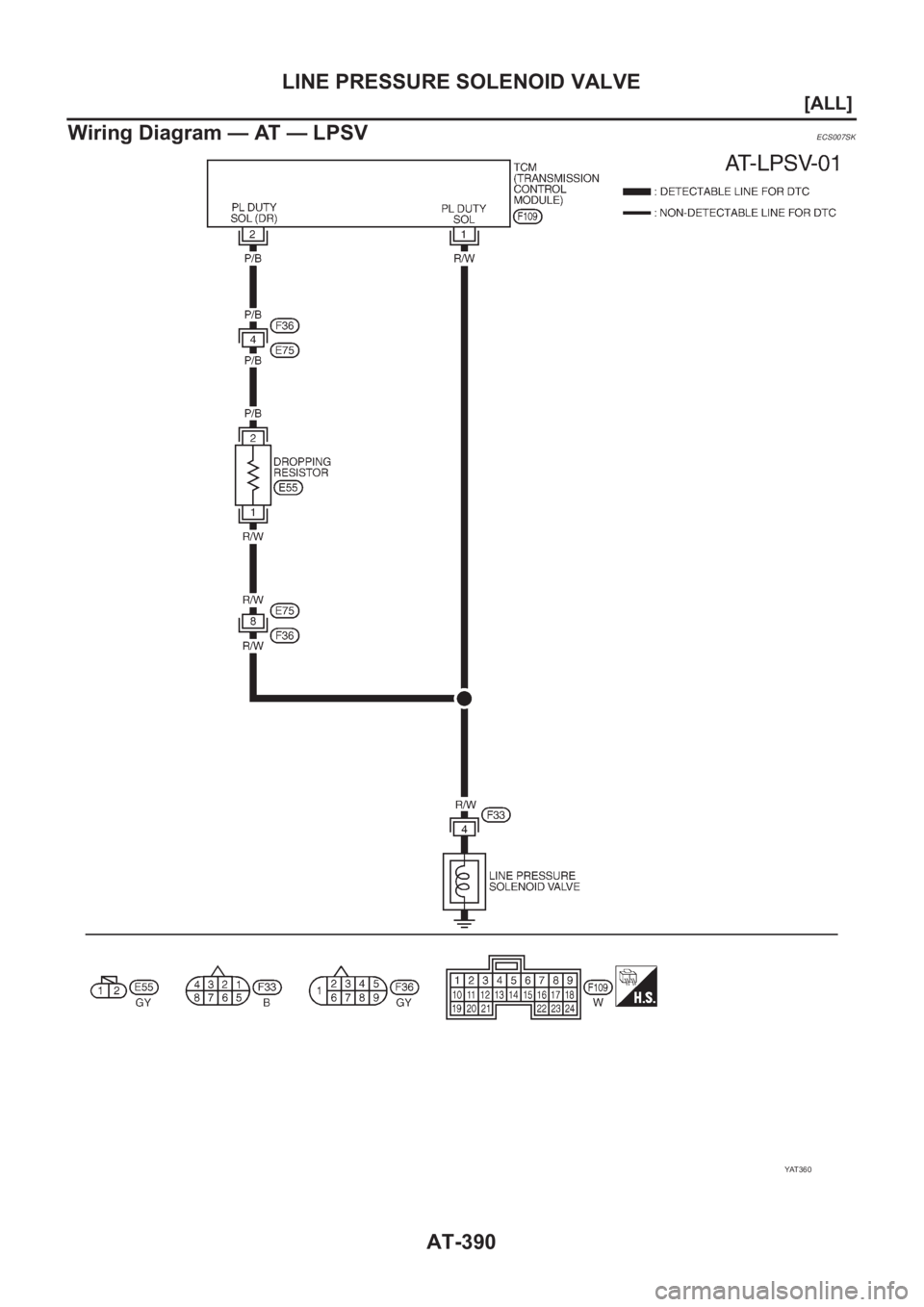

LINE PRESSURE SOLENOID VALVE
Wiring Diagram — AT — LPSV
ECS007SK
YAT 3 6 0
