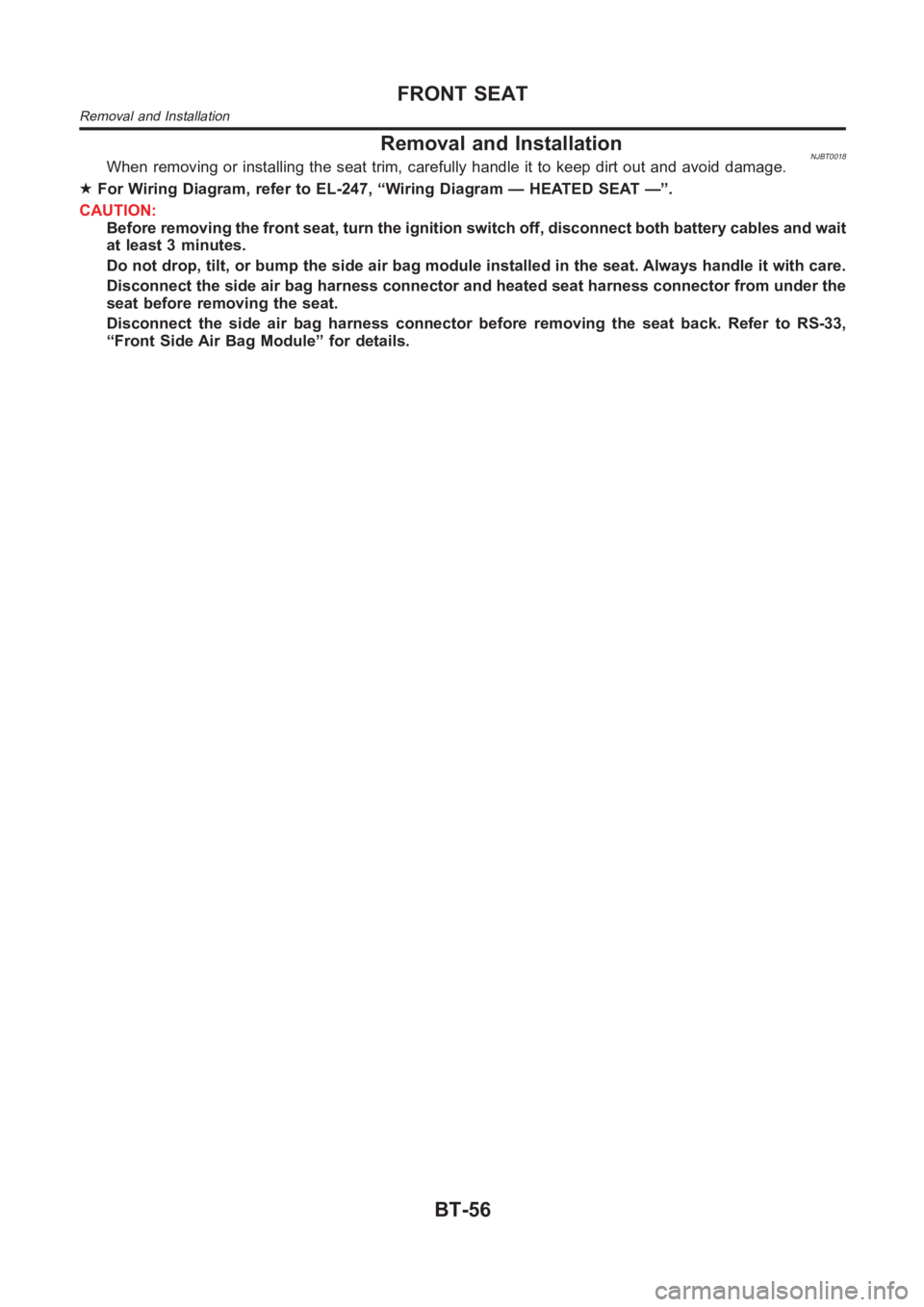

Removal and InstallationNJBT0018When removing or installing the seat trim, carefully handle it to keep dirtout and avoid damage.
★For Wiring Diagram, refer to EL-247, “Wiring Diagram — HEATED SEAT —”.
CAUTION:
Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes.
Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.
Disconnect the side air bag harness connector and heated seat harness connector from under the
seat before removing the seat.
Disconnect the side air bag harness connector before removing the seat back. Refer to RS-33,
“Front Side Air Bag Module” for details.
FRONT SEAT
Removal and Installation
BT-56

Heated SeatNJBT0036★For Wiring Diagram, refer to EL-247, “HEATED SEAT” for details.
SBT014A

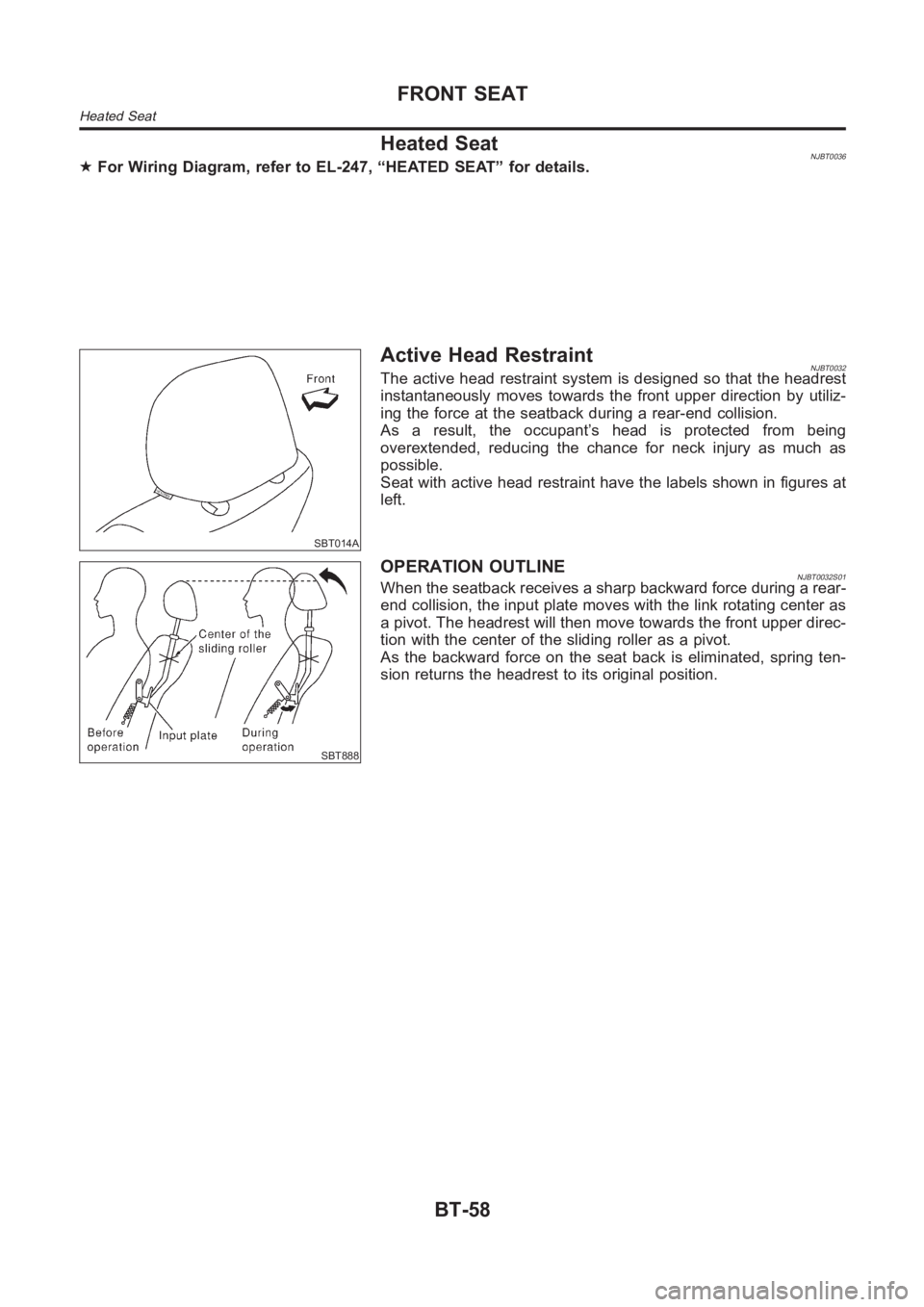

Active Head RestraintNJBT0032The active head restraint system is designed so that the headrest
instantaneously moves towards the front upper direction by utiliz-
ing the force at the seatback during a rear-end collision.
As a result, the occupant’s head is protected from being
overextended, reducing the chance for neck injury as much as
possible.
Seat with active head restraint have the labels shown in figures at
left.
SBT888
OPERATION OUTLINENJBT0032S01When the seatback receives a sharp backward force during a rear-
end collision, the input plate moves with the link rotating center as
a pivot. The headrest will then move towards the front upper direc-
tion with the center of the sliding roller as a pivot.
As the backward force on the seat back is eliminated, spring ten-
sion returns the headrest to its original position.
FRONT SEAT
Heated Seat
BT-58

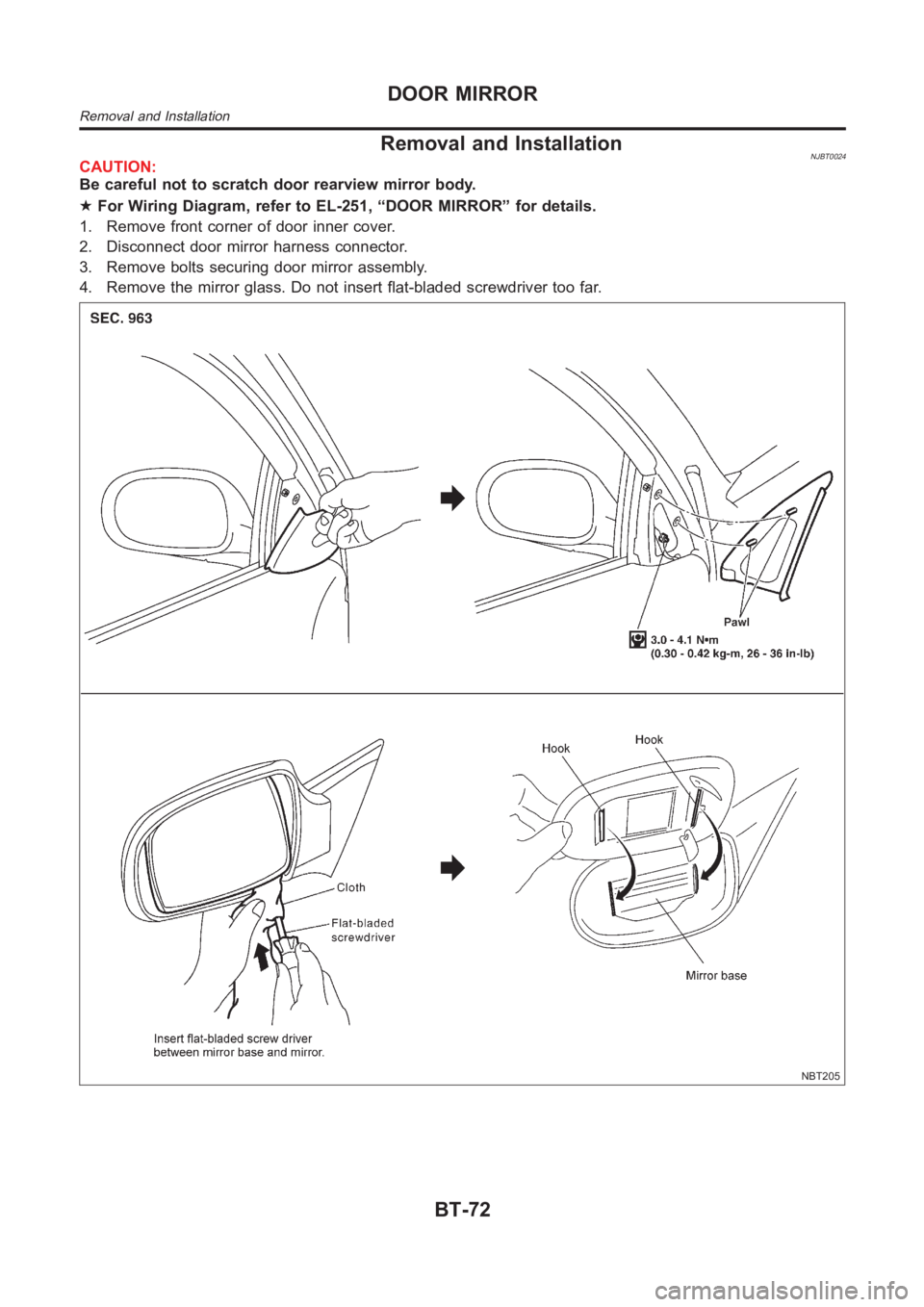

Removal and InstallationNJBT0024CAUTION:
Be careful not to scratch door rearview mirror body.
★For Wiring Diagram, refer to EL-251, “DOOR MIRROR” for details.
1. Remove front corner of door inner cover.
2. Disconnect door mirror harness connector.
3. Remove bolts securing door mirror assembly.
4. Remove the mirror glass. Do not insert flat-bladed screwdriver too far.
NBT205
DOOR MIRROR
Removal and Installation
BT-72

ELECTRICAL SYSTEM
SECTION
EL
CONTENTS
PRECAUTIONS<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[5
Supplemental Restraint System (SRS)″AIR
BAG″and″SEAT BELT PRE-TENSIONER″...............5
Precautions for Trouble Diagnosis ..............................5

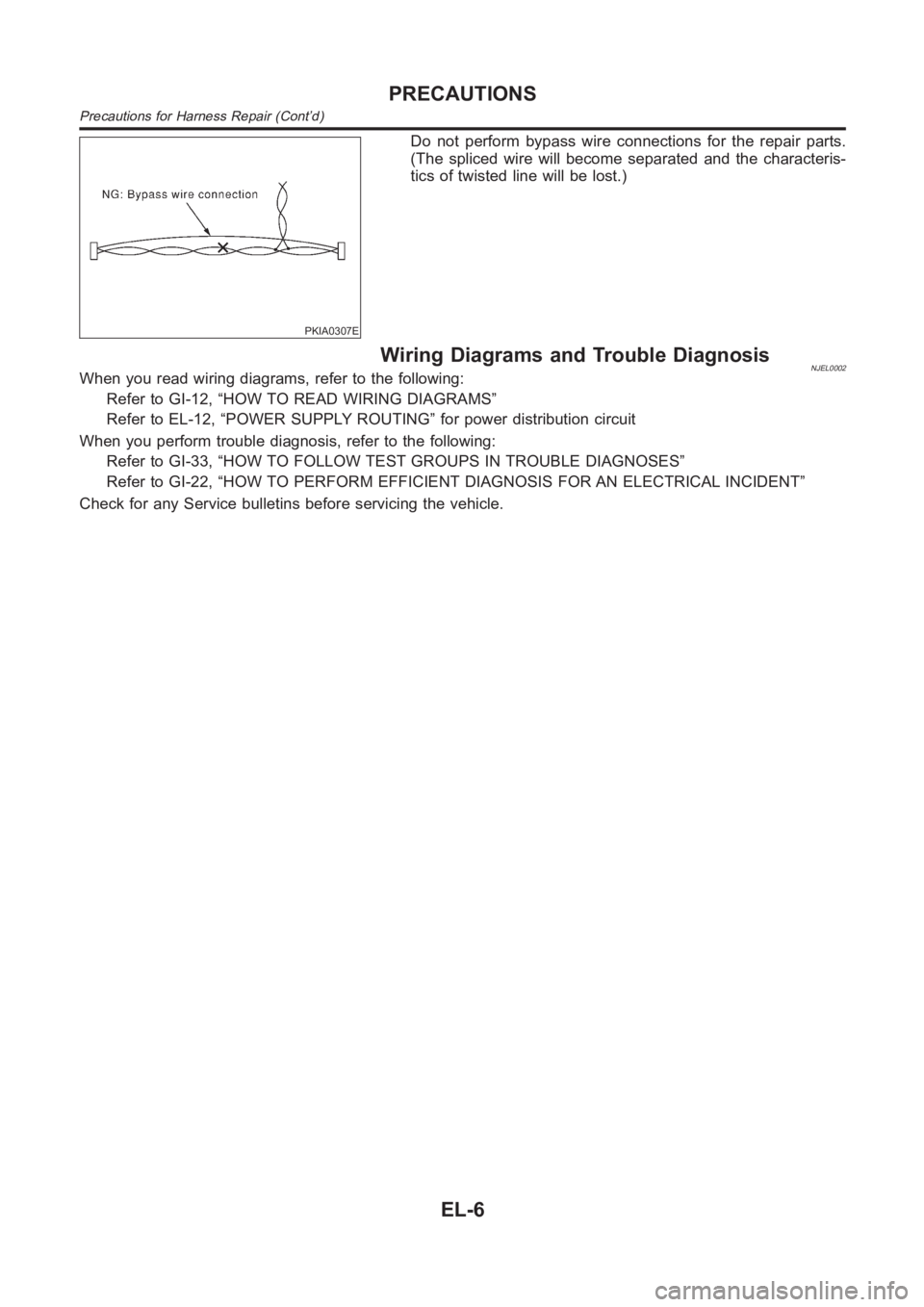

Precautions for Harness Repair ..................................5
Wiring Diagrams and Trouble Diagnosis .....................6
HARNESS CONNECTOR................................................7
Description <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[...............7
STANDARDIZED RELAY................................................9
Description <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[...............9
POWER SUPPLY ROUTING......................................... 11
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............12
Wiring Diagram - POWER - ......................................14
Inspection<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[..............23
GROUND<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[.........24
Ground Distribution ....................................................24
COMBINATION SWITCH..............................................39
Check <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011001100110011[...............39
Replacement <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[..........40
STEERING SWITCH<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011>1
Check <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011001100110011[...............41
HEADLAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[....42
Wiring Diagram - H/LAMP -.......................................42
Trouble Diagnoses.....................................................43
Bulb Replacement .....................................................44
Aiming Adjustment .....................................................44
HEADLAMP - DAYTIME LIGHT SYSTEM -.................46
System Description ....................................................46
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............47
Wiring Diagram - DTRL - ...........................................48
Trouble Diagnoses.....................................................51
Bulb Replacement .....................................................51
Aiming Adjustment .....................................................52
HEADLAMP - HEADLAMP AIMING CONTROL -........53
Wiring Diagram - H/AIM - ..........................................53
PARKING, LICENSE AND TAIL LAMPS.....................55
Wiring Diagram - TAIL/L - ..........................................55
STOP LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[...58
Wiring Diagram - STOP/L - .......................................58BACK-UP LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011>0
Wiring Diagram - BACK/L - .......................................60
FRONT FOG LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>2
Wiring Diagram - F/FOG - .........................................62
Bulb Replacement .....................................................63
Aiming Adjustment .....................................................64
REAR FOG LAMP<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011>5
Wiring Diagram - R/FOG -.........................................65
TURN SIGNAL AND HAZARD WARNING LAMPS.....67
System Description/QG Engine Models and YD
Engine Models with Common Rail ............................67
System Description/YD Engine Models with
Common Rail and K9K Engine Models.....................69
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............70
Wiring Diagram - TURN - ..........................................71
Trouble Diagnoses.....................................................74
ILLUMINATION<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011001100110011>75
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[............75
Wiring Diagram - ILL - ...............................................76
INTERIOR ROOM LAMP...............................................80
System Description/QG and YD Engine Models
with Common Rail .....................................................80
System Description/YD Engine Models without
Common Rail and K9K Engine Models.....................82
Wiring Diagram - ROOM/L - ......................................84
Trouble Diagnoses/QG and YD Engine Models
with Common Rail .....................................................86
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................102
SPOT AND TRUNK ROOM LAMPS...........................108
Wiring Diagram - INT/L - .........................................108
METERS AND GAUGES............................................. 110
Component Parts and Harness Connector
Location <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[............ 110
System Description .................................................. 110
Combination Meter .................................................. 112
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[.......... 113
Wiring Diagram - METER - ..................................... 114
Combination Meter Self-Diagnosis .......................... 117
