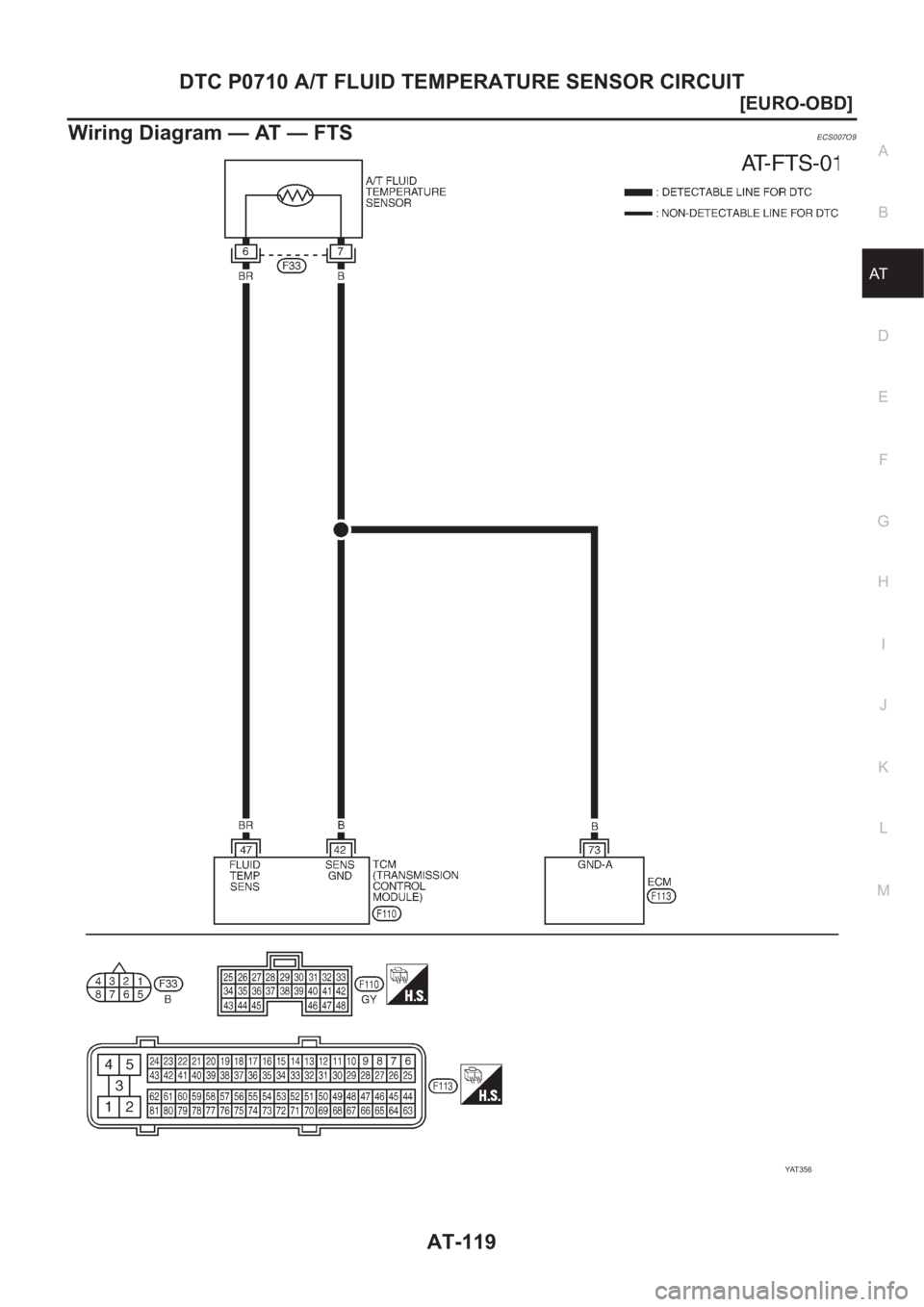

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-119
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — FTSECS007O9
YAT 3 5 6
Page 1582 of 3189
AT-126
[EURO-OBD]
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Wiring Diagram — AT — VSSA/T
ECS007OD
YAT 3 5 7
Page 1586 of 3189
AT-130
[EURO-OBD]

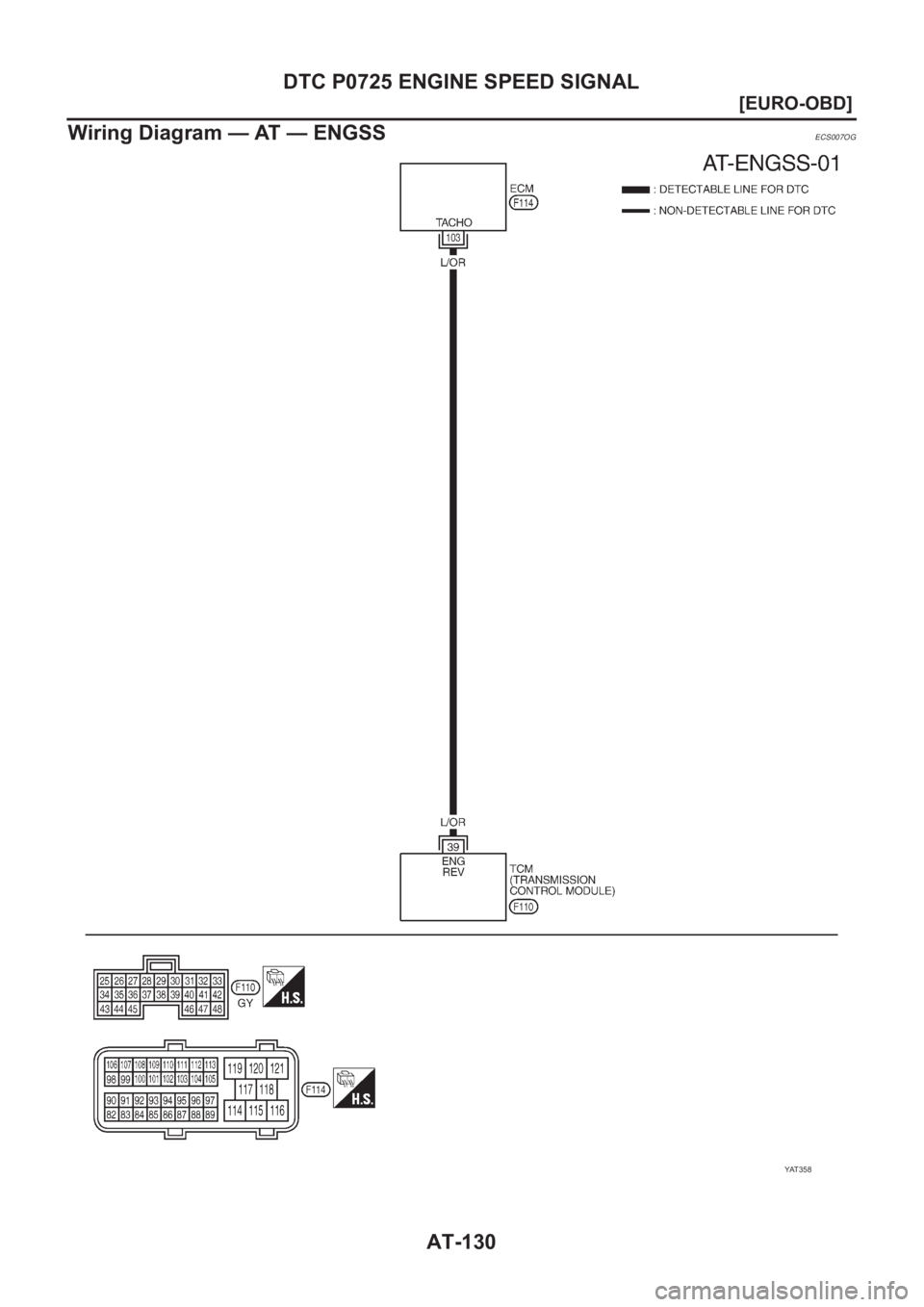

DTC P0725 ENGINE SPEED SIGNAL
Wiring Diagram — AT — ENGSS
ECS007OG
YAT 3 5 8
Page 1592 of 3189
AT-136
[EURO-OBD]

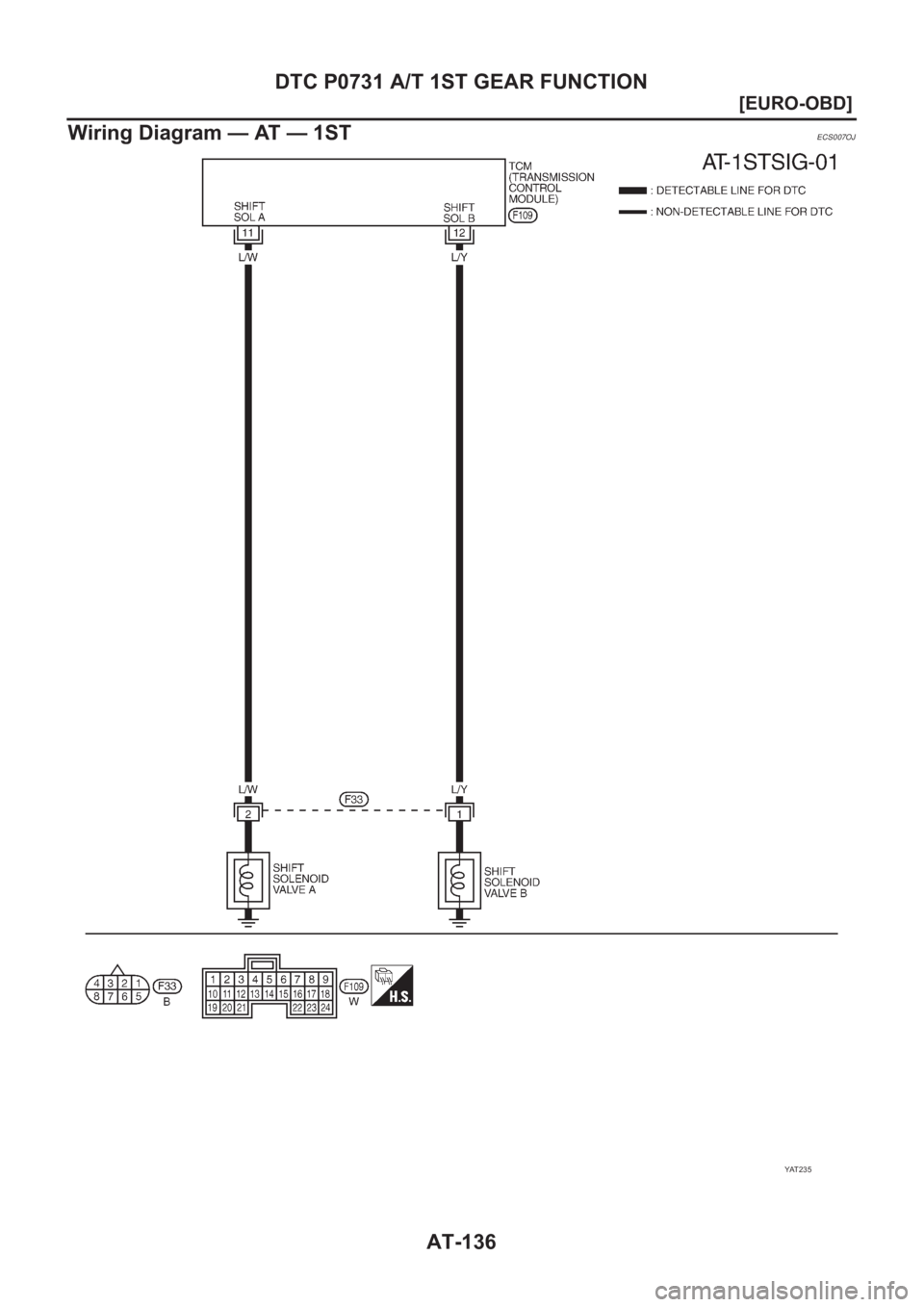

DTC P0731 A/T 1ST GEAR FUNCTION
Wiring Diagram — AT — 1ST
ECS007OJ
YAT 2 3 5
Page 1598 of 3189
AT-142
[EURO-OBD]

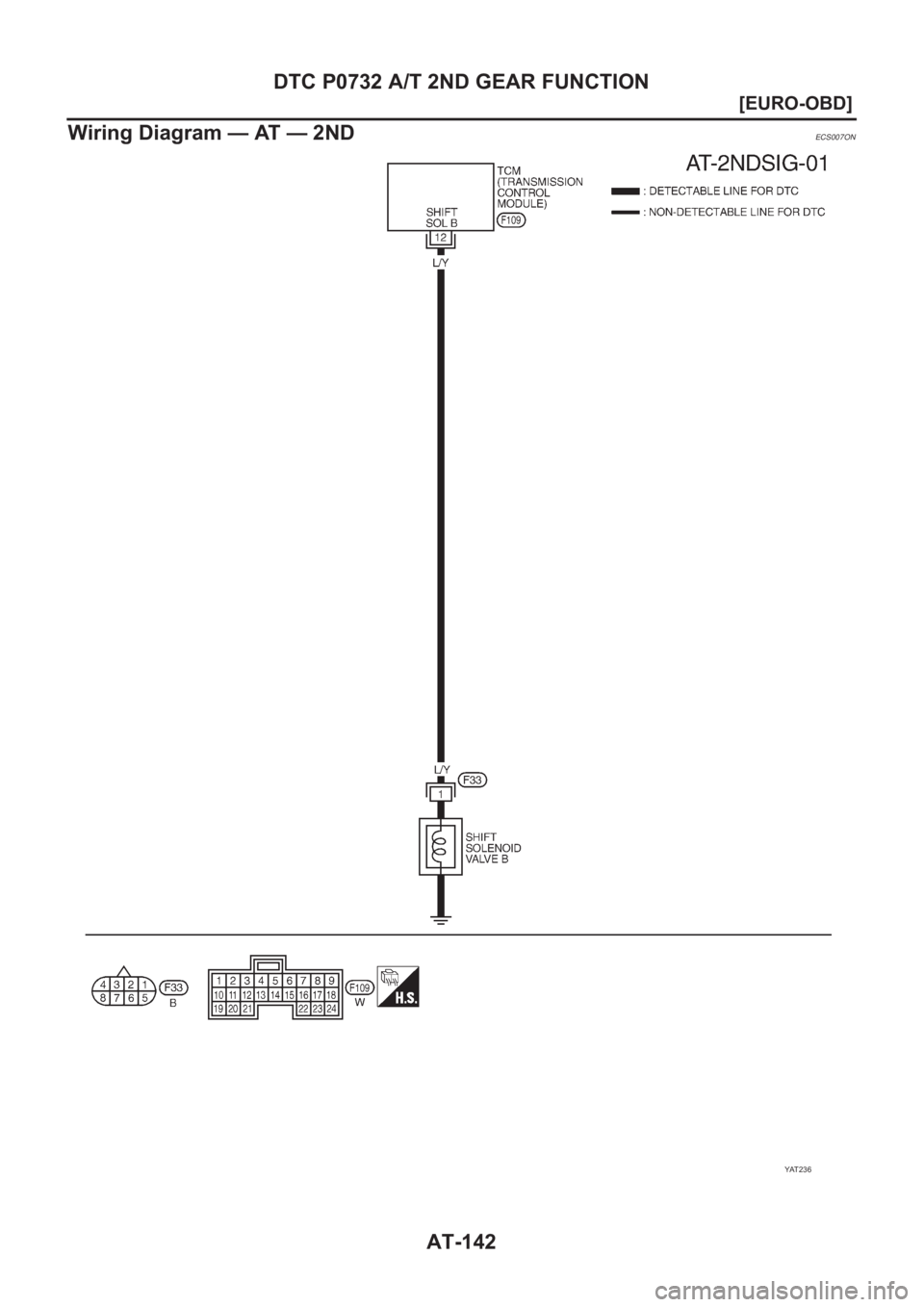

DTC P0732 A/T 2ND GEAR FUNCTION
Wiring Diagram — AT — 2ND
ECS007ON
YAT 2 3 6
Page 1604 of 3189
AT-148
[EURO-OBD]
DTC P0733 A/T 3RD GEAR FUNCTION
Wiring Diagram — AT — 3RD
ECS007OR
YAT 2 3 7
Page 1610 of 3189
AT-154
[EURO-OBD]

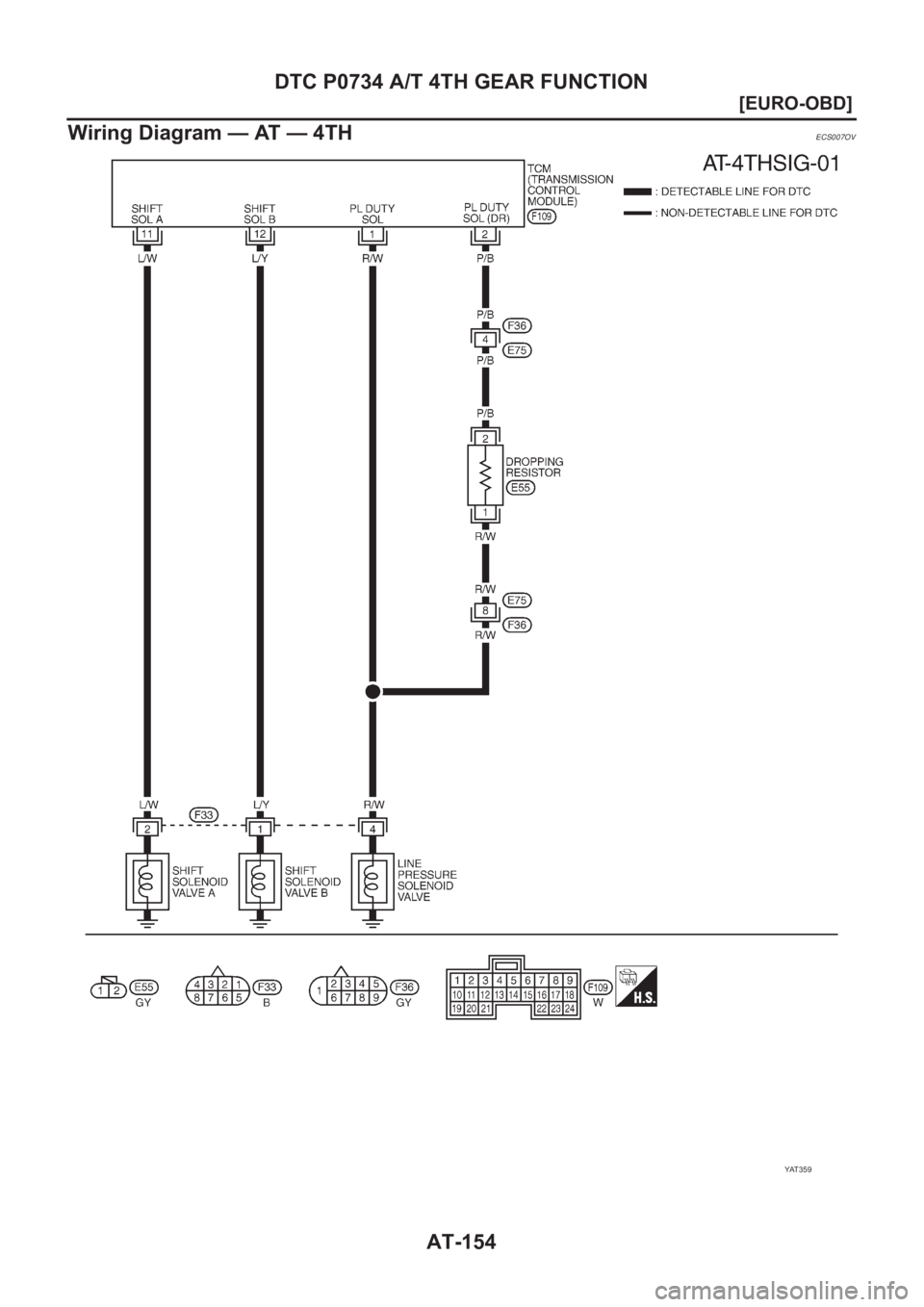

DTC P0734 A/T 4TH GEAR FUNCTION
Wiring Diagram — AT — 4TH
ECS007OV
YAT 3 5 9
Page 1617 of 3189

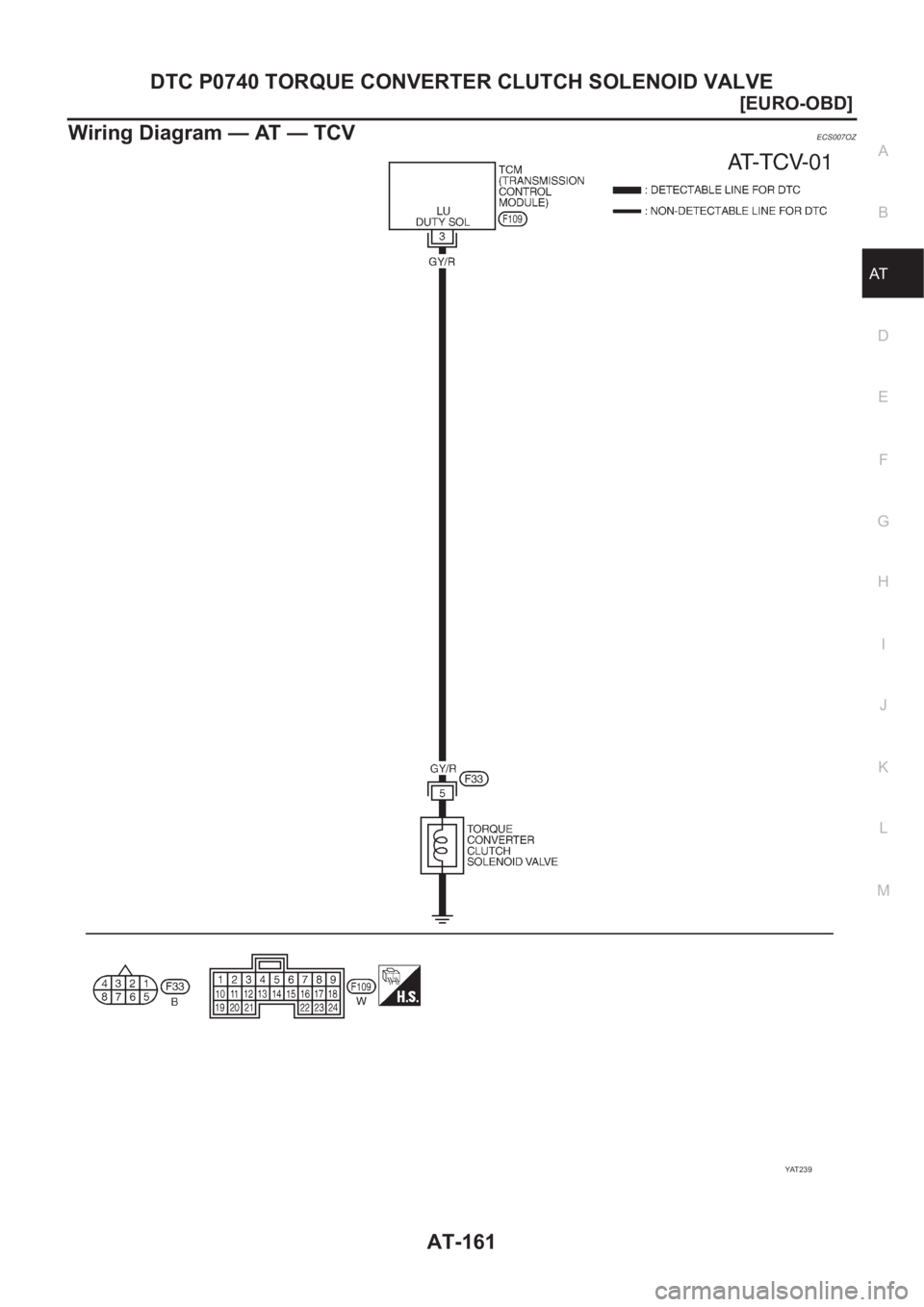

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-161
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — TCVECS007OZ
YAT 2 3 9
