Page 1204 of 3189

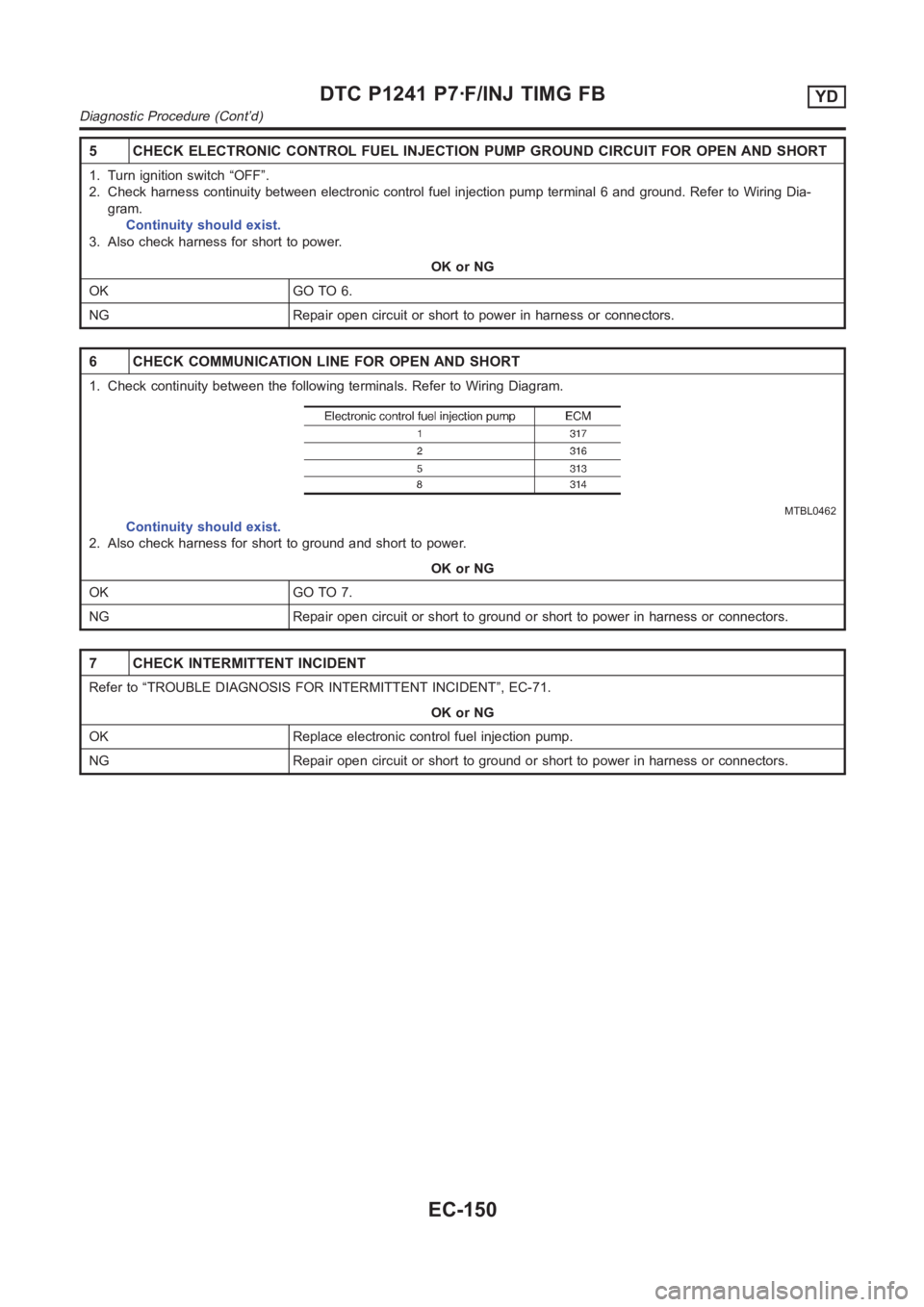

5 CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP GROUND CIRCUIT FOR OPEN ANDSHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between electronic control fuel injection pump terminal 6 and ground. Refer to Wiring Dia-
gram.
Continuity should exist.
3. Also check harness for short to power.
OK or NG
OK GO TO 6.
NG Repair open circuit or short to power in harness or connectors.
6 CHECK COMMUNICATION LINE FOR OPEN AND SHORT
1. Check continuity between the following terminals. Refer to Wiring Diagram.
MTBL0462
Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
OK GO TO 7.
NG Repair open circuit or short to ground or short to power in harness or connectors.
7 CHECK INTERMITTENT INCIDENT
Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-71.
OK or NG
OK Replace electronic control fuel injection pump.
NG Repair open circuit or short to ground or short to power in harness or connectors.
DTC P1241 P7·F/INJ TIMG FBYD
Diagnostic Procedure (Cont’d)
EC-150
Page 1208 of 3189

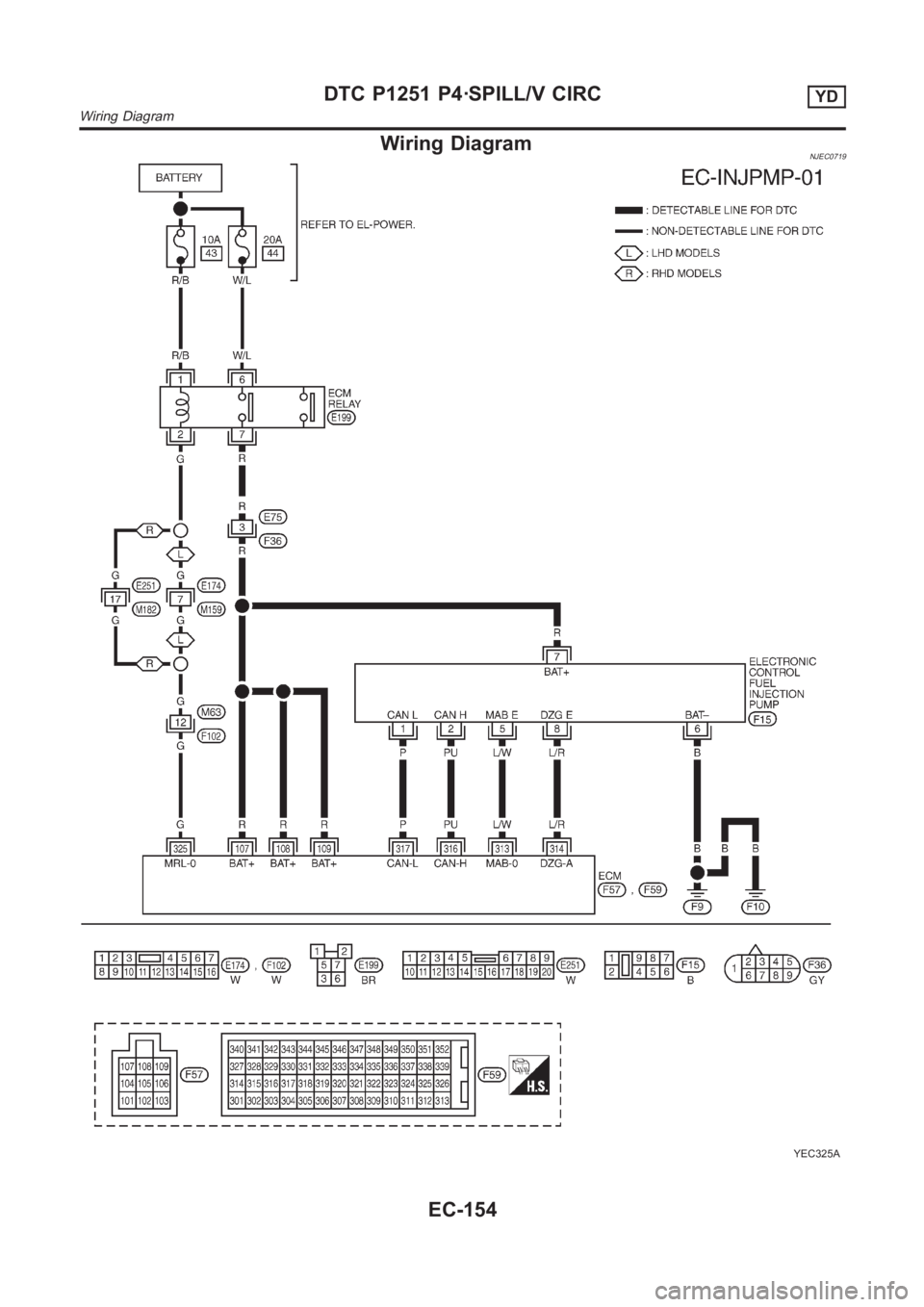

Wiring DiagramNJEC0719
YEC325A
DTC P1251 P4·SPILL/V CIRCYD
Wiring Diagram
EC-154
Page 1210 of 3189

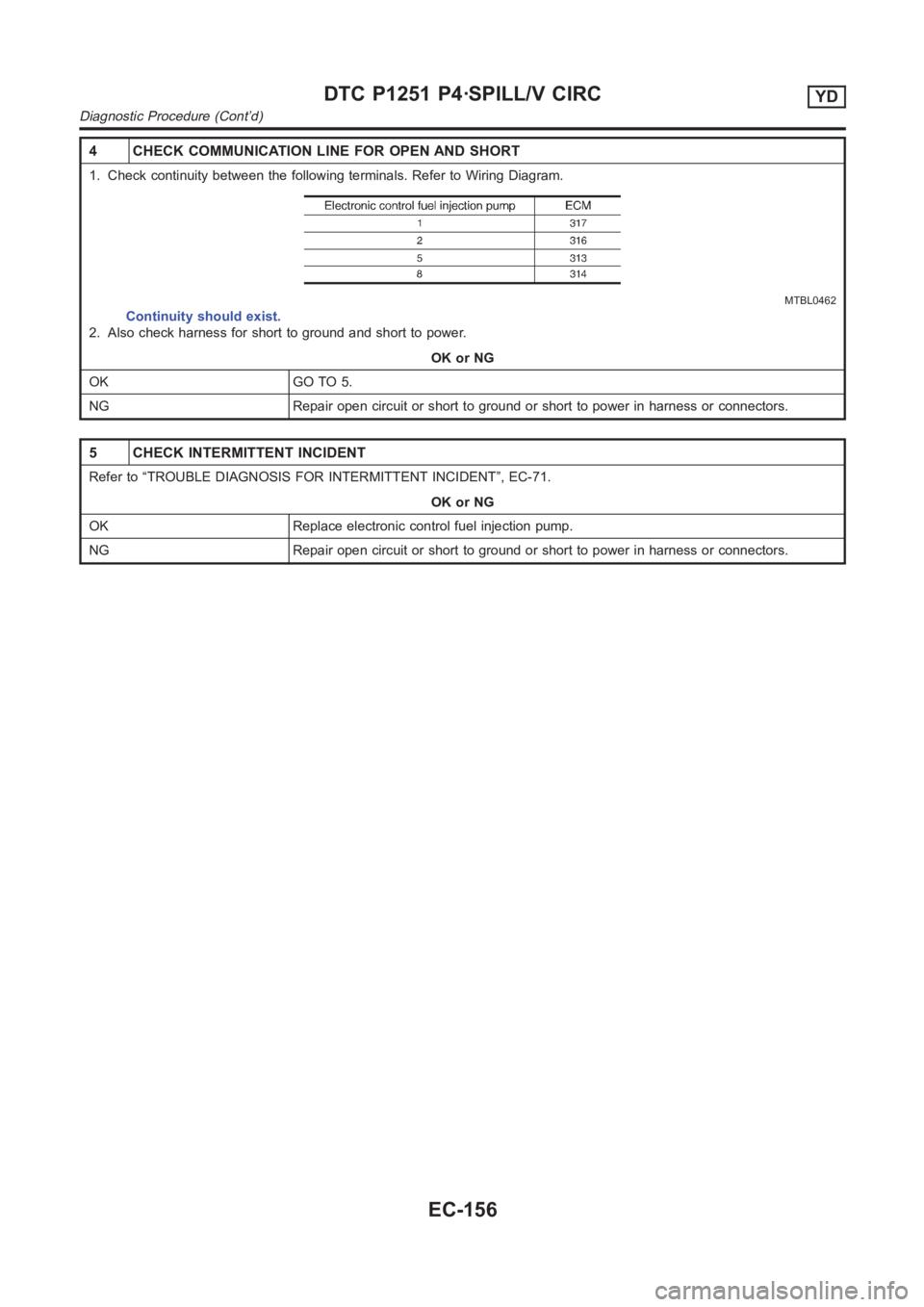

4 CHECK COMMUNICATION LINE FOR OPEN AND SHORT
1. Check continuity between the following terminals. Refer to Wiring Diagram.
MTBL0462
Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
OK GO TO 5.
NG Repair open circuit or short to ground or short to power in harness or connectors.
5 CHECK INTERMITTENT INCIDENT
Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-71.
OK or NG
OK Replace electronic control fuel injection pump.
NG Repair open circuit or short to ground or short to power in harness or connectors.
DTC P1251 P4·SPILL/V CIRCYD
Diagnostic Procedure (Cont’d)
EC-156
Page 1214 of 3189
Wiring DiagramNJEC0705
YEC325A
DTC P1337 P2·DTC PULSE SIGYD
Wiring Diagram
EC-160
Page 1216 of 3189

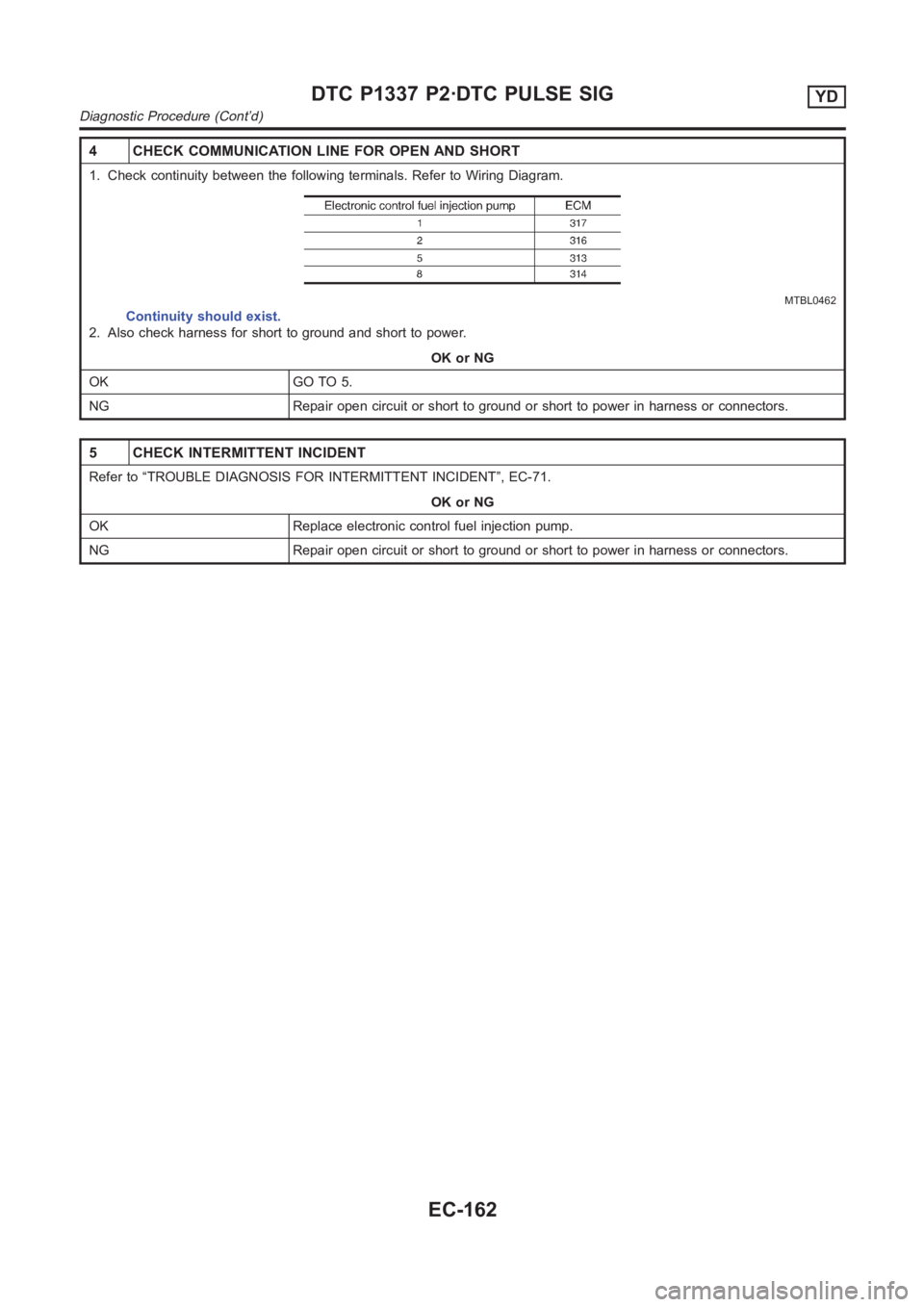

4 CHECK COMMUNICATION LINE FOR OPEN AND SHORT
1. Check continuity between the following terminals. Refer to Wiring Diagram.
MTBL0462
Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
OK GO TO 5.
NG Repair open circuit or short to ground or short to power in harness or connectors.
5 CHECK INTERMITTENT INCIDENT
Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-71.
OK or NG
OK Replace electronic control fuel injection pump.
NG Repair open circuit or short to ground or short to power in harness or connectors.
DTC P1337 P2·DTC PULSE SIGYD
Diagnostic Procedure (Cont’d)
EC-162
Page 1220 of 3189
Wiring DiagramNJEC0698
YEC325A
DTC P1341 P1·CAM POS SENYD
Wiring Diagram
EC-166
Page 1222 of 3189
4 CHECK COMMUNICATION LINE FOR OPEN AND SHORT
1. Check continuity between the following terminals. Refer to Wiring Diagram.
MTBL0462
Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
OK GO TO 5.
NG Repair open circuit or short to ground or short to power in harness or connectors.
5 CHECK INTERMITTENT INCIDENT
Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-71.
OK or NG
OK Replace electronic control fuel injection pump.
NG Repair open circuit or short to ground or short to power in harness or connectors.
DTC P1341 P1·CAM POS SENYD
Diagnostic Procedure (Cont’d)
EC-168
Page 1226 of 3189
Wiring DiagramNJEC0712
YEC325A
DTC P1600 P3·PUMP COMM LINEYD
Wiring Diagram
EC-172
