Page 65 of 416

65 Safety and Security
Occupant safety

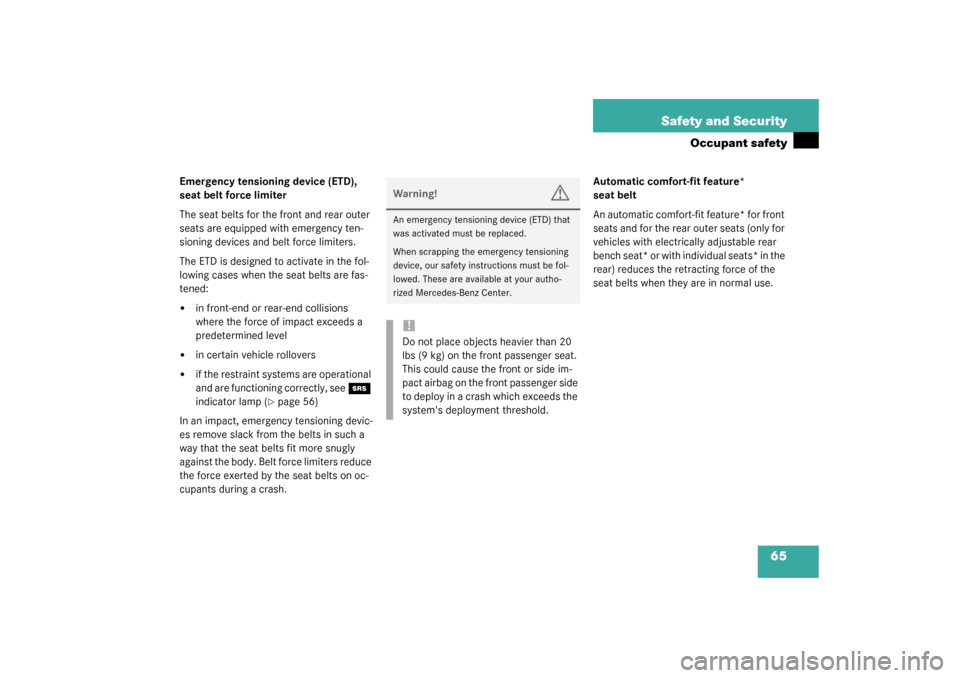

Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and belt force limiters.
The ETD is designed to activate in the fol-
lowing cases when the seat belts are fas-
tened:
in front-end or rear-end collisions
where the force of impact exceeds a
predetermined level
in certain vehicle rollovers
if the restraint systems are operational
and are functioning correctly, see
1
indicator lamp (
page 56)
In an impact, emergency tensioning devic-
es remove slack from the belts in such a
way that the seat belts fit more snugly
against the body. Belt force limiters reduce
the force exerted by the seat belts on oc-
cupants during a crash.Automatic comfort-fit feature*
seat belt
An automatic comfort-fit feature* for front
seats and for the rear outer seats (only for
vehicles with electrically adjustable rear
bench seat* or with individual seats* in the
rear) reduces the retracting force of the
seat belts when they are in normal use.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When scrapping the emergency tensioning
device, our safety instructions must be fol-
lowed. These are available at your autho-
rized Mercedes-Benz Center.!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.
Page 66 of 416

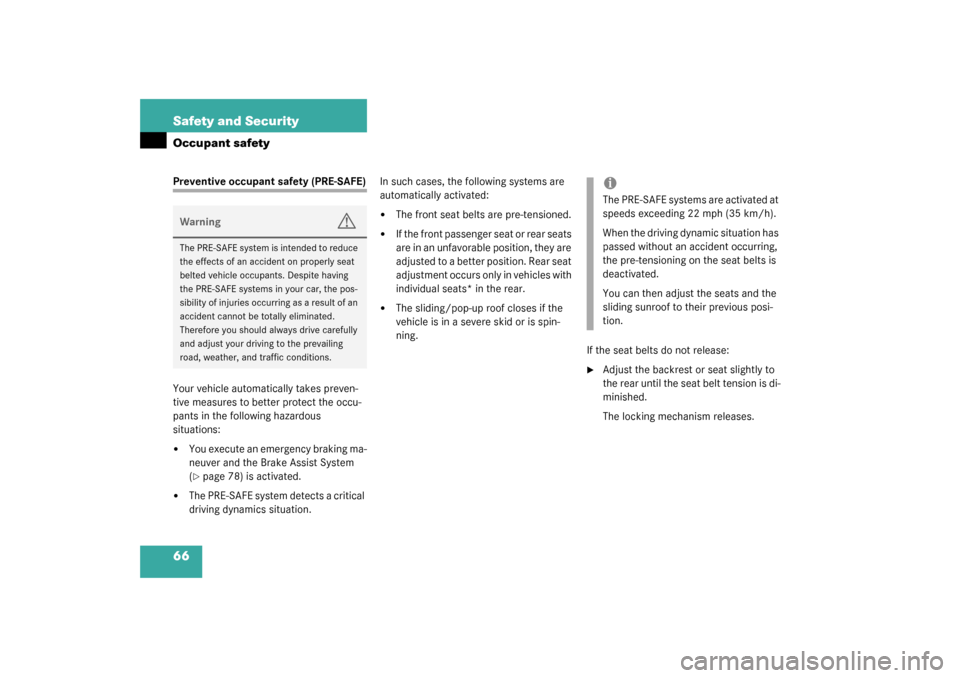

66 Safety and SecurityOccupant safetyPreventive occupant safety (PRE-SAFE)
Your vehicle automatically takes preven-
tive measures to better protect the occu-
pants in the following hazardous
situations:
You execute an emergency braking ma-
neuver and the Brake Assist System
(page 78) is activated.
The PRE-SAFE system detects a critical
driving dynamics situation.In such cases, the following systems are
automatically activated:
The front seat belts are pre-tensioned.
If the front passenger seat or rear seats
are in an unfavorable position, they are
adjusted to a better position. Rear seat
a d j u s t m e n t o c c u r s o n l y i n v e h i c l e s w i t h
individual seats* in the rear.
The sliding/pop-up roof closes if the
vehicle is in a severe skid or is spin-
ning.
If the seat belts do not release:
Adjust the backrest or seat slightly to
the rear until the seat belt tension is di-
minished.
The locking mechanism releases.
Warning
G
The PRE-SAFE system is intended to reduce
the effects of an accident on properly seat
belted vehicle occupants. Despite having
the PRE-SAFE systems in your car, the pos-
sibility of injuries occurring as a result of an
accident cannot be totally eliminated.
Therefore you should always drive carefully
and adjust your driving to the prevailing
road, weather, and traffic conditions.
iThe PRE-SAFE systems are activated at
speeds exceeding 22 mph (35 km/h).
When the driving dynamic situation has
passed without an accident occurring,
the pre-tensioning on the seat belts is
deactivated.
You can then adjust the seats and the
sliding sunroof to their previous posi-
tion.
Page 67 of 416

67 Safety and Security
Occupant safety

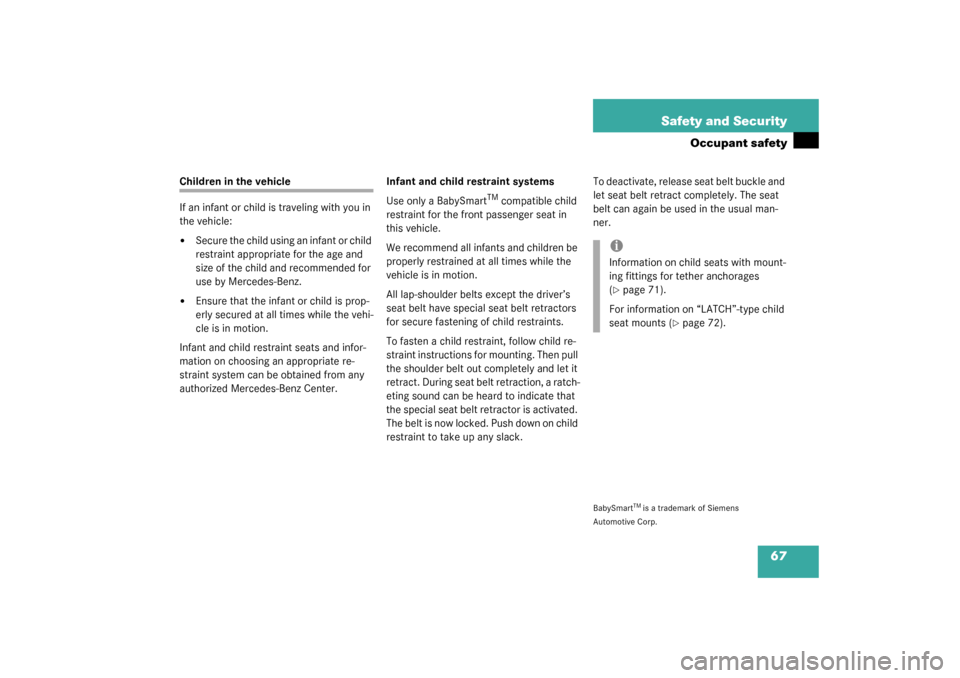

Children in the vehicle
If an infant or child is traveling with you in
the vehicle:
Secure the child using an infant or child
restraint appropriate for the age and
size of the child and recommended for
use by Mercedes-Benz.
Ensure that the infant or child is prop-
erly secured at all times while the vehi-
cle is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
authorized Mercedes-Benz Center.Infant and child restraint systems
Use only a BabySmart
TM compatible child
restraint for the front passenger seat in
this vehicle.
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During seat belt retraction, a ratch-
eting sound can be heard to indicate that
the special seat belt retractor is activated.
The belt is now locked. Push down on child
restraint to take up any slack.To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.
BabySmart
TM is a trademark of Siemens
Automotive Corp.
iInformation on child seats with mount-
ing fittings for tether anchorages
(page 71).
For information on “LATCH”-type child
seat mounts (
page 72).
Page 68 of 416

68 Safety and SecurityOccupant safetyWarning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.!The use of infant or child restraints is
required by law in all 50 states, the Dis-
trict of Columbia, the U.S. territories,
and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system properly secured by a
lap-shoulder belt or, if so equipped, a
child restraint lower anchorage system
that complies with U.S. Federal Motor
Vehicle Safety Standards 213 and 225
and Canadian Motor Vehicle Safety
Standards 213 and 210.2.
A statement by the child restraint man-
ufacturer of compliance with this stan-
dard can be found on the instruction
label on the restraint and in the instruc-
tion manual provided with the restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to inside of vehicle and to infant
or child restraints.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
Page 69 of 416

69 Safety and Security
Occupant safety

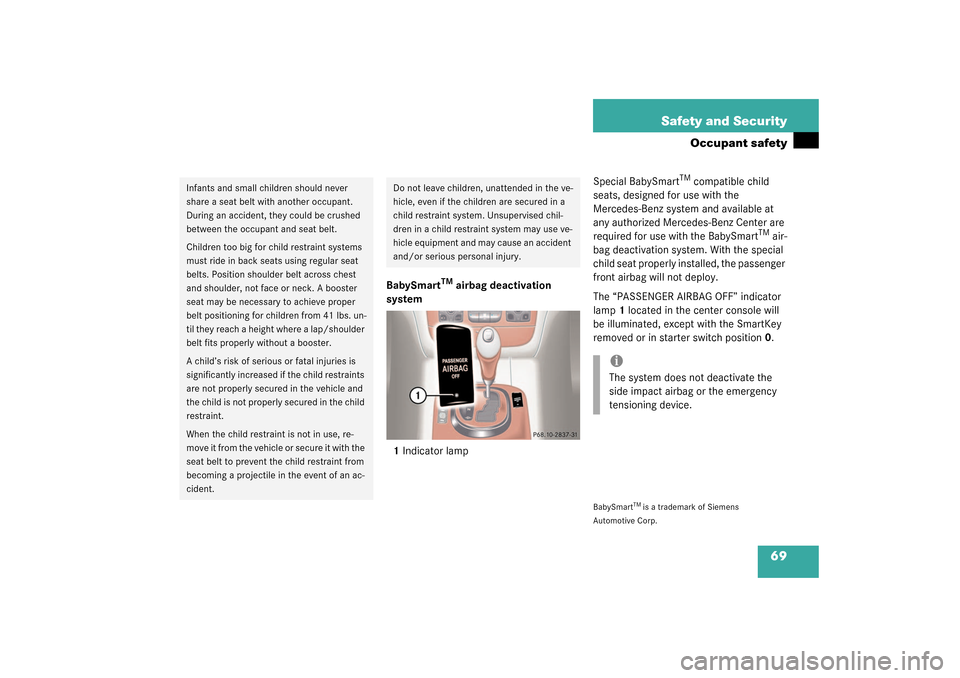

BabySmart
TM
airbag deactivation
system
1Indicator lampSpecial BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system and available at
any authorized Mercedes-Benz Center are
required for use with the BabySmart
TM air-
bag deactivation system. With the special
child seat properly installed, the passenger
front airbag will not deploy.
The “PASSENGER AIRBAG OFF” indicator
lamp1 located in the center console will
be illuminated, except with the SmartKey
removed or in starter switch position0.
BabySmart
TM is a trademark of Siemens
Automotive Corp.
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs. un-
til they reach a height where a lap/shoulder
belt fits properly without a booster.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
When the child restraint is not in use, re-
move it from the vehicle or secure it with the
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
Do not leave children, unattended in the ve-
hicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.
iThe system does not deactivate the
side impact airbag or the emergency
tensioning device.
Page 70 of 416

70 Safety and SecurityOccupant safetySelf-test BabySmart
TM
without special
child seat installed
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* (if so equipped) start/stop
button once or twice, the
“PASSENGER AIRBAG OFF” indicator
lamp1 located in the center console lights
up for approximately 6 seconds and then
goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the passenger seat.
For more information see (page 294).
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
passenger front airbag will not deploy only if
the PASSENGER AIRBAG OFF indicator lamp
remains illuminated.
Please be sure to check the indicator every
time you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmart
TM restraint to transport children
on the front passenger seat until the system
has been repaired.
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the PASSENGER AIRBAG OFF indicator lamp
not to come on during self-test or be contin-
uously lit, indicating that the system is not
functioning.
Page 71 of 416

71 Safety and Security
Occupant safety

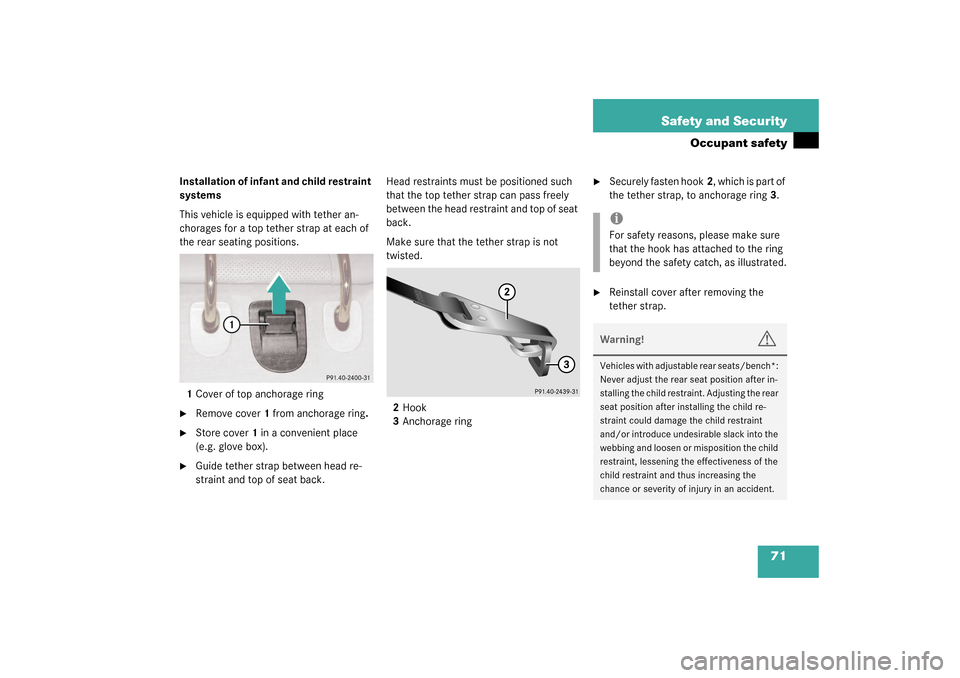

Installation of infant and child restraint
systems
This vehicle is equipped with tether an-
chorages for a top tether strap at each of
the rear seating positions.
1Cover of top anchorage ring
Remove cover1 from anchorage ring.
Store cover1 in a convenient place
(e.g. glove box).
Guide tether strap between head re-
straint and top of seat back.Head restraints must be positioned such
that the top tether strap can pass freely
between the head restraint and top of seat
back.
Make sure that the tether strap is not
twisted.
2Hook
3Anchorage ring
Securely fasten hook2, which is part of
the tether strap, to anchorage ring3.
Reinstall cover after removing the
tether strap.iFor safety reasons, please make sure
that the hook has attached to the ring
beyond the safety catch, as illustrated.Warning!
G
Vehicles with adjustable rear seats/bench*:
Never adjust the rear seat position after in-
stalling the child restraint. Adjusting the rear
seat position after installing the child re-
straint could damage the child restraint
and/or introduce undesirable slack into the
webbing and loosen or misposition the child
restraint, lessening the effectiveness of the
child restraint and thus increasing the
chance or severity of injury in an accident.
Page 72 of 416
72 Safety and SecurityOccupant safetyChild seat anchors – “LATCH” type
This vehicle is equipped with two “LATCH”
(Lower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the outer rear
seats) for the installation of a “LATCH”
child seat with the matching anchor fit-
tings.
If you have not installed a child seat, the
“LATCH” anchor fittings are covered with
an upholstery blend.
1Indicates the position of the anchors
2Anchors
3Upholstery blend
4Installation device
Move rear power seats*/bench* to the
rearmost position (
page 113).
Fold upholstery blend3 upward.
Turn installation device4 to a vertical
position so that upholstery blend3
does not fold down.
Install child seat according to the man-
ufacturer’s instructions.
A solid connection is established be-
tween the child seat and the body of
the vehicle.
Do not adjust rear power seat*/bench*
position after installing child restraint.
