2003 MERCEDES-BENZ S430 4MATIC Owner's Manual

Page 337 of 416

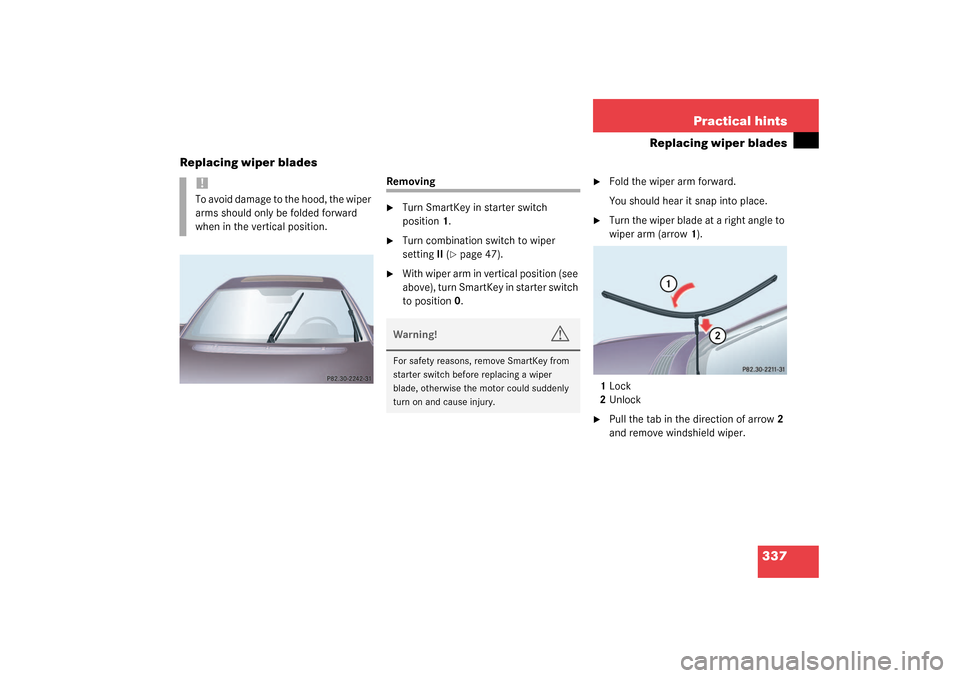

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 337 Practical hints
Replacing wiper blades
Replacing wiper blades
Removing
Turn SmartKey in starter switch
position1.

Turn combination switch to wiper
settingII (
page 47).

With wiper arm in v

Page 338 of 416

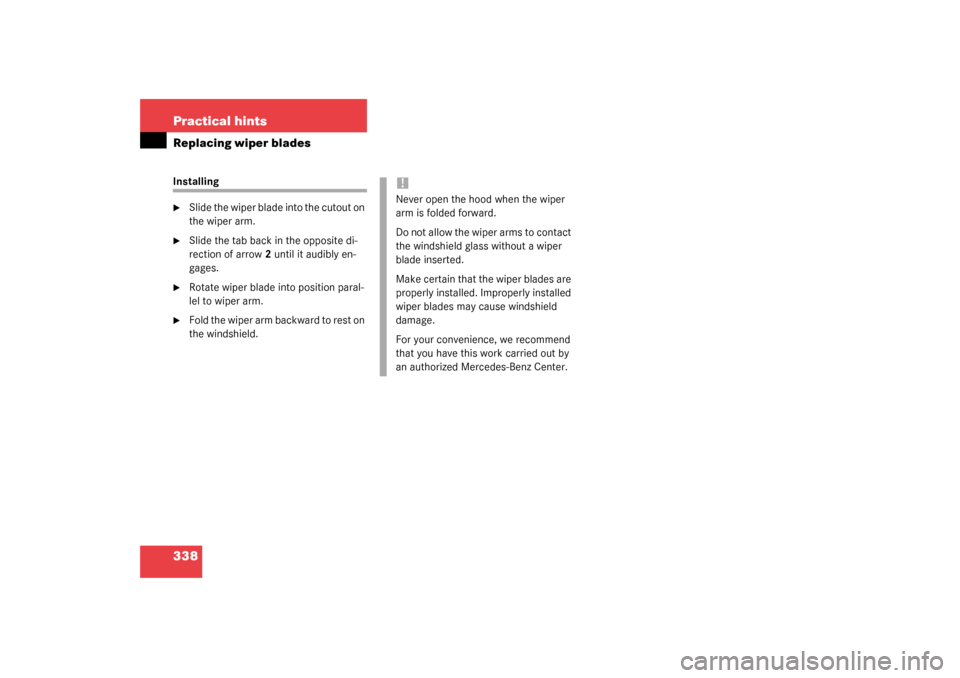

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 338 Practical hintsReplacing wiper bladesInstalling
Slide the wiper blade into the cutout on
the wiper arm.

Slide the tab back in the opposite di-
rection of arrow2 until it audibly en-
gages.

R

Page 339 of 416

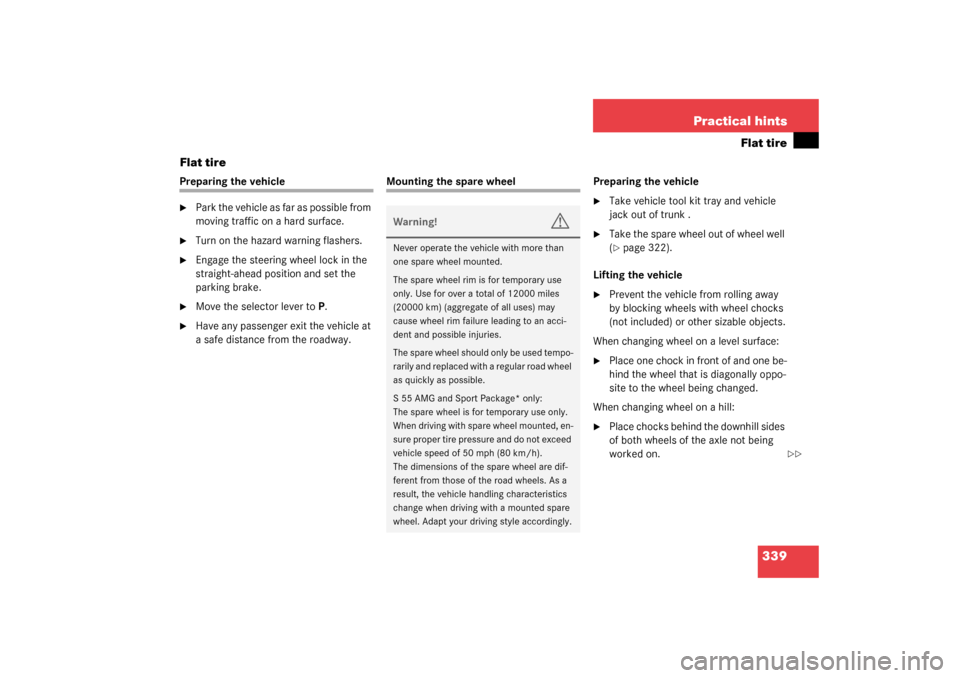

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 339 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering

Page 340 of 416

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 340 Practical hintsFlat tire

Take the two-piece wheel wrench out
of the vehicle tool kit tray. Assemble
wheel wrench.

On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
p

Page 341 of 416

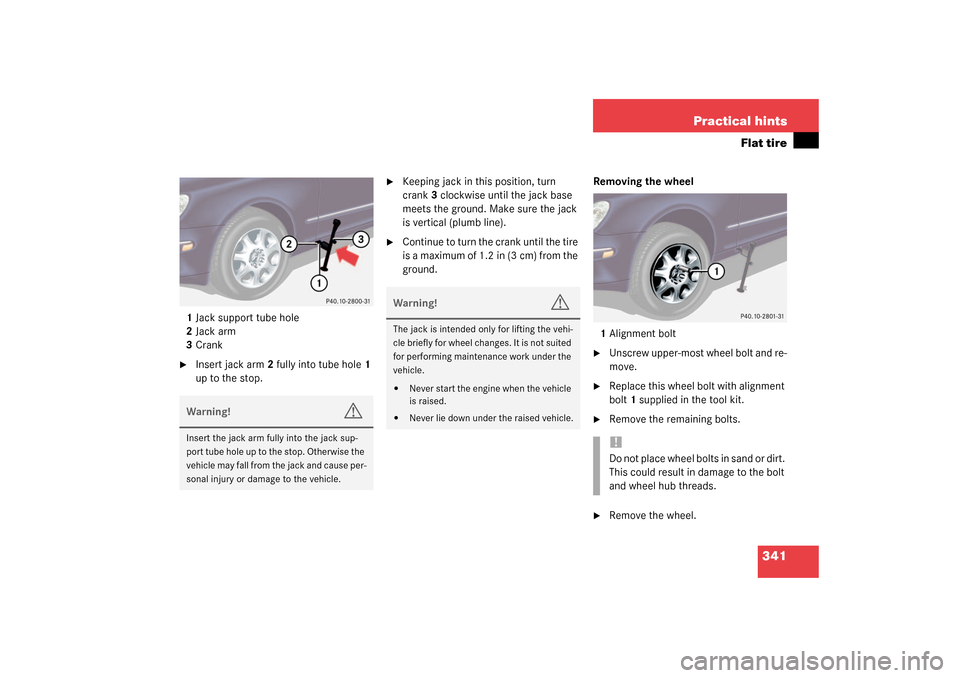

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 341 Practical hints
Flat tire
1Jack support tube hole
2Jack arm
3Crank
Insert jack arm2 fully into tube hole1
up to the stop.

Keeping jack in this position, turn
crank3 clockwise until the jack b

Page 342 of 416

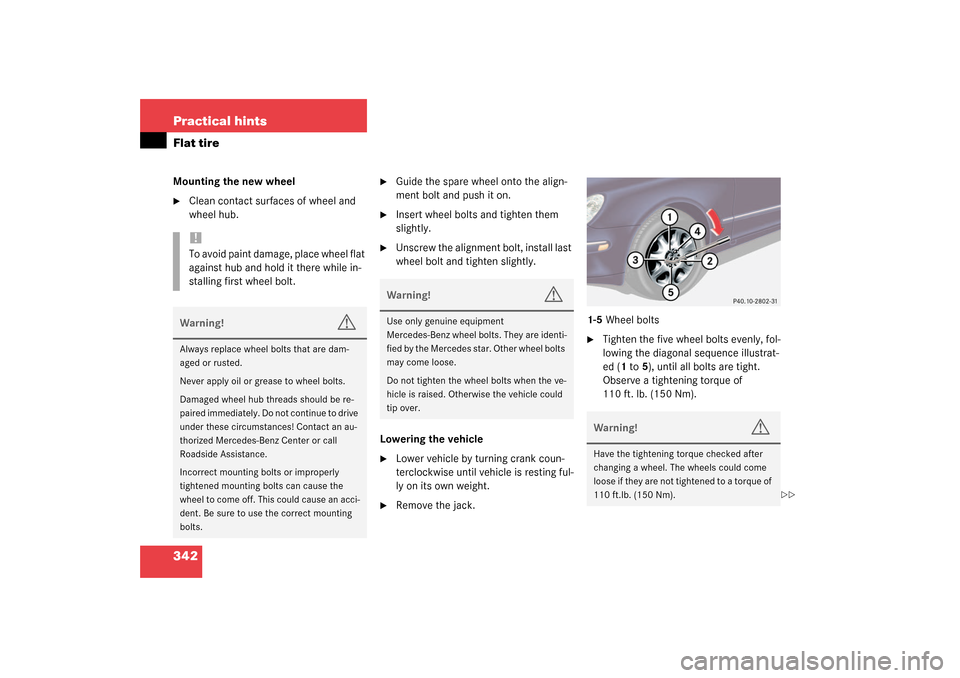

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 342 Practical hintsFlat tireMounting the new wheel
Clean contact surfaces of wheel and
wheel hub.

Guide the spare wheel onto the align-
ment bolt and push it on.

Insert wheel bolts and tighten t

Page 343 of 416

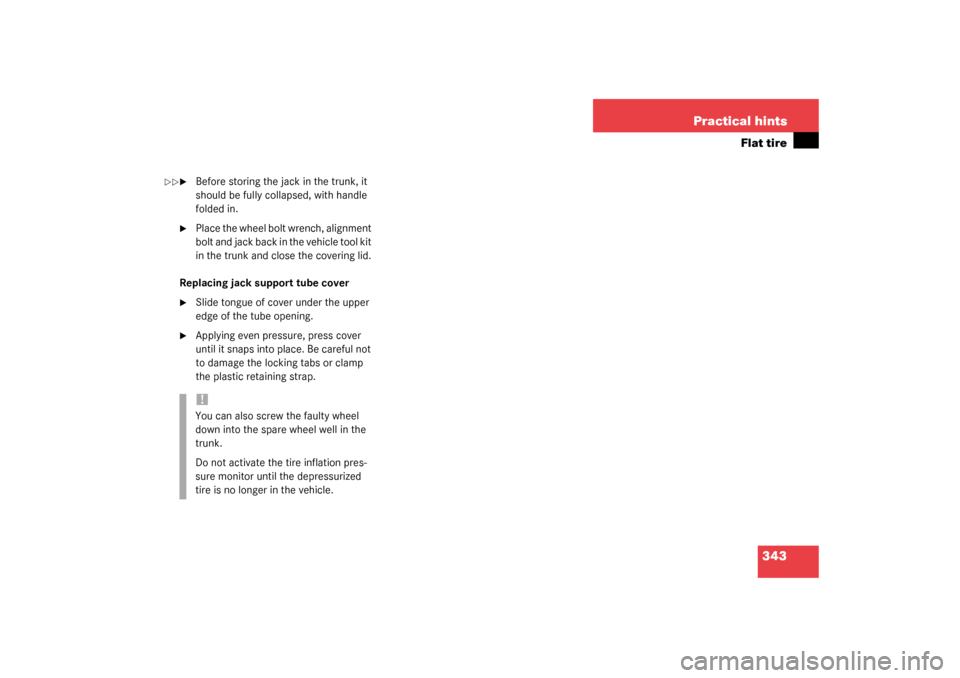

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 343 Practical hints
Flat tire

Before storing the jack in the trunk, it
should be fully collapsed, with handle
folded in.

Place the wheel bolt wrench, alignment
bolt and jack back in the vehicle

Page 344 of 416

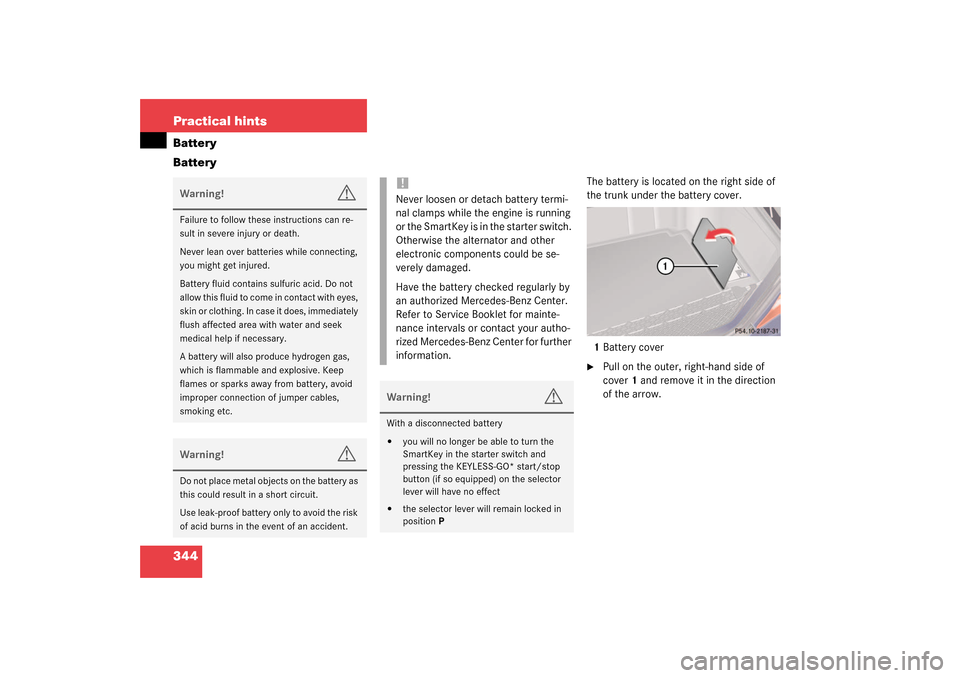

MERCEDES-BENZ S430 4MATIC 2003 W220 Owners Manual 344 Practical hintsBattery
Battery
The battery is located on the right side of
the trunk under the battery cover.
1Battery cover
Pull on the outer, right-hand side of
cover1 and remove it in the d
