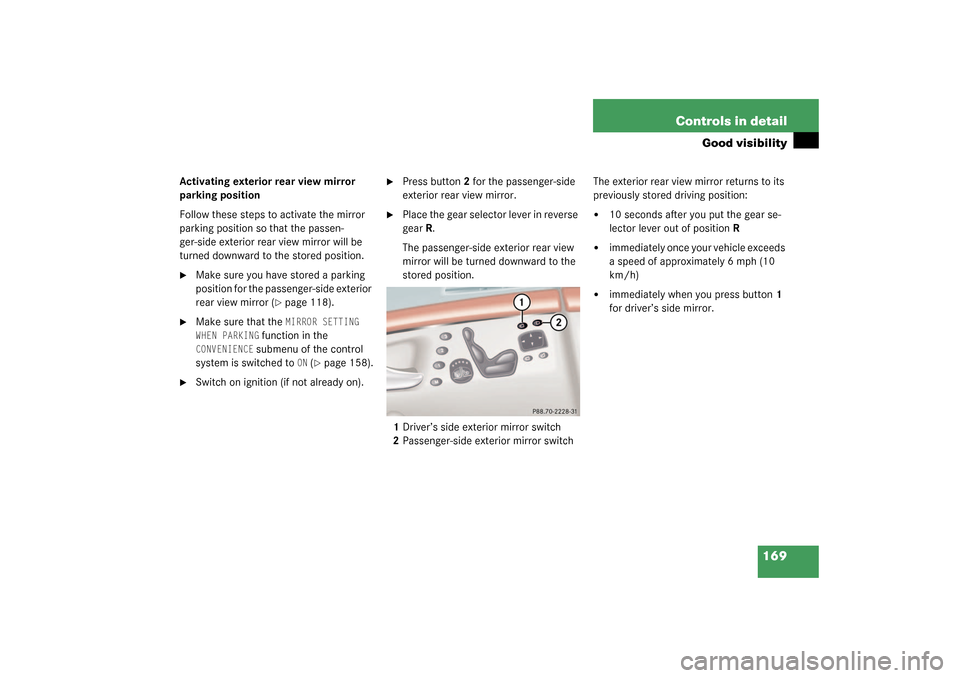

Page 169 of 416

169 Controls in detail
Good visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored position.
Make sure you have stored a parking
position for the passenger-side exterior
rear view mirror (
page 118).
Make sure that the
MIRROR SETTING
WHEN PARKING
function in the
CONVENIENCE
submenu of the control
system is switched to
ON (page 158).
Switch on ignition (if not already on).
Press button2 for the passenger-side
exterior rear view mirror.
Place the gear selector lever in reverse
gearR.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position.
1Driver’s side exterior mirror switch
2Passenger-side exterior mirror switchThe exterior rear view mirror returns to its
previously stored driving position:
10 seconds after you put the gear se-
lector lever out of positionR
immediately once your vehicle exceeds
a speed of approximately 6 mph (10
km/h)
immediately when you press button1
for driver’s side mirror.

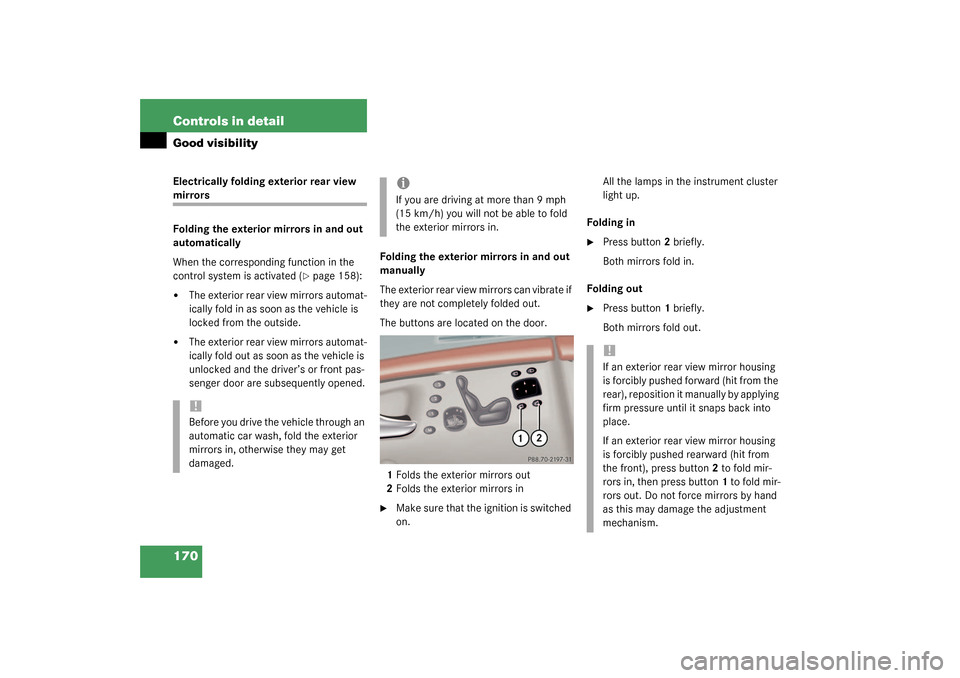

Page 170 of 416

170 Controls in detailGood visibilityElectrically folding exterior rear view mirrors
Folding the exterior mirrors in and out
automatically
When the corresponding function in the
control system is activated (
page 158):
The exterior rear view mirrors automat-
ically fold in as soon as the vehicle is
locked from the outside.
The exterior rear view mirrors automat-
ically fold out as soon as the vehicle is
unlocked and the driver’s or front pas-
senger door are subsequently opened.Folding the exterior mirrors in and out
manually
The exterior rear view mirrors can vibrate if
they are not completely folded out.
The buttons are located on the door.
1Folds the exterior mirrors out
2Folds the exterior mirrors in
Make sure that the ignition is switched
on.All the lamps in the instrument cluster
light up.
Folding in
Press button2 briefly.
Both mirrors fold in.
Folding out
Press button1 briefly.
Both mirrors fold out.
!Before you drive the vehicle through an
automatic car wash, fold the exterior
mirrors in, otherwise they may get
damaged.
iIf you are driving at more than 9 mph
(15 km/h) you will not be able to fold
the exterior mirrors in.
!If an exterior rear view mirror housing
is forcibly pushed forward (hit from the
rear), reposition it manually by applying
firm pressure until it snaps back into
place.
If an exterior rear view mirror housing
is forcibly pushed rearward (hit from
the front), press button2 to fold mir-
rors in, then press button1 to fold mir-
rors out. Do not force mirrors by hand
as this may damage the adjustment
mechanism.
Page 171 of 416

171 Controls in detail
Good visibility
Windshield wipers
Information on the windshield wipers is
found in the “Getting started” section
(page 47).
A rain sensor automatically controls the
windshield wipers depending on how wet
the windshield is.
Switch on ignition.
Set wiper switch to position I
(page 47).
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor which monitors the wetness of
the windshield.
Headlamp cleaning system
The switch is located on the left side of the
dashboard.
1Headlamp washer switch
Switch on ignition.
Press switch1.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
!To prevent the windshield wipers from
being damaged, do not leave the wiper
switch in intermittent setting when tak-
ing the vehicle to an automatic car
wash or when cleaning the windshield.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass when wiping occurs on a dry
windshield.iIf intermittent wiping is on and you turn
the SmartKey in the steering lock from
position 1 to position 2 (
page 31)
and keep the SmartKey in that position
longer than 2 seconds, the wipe inter-
val will be set to approximately 5 sec-
onds.
Page 172 of 416

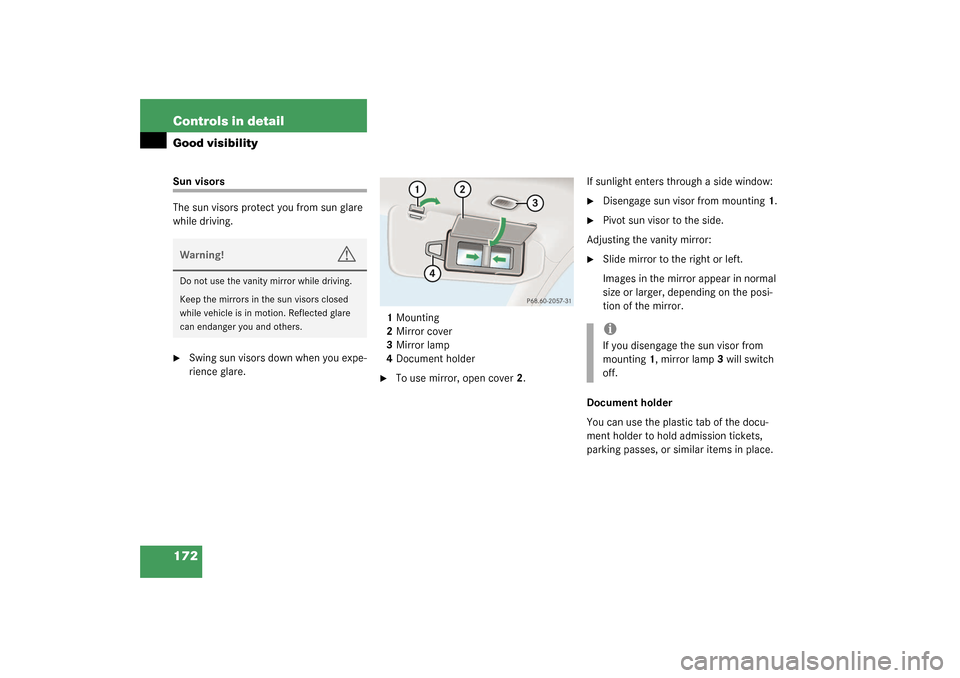

172 Controls in detailGood visibilitySun visors
The sun visors protect you from sun glare
while driving.
Swing sun visors down when you expe-
rience glare.1Mounting
2Mirror cover
3Mirror lamp
4Document holder
To use mirror, open cover2.If sunlight enters through a side window:
Disengage sun visor from mounting1.
Pivot sun visor to the side.
Adjusting the vanity mirror:
Slide mirror to the right or left.
Images in the mirror appear in normal
size or larger, depending on the posi-
tion of the mirror.
Document holder
You can use the plastic tab of the docu-
ment holder to hold admission tickets,
parking passes, or similar items in place.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf you disengage the sun visor from
mounting1, mirror lamp3 will switch
off.

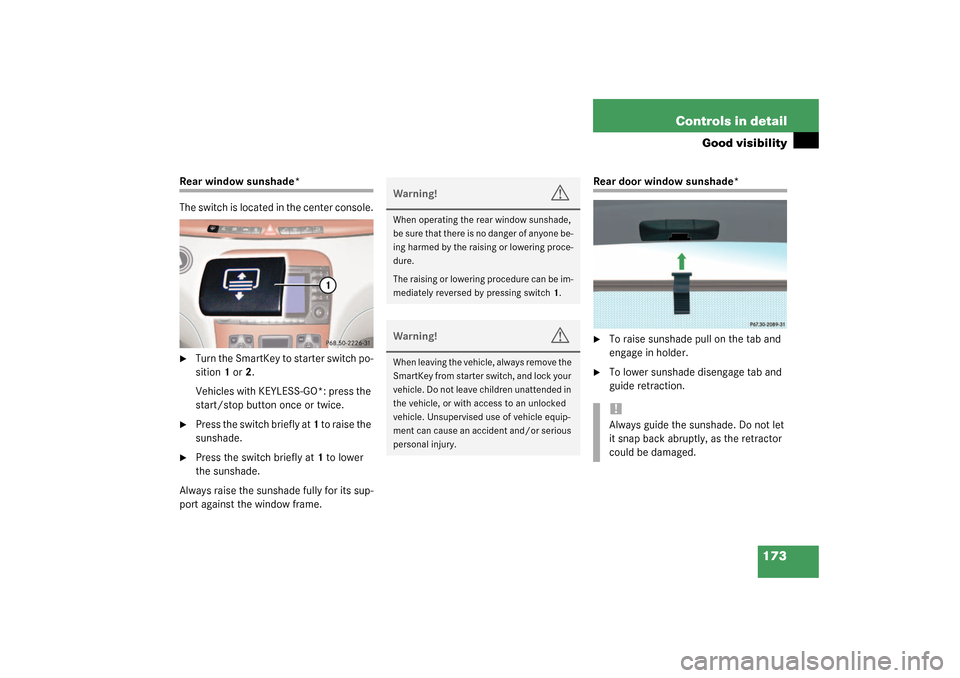

Page 173 of 416

173 Controls in detail
Good visibility
Rear window sunshade*
The switch is located in the center console.
Turn the SmartKey to starter switch po-
sition 1 or 2.
Vehicles with KEYLESS-GO*: press the
start/stop button once or twice.
Press the switch briefly at 1 to raise the
sunshade.
Press the switch briefly at 1 to lower
the sunshade.
Always raise the sunshade fully for its sup-
port against the window frame.
Rear door window sunshade*
To raise sunshade pull on the tab and
engage in holder.
To lower sunshade disengage tab and
guide retraction.
Warning!
G
When operating the rear window sunshade,
b e s u r e t h a t t h e r e i s n o d a n g e r o f a n y o n e b e -
ing harmed by the raising or lowering proce-
dure.
The raising or lowering procedure can be im-
mediately reversed by pressing switch1.Warning!
G
When leaving the vehicle, always remove the
SmartKey from starter switch, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment can cause an accident and/or serious
personal injury.
!Always guide the sunshade. Do not let
it snap back abruptly, as the retractor
could be damaged.
Page 174 of 416

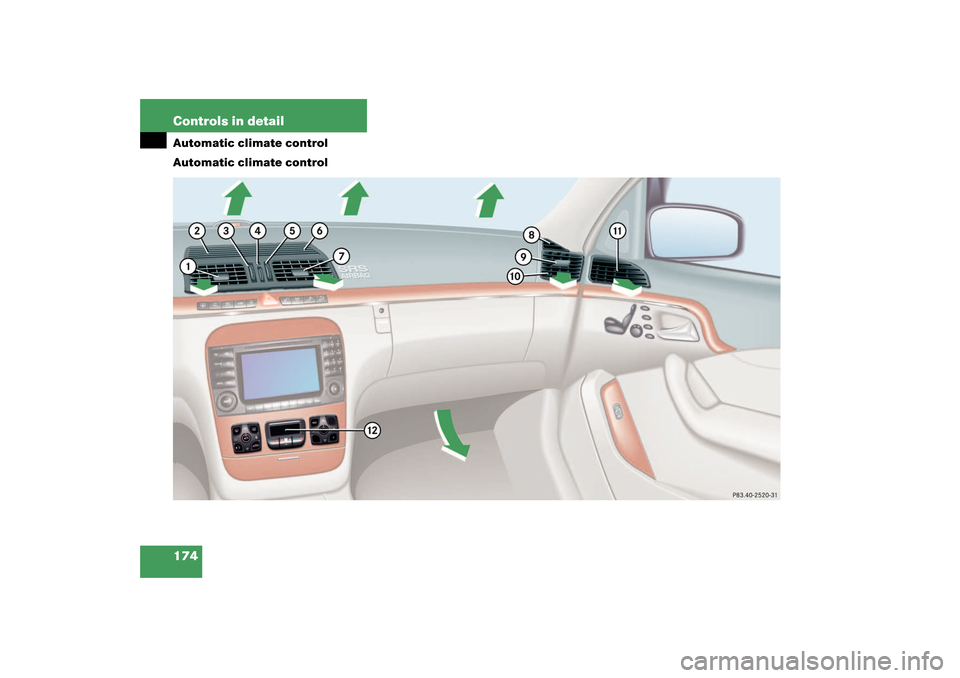

174 Controls in detailAutomatic climate control
Automatic climate control
Page 175 of 416

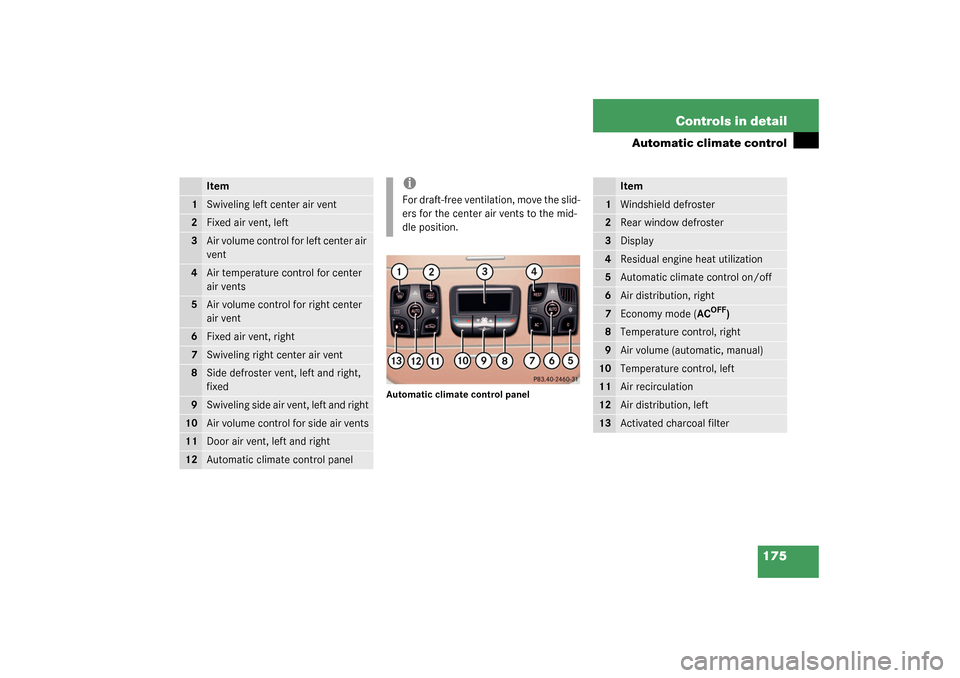

175 Controls in detail
Automatic climate control
Automatic climate control panel
Item
1
Swiveling left center air vent
2
Fixed air vent, left
3
Air volume control for left center air
vent
4
Air temperature control for center
air vents
5
Air volume control for right center
air vent
6
Fixed air vent, right
7
Swiveling right center air vent
8
Side defroster vent, left and right,
fixed
9
Swiveling side air vent, left and right
10
Air volume control for side air vents
11
Door air vent, left and right
12
Automatic climate control panel
iFor draft-free ventilation, move the slid-
ers for the center air vents to the mid-
dle position.
Item
1
Windshield defroster
2
Rear window defroster
3
Display
4
Residual engine heat utilization
5
Automatic climate control on/off
6
Air distribution, right
7
Economy mode (AC
OFF
)
8
Temperature control, right
9
Air volume (automatic, manual)
10
Temperature control, left
11
Air recirculation
12
Air distribution, left
13
Activated charcoal filter
Page 176 of 416

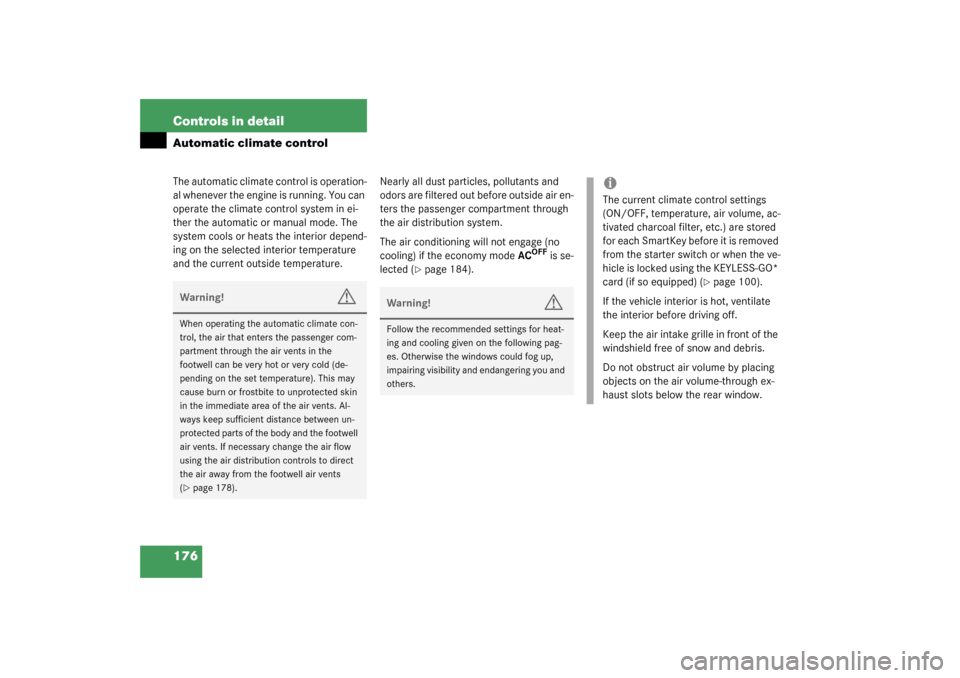

176 Controls in detailAutomatic climate controlThe automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the economy mode AC
OFF
is se-
lected (
page 184).
Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents in the
footwell can be very hot or very cold (de-
pending on the set temperature). This may
cause burn or frostbite to unprotected skin
in the immediate area of the air vents. Al-
ways keep sufficient distance between un-
protected parts of the body and the footwell
air vents. If necessary change the air flow
using the air distribution controls to direct
the air away from the footwell air vents
(page 178).
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iThe current climate control settings
(ON/OFF, temperature, air volume, ac-
tivated charcoal filter, etc.) are stored
for each SmartKey before it is removed
from the starter switch or when the ve-
hicle is locked using the KEYLESS-GO*
card (if so equipped) (
page 100).
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air volume by placing
objects on the air volume-through ex-
haust slots below the rear window.
