265 Operation
Engine compartment

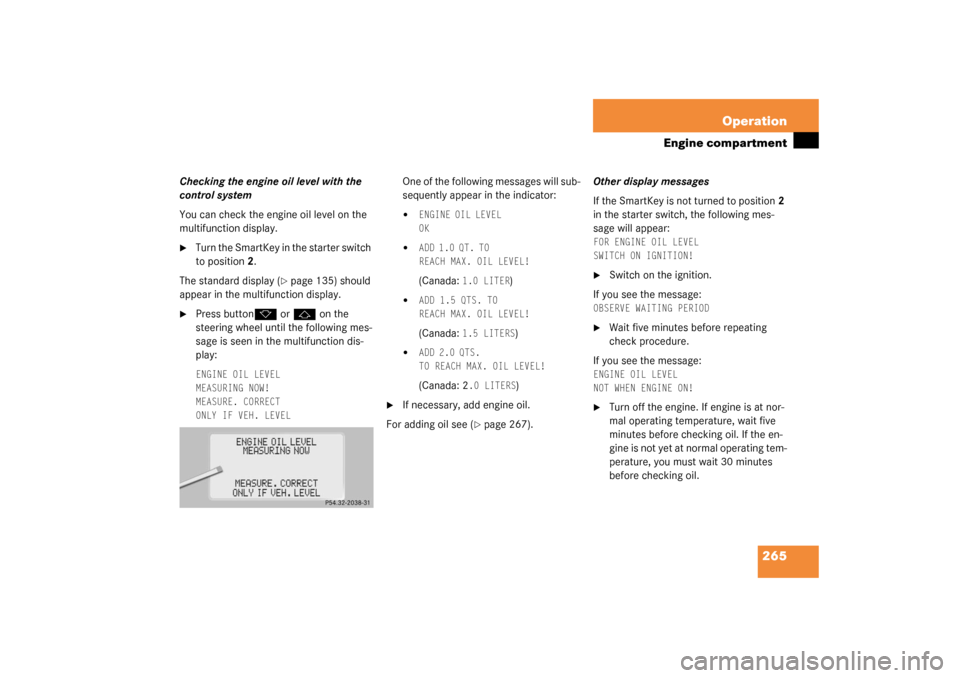

Checking the engine oil level with the
control system
You can check the engine oil level on the
multifunction display.
Turn the SmartKey in the starter switch
to position2.
The standard display (
page 135) should
appear in the multifunction display.

Press button
k
or
j
on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:
ENGINE OIL LEVEL
MEASURING NOW!
MEASURE. CORRECT
ONLY IF VEH. LEVEL
One of the following messages will sub-
sequently appear in the indicator:

E N G I N E O I L L E V E L
OK


A D D 1 . 0 Q T . T O
REACH MAX. OIL LEVEL!(Canada:
1.0 LITER
)


ADD 1.5 QTS. TO
REACH MAX. OIL LEVEL!(Canada:
1.5 LITERS
)


A D D 2 . 0 Q T S .
TO REACH MAX. OIL LEVEL!(Canada: 2
.0 LITERS
)

If necessary, add engine oil.
For adding oil see (
page 267).Other display messages
If the SmartKey is not turned to position 2
in the starter switch, the following mes-
sage will appear:
FOR ENGINE OIL LEVEL
SWITCH ON IGNITION!
Switch on the ignition.
If you see the message:
OBSERVE WAITING PERIOD
Wait five minutes before repeating
check procedure.
If you see the message:
ENGINE OIL LEVEL
NOT WHEN ENGINE ON!
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.

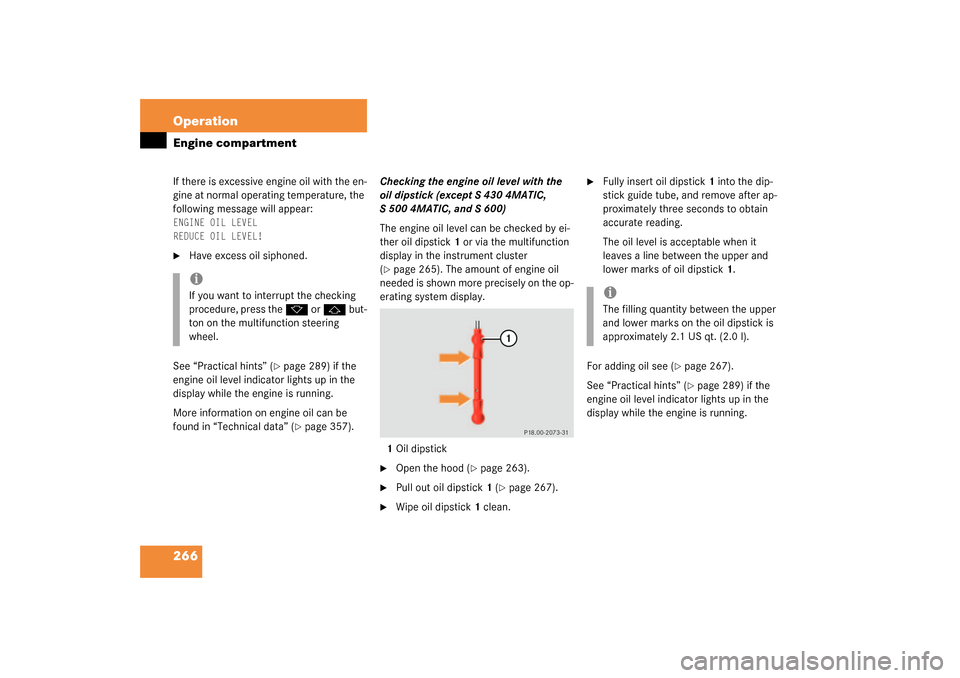

266 OperationEngine compartmentIf there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear:ENGINE OIL LEVEL
REDUCE OIL LEVEL!
Have excess oil siphoned.
See “Practical hints” (
page 289) if the
engine oil level indicator lights up in the
display while the engine is running.
More information on engine oil can be
found in “Technical data” (page 357).Checking the engine oil level with the
oil dipstick (except S 430 4MATIC,
S 500 4MATIC, and S 600)
The engine oil level can be checked by ei-
ther oil dipstick1 or via the multifunction
display in the instrument cluster
(
page 265). The amount of engine oil
needed is shown more precisely on the op-
erating system display.
1Oil dipstick

Open the hood (
page 263).

Pull out oil dipstick1 (
page 267).

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 into the dip-
stick guide tube, and remove after ap-
proximately three seconds to obtain
accurate reading.
The oil level is acceptable when it
leaves a line between the upper and
lower marks of oil dipstick 1.
For adding oil see (
page 267).
See “Practical hints” (page 289) if the
engine oil level indicator lights up in the
display while the engine is running.
iIf you want to interrupt the checking
procedure, press the
k
or
j
but-
ton on the multifunction steering
wheel.
iThe filling quantity between the upper
and lower marks on the oil dipstick is
approximately 2.1 US qt. (2.0 l).

267 Operation
Engine compartment

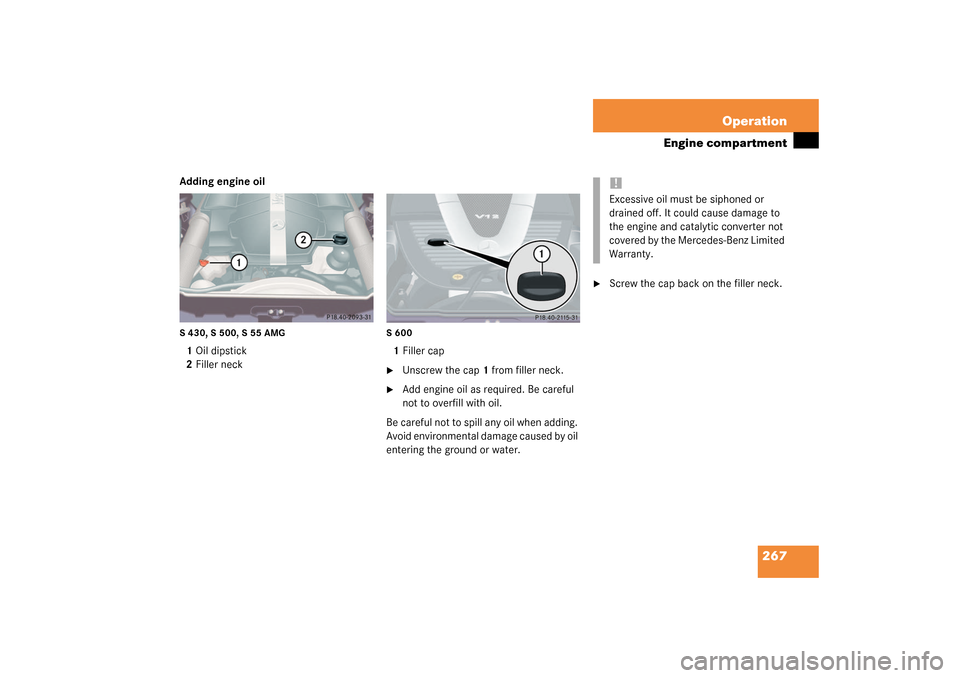

Adding engine oilS 430, S 500, S 55 AMG1Oil dipstick
2Filler neck
S 6001Filler cap
Unscrew the cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw the cap back on the filler neck.!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

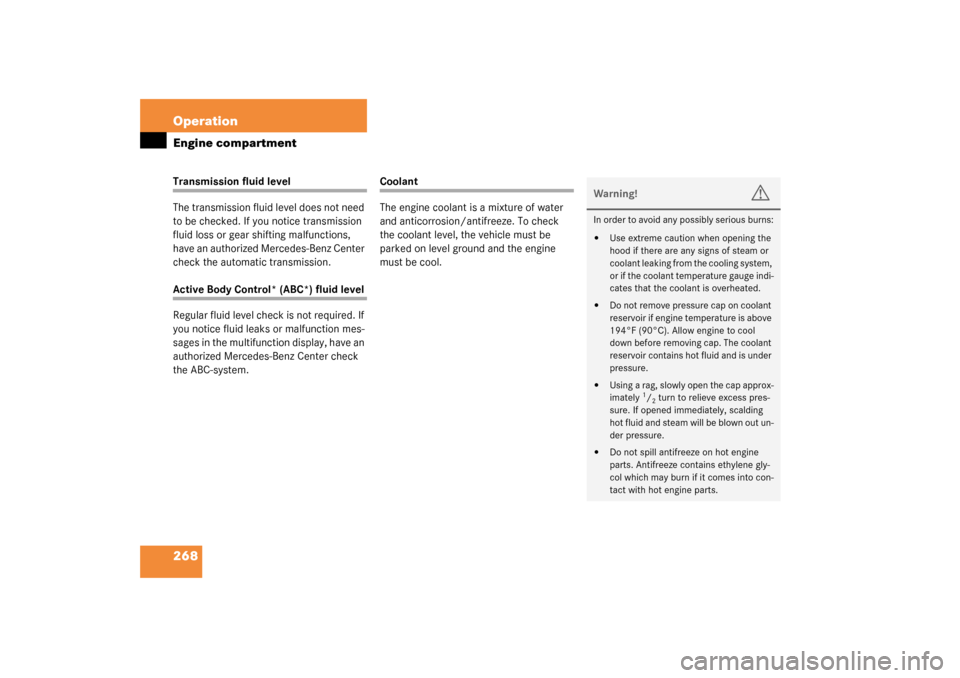

268 OperationEngine compartmentTransmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Active Body Control* (ABC*) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.
Coolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
194°F (90°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

269 Operation
Engine compartment

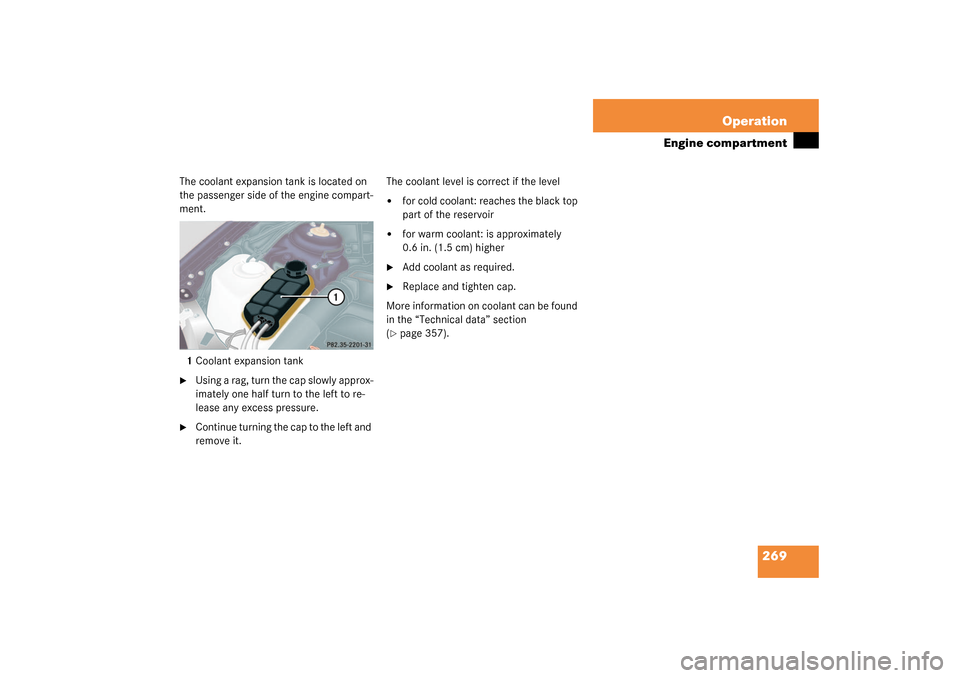

The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank
Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.The coolant level is correct if the level


for cold coolant: reaches the black top
part of the reservoir


for warm coolant: is approximately
0.6 in. (1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
More information on coolant can be found
in the “Technical data” section
(
page 357).

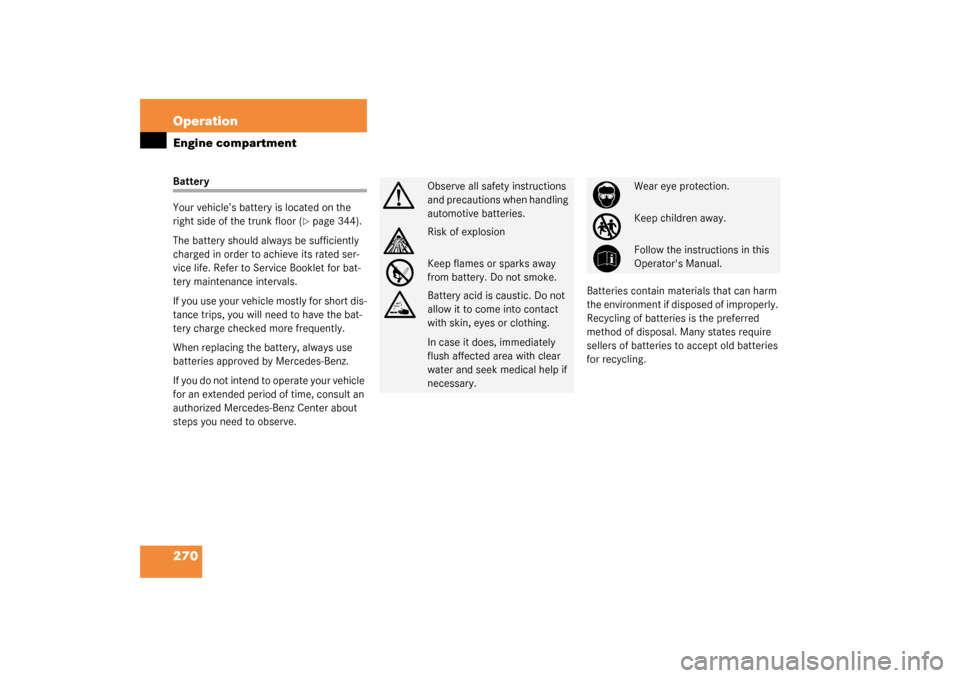

270 OperationEngine compartmentBattery
Your vehicle’s battery is located on the
right side of the trunk floor (
page 344).
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life. Refer to Service Booklet for bat-
tery maintenance intervals.
If you use your vehicle mostly for short dis-
tance trips, you will need to have the bat-
tery charge checked more frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.

271 Operation
Engine compartment

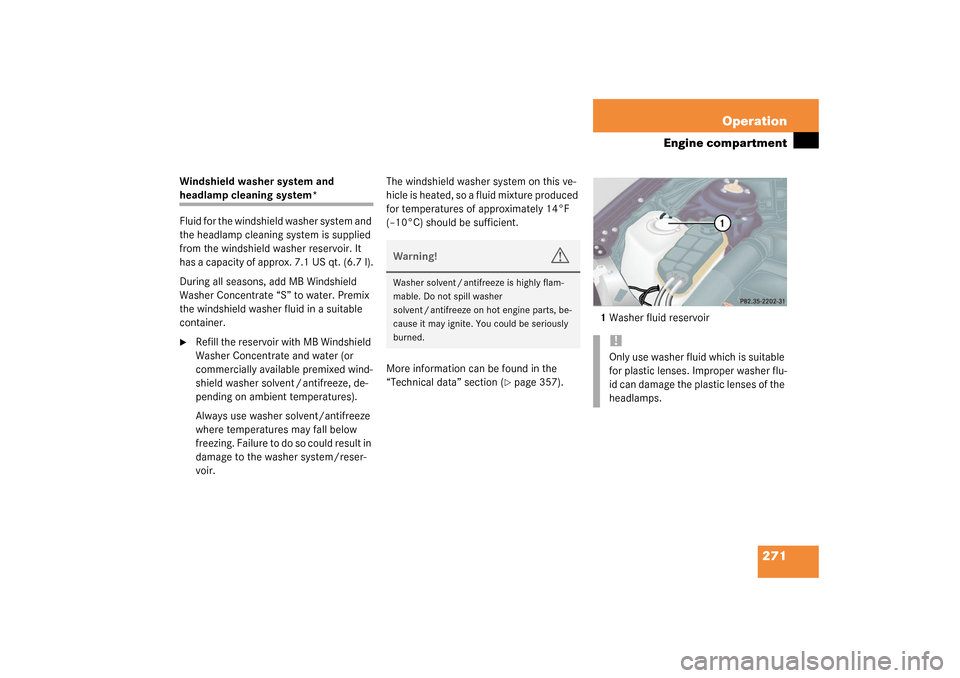

Windshield washer system and headlamp cleaning system*
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approx. 7.1 US qt. (6.7 l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent / antifreeze, de-
pending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below
freezing. Failure to do so could result in
damage to the washer system/reser-
voir.The windshield washer system on this ve-
hicle is heated, so a fluid mixture produced
for temperatures of approximately 14°F
(–10°C) should be sufficient.
More information can be found in the
“Technical data” section (
page 357).1Washer fluid reservoir
Warning!
G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer
solvent / antifreeze on hot engine parts, be-
cause it may ignite. You could be seriously
burned.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer flu-
id can damage the plastic lenses of the
headlamps.

272 OperationTires and wheels

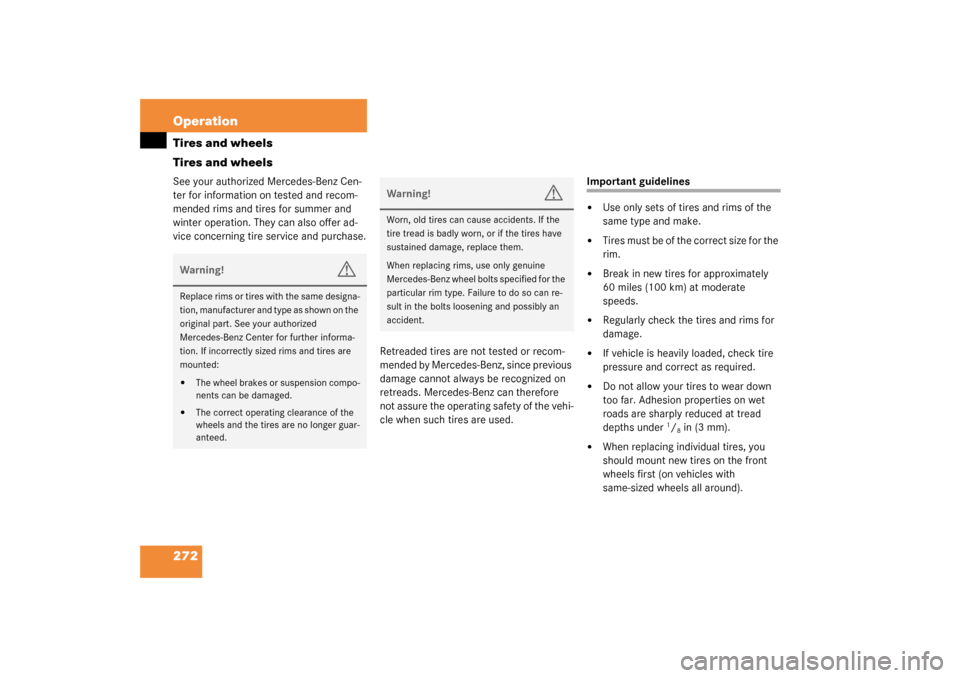

Tires and wheelsSee your authorized Mercedes-Benz Cen-
ter for information on tested and recom-
mended rims and tires for summer and
winter operation. They can also offer ad-
vice concerning tire service and purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. Mercedes-Benz can therefore
not assure the operating safety of the vehi-
cle when such tires are used.
Important guidelines

Use only sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage.


If vehicle is heavily loaded, check tire
pressure and correct as required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See your authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension compo-
nents can be damaged.


The correct operating clearance of the
wheels and the tires are no longer guar-
anteed.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, use only genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can re-
sult in the bolts loosening and possibly an
accident.
