2003 MERCEDES-BENZ S430 4MATIC Owner's Manual

185 Controls in detail
Automatic climate control
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the SmartKey in the starter switch
to position1 or remove it from the
starter switch.

Press button
T
(page 175).
The indicator lamp on button
T

comes on.
Deactivating

Press button
T
(page 175).
The indicator lamp on button
T

goes off.The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
!Do not obstruct the air vent in the stor-
age compartment.iThe storage compartment can be heat-
ed or cooled.
The compartment can get very warm
due to its confined space. When storing
heat sensitive objects in the compart-
ment, close the air vent (
page 184)
while heating the passenger compart-
ment.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting1 regardless of the air distribu-
tion control setting.

186 Controls in detailAutomatic climate controlRear passenger compartment adjust-able air vents
Rear center console air vents
1Left center air vent
2Right center air vent
3Thumbwheel for center air vents with
adjustable booster blower
To open center air vents and to adjust the
booster blower:
Turn thumbwheel3.Rear side air vents
4Rear side air vent, right and left
5Air volume control for rear side air vent
To open rear side air vents:

Turn thumbwheel5 towards the win-
dow.
iThe booster blower allows air volume
speed to the rear passenger compart-
ment to be increased at four different
levels.
The temperature at the air vents for
rear passenger compartment1 and2
is the same as at the dashboard center
air vents.

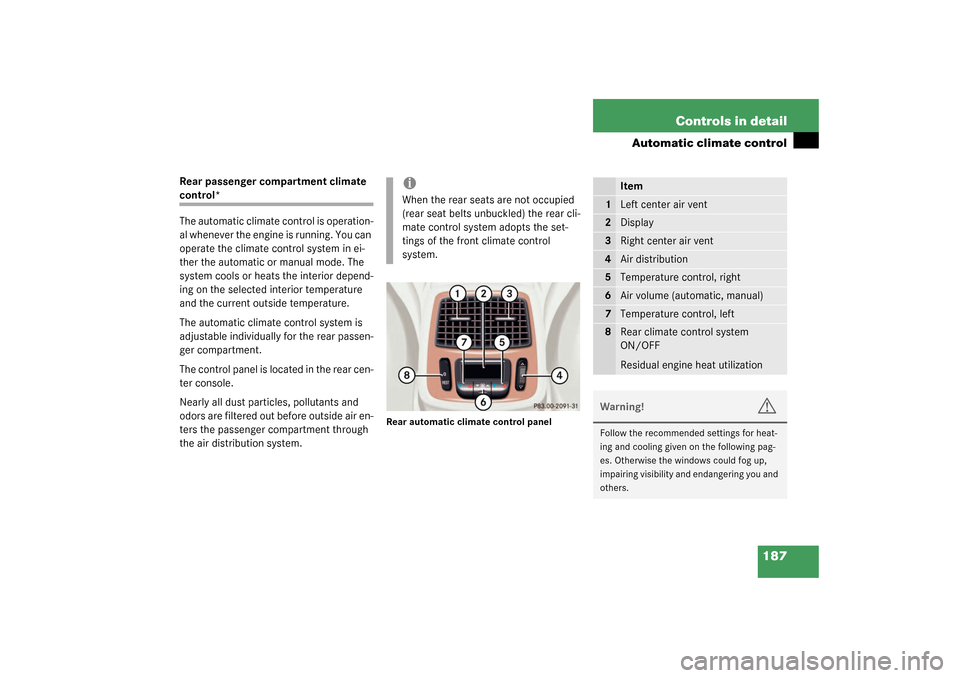

187 Controls in detail
Automatic climate control
Rear passenger compartment climate control*
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
The automatic climate control system is
adjustable individually for the rear passen-
ger compartment.
The control panel is located in the rear cen-
ter console.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
Rear automatic climate control panel
iWhen the rear seats are not occupied
(rear seat belts unbuckled) the rear cli-
mate control system adopts the set-
tings of the front climate control
system.
Item
1
Left center air vent
2
Display
3
Right center air vent
4
Air distribution
5
Temperature control, right
6
Air volume (automatic, manual)
7
Temperature control, left
8
Rear climate control system
ON/OFF
Residual engine heat utilization
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.

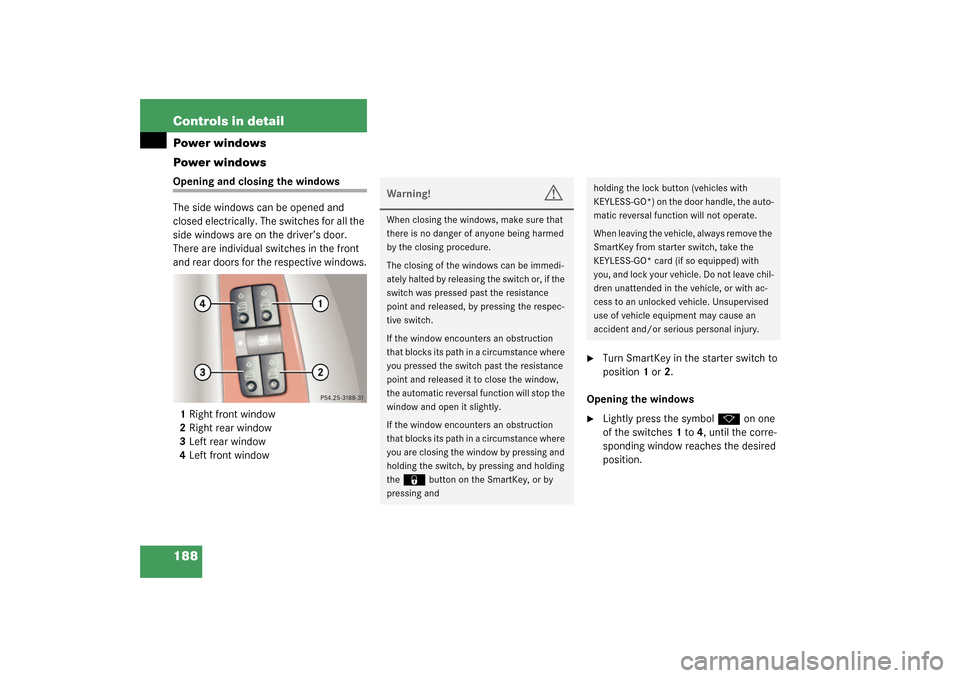

188 Controls in detailPower windows
Power windowsOpening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door.
There are individual switches in the front
and rear doors for the respective windows.
1Right front window
2Right rear window
3Left rear window
4Left front window

Turn SmartKey in the starter switch to
position1 or2.
Opening the windows

Lightly press the symbol
k
on one
of the switches1 to4, until the corre-
sponding window reaches the desired
position.
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the windows can be immedi-
ately halted by releasing the switch or, if the
switch was pressed past the resistance
point and released, by pressing the respec-
tive switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pressed the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
the
‹
button on the SmartKey, or by
pressing and
holding the lock button (vehicles with
KEYLESS-GO*) on the door handle, the auto-
matic reversal function will not operate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
KEYLESS-GO* card (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an
accident and/or serious personal injury.

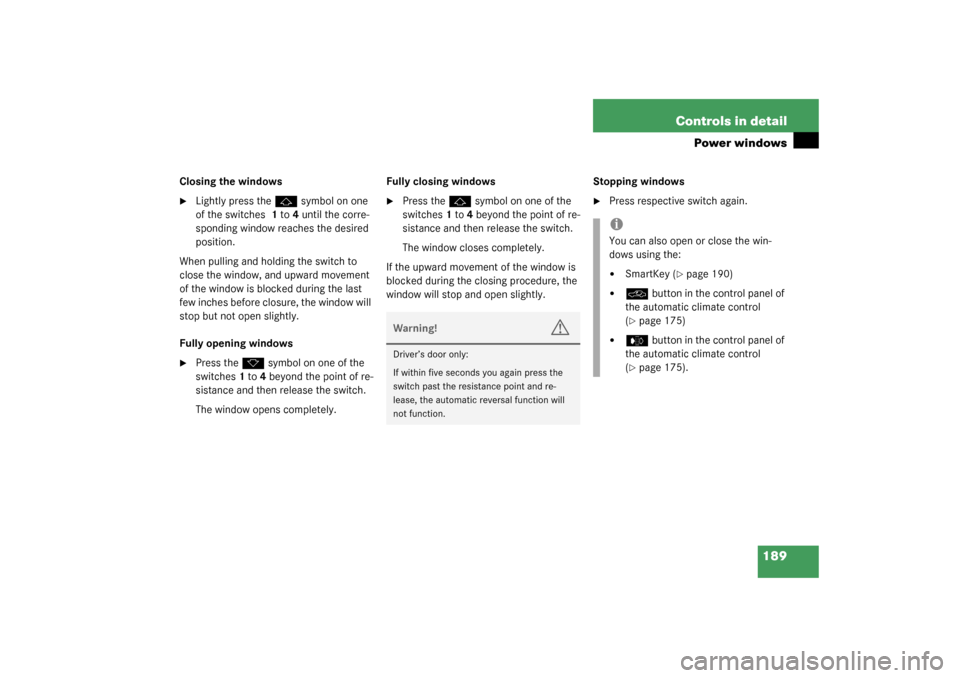

189 Controls in detail
Power windows
Closing the windows
Lightly press the
j
symbol on one
of the switches 1 to4 until the corre-
sponding window reaches the desired
position.
When pulling and holding the switch to
close the window, and upward movement
of the window is blocked during the last
few inches before closure, the window will
stop but not open slightly.
Fully opening windows

Press the
k
symbol on one of the
switches 1 to 4 beyond the point of re-
sistance and then release the switch.
The window opens completely.Fully closing windows

Press the
j
symbol on one of the
switches 1 to 4 beyond the point of re-
sistance and then release the switch.
The window closes completely.
If the upward movement of the window is
blocked during the closing procedure, the
window will stop and open slightly.Stopping windows

Press respective switch again.
Warning!
G
Driver’s door only:
If within five seconds you again press the
switch past the resistance point and re-
lease, the automatic reversal function will
not function.
iYou can also open or close the win-
dows using the:

SmartKey (
page 190)


O
button in the control panel of
the automatic climate control
(
page 175)


e
button in the control panel of
the automatic climate control
(
page 175).

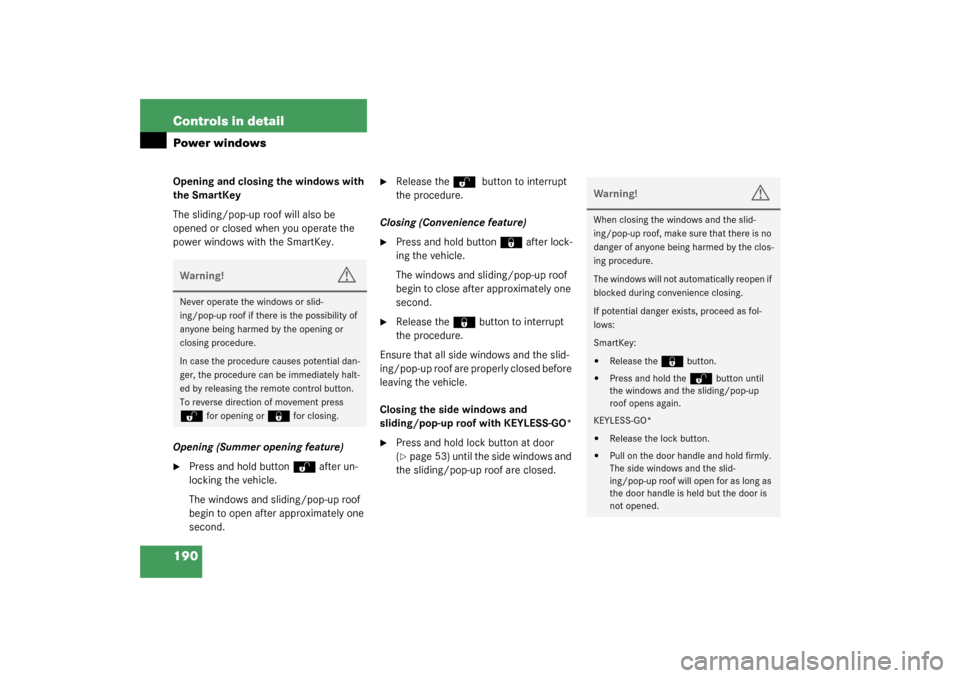

190 Controls in detailPower windowsOpening and closing the windows with
the SmartKey
The sliding/pop-up roof will also be
opened or closed when you operate the
power windows with the SmartKey.
Opening (Summer opening feature)
Press and hold button
Œ
after un-
locking the vehicle.
The windows and sliding/pop-up roof
begin to open after approximately one
second.

Release the
Œ
button to interrupt
the procedure.
Closing (Convenience feature)

Press and hold button
‹
after lock-
ing the vehicle.
The windows and sliding/pop-up roof
begin to close after approximately one
second.

Release the
‹
button to interrupt
the procedure.
Ensure that all side windows and the slid-
ing/pop-up roof are properly closed before
leaving the vehicle.
Closing the side windows and
sliding/pop-up roof with KEYLESS-GO*

Press and hold lock button at door
(page 53) until the side windows and
the sliding/pop-up roof are closed.
Warning!
G
Never operate the windows or slid-
ing/pop-up roof if there is the possibility of
anyone being harmed by the opening or
closing procedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the remote control button.
To reverse direction of movement press

Œ
for opening or
‹
for closing.
Warning!
G
When closing the windows and the slid-
ing/pop-up roof, make sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
The windows will not automatically reopen if
blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:
SmartKey:

Release the
‹
button.


Press and hold the
Œ
button until
the windows and the sliding/pop-up
roof opens again.
KEYLESS-GO*


Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the slid-
ing/pop-up roof will open for as long as
the door handle is held but the door is
not opened.

191 Controls in detail
Power windows
Synchronizing power windows
The power windows must be resynchro-
nized each time after the battery has been
disconnected:
Press the power window switches until
the side windows are closed and hold
the switches for approximately one
second.

192 Controls in detailSliding/pop-up roof
Sliding/pop-up roofOpening and closing the sliding/pop-up roof
1Push up to raise roof at rear
2Pull down to lower roof at rear
3Push forward to slide roof closed
4Push back to slide roof openWith the roof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
roof open, the screen will also retract.
Warning!
G
When closing the sliding/pop-up roof, make
sure that there is no danger of anyone being
harmed by the closing procedure.
The closing procedure of the sliding/pop-up
roof can be immediately halted by releasing
the switch or, if the switch was moved past
the resistance point and released, by mov-
ing the switch in any direction.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
KEYLESS-GO* card (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.
