2003 MERCEDES-BENZ S430 4MATIC Owner's Manual

329 Practical hints
Unlocking/locking in an emergency
3Battery
4Contact spring
Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.KEYLESS-GO* card
1Battery cover
Replacement batteries: Lithium, type
CR 2025 or equivalent.

Pry open cover 1 (e.g. by using a nar-
row blade screwdriver).

Remove the batteries.

Install new batteries as indicated by
the “+” and “-” markings in the
KEYLESS-GO card.

Replace battery cover 1.
Fuel filler flap
In an emergency, the fuel filler flap can be
opened from the trunk. The release lever is
located on the right-hand side in the trunk.
1Release knob
Open the trunk with the mechanical
key (
page 326).

Remove the trim inside the trunk on the
right-hand side.

Pull release lever1 in the direction of
the arrow.
The fuel filler flap can be opened.

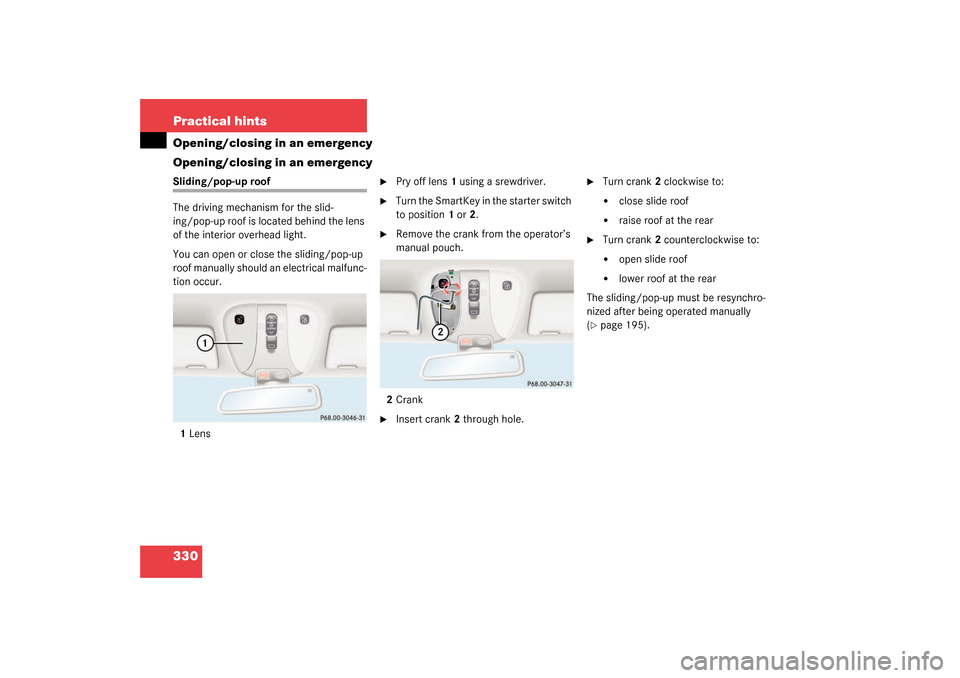

330 Practical hintsOpening/closing in an emergency
Opening/closing in an emergencySliding/pop-up roof
The driving mechanism for the slid-
ing/pop-up roof is located behind the lens
of the interior overhead light.
You can open or close the sliding/pop-up
roof manually should an electrical malfunc-
tion occur.
1Lens

Pry off lens1 using a srewdriver.

Turn the SmartKey in the starter switch
to position1 or2.

Remove the crank from the operator’s
manual pouch.
2Crank

Insert crank2 through hole.

Turn crank2 clockwise to:

close slide roof


raise roof at the rear

Turn crank2 counterclockwise to:

open slide roof


lower roof at the rear
The sliding/pop-up must be resynchro-
nized after being operated manually
(
page 195).

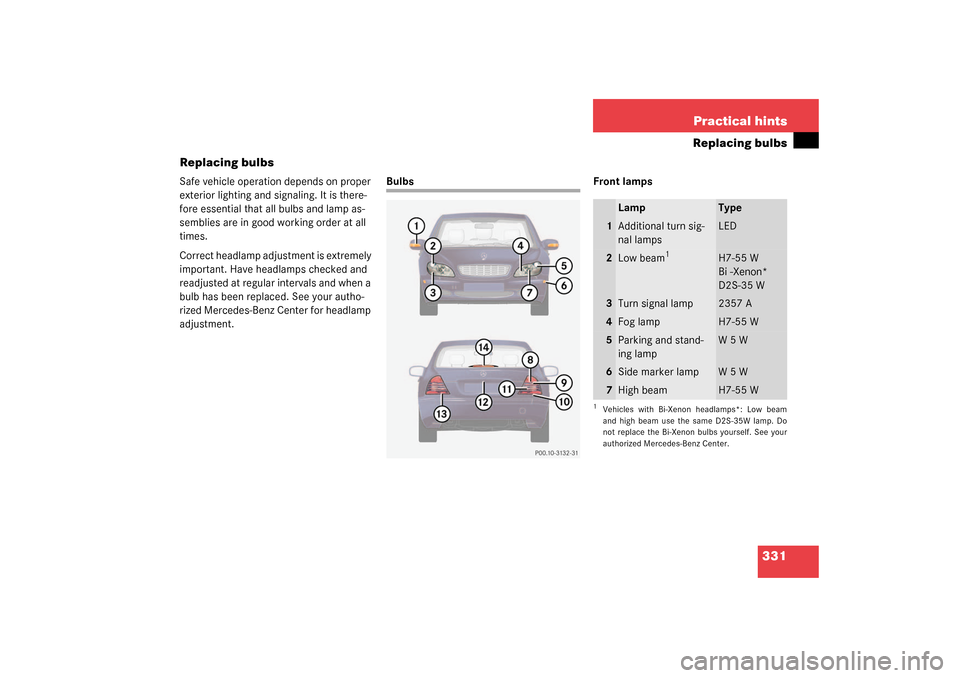

331 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment.
Bulbs Front lamps
Lamp
Type
1
Additional turn sig-
nal lamps
LED
2
Low beam
1
1Vehicles with Bi-Xenon headlamps*: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Bi-Xenon bulbs yourself. See your
authorized Mercedes-Benz Center.
H7-55 W
Bi -Xenon*
D2S-35 W
3
Turn signal lamp
2357 A
4
Fog lamp
H7-55 W
5
Parking and stand-
ing lamp
W5W
6
Side marker lamp
W5W
7
High beam
H7-55 W

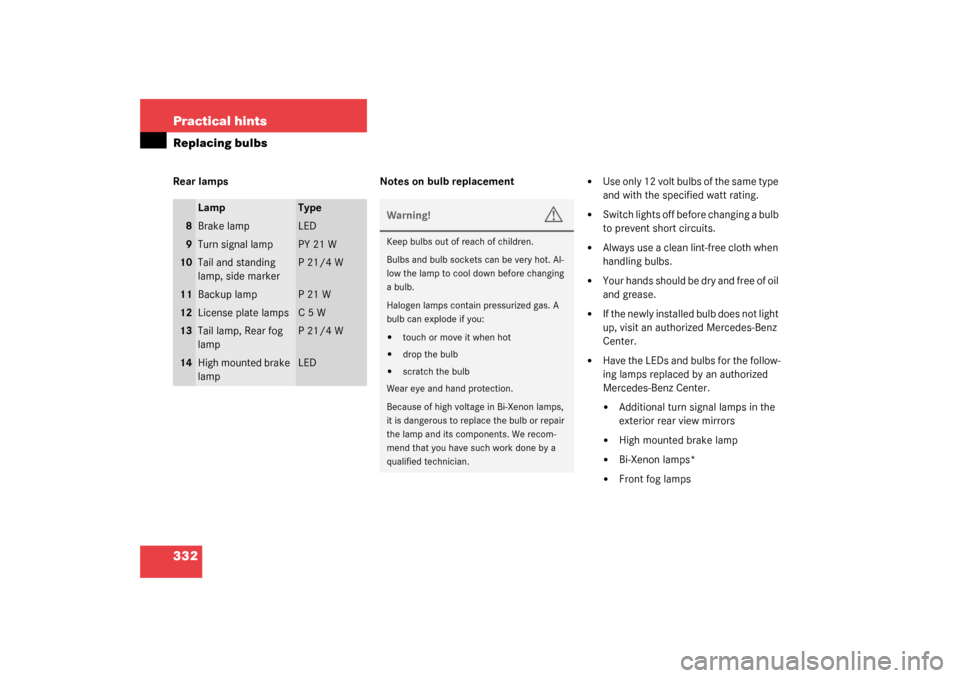

332 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center.

Additional turn signal lamps in the
exterior rear view mirrors


High mounted brake lamp


Bi-Xenon lamps*


Front fog lamps
Lamp
Type
8
Brake lamp
LED
9
Turn signal lamp
PY 21 W
10
Tail and standing
lamp, side marker
P21/4W
11
Backup lamp
P21W
12
License plate lamps
C5W
13
Tail lamp, Rear fog
lamp
P21/4W
14
High mounted brake
lamp
LED
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Bi-Xenon lamps,
it is dangerous to replace the bulb or repair
the lamp and its components. We recom-
mend that you have such work done by a
qualified technician.

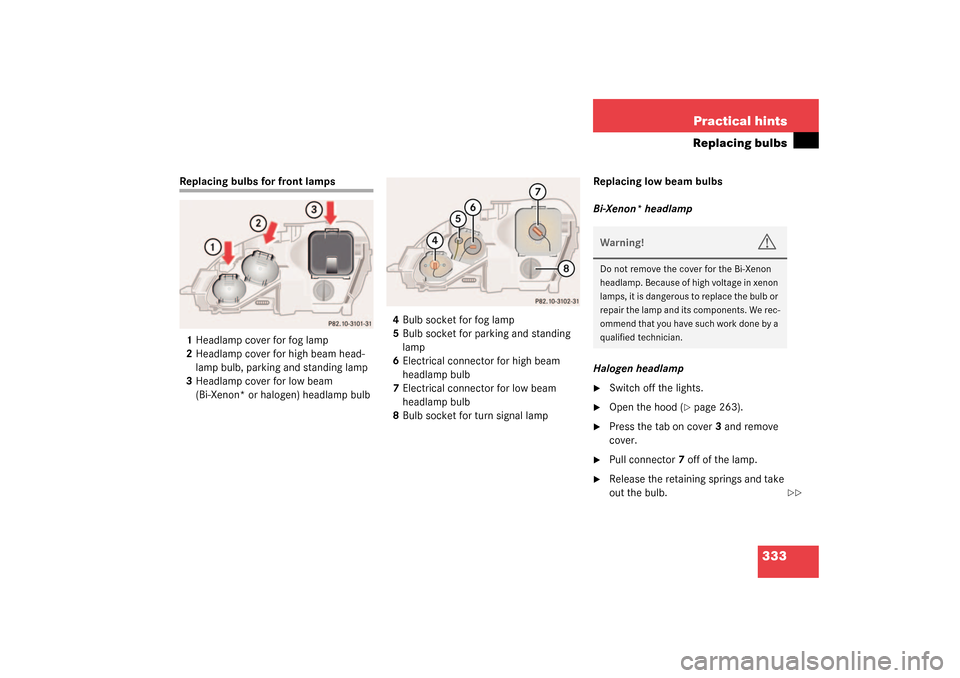

333 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
1Headlamp cover for fog lamp
2Headlamp cover for high beam head-
lamp bulb, parking and standing lamp
3Headlamp cover for low beam
(Bi-Xenon* or halogen) headlamp bulb4Bulb socket for fog lamp
5Bulb socket for parking and standing
lamp
6Electrical connector for high beam
headlamp bulb
7Electrical connector for low beam
headlamp bulb
8Bulb socket for turn signal lampReplacing low beam bulbs
Bi-Xenon* headlamp
Halogen headlamp

Switch off the lights.

Open the hood (
page 263).

Press the tab on cover3 and remove
cover.

Pull connector7 off of the lamp.

Release the retaining springs and take
out the bulb.Warning!
G
Do not remove the cover for the Bi-Xenon
headlamp. Because of high voltage in xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
ommend that you have such work done by a
qualified technician.

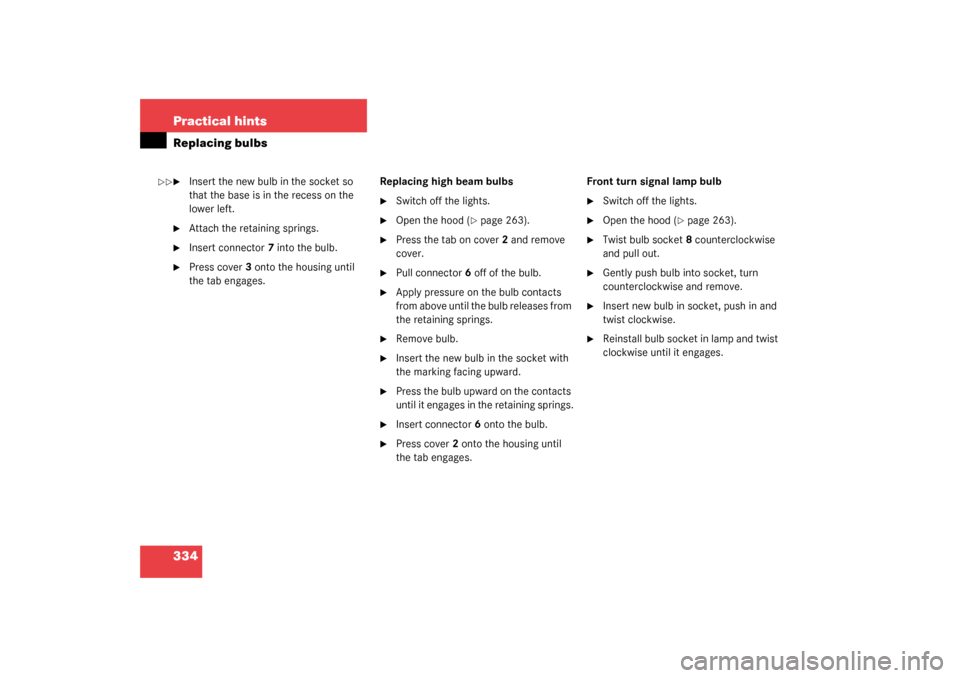

334 Practical hintsReplacing bulbs
Insert the new bulb in the socket so
that the base is in the recess on the
lower left.

Attach the retaining springs.

Insert connector7 into the bulb.

Press cover3 onto the housing until
the tab engages.Replacing high beam bulbs

Switch off the lights.

Open the hood (
page 263).

Press the tab on cover2 and remove
cover.

Pull connector 6 off of the bulb.

Apply pressure on the bulb contacts
from above until the bulb releases from
the retaining springs.

Remove bulb.

Insert the new bulb in the socket with
the marking facing upward.

Press the bulb upward on the contacts
until it engages in the retaining springs.

Insert connector6 onto the bulb.

Press cover2 onto the housing until
the tab engages.Front turn signal lamp bulb

Switch off the lights.

Open the hood (
page 263).

Twist bulb socket8 counterclockwise
and pull out.

Gently push bulb into socket, turn
counterclockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinstall bulb socket in lamp and twist
clockwise until it engages.

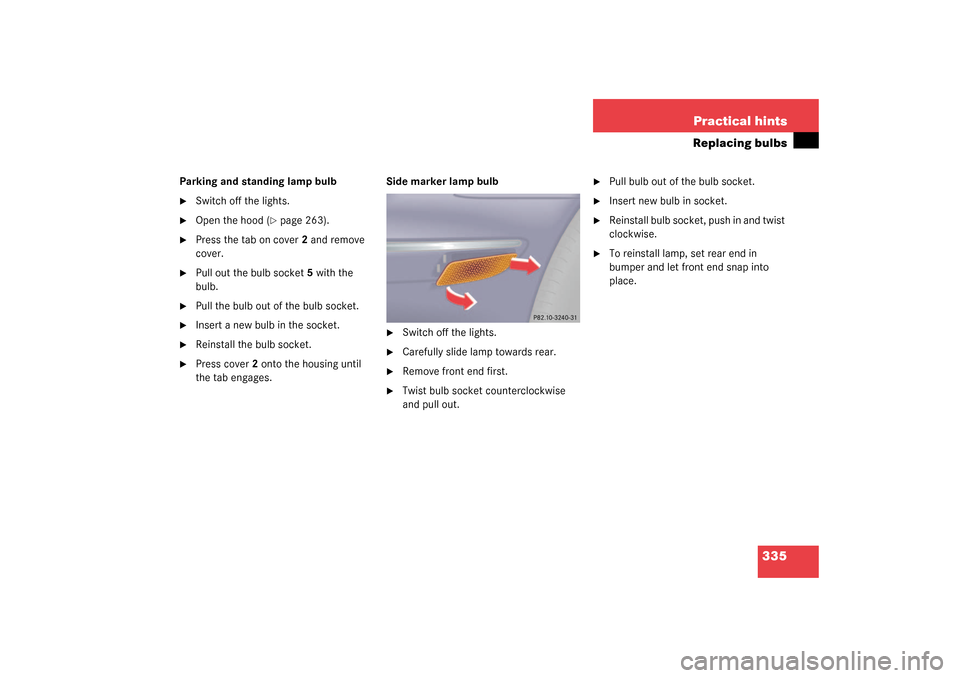

335 Practical hints
Replacing bulbs
Parking and standing lamp bulb
Switch off the lights.

Open the hood (
page 263).

Press the tab on cover2 and remove
cover.

Pull out the bulb socket5 with the
bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Press cover2 onto the housing until
the tab engages.Side marker lamp bulb

Switch off the lights.

Carefully slide lamp towards rear.

Remove front end first.

Twist bulb socket counterclockwise
and pull out.

Pull bulb out of the bulb socket.

Insert new bulb in socket.

Reinstall bulb socket, push in and twist
clockwise.

To reinstall lamp, set rear end in
bumper and let front end snap into
place.

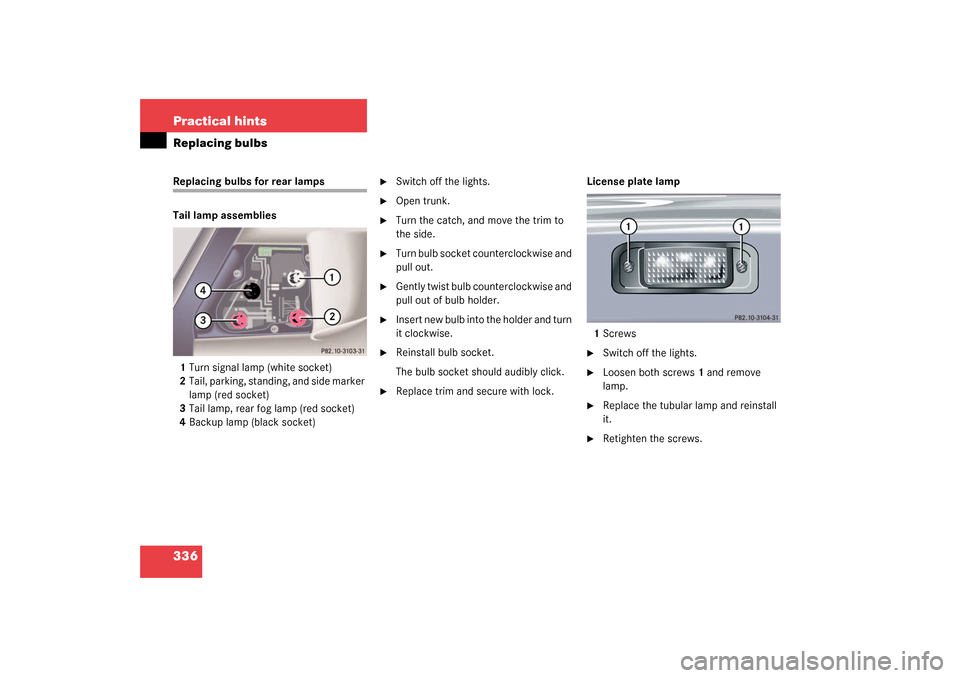

336 Practical hintsReplacing bulbsReplacing bulbs for rear lamps
Tail lamp assemblies
1Turn signal lamp (white socket)
2Tail, parking, standing, and side marker
lamp (red socket)
3Tail lamp, rear fog lamp (red socket)
4Backup lamp (black socket)

Switch off the lights.

Open trunk.

Turn the catch, and move the trim to
the side.

Turn bulb socket counterclockwise and
pull out.

Gently twist bulb counterclockwise and
pull out of bulb holder.

Insert new bulb into the holder and turn
it clockwise.

Reinstall bulb socket.
The bulb socket should audibly click.

Replace trim and secure with lock. License plate lamp
1Screws

Switch off the lights.

Loosen both screws1 and remove
lamp.

Replace the tubular lamp and reinstall
it.

Retighten the screws.
