345 Practical hints

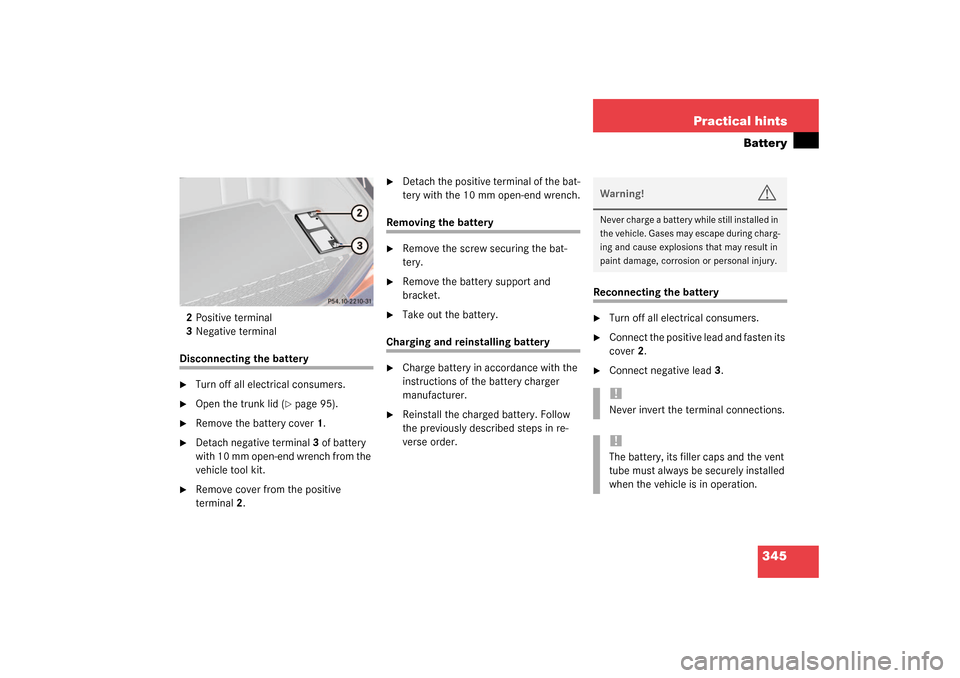

Battery
2Positive terminal
3Negative terminalDisconnecting the battery
Turn off all electrical consumers.

Open the trunk lid (
page 95).

Remove the battery cover1.

Detach negative terminal3 of battery
with 10 mm open-end wrench from the
vehicle tool kit.

Remove cover from the positive
terminal2.

Detach the positive terminal of the bat-
tery with the 10 mm open-end wrench.
Removing the battery
Remove the screw securing the bat-
tery.

Remove the battery support and
bracket.

Take out the battery.
Charging and reinstalling battery
Charge battery in accordance with the
instructions of the battery charger
manufacturer.

Reinstall the charged battery. Follow
the previously described steps in re-
verse order.
Reconnecting the battery
Turn off all electrical consumers.

Connect the positive lead and fasten its
cover2.

Connect negative lead3.Warning!
G
Never charge a battery while still installed in
the vehicle. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.!Never invert the terminal connections.!The battery, its filler caps and the vent
tube must always be securely installed
when the vehicle is in operation.

346 Practical hintsBattery

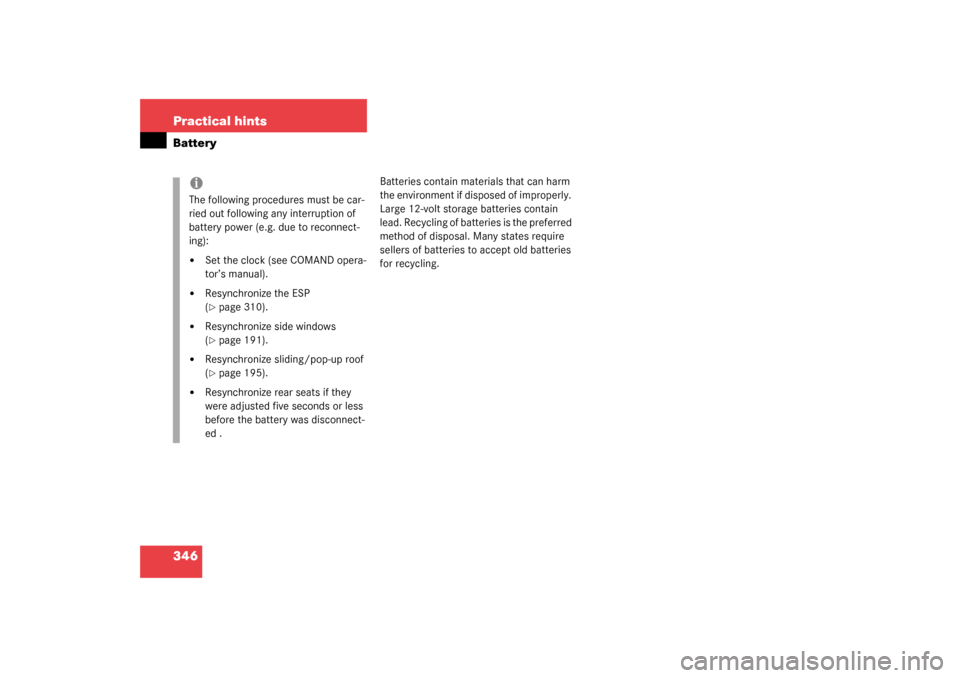

Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12-volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
iThe following procedures must be car-
ried out following any interruption of
battery power (e.g. due to reconnect-
ing):

Set the clock (see COMAND opera-
tor’s manual).


Resynchronize the ESP
(page 310).


Resynchronize side windows
(page 191).


Resynchronize sliding/pop-up roof
(page 195).


Resynchronize rear seats if they
were adjusted five seconds or less
before the battery was disconnect-
ed .

347 Practical hints

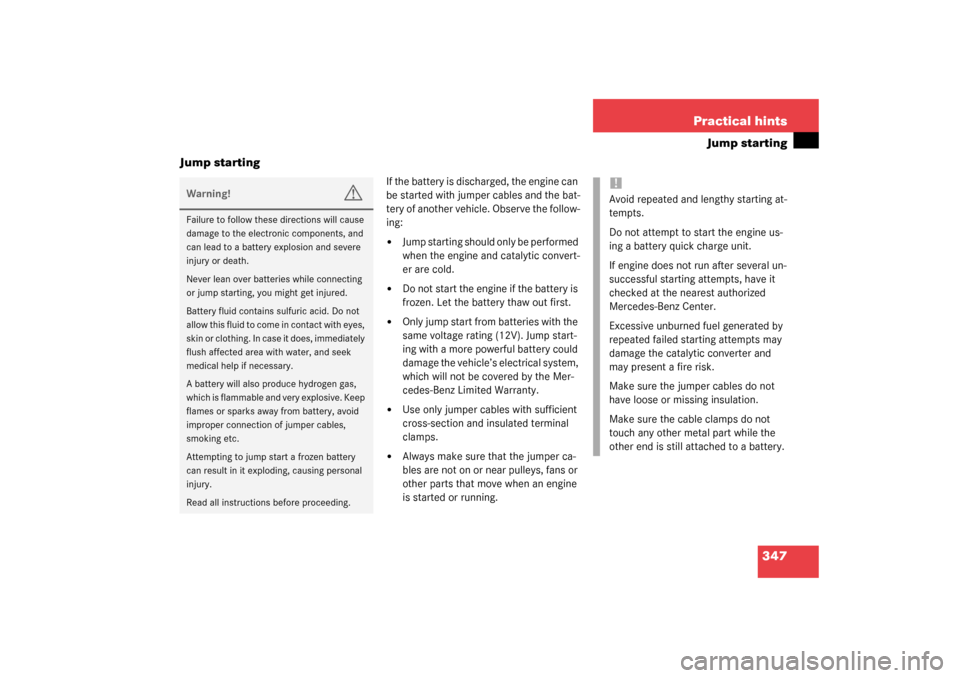

Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12V). Jump start-
ing with a more powerful battery could
damage the vehicle’s electrical system,
which will not be covered by the Mer-
cedes-Benz Limited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure that the jumper ca-
bles are not on or near pulleys, fans or
other parts that move when an engine
is started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine us-
ing a battery quick charge unit.
If engine does not run after several un-
successful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

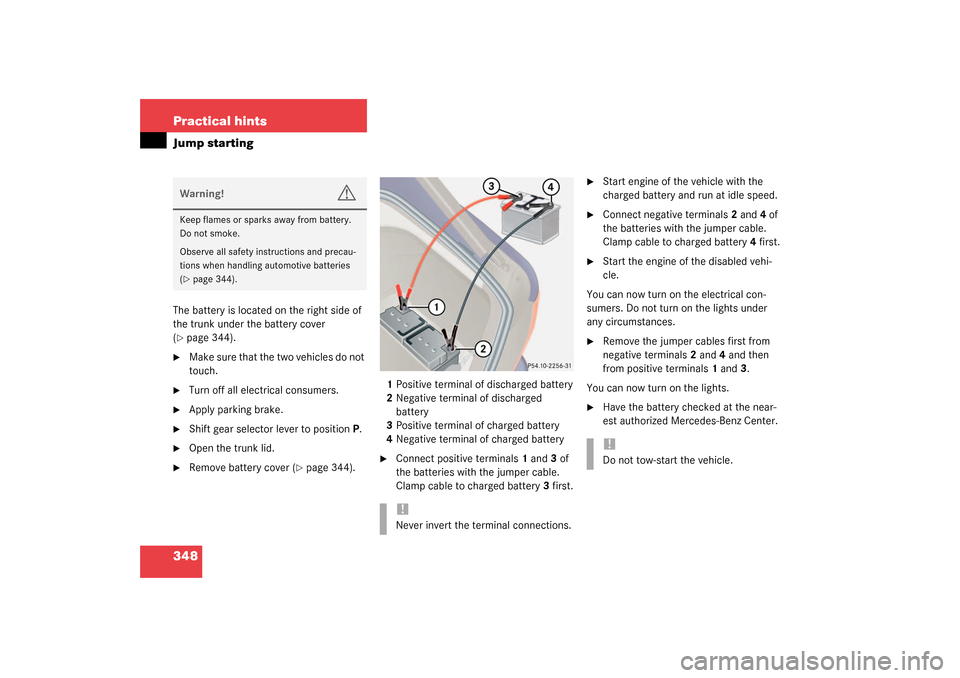

348 Practical hintsJump startingThe battery is located on the right side of
the trunk under the battery cover
(page 344).

Make sure that the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Shift gear selector lever to positionP.

Open the trunk lid.

Remove battery cover (
page 344).1Positive terminal of discharged battery
2Negative terminal of discharged
battery
3Positive terminal of charged battery
4Negative terminal of charged battery

Connect positive terminals1 and3 of
the batteries with the jumper cable.
Clamp cable to charged battery3 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals2 and4 of
the batteries with the jumper cable.
Clamp cable to charged battery4 first.

Start the engine of the disabled vehi-
cle.
You can now turn on the electrical con-
sumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals2 and4 and then
from positive terminals1 and3.
You can now turn on the lights.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 344).
!Never invert the terminal connections.
!Do not tow-start the vehicle.

349 Practical hints
Towing the vehicle

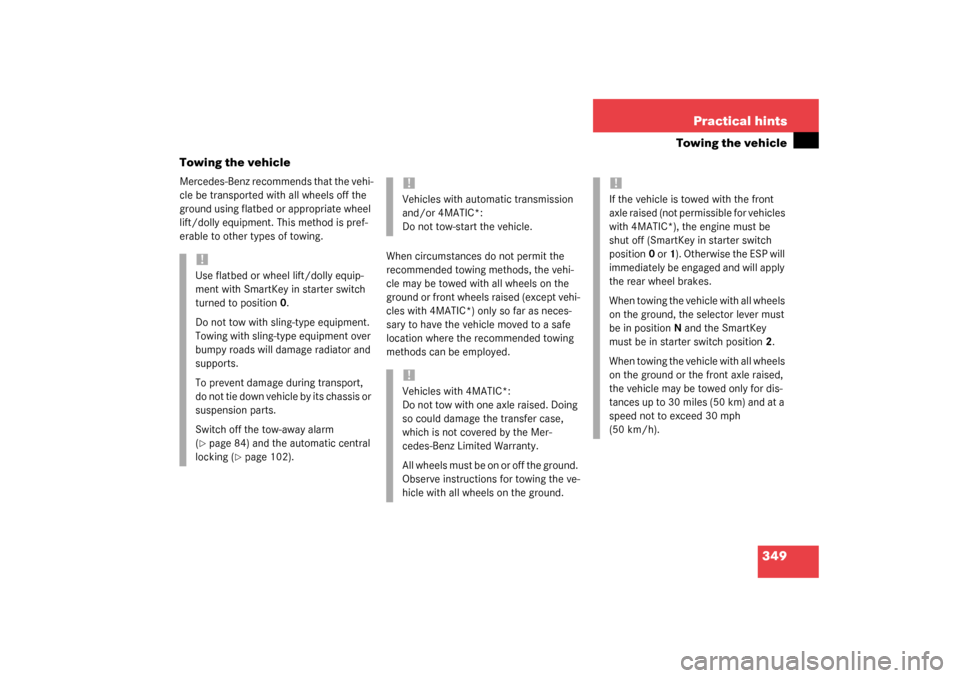

Towing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment. This method is pref-
erable to other types of towing.
When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised (except vehi-
cles with 4MATIC*) only so far as neces-
sary to have the vehicle moved to a safe
location where the recommended towing
methods can be employed.
!Use flatbed or wheel lift/dolly equip-
ment with SmartKey in starter switch
turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm
(page 84) and the automatic central
locking (
page 102).
!Vehicles with automatic transmission
and/or 4MATIC*:
Do not tow-start the vehicle.!Vehicles with 4MATIC*:
Do not tow with one axle raised. Doing
so could damage the transfer case,
which is not covered by the Mer-
cedes-Benz Limited Warranty.
A l l w h e e l s m u s t b e o n o r o f f t h e g r o u n d .
Observe instructions for towing the ve-
hicle with all wheels on the ground.
!If the vehicle is towed with the front
axle raised (not permissible for vehicles
with 4MATIC*), the engine must be
shut off (SmartKey in starter switch
position0 or 1). Otherwise the ESP will
immediately be engaged and will apply
the rear wheel brakes.
When towing the vehicle with all wheels
on the ground, the selector lever must
be in positionN and the SmartKey
must be in starter switch position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for dis-
tances up to 30 miles (50 km) and at a
speed not to exceed 30 mph
(50 km/h).

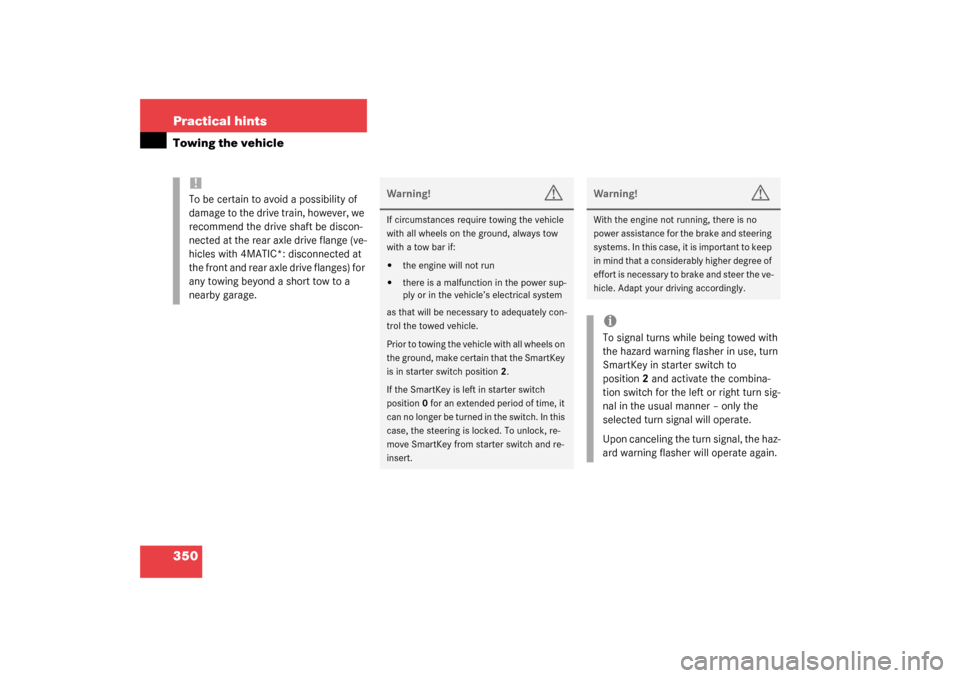

350 Practical hintsTowing the vehicle
!To be certain to avoid a possibility of
damage to the drive train, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange (ve-
hicles with 4MATIC*: disconnected at
the front and rear axle drive flanges) for
any towing beyond a short tow to a
nearby garage.
Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain that the SmartKey
is in starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.iTo signal turns while being towed with
the hazard warning flasher in use, turn
SmartKey in starter switch to
position2 and activate the combina-
tion switch for the left or right turn sig-
nal in the usual manner – only the
selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.

351 Practical hints
Towing the vehicle

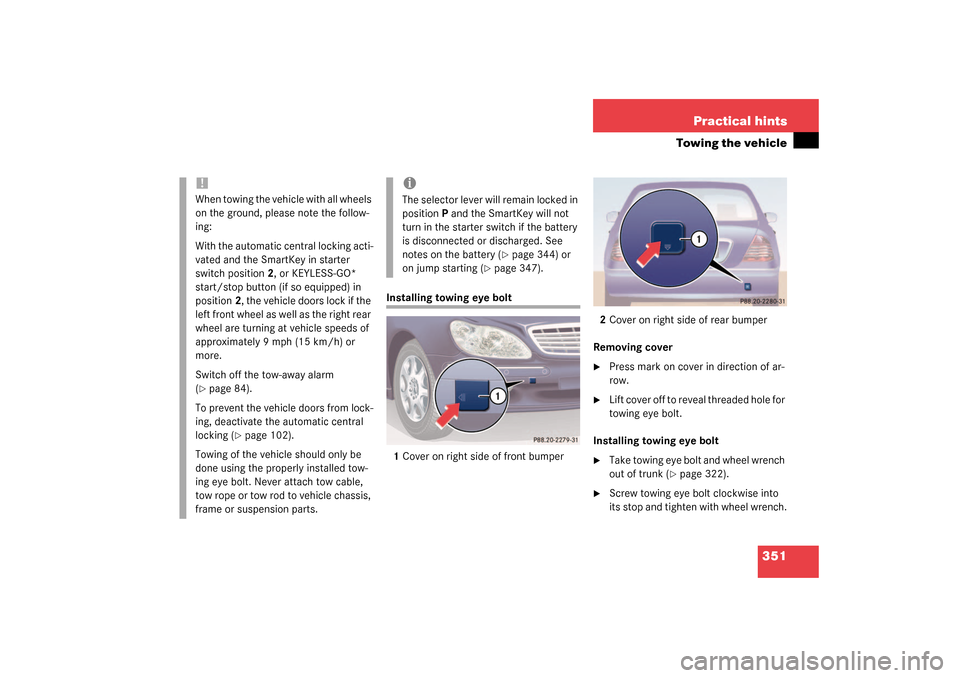

Installing towing eye bolt
1Cover on right side of front bumper2Cover on right side of rear bumper
Removing cover

Press mark on cover in direction of ar-
row.

Lift cover off to reveal threaded hole for
towing eye bolt.
Installing towing eye bolt

Take towing eye bolt and wheel wrench
out of trunk (
page 322).

Screw towing eye bolt clockwise into
its stop and tighten with wheel wrench.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button (if so equipped) in
position2, the vehicle doors lock if the
left front wheel as well as the right rear
wheel are turning at vehicle speeds of
approximately 9 mph (15 km/h) or
more.
Switch off the tow-away alarm
(page 84).
To prevent the vehicle doors from lock-
ing, deactivate the automatic central
locking (
page 102).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to vehicle chassis,
frame or suspension parts.
iThe selector lever will remain locked in
positionP and the SmartKey will not
turn in the starter switch if the battery
is disconnected or discharged. See
notes on the battery (
page 344) or
on jump starting (
page 347).

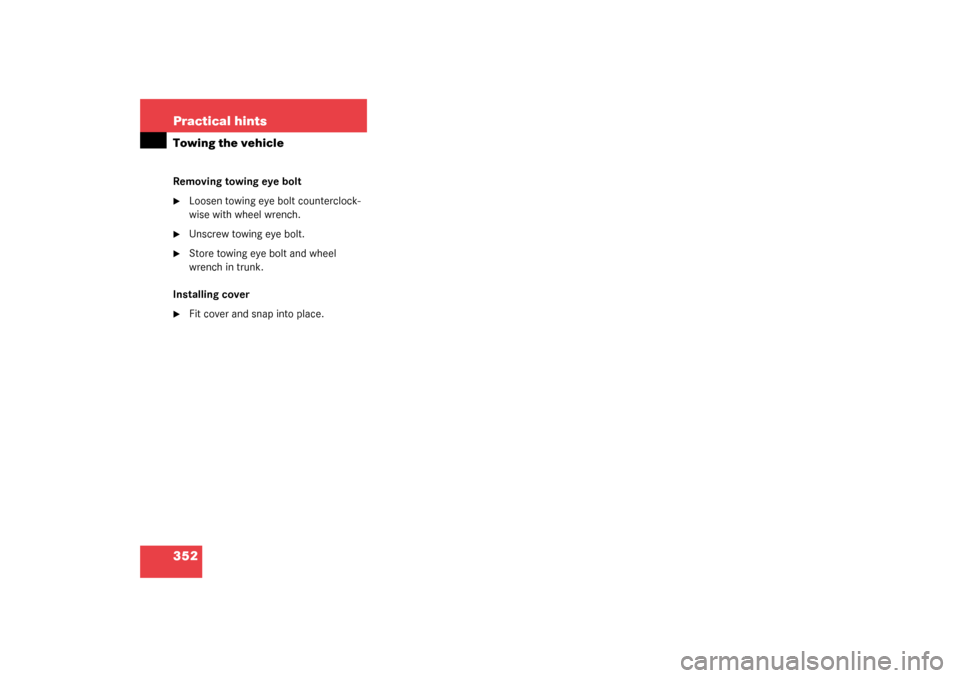

352 Practical hintsTowing the vehicleRemoving towing eye bolt
Loosen towing eye bolt counterclock-
wise with wheel wrench.

Unscrew towing eye bolt.

Store towing eye bolt and wheel
wrench in trunk.
Installing cover

Fit cover and snap into place.
