2003 MERCEDES-BENZ S430 4MATIC Owner's Manual

225 Controls in detail
Useful features
Storage compartment in the center
console
The storage compartment is located in the
lower portion of the center console.
1Storage compartment
Opening
Slide the mark on the compartment
cover forward.
Closing

Lightly press the mark on the compart-
ment cover forward. The cover closes
automatically.Storage compartment in front of arm-
rest
1Storage compartment
Opening
The compartment contains a cup holder
(
page 229).

Lightly touch cover plate1.
The cover opens automatically.
Closing

Lightly push cover plate1 up until it en-
gages.Storage compartment below the front
armrest
The buttons are located under the cushion
of the armrest.
1Button to open storage compartment
2Button to open storage tray

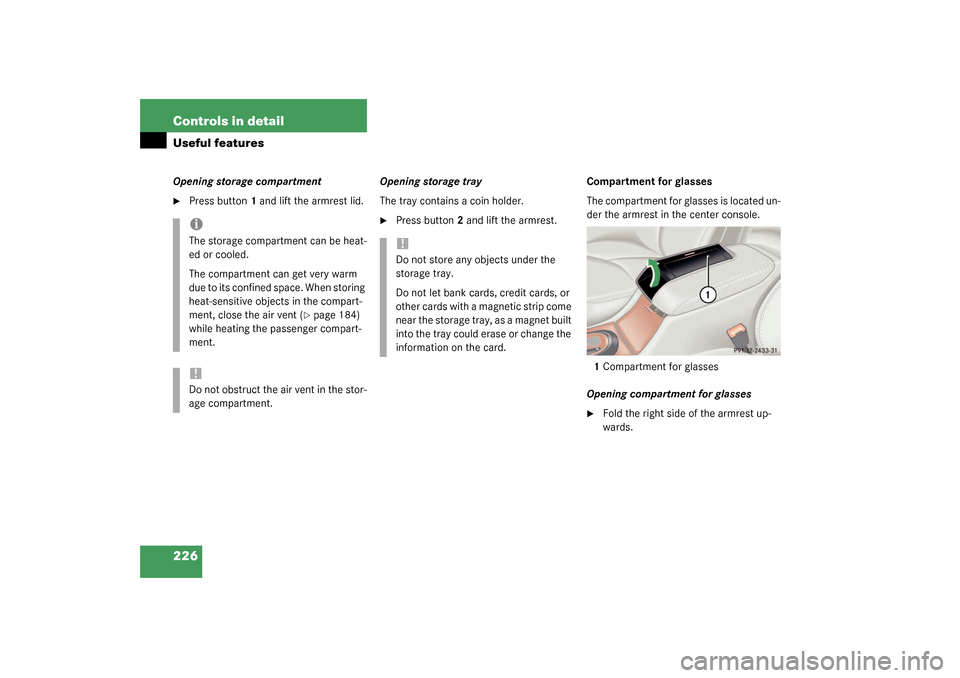

226 Controls in detailUseful featuresOpening storage compartment
Press button1 and lift the armrest lid.Opening storage tray
The tray contains a coin holder.

Press button2 and lift the armrest.Compartment for glasses
The compartment for glasses is located un-
der the armrest in the center console.
1Compartment for glasses
Opening compartment for glasses

Fold the right side of the armrest up-
wards.
iThe storage compartment can be heat-
ed or cooled.
The compartment can get very warm
due to its confined space. When storing
heat-sensitive objects in the compart-
ment, close the air vent (
page 184)
while heating the passenger compart-
ment.
!Do not obstruct the air vent in the stor-
age compartment.
!Do not store any objects under the
storage tray.
Do not let bank cards, credit cards, or
other cards with a magnetic strip come
near the storage tray, as a magnet built
into the tray could erase or change the
information on the card.

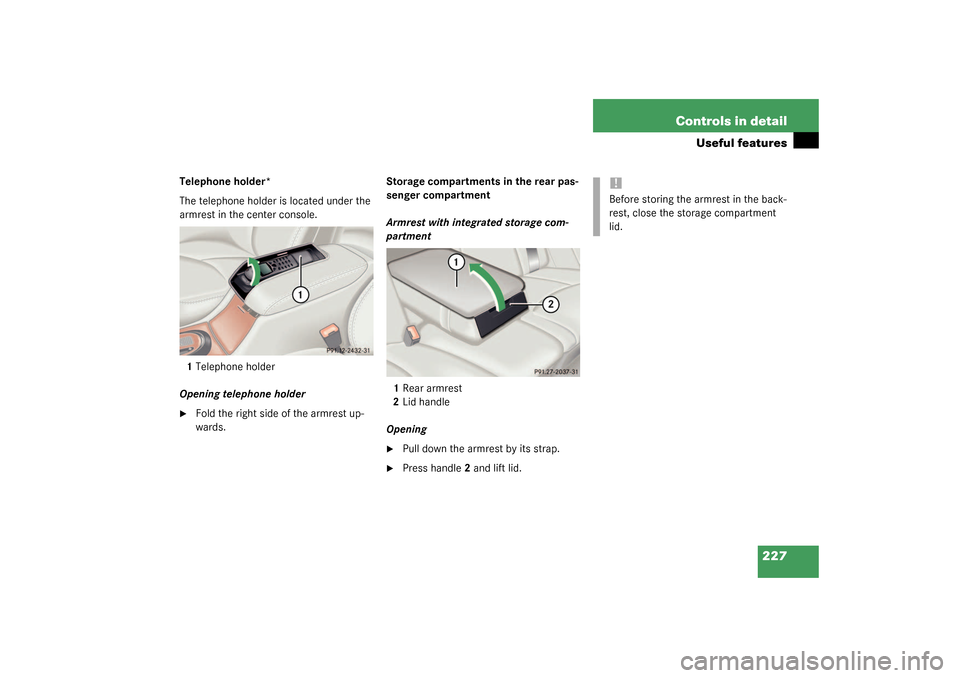

227 Controls in detail
Useful features
Telephone holder*
The telephone holder is located under the
armrest in the center console.
1Telephone holder
Opening telephone holder
Fold the right side of the armrest up-
wards.Storage compartments in the rear pas-
senger compartment
Armrest with integrated storage com-
partment
1Rear armrest
2Lid handle
Opening

Pull down the armrest by its strap.

Press handle2 and lift lid.
!Before storing the armrest in the back-
rest, close the storage compartment
lid.

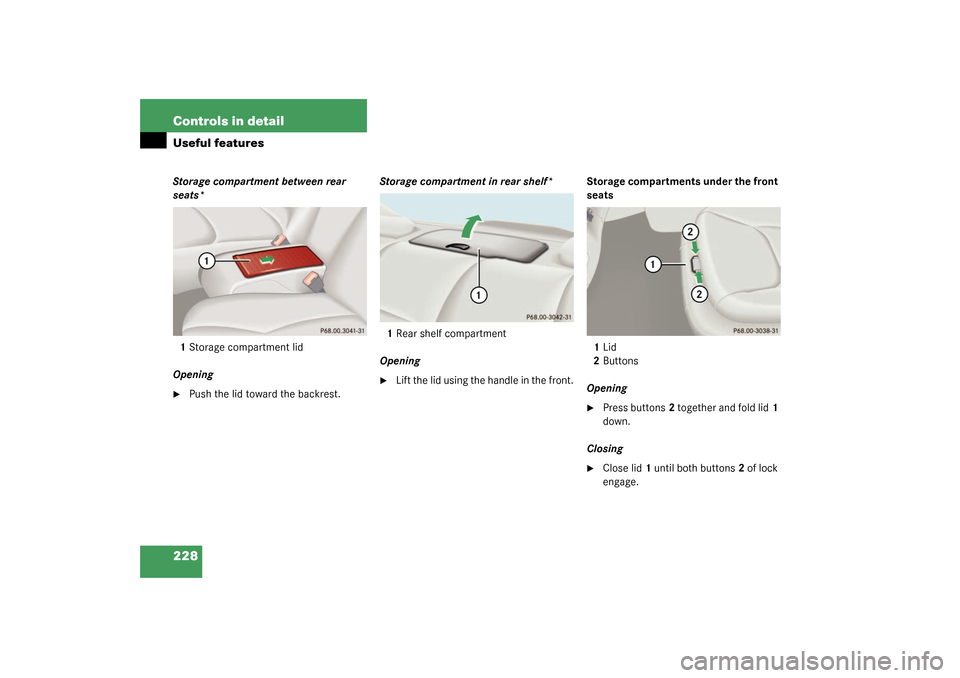

228 Controls in detailUseful featuresStorage compartment between rear
seats*
1Storage compartment lid
Opening
Push the lid toward the backrest.Storage compartment in rear shelf*
1Rear shelf compartment
Opening

Lift the lid using the handle in the front.Storage compartments under the front
seats
1Lid
2Buttons
Opening

Press buttons2 together and fold lid1
down.
Closing

Close lid1 until both buttons2 of lock
engage.

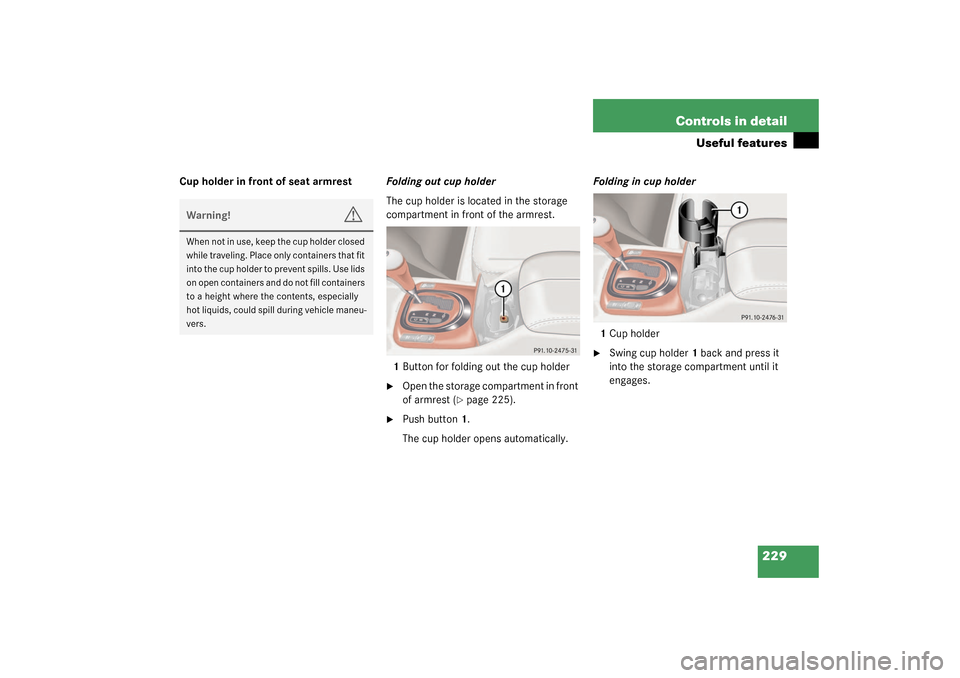

229 Controls in detail
Useful features
Cup holder in front of seat armrestFolding out cup holder
The cup holder is located in the storage
compartment in front of the armrest.
1Button for folding out the cup holder

Open the storage compartment in front
of armrest (
page 225).

Push button1.
The cup holder opens automatically.Folding in cup holder
1Cup holder

Swing cup holder1 back and press it
into the storage compartment until it
engages.
Warning!
G
When not in use, keep the cup holder closed
while traveling. Place only containers that fit
into the cup holder to prevent spills. Use lids
on open containers and do not fill containers
to a height where the contents, especially
hot liquids, could spill during vehicle maneu-
vers.

230 Controls in detailUseful featuresCup holder in rear seat armrestOpening cup holder

Push front of sliding compartment1.
The cup holder slides out.
Closing cup holder

Push sliding compartment1 back until
it engages.Auxiliary cup holder
You can fasten the auxiliary cup holder
onto the left front side of the passenger
seat.
Inserting auxiliary cup holder
1Cover

Pull up cover1 and place it in a storage
compartment.
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle maneu-
vers.

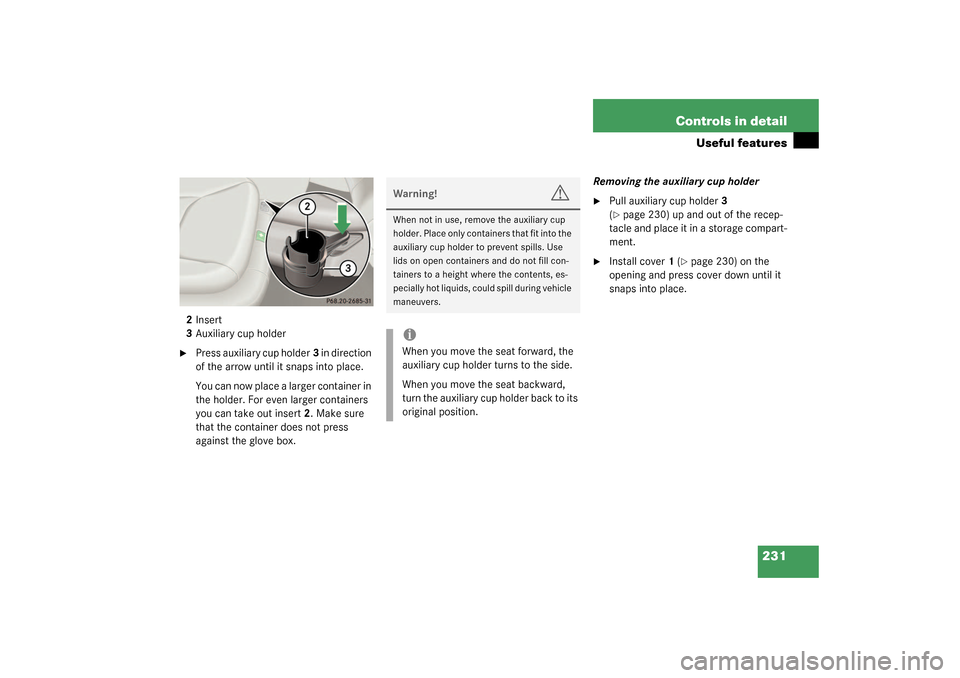

231 Controls in detail
Useful features
2Insert
3Auxiliary cup holder
Press auxiliary cup holder3 in direction
of the arrow until it snaps into place.
You can now place a larger container in
the holder. For even larger containers
you can take out insert2. Make sure
that the container does not press
against the glove box.Removing the auxiliary cup holder

Pull auxiliary cup holder3
(page 230) up and out of the recep-
tacle and place it in a storage compart-
ment.

Install cover1 (
page 230) on the
opening and press cover down until it
snaps into place.
Warning!
G
When not in use, remove the auxiliary cup
holder. Place only containers that fit into the
auxiliary cup holder to prevent spills. Use
lids on open containers and do not fill con-
tainers to a height where the contents, es-
pecially hot liquids, could spill during vehicle
maneuvers.iWhen you move the seat forward, the
auxiliary cup holder turns to the side.
When you move the seat backward,
turn the auxiliary cup holder back to its
original position.

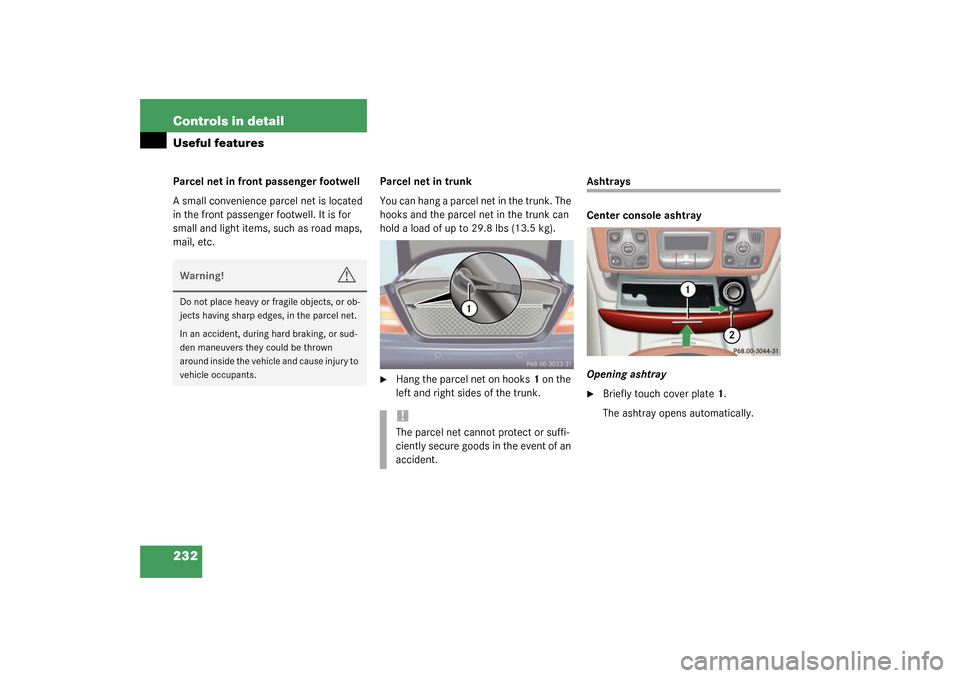

232 Controls in detailUseful featuresParcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.Parcel net in trunk
You can hang a parcel net in the trunk. The
hooks and the parcel net in the trunk can
hold a load of up to 29.8 lbs (13.5 kg).

Hang the parcel net on hooks1 on the
left and right sides of the trunk.
Ashtrays
Center console ashtray
Opening ashtray
Briefly touch cover plate1.
The ashtray opens automatically.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the parcel net.
In an accident, during hard braking, or sud-
den maneuvers they could be thrown
around inside the vehicle and cause injury to
vehicle occupants.
!The parcel net cannot protect or suffi-
ciently secure goods in the event of an
accident.
