2003 MERCEDES-BENZ C320 4MATIC WAGON Owner's Manual

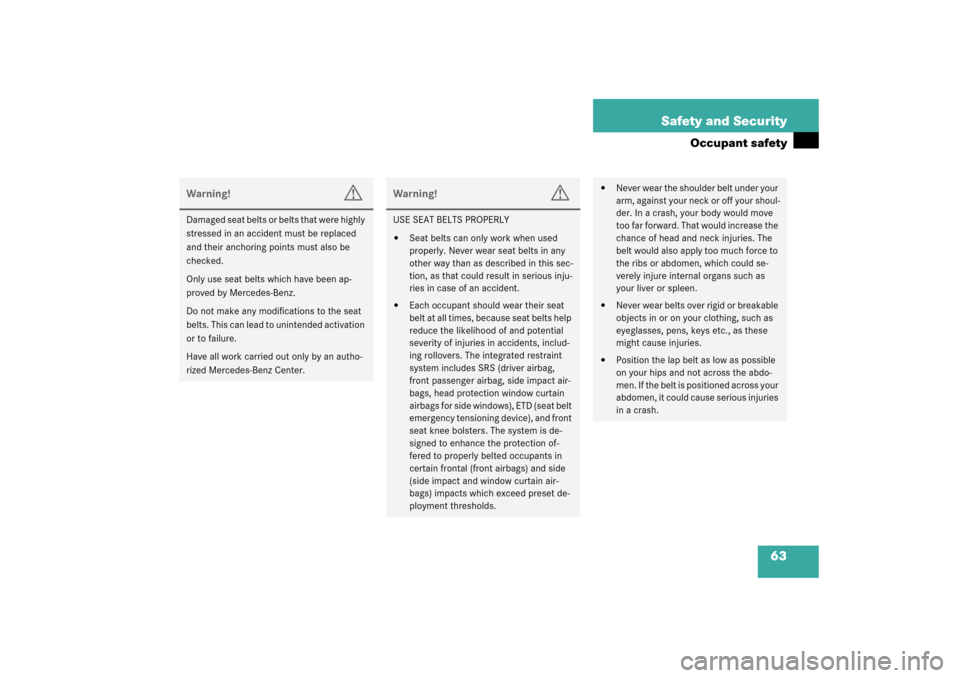

63 Safety and Security
Occupant safety
Warning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been ap-
proved by Mercedes-Benz.
Do not make any modifications to the seat
b e l t s . T h i s c a n l e a d t o u n i n t e n d e d a c t i v a t i o n
or to failure.
Have all work carried out only by an autho-
rized Mercedes-Benz Center.
Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver airbag,
front passenger airbag, side impact air-
bags, head protection window curtain
airbags for side windows), ETD (seat belt
emergency tensioning device), and front
seat knee bolsters. The system is de-
signed to enhance the protection of-
fered to properly belted occupants in
certain frontal (front airbags) and side
(side impact and window curtain air-
bags) impacts which exceed preset de-
ployment thresholds.


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys etc., as these
might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.
S203 MY03_A.book Page 63 Tuesday, January 28, 2003 2:22 PM

64 Safety and SecurityOccupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and belt force limiters.
The ETD is designed to activate in the fol-
lowing cases when the seat belts are fas-
tened:

in frontal or rear-end impacts exceed-
ing a preset severity level


if the restraint systems are operational
and functioning correctly, see 1
indicator lamp (
page 56)
In an impact, emergency tensioning devic-
es remove slack from the belts in such a
way that the seat belts fit more snugly
against the body. Belt force limiters reduce
the force exerted by the seat belts on oc-
cupants during a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel or on the seat. Always keep both
feet on the floor in front of the seat.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When scrapping the emergency tensioning
device, our safety instructions must be fol-
lowed. These are available at your autho-
rized Mercedes-Benz Center.!Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front or side
impact airbag on the front passenger
side to deploy in a crash which exceeds
the system’s deployment threshold.
S203 MY03_A.book Page 64 Tuesday, January 28, 2003 2:22 PM

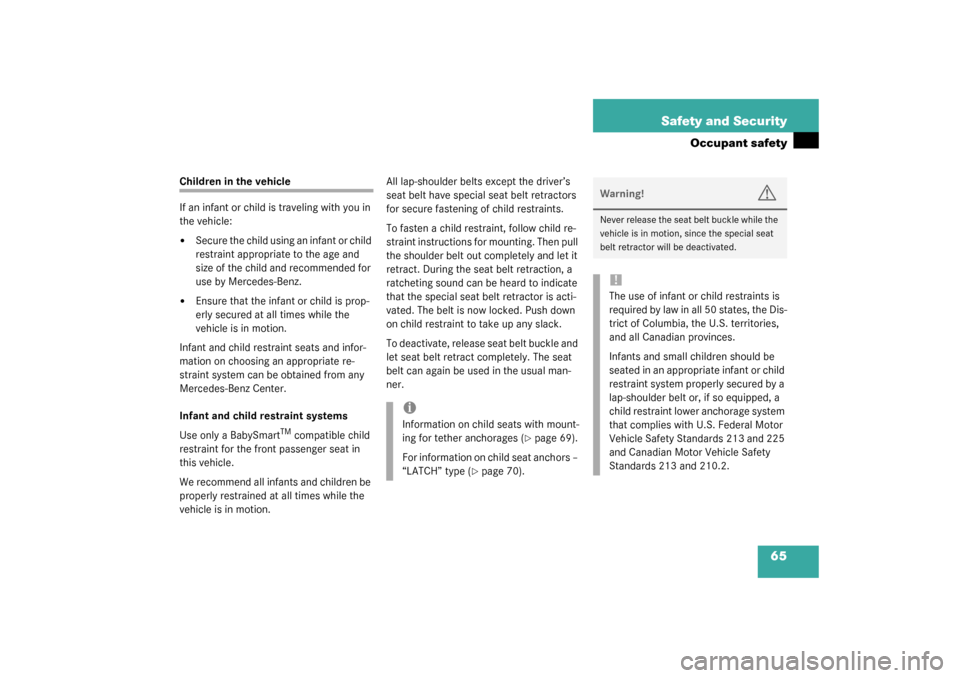

65 Safety and Security
Occupant safety
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child and recommended for
use by Mercedes-Benz.


Ensure that the infant or child is prop-
erly secured at all times while the
vehicle is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
Mercedes-Benz Center.
Infant and child restraint systems
Use only a BabySmart
TM compatible child
restraint for the front passenger seat in
this vehicle.
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During the seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.
iInformation on child seats with mount-
ing for tether anchorages (
page 69).
For information on child seat anchors –
“LATCH” type (
page 70).
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.!The use of infant or child restraints is
required by law in all 50 states, the Dis-
trict of Columbia, the U.S. territories,
and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system properly secured by a
lap-shoulder belt or, if so equipped, a
child restraint lower anchorage system
that complies with U.S. Federal Motor
Vehicle Safety Standards 213 and 225
and Canadian Motor Vehicle Safety
Standards 213 and 210.2.
S203 MY03_A.book Page 65 Tuesday, January 28, 2003 2:22 PM

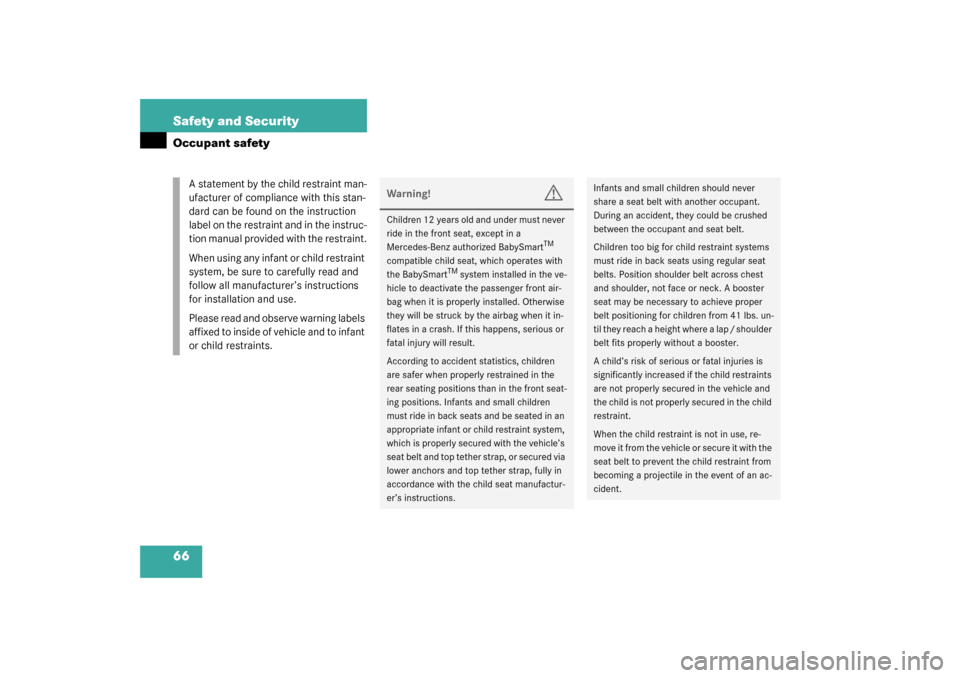

66 Safety and SecurityOccupant safety
A statement by the child restraint man-
ufacturer of compliance with this stan-
dard can be found on the instruction
label on the restraint and in the instruc-
tion manual provided with the restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to inside of vehicle and to infant
or child restraints.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs. un-
til they reach a height where a lap / shoulder
belt fits properly without a booster.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
When the child restraint is not in use, re-
m o v e i t f r o m t h e v e h i c l e o r s e c u r e i t w i t h t h e
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
S203 MY03_A.book Page 66 Tuesday, January 28, 2003 2:22 PM

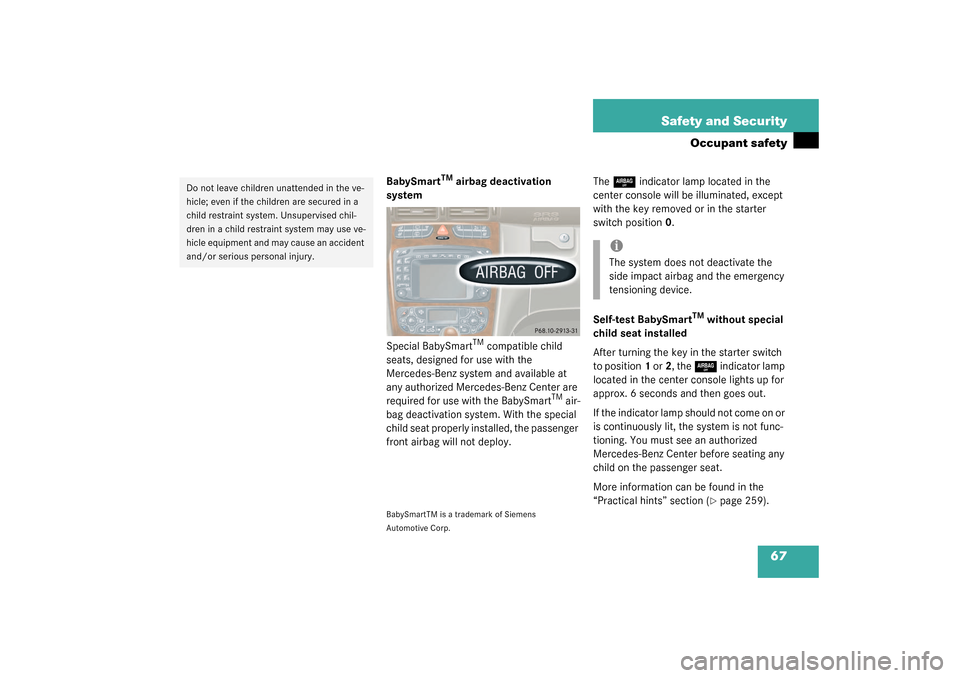

67 Safety and Security
Occupant safety
BabySmart
TM
airbag deactivation
system
Special BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system and available at
any authorized Mercedes-Benz Center are
required for use with the BabySmart
TM air-
bag deactivation system. With the special
child seat properly installed, the passenger
front airbag will not deploy.
BabySmartTM is a trademark of Siemens
Automotive Corp.
The
7
indicator lamp located in the
center console will be illuminated, except
with the key removed or in the starter
switch position0.
Self-test BabySmart
TM
without special
child seat installed
After turning the key in the starter switch
to position1 or2, the 7
indicator lamp
located in the center console lights up for
approx. 6 seconds and then goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the passenger seat.
More information can be found in the
“Practical hints” section (page 259).
Do not leave children unattended in the ve-
hicle; even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.
iThe system does not deactivate the
side impact airbag and the emergency
tensioning device.
S203 MY03_A.book Page 67 Tuesday, January 28, 2003 2:22 PM

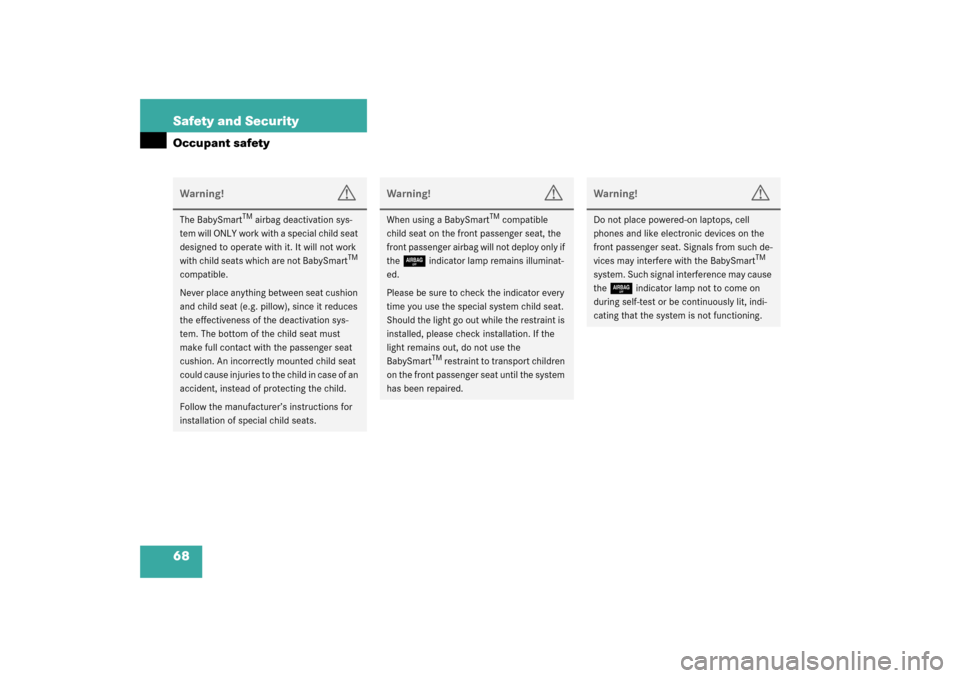

68 Safety and SecurityOccupant safetyWarning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
front passenger airbag will not deploy only if
the
7
indicator lamp remains illuminat-
ed.
Please be sure to check the indicator every
time you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmartTM restraint to transport children
on the front passenger seat until the system
has been repaired.
Warning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the
7
indicator lamp not to come on
during self-test or be continuously lit, indi-
cating that the system is not functioning.
S203 MY03_A.book Page 68 Tuesday, January 28, 2003 2:22 PM

69 Safety and Security
Occupant safety
Installation of infant and child restraint
systems
Prior to installing a tether strap, note the
following steps:
Roll up retractable luggage cover and
partition net.

Fold backrest forward.

Guide top tether strap between head
restraint and top of seat back.
Head restraints must be installed (if re-
movable) and positioned such that the
top tether strap can pass freely
between the head restraint and top of
the seat back.
Make sure that the tether strap is not
twisted.

Fold backrest back until it locks in
place.1Anchorage ring
2Hook
Anchorage rings1 are located on the back
side of the outer rear backrests and on the
floor behind the rear center seat.

Fold up anchorage ring1.

Securely fasten hook2, which is part of
the tether strap, to anchorage ring1.
iIf the top tether strap is to be installed
on the left back side of the rear back-
rest, you must first remove the
twin-reel roller blind (
page 199).
The tether strap has to run through the
locking mechanism of the twin-reel
roller blind.
Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo area is not in
use. Check for secure locking by pushing
and pulling on the backrest.
iFor safety, please make sure that the
hook has attached to the ring beyond
the safety catch, as illustrated.
S203 MY03_A.book Page 69 Tuesday, January 28, 2003 2:22 PM

70 Safety and SecurityOccupant safetyChild seat anchors – “LATCH” type
This vehicle is equipped with two “LATCH”
(Lower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the outer rear
seats) for the installation of a “LATCH”
child seat with the matching mounting fit-
tings.
The anchors are located between the seat
cushion and the backrest.

Grip inner side of anchors1 and fold
forward until they lock in place.

Install child seat according to the
manufacturer’s instructions.With a child seat installed in the left rear
seat, the seat belt for the center seat occu-
pied by a passenger must operate freely.
Guide seat belt between its seat cushion
anchor and backrest anchor along outside
of right side child seat anchor.
To fold anchors back

Press down button2 on each anchor
and return anchor to its catch.iThe child seat must be firmly attached
in the right and left side anchors1.iNon-“LATCH” type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.
Warning!
G
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs. un-
til they reach a height where a lap/shoulder
belt fits properly without a booster.
Before installing the child seat, make sure
anchors1 are folded out and locked in
place.
Install child seat according to manufactur-
er’s instructions.
S203 MY03_A.book Page 70 Tuesday, January 28, 2003 2:22 PM
