2003 MERCEDES-BENZ C320 4MATIC WAGON Owner's Manual

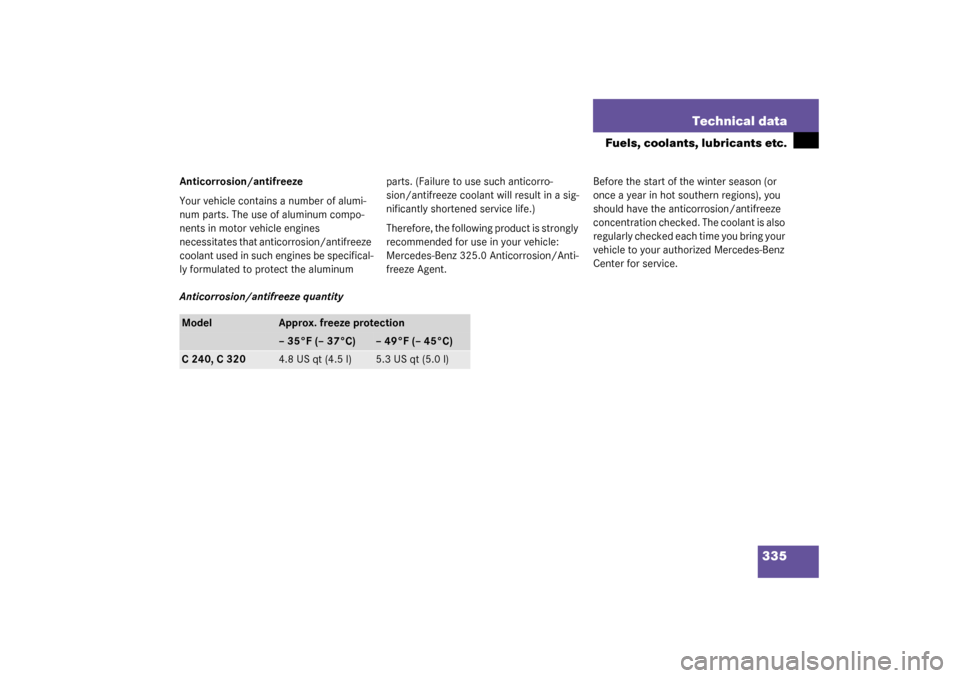

335 Technical data
Fuels, coolants, lubricants etc.
Anticorrosion/antifreeze
Your vehicle contains a number of alumi-
num parts. The use of aluminum compo-
nents in motor vehicle engines
necessitates that anticorrosion/antifreeze
coolant used in such engines be specifical-
ly formulated to protect the aluminum parts. (Failure to use such anticorro-
sion/antifreeze coolant will result in a sig-
nificantly shortened service life.)
Therefore, the following product is strongly
recommended for use in your vehicle:
Mercedes-Benz 325.0 Anticorrosion/Anti-
freeze Agent.Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to your authorized Mercedes-Benz
Center for service.
Anticorrosion/antifreeze quantityModel
Approx. freeze protection– 35°F (– 37°C)
– 49°F (– 45°C)
C 240, C 320
4.8 US qt (4.5 l)
5.3 US qt (5.0 l)
S203 MY03_A.book Page 335 Tuesday, January 28, 2003 2:22 PM

336 Technical dataFuels, coolants, lubricants etc.Windshield and headlamp washer system
Both the windshield and headlamp washer
systems are supplied from the windshield
washer fluid reservoir.
The washer fluid reservoir has a capacity of
approx.

6.4 US qt (6.0 l) in vehicles with head-
lamp cleaning system*


3.2 US qt (3.0 l) in vehicles without
headlamp cleaning system

Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer sol-
vent/antifreeze, depending on ambient
temperatures).Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing use
MB Windshield Washer Concentrate “S”
and water:


1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 l) water].
For temperatures below freezing use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent/antifreeze:


1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 l) solvent].
Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may burn.
You can be seriously burned.
S203 MY03_A.book Page 336 Tuesday, January 28, 2003 2:22 PM

337 Technical data
Consumer information
Consumer information
The following text is published as required
of all manufacturers of passenger cars un-
der Title 49, Code of U.S. Federal Regula-
tions, Part 575 pursuant to the “National
Traffic and Motor Vehicle Safety Act of
1966”.Uniform tire quality grading
Quality grades can be found, where appli-
cable, on the tire sidewall between tread
shoulder and maximum section width. For
example:
All passenger car tires must conform to
federal safety requirements in addition to
these grades.Tread wear
The tread wear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
a nd one-ha lf (1½ ) tim es as wel l on the gov-
ernment course as a tire graded 100. The
relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences in
road characteristics and climate.Traction
The traction grades, from highest to lowest
are AA, A, B, and C. Those grades repre-
sent the tire’s ability to stop on wet pave-
ment as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.Tread wear
Traction
Temperature
200
AA
A
Warning!
G
The traction grade assigned to this tire is
based on straight ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
S203 MY03_A.book Page 337 Tuesday, January 28, 2003 2:22 PM

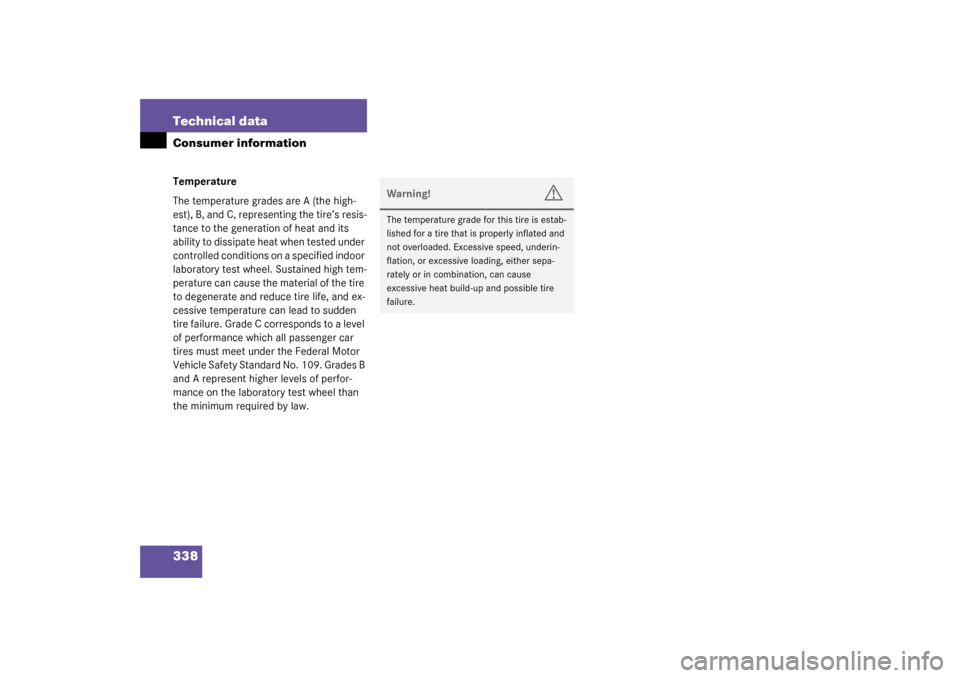

338 Technical dataConsumer informationTemperature
The temperature grades are A (the high-
est), B, and C, representing the tire’s resis-
tance to the generation of heat and its
ability to dissipate heat when tested under
controlled conditions on a specified indoor
laboratory test wheel. Sustained high tem-
perature can cause the material of the tire
to degenerate and reduce tire life, and ex-
cessive temperature can lead to sudden
tire failure. Grade C corresponds to a level
of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning!
G
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underin-
flation, or excessive loading, either sepa-
rately or in combination, can cause
excessive heat build-up and possible tire
failure.
S203 MY03_A.book Page 338 Tuesday, January 28, 2003 2:22 PM

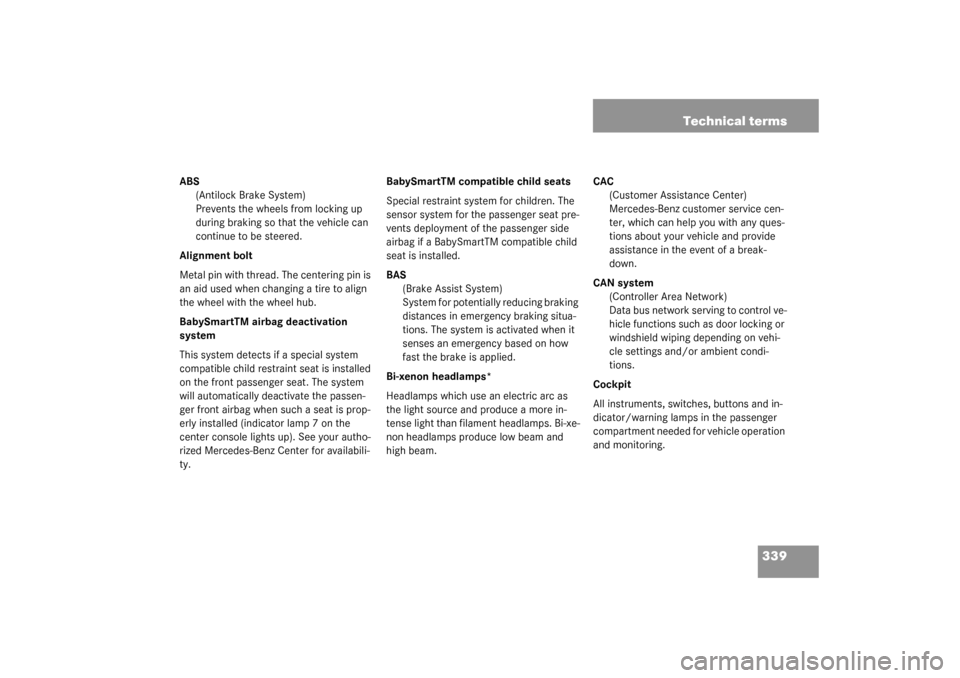

339 Technical terms
ABS
(Antilock Brake System)
Prevents the wheels from locking up
during braking so that the vehicle can
continue to be steered.
Alignment bolt
Metal pin with thread. The centering pin is
an aid used when changing a tire to align
the wheel with the wheel hub.
BabySmartTM airbag deactivation
system
This system detects if a special system
compatible child restraint seat is installed
on the front passenger seat. The system
will automatically deactivate the passen-
ger front airbag when such a seat is prop-
erly installed (indicator lamp 7 on the
center console lights up). See your autho-
rized Mercedes-Benz Center for availabili-
ty.BabySmartTM compatible child seats
Special restraint system for children. The
sensor system for the passenger seat pre-
vents deployment of the passenger side
airbag if a BabySmartTM compatible child
seat is installed.
BAS
(Brake Assist System)
System for potentially reducing braking
distances in emergency braking situa-
tions. The system is activated when it
senses an emergency based on how
fast the brake is applied.
Bi-xenon headlamps*
Headlamps which use an electric arc as
the light source and produce a more in-
tense light than filament headlamps. Bi-xe-
non headlamps produce low beam and
high beam.CAC
(Customer Assistance Center)
Mercedes-Benz customer service cen-
ter, which can help you with any ques-
tions about your vehicle and provide
assistance in the event of a break-
down.
CAN system
(Controller Area Network)
Data bus network serving to control ve-
hicle functions such as door locking or
windshield wiping depending on vehi-
cle settings and/or ambient condi-
tions.
Cockpit
All instruments, switches, buttons and in-
dicator/warning lamps in the passenger
compartment needed for vehicle operation
and monitoring.
S203 MY03_A.book Page 339 Tuesday, January 28, 2003 2:22 PM

340 Technical termsCOMAND*
(Cockpit Management and Data Sys-
tem)
Information and operating center for
vehicle sound and communications
systems, including the radio and navi-
gation system, as well as for other op-
tional equipment (CD changer*,
telephone*, etc.).
Control system
The control system is used to call up vehi-
cle information and to change component
settings. Information and messages ap-
pear in the multifunction display. The driv-
er uses the buttons on the multifunction
steering wheel to navigate through the sys-
tem and to adjust settings.
Cruise control
Driving convenience system for automati-
cally maintaining the vehicle speed set by
the driver.Engine number
The number set by the manufacturer and
placed on the cylinder block to uniquely
identify each engine produced.
Engine oil viscosity
Measurement for the inner friction (viscos-
ity) of the oil at different temperatures. The
higher the temperature an oil can tolerate
without becoming thin, or the lower the
temperature it can tolerate without be-
coming viscous, the better the viscosity.
ESP
(Electronic Stability Program)
Improves vehicle handling and direc-
tional stability.
ETD
(Emergency Tensioning Device)
Device which deploys in certain frontal
and rear collisions exceeding the sys-
tem's threshold to tighten the seat
belts.
->SRSFSS
(Flexible Service System)
Service indicator in the multifunction
display that informs the driver when
the next vehicle maintenance service is
due.
Gear range
Number of gears which are available to the
automatic transmission for shifting. The
automatic gear shifting process can be
adapted to specific operating conditions
using the selector lever.
GPS
(Global Positioning System)
Satellite-based system for relaying
geographic location information to and
from vehicles equipped with special re-
ceivers. Employs CD digital maps for
navigation.S203 MY03_A.book Page 340 Tuesday, January 28, 2003 2:22 PM

341 Technical terms
Instrument cluster
The displays and indicator/warning lamps
in the driver’s field of vision, including the
tachometer, speedometer, engine temper-
ature display and fuel gauge.
Kickdown
Depressing the accelerator past the point
of resistance shifts the transmission down
to the lowest possible gear. This very
quickly accelerates the vehicle and should
not be used for normal acceleration needs.
Lock button
Button on the door which indicates wheth-
er the door is locked or unlocked. Pushing
the lock button down on an individual door
from inside will lock that door.
Memory function*
Used to store three individual seat, steer-
ing wheel and mirror positions for each
key.Menu
The control system displays are arranged
in menus. Each menu contains a number of
commands for particular systems. In the
Audio menu, for example, you will find the
commands SELECT RADIO STATION or OP-
ERATE CD PLAYER. Using commands you
can directly change the settings for your
vehicle.
MON
(Motor Octane Number)
The Motor Octane Number for gasoline
as determined by a standardized meth-
od. It is an indication of a gasoline's
ability to resist undesired detonation
(knocking). The average of both the
MON (Motor Octane Number) and
->RON (Research Octane Number) is
posted at the pump, also known as AN-
TI-KNOCK INDEX.Multifunction display
Display field in the instrument cluster used
to present information provided by the
control system.
Multifunction steering wheel
Steering wheel with buttons for operating
the control system.
Overspeed range
Engine speeds within the red marking of
the tachometer dial. Avoid this engine
speed range, as it may result in serious en-
gine damage that is not covered by the
Mercedes-Benz Limited Warranty.
Poly-V-belt drive
Drives engine-components (alternator,
AC compressor, etc.) from the engine.
S203 MY03_A.book Page 341 Tuesday, January 28, 2003 2:22 PM

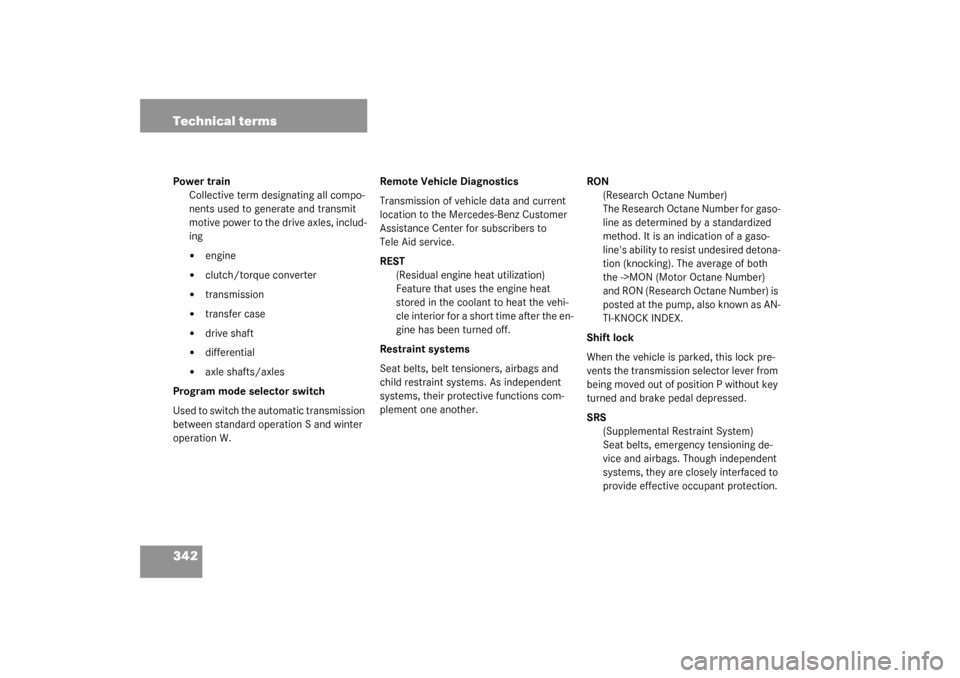

342 Technical termsPower train
Collective term designating all compo-
nents used to generate and transmit
motive power to the drive axles, includ-
ing


engine


clutch/torque converter


transmission


transfer case


drive shaft


differential


axle shafts/axles
Program mode selector switch
Used to switch the automatic transmission
between standard operation S and winter
operation W.Remote Vehicle Diagnostics
Transmission of vehicle data and current
location to the Mercedes-Benz Customer
Assistance Center for subscribers to
Tele Aid service.
REST
(Residual engine heat utilization)
Feature that uses the engine heat
stored in the coolant to heat the vehi-
cle interior for a short time after the en-
gine has been turned off.
Restraint systems
Seat belts, belt tensioners, airbags and
child restraint systems. As independent
systems, their protective functions com-
plement one another.RON
(Research Octane Number)
The Research Octane Number for gaso-
line as determined by a standardized
method. It is an indication of a gaso-
line's ability to resist undesired detona-
tion (knocking). The average of both
the ->MON (Motor Octane Number)
and RON (Research Octane Number) is
posted at the pump, also known as AN-
TI-KNOCK INDEX.
Shift lock
When the vehicle is parked, this lock pre-
vents the transmission selector lever from
being moved out of position P without key
turned and brake pedal depressed.
SRS
(Supplemental Restraint System)
Seat belts, emergency tensioning de-
vice and airbags. Though independent
systems, they are closely interfaced to
provide effective occupant protection.
S203 MY03_A.book Page 342 Tuesday, January 28, 2003 2:22 PM
