2003 MERCEDES-BENZ C320 4MATIC WAGON Owner's Manual

95 Controls in detail
Memory function*
Memory function*
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per key.
The following settings are saved for each
stored position:

Driver’s seat and backrest position


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger side exterior rear view mir-
ror position


Front passenger seat position
These key-dependent memory settings
can be deactivated if desired
(
page 127).
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. Also see air-
bag section (
page 57) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.
S203 MY03_A.book Page 95 Tuesday, January 28, 2003 2:22 PM

96 Controls in detailMemory function*1Memory button
2Stored position button
Make sure that the ignition is switched
on or the relevant door is open and the
SmartKey is inserted in the starter
switch.
Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 32).

Turn button2 to selected memory po-
sition.

Press memory button1.

Release memory button and push
button2 within three seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Turn button2 to selected memory po-
sition.

Press and hold button2 until the seat,
steering wheel and rear view mirrors
have fully moved to the stored posi-
tions.iReleasing the button immediately
stops movement to the stored posi-
tions.Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move backrest to an upright position.
S203 MY03_A.book Page 96 Tuesday, January 28, 2003 2:22 PM

97 Controls in detail
Memory function*
Storing exterior rear view mirror parking position
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
You can store a parking position for the
passenger exterior rear view mirror for
each key using the memory button.
For information about activating the
parking position, see “Activating exterior
rear view mirror parking position”
(page 142).1Memory button
2Adjustment button
3Passenger side exterior rear view
mirror

Stop the vehicle.

Switch ignition on (if not already on).

Press button3.
The passenger side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button2 so that you see the rear
wheel and the road curb.

Press the memory button “M”1 on the
door.

Within three seconds press bottom of
adjustment button2 above the exterior
lamp switch.
The parking position is stored if the
mirror does not move.iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.
S203 MY03_A.book Page 97 Tuesday, January 28, 2003 2:22 PM

98 Controls in detailLighting
LightingFor notes on how to switch on the head-
lamps and use the turn signals, see the
“Getting started” section (
page 47).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel
M
Off
U
Automatic headlamp mode
C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
Canada only: When engine is run-
ning, the low beam is also switched
on.
B
Low beam plus parking lamps or
high beam headlamps (combination
switch pushed forward).
ˆ
Standing lamps, right (turn left one
stop)
‚
Standing lamps, left (turn left two
stops)
iIf you remove the key and open the
driver’s door while the parking lamps or
low beam headlamps are switched on,
then

a warning sounds


$
appears in the multifunction
display


the message
TURN OFF LAMPS
ap-
pears in the multifunction display
iWith the daytime running lamp mode
activated and the engine running, the
low beam headlamps cannot be
switched off manually.
S203 MY03_A.book Page 98 Tuesday, January 28, 2003 2:22 PM

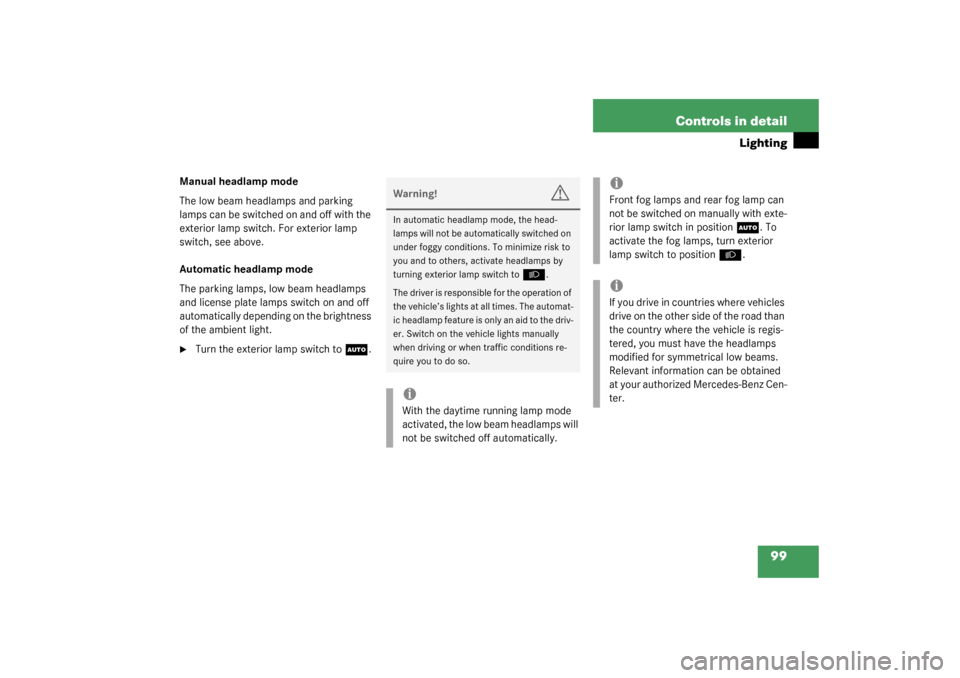

99 Controls in detail
Lighting
Manual headlamp mode
The low beam headlamps and parking
lamps can be switched on and off with the
exterior lamp switch. For exterior lamp
switch, see above.
Automatic headlamp mode
The parking lamps, low beam headlamps
and license plate lamps switch on and off
automatically depending on the brightness
of the ambient light.
Turn the exterior lamp switch to
U
.
Warning!
G
In automatic headlamp mode, the head-
lamps will not be automatically switched on
under foggy conditions. To minimize risk to
you and to others, activate headlamps by
turning exterior lamp switch to
B
.
The driver is responsible for the operation of
the vehicle’s lights at all times. The automat-
ic headlamp feature is only an aid to the driv-
er. Switch on the vehicle lights manually
when driving or when traffic conditions re-
quire you to do so.
iWith the daytime running lamp mode
activated, the low beam headlamps will
not be switched off automatically.
iFront fog lamps and rear fog lamp can
not be switched on manually with exte-
rior lamp switch in position
U
. To
activate the fog lamps, turn exterior
lamp switch to position
B
.
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz Cen-
ter.
S203 MY03_A.book Page 99 Tuesday, January 28, 2003 2:22 PM

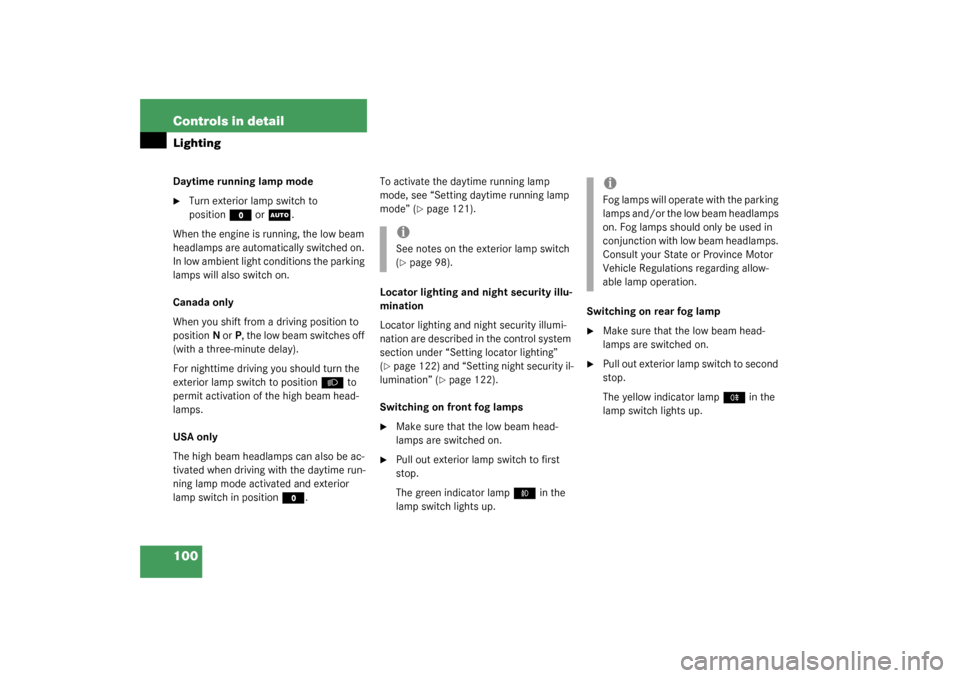

100 Controls in detailLightingDaytime running lamp mode
Turn exterior lamp switch to
position
M
or
U
.
When the engine is running, the low beam
headlamps are automatically switched on.
In low ambient light conditions the parking
lamps will also switch on.
Canada only
When you shift from a driving position to
positionN orP, the low beam switches off
(with a three-minute delay).
For nighttime driving you should turn the
exterior lamp switch to position
B
to
permit activation of the high beam head-
lamps.
USA only
The high beam headlamps can also be ac-
tivated when driving with the daytime run-
ning lamp mode activated and exterior
lamp switch in position
M
.To activate the daytime running lamp
mode, see “Setting daytime running lamp
mode” (
page 121).
Locator lighting and night security illu-
mination
Locator lighting and night security illumi-
nation are described in the control system
section under “Setting locator lighting”
(
page 122) and “Setting night security il-
lumination” (
page 122).
Switching on front fog lamps

Make sure that the low beam head-
lamps are switched on.

Pull out exterior lamp switch to first
stop.
The green indicator lamp
‡
in the
lamp switch lights up.Switching on rear fog lamp

Make sure that the low beam head-
lamps are switched on.

Pull out exterior lamp switch to second
stop.
The yellow indicator lamp
†
in the
lamp switch lights up.
iSee notes on the exterior lamp switch
(page 98).
iFog lamps will operate with the parking
lamps and/or the low beam headlamps
on. Fog lamps should only be used in
conjunction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding allow-
able lamp operation.
S203 MY03_A.book Page 100 Tuesday, January 28, 2003 2:22 PM

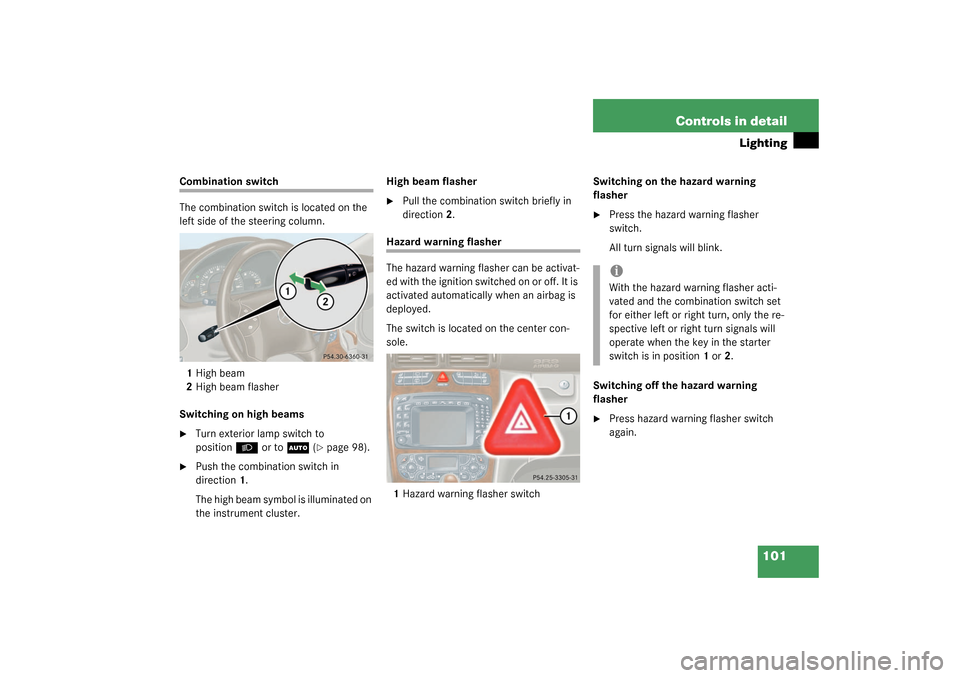

101 Controls in detail
Lighting
Combination switch
The combination switch is located on the
left side of the steering column.
1High beam
2High beam flasher
Switching on high beams
Turn exterior lamp switch to
position
B
or to
U
(page 98).

Push the combination switch in
direction1.
The high beam symbol is illuminated on
the instrument cluster.High beam flasher

Pull the combination switch briefly in
direction2.
Hazard warning flasher
The hazard warning flasher can be activat-
ed with the ignition switched on or off. It is
activated automatically when an airbag is
deployed.
The switch is located on the center con-
sole.
1Hazard warning flasher switchSwitching on the hazard warning
flasher

Press the hazard warning flasher
switch.
All turn signals will blink.
Switching off the hazard warning
flasher

Press hazard warning flasher switch
again.iWith the hazard warning flasher acti-
vated and the combination switch set
for either left or right turn, only the re-
spective left or right turn signals will
operate when the key in the starter
switch is in position1 or2.
S203 MY03_A.book Page 101 Tuesday, January 28, 2003 2:22 PM

102 Controls in detailLightingInterior lighting
The controls are located in the overhead
control panel.
1Rear interior lights
2Right front reading lamp
3Rocker switch: Automatic control off
4Rocker switch: Automatic control on
5Rocker switch: Front interior lights on
6Left front reading lampActivating automatic control

Press the rocker switch to the center
position4.
Interior lamps are switched on in dark-
ness, when

unlocking the vehicle


opening a door


removing the SmartKey from start-
er switch


opening the tailgate
The interior lamps are switched off follow-
ing an adjustable time delay (
page 124).Deactivating automatic control

Press the rocker switch to the right
position3.
The interior lighting remains switched
off, even when

centrally unlocking the vehicle


opening a door


removing the SmartKey from the
starter switch


opening the tailgate
Manual control
Switching rear interior lights on and off

Press button1.
The lights in the rear passenger com-
partment go on.

Press button1 again.
The lights in the rear passenger com-
partment go out.
iIf the door remains open, the interior
lamps switch off automatically after ap-
proximately five minutes, when the key
is removed or in the starter switch
position0.
An interior lamp switched on manually
does not go out automatically.
S203 MY03_A.book Page 102 Tuesday, January 28, 2003 2:22 PM
