2003 MERCEDES-BENZ C320 4MATIC WAGON Owner's Manual

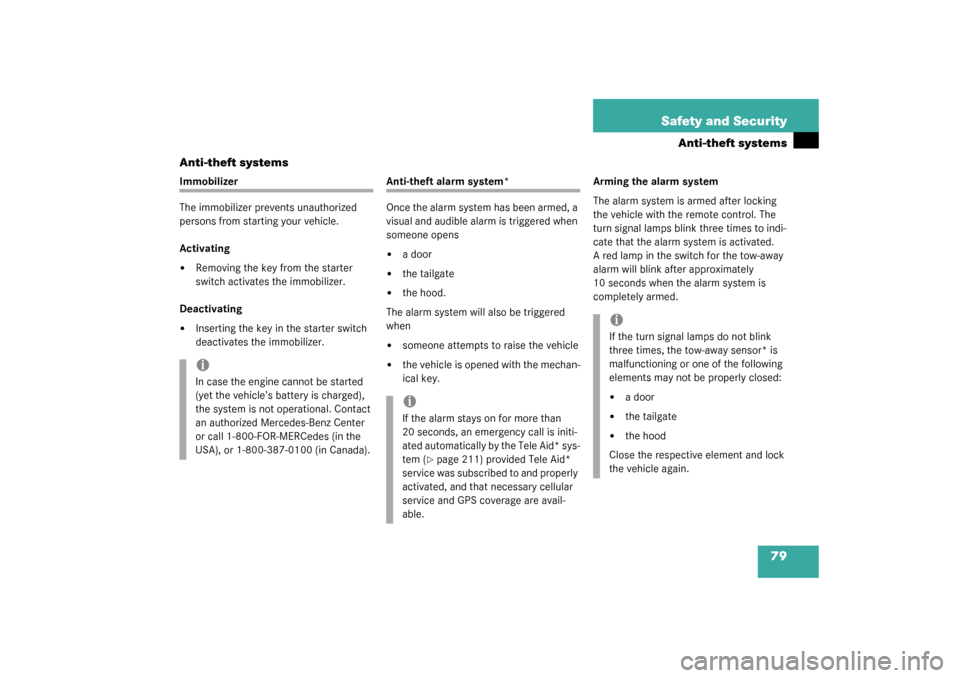

79 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

Removing the key from the starter
switch activates the immobilizer.
Deactivating


Inserting the key in the starter switch
deactivates the immobilizer.
Anti-theft alarm system*
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the tailgate


the hood.
The alarm system will also be triggered
when


someone attempts to raise the vehicle


the vehicle is opened with the mechan-
ical key.Arming the alarm system
The alarm system is armed after locking
the vehicle with the remote control. The
turn signal lamps blink three times to indi-
cate that the alarm system is activated.
A red lamp in the switch for the tow-away
alarm will blink after approximately
10 seconds when the alarm system is
completely armed.
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid* sys-
tem (
page 211) provided Tele Aid*
service was subscribed to and properly
activated, and that necessary cellular
service and GPS coverage are avail-
able.
iIf the turn signal lamps do not blink
three times, the tow-away sensor* is
malfunctioning or one of the following
elements may not be properly closed:

a door


the tailgate


the hood
Close the respective element and lock
the vehicle again.
S203 MY03_A.book Page 79 Tuesday, January 28, 2003 2:22 PM

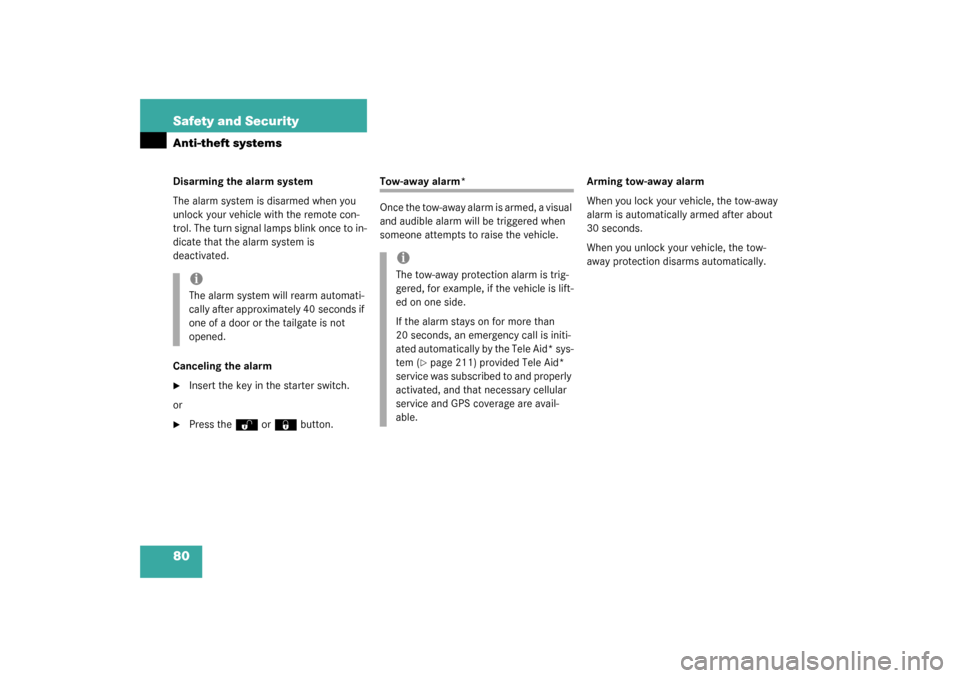

80 Safety and SecurityAnti-theft systemsDisarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote con-
trol. The turn signal lamps blink once to in-
dicate that the alarm system is
deactivated.
Canceling the alarm
Insert the key in the starter switch.
or

Press the
Œ
or
‹
button.
Tow-away alarm*
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the tow-
away protection disarms automatically.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
one of a door or the tailgate is not
opened.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid* sys-
tem (
page 211) provided Tele Aid*
service was subscribed to and properly
activated, and that necessary cellular
service and GPS coverage are avail-
able.
S203 MY03_A.book Page 80 Tuesday, January 28, 2003 2:22 PM

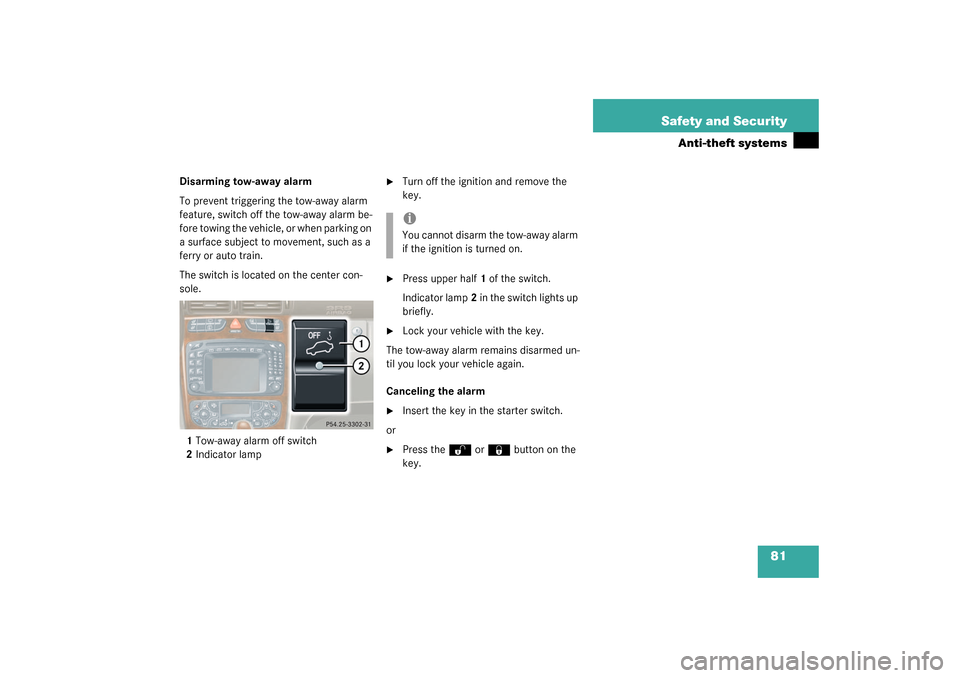

81 Safety and Security
Anti-theft systems
Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.
The switch is located on the center con-
sole.
1Tow-away alarm off switch
2Indicator lamp

Turn off the ignition and remove the
key.

Press upper half1 of the switch.
Indicator lamp2 in the switch lights up
briefly.

Lock your vehicle with the key.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.
Canceling the alarm

Insert the key in the starter switch.
or

Press the
Œ
or
‹
button on the
key.
iYou cannot disarm the tow-away alarm
if the ignition is turned on.
S203 MY03_A.book Page 81 Tuesday, January 28, 2003 2:22 PM

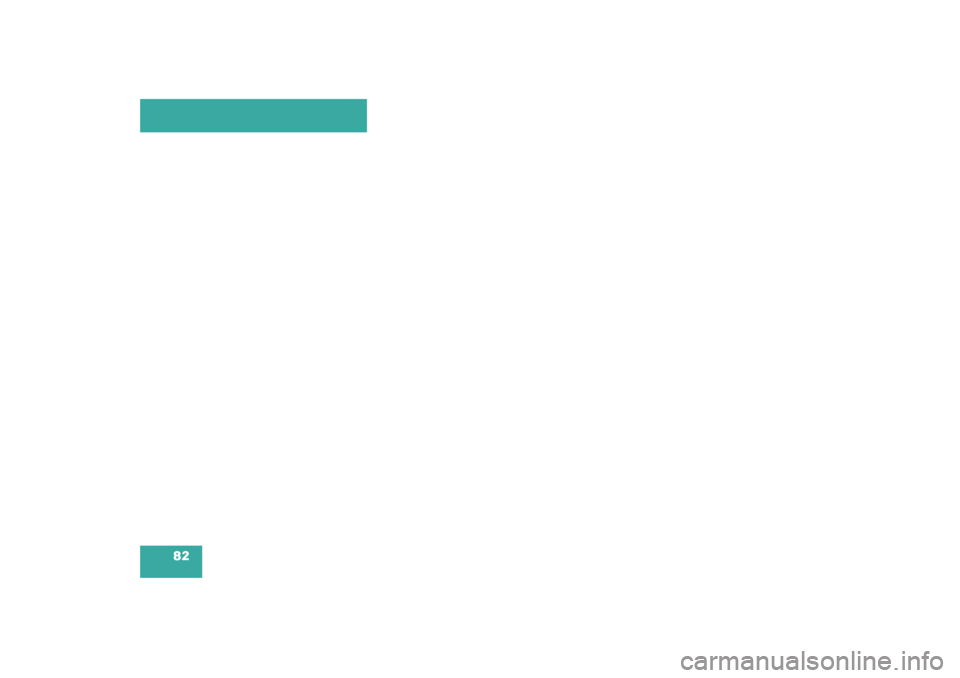

82S203 MY03_A.book Page 82 Tuesday, January 28, 2003 2:22 PM

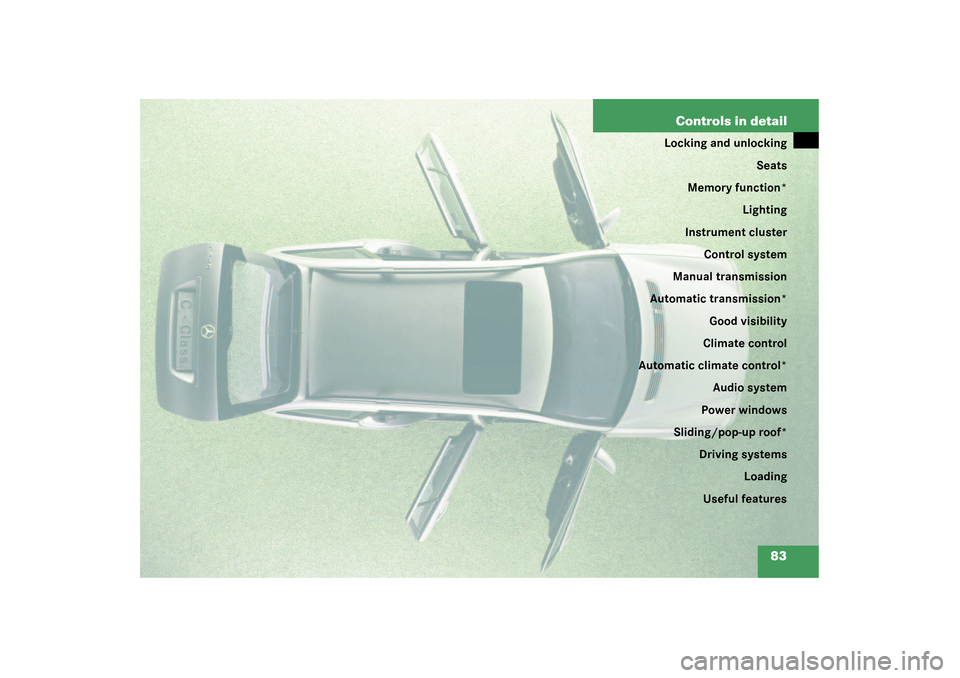

83 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Manual transmission
Automatic transmission*
Good visibility
Climate control
Automatic climate control*
Audio system
Power windows
Sliding/pop-up roof*
Driving systems
Loading
Useful features
S203 MY03_A.book Page 83 Tuesday, January 28, 2003 2:22 PM

84 Controls in detailLocking and unlockingIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
Locking and unlockingInformation on locking and unlocking can
be found in the “Getting started” section
on (
page 30) and (
page 51).
Keys
Your vehicle comes supplied with two
SmartKeys with remote controls and a re-
movable mechanical key. The locking tabs
for the mechanical key portion of the two
keys are a different color to help distin-
guish each key unit.
The remote control key provides an ex-
tended operating range. To prevent theft,
however, it is advisable to only unlock the
vehicle when you are in close proximity to
it.
The key centrally locks and unlocks:

the doors


the tailgate


the fuel filler flap
SmartKey with remote control1‹
Lock button
2Mechanical key locking tab
3
Œ
Unlock button
4Battery check lamp
5
Â
Panic button (
page 72)
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button*5.
S203 MY03_A.book Page 84 Tuesday, January 28, 2003 2:22 PM

85 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press button
Œ
.
All turn signal lamps blink once. The
locking knobs in the doors move up.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor tailgate is
opened, the SmartKey is not inserted in
the starter switch, or the central locking
switch is not activated.Global locking

Press button
‹
.
All turn signal lamps blink three times.
The locking knobs in the doors move
down.
Selective setting
If you frequently travel alone, you may wish
to reprogram the key so that
pressing
Œ
only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttons
Œ
and
‹

simultaneously for about five seconds
until battery check lamp4 blinks twice.
The key will then function as follows:
Unlocking driver’s door and fuel filler
flap

Press button
Œ
once.
Global unlocking

Press button
Œ
twice.
Global locking

Press button
‹
.Restoring to factory setting

Press and hold buttons
Œ
and
‹

simultaneously for about six seconds
until battery check lamp4 blinks twice.
iYou can also open and close the power
windows (
page 186) and slid-
ing/pop-up roof (
page 188) using
the SmartKey.
!To prevent possible malfunction, avoid
exposing the key to high levels of elec-
tromagnetic radiation.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. It is possible for children to open a
locked door from the inside, which could re-
sult in an accident and/or serious injury.
S203 MY03_A.book Page 85 Tuesday, January 28, 2003 2:22 PM

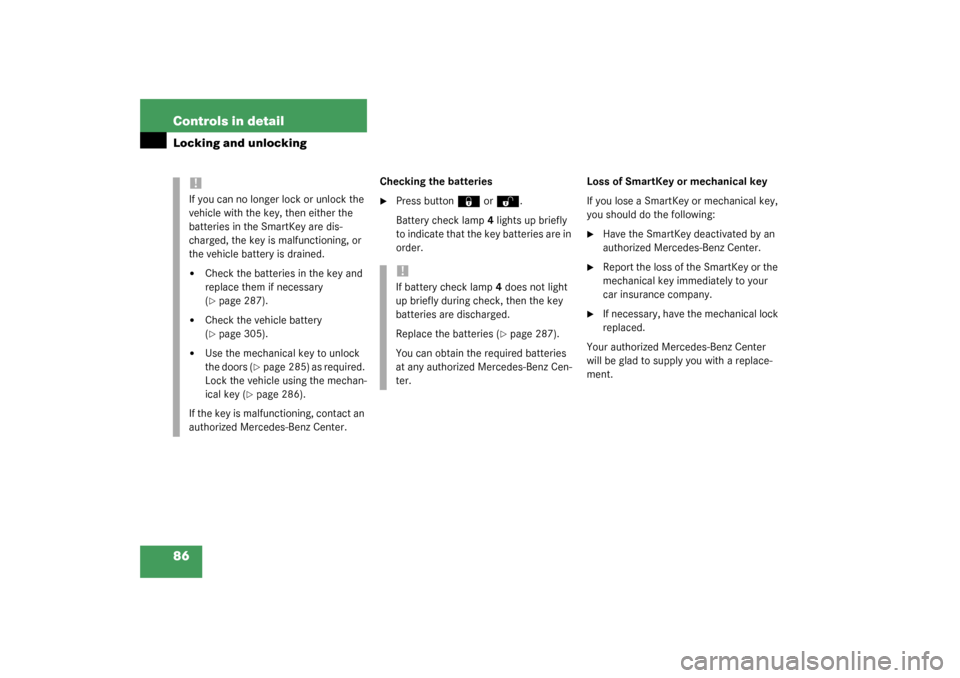

86 Controls in detailLocking and unlocking
Checking the batteries
Press button
‹
or
Œ
.
Battery check lamp4 lights up briefly
to indicate that the key batteries are in
order.Loss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:

Have the SmartKey deactivated by an
authorized Mercedes-Benz Center.

Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.

If necessary, have the mechanical lock
replaced.
Your authorized Mercedes-Benz Center
will be glad to supply you with a replace-
ment.
!If you can no longer lock or unlock the
vehicle with the key, then either the
batteries in the SmartKey are dis-
charged, the key is malfunctioning, or
the vehicle battery is drained.

Check the batteries in the key and
replace them if necessary
(page 287).


Check the vehicle battery
(page 305).


Use the mechanical key to unlock
the doors (
page 285) as required.
Lock the vehicle using the mechan-
ical key (
page 286).
If the key is malfunctioning, contact an
authorized Mercedes-Benz Center.
!If battery check lamp4 does not light
up briefly during check, then the key
batteries are discharged.
Replace the batteries (
page 287).
You can obtain the required batteries
at any authorized Mercedes-Benz Cen-
ter.
S203 MY03_A.book Page 86 Tuesday, January 28, 2003 2:22 PM
