2003 MERCEDES-BENZ C320 4MATIC WAGON Owner's Manual

111 Controls in detail
Control system
Menus, submenus and functions
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Standard display
AUDIO
NAVI*
Malfunction
memory
Settings
Trip computer
Telephone*
Commands/submenusCoolant tempera-
ture display
Select radio station
Activate route
guidance
Call up malfunc-
tion messages
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Digital speedometer
Operate CD play-
er*
Instrument clus-
ter submenu
Fuel consumption
statistics since
the last reset
Search for
name in
phone book
Call up FSS
Operate cassette
player
Lighting sub-
menu
Call up range
Check engine oil lev-
el
Vehicle sub-
menuConvenience
submenu
S203 MY03_A.book Page 111 Tuesday, January 28, 2003 2:22 PM

112 Controls in detailControl system
Standard display menu
You can select the functions in the stan-
dard display menu with button
k

or
j
.
The following functions are available:
Display digital speedometer

Press button
j
twice.
The current vehicle speed is shown in
the multifunction display.
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF
i s s h o w n i n t h e
display.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Call up coolant temperature dis-
play
104
Call up digital speedometer
see
below
Call up FSS
246
Check engine oil level
235
Function
Page
Select radio station
113
Operate CD player*
113
Operate cassette player
114
S203 MY03_A.book Page 112 Tuesday, January 28, 2003 2:22 PM

113 Controls in detail
Control system
Select radio station
Turn on the radio (
page 162) Vehi-
cles with COMAND*: Refer to separate
operating instructions.

Press button
è
or
ÿ
repeatedly
until you see the currently tuned sta-
tion in the display.
1Station frequency
2Waveband setting
3Setting for station selection using
memory

Press button
k
or
j
repeatedly
until the desired station is found.
The type of search depends on the set-
ting for the station tuning
(
page 125):


The next stored station is selected
(SP)


Station searchOperate the CD player*

Turn on the radio and select the CD
player (
page 163) Vehicles with CO-
MAND*: Refer to separate operating in-
structions.

Press button
è
or
ÿ
repeatedly
until the settings for the CD currently
being played are shown in the display.
1Current track
2Current CD (for CD changer*)

Press button
k
or
j
repeatedly
until the desired track is selected.
iYou can only store new stations using
the corresponding feature on the radio
(page 169) Vehicles with COMAND*:
Refer to separate operating instruc-
tions.
You can also operate the radio in the
usual manner.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.
S203 MY03_A.book Page 113 Tuesday, January 28, 2003 2:22 PM

114 Controls in detailControl systemOperate the cassette player
Turn on the radio and select the cas-
sette player (
page 170) Vehicles
with COMAND*: Refer to separate op-
erating instructions.

Press button
è
or
ÿ
repeatedly
until the settings for the cassette cur-
rently being played are shown in the
display.
1Current side

Press button
j
to fast forward to
the next track.

Press button
k
to rewind the cas-
sette to the beginning of the current
track.
NAVI menu
The
NAV
menu contains the functions need-
ed to operate your navigation system.

Press button
è
or
ÿ
repeatedly
until you see the message NAV
in the
display.


If the navigation system is switched off,
the message
NAV OFF
is shown in the
display.


If the navigation system is on, the mes-
sage
NAV ACTIVE
is shown in the dis-
play.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
iTo select the reverse side of the tape,
press button below track number on
the audio system display, or enter re-
quest on the COMAND* system locat-
ed in the center dashboard.
S203 MY03_A.book Page 114 Tuesday, January 28, 2003 2:22 PM

115 Controls in detail
Control system

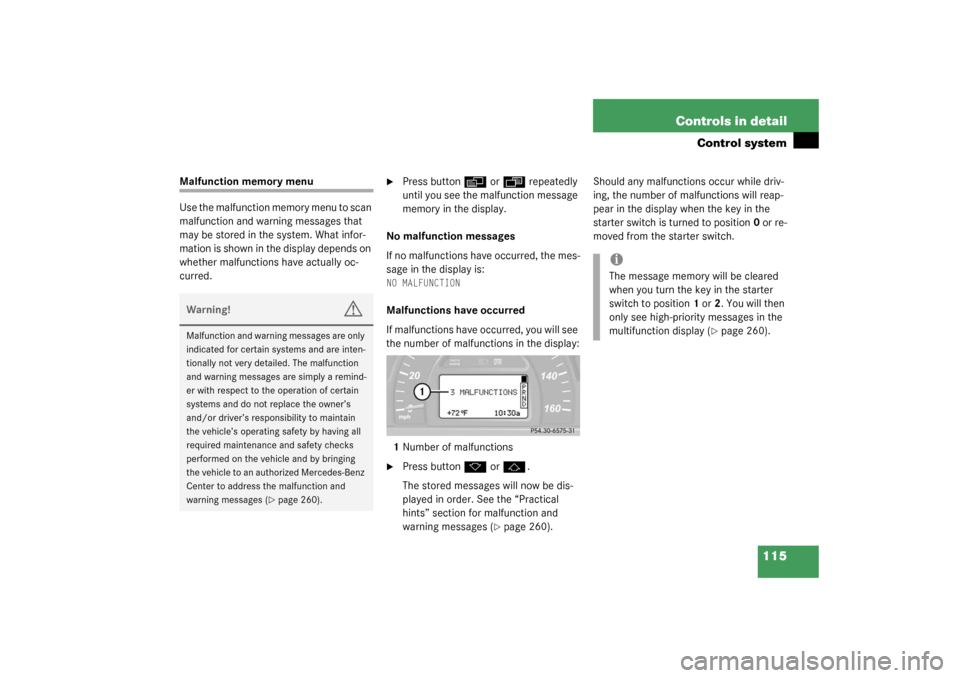

Malfunction memory menu
Use the malfunction memory menu to scan
malfunction and warning messages that
may be stored in the system. What infor-
mation is shown in the display depends on
whether malfunctions have actually oc-
curred.

Press button
è
or
ÿ
repeatedly
until you see the malfunction message
memory in the display.
No malfunction messages
If no malfunctions have occurred, the mes-
sage in the display is:
NO MALFUNCTIONMalfunctions have occurred
If malfunctions have occurred, you will see
the number of malfunctions in the display:
1Number of malfunctions
Press button
k
or
j
.
The stored messages will now be dis-
played in order. See the “Practical
hints” section for malfunction and
warning messages (
page 260).Should any malfunctions occur while driv-
ing, the number of malfunctions will reap-
pear in the display when the key in the
starter switch is turned to position0 or re-
moved from the starter switch.
Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 260).
iThe message memory will be cleared
when you turn the key in the starter
switch to position1 or2. You will then
only see high-priority messages in the
multifunction display (
page 260).
S203 MY03_A.book Page 115 Tuesday, January 28, 2003 2:22 PM

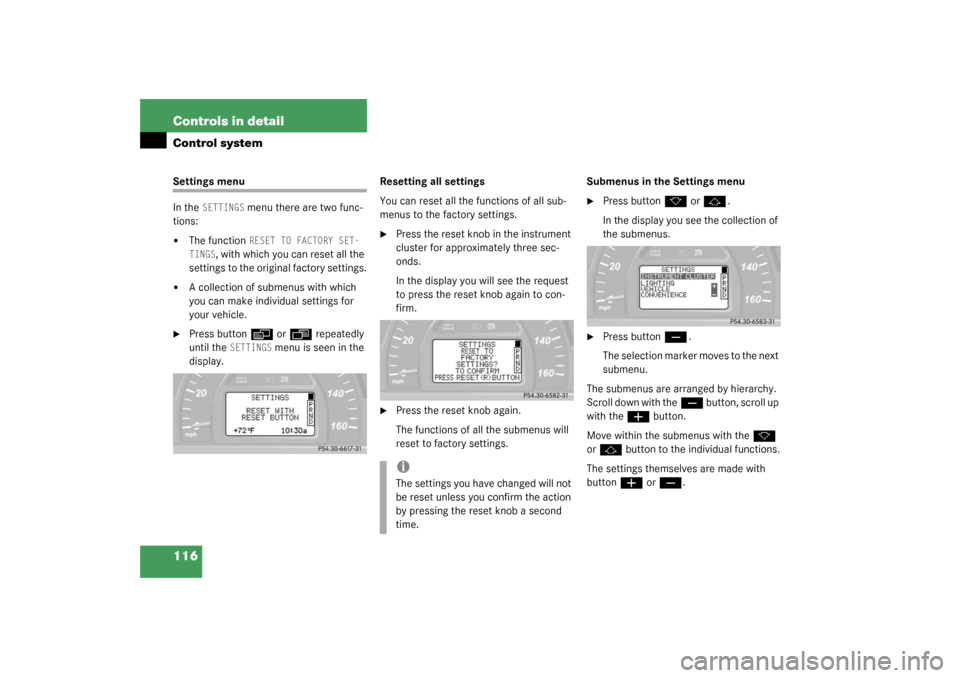

116 Controls in detailControl systemSettings menu
In the
SETTINGS
menu there are two func-
tions:


The function
RESET TO FACTORY SET-
TINGS
, with which you can reset all the
settings to the original factory settings.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press button
è
or
ÿ
repeatedly
until the
SETTINGS
menu is seen in the
display.Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.

Press the reset knob in the instrument
cluster for approximately three sec-
onds.
In the display you will see the request
to press the reset knob again to con-
firm.

Press the reset knob again.
The functions of all the submenus will
reset to factory settings.Submenus in the Settings menu

Press button
k
or
j
.
In the display you see the collection of
the submenus.

Press button
ç
.
The selection marker moves to the next
submenu.
The submenus are arranged by hierarchy.
Scroll down with theç
button, scroll up
with the
æ
button.
Move within the submenus with the
k

or
j
button to the individual functions.
The settings themselves are made with
buttonæ
or
ç
.
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset knob a second
time.
S203 MY03_A.book Page 116 Tuesday, January 28, 2003 2:22 PM

117 Controls in detail
Control system
Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.
Move to a function in the submenu.

Press the reset knob in the instrument
cluster for approximately three sec-
onds.
In the display you will see the request
to press the reset knob again to con-
firm.

Press the reset knob again.
All functions of the submenu will reset
to factory settings.
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.
INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Set time (hours)
Set daytime running lamp mode
(USA only)
Set station selection mode
(radio)
Activate easy-entry/exit feature
Set time (minutes)
Set locator lighting
Set automatic locking
Set key dependency
Select time display mode
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirror
Select temperature display
mode
Interior lighting delayed shut-off
Select speedometer display
modeSelect languageSelect display (speed display or
outside temperature)
S203 MY03_A.book Page 117 Tuesday, January 28, 2003 2:22 PM

118 Controls in detailControl systemInstrument cluster submenu
Access the
INSTRUMENT CLUSTER
submenu
via the
SETTINGS
menu. Use the
INSTRU-
MENT CLUSTER
submenu to change the in-
strument cluster display settings. The
following functions are available:Set time (hours)

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TIME SETTINGS – HOURS
.
The selection marker is on the hour set-
ting.

Press
æ
or
ç
to set the hour.Set time (minutes)

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TIME SETTINGS – MINUTES
.
The selection marker is on the minute
setting.

Press
æ
or
ç
to set the minutes.
Function
Page
Set time (hours)
118
Set time (minutes)
118
Select time display mode
119
Select temperature display
mode
119
Select speedometer display
mode
119
Select language
120
Select display (speed display or
outside temperature)
120
S203 MY03_A.book Page 118 Tuesday, January 28, 2003 2:22 PM
