151 Controls in detail
Climate control
Opening the air vent
Raise lever1.
Closing the air vent

Lower lever1.Rear passenger compartment
adjustable air vents
1Center air vent, left
2Thumbwheel for air volume control for
center air vents
3Center air vent, rightTo open center air vents:

Turn thumbwheel2 upward.
iThe compartment can get very warm
due to its confined space. When storing
heat sensitive objects in the compart-
ment, close the air vent while heating
the passenger compartment.
iThe temperature at the air vents for
rear passenger compartment1 and3
is the same as at the dashboard center
air vents.
S203 MY03_A.book Page 151 Tuesday, January 28, 2003 2:22 PM

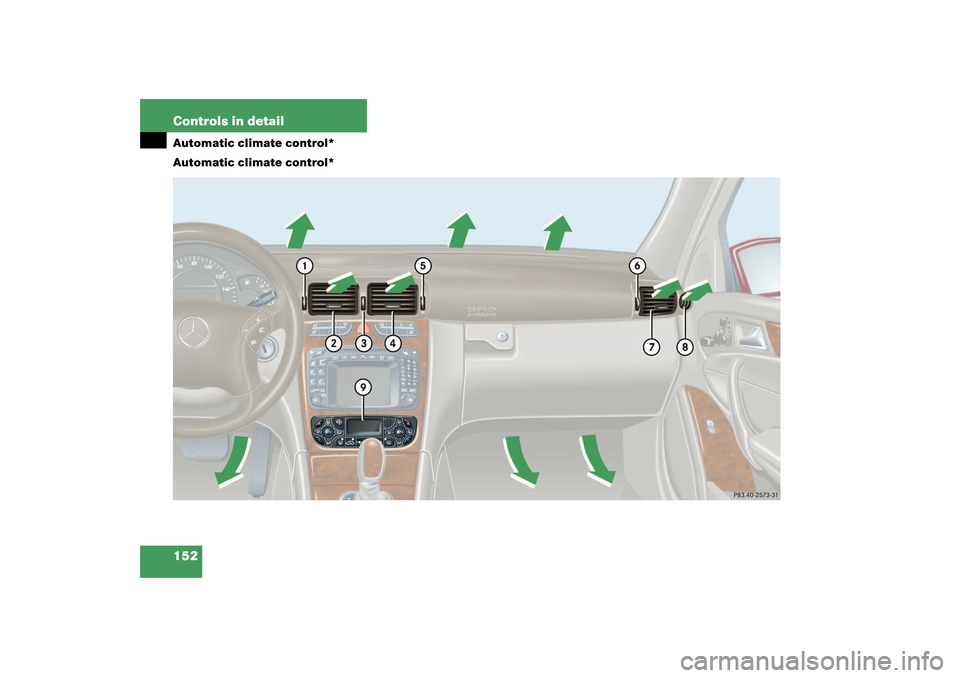

152 Controls in detailAutomatic climate control*
Automatic climate control*S203 MY03_A.book Page 152 Tuesday, January 28, 2003 2:22 PM

153 Controls in detail
Automatic climate control*

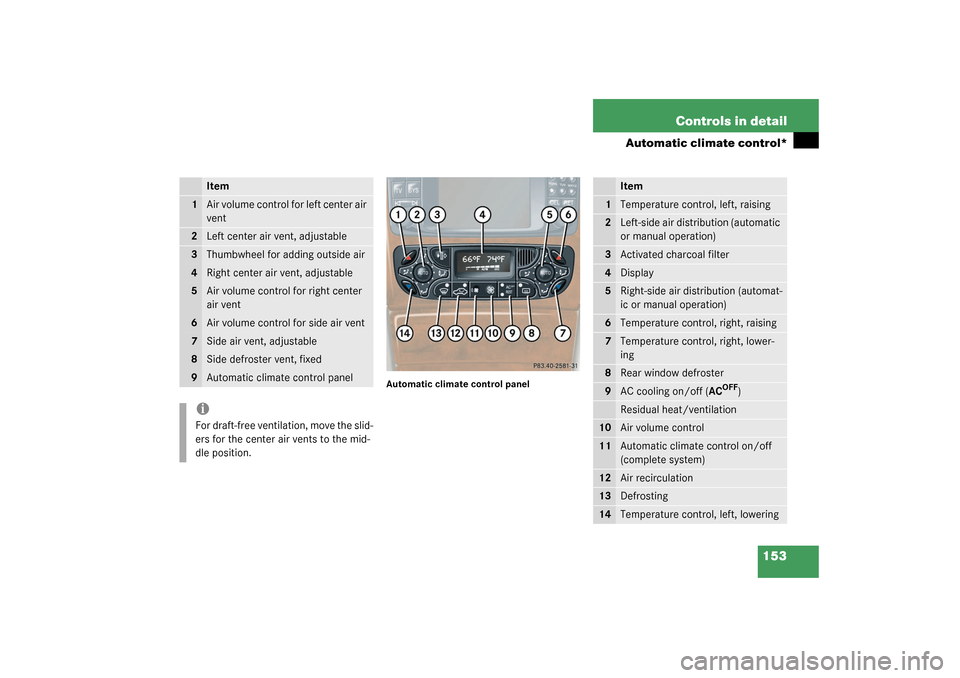

Automatic climate control panel
Item
1
Air volume control for left center air
vent
2
Left center air vent, adjustable
3
Thumbwheel for adding outside air
4
Right center air vent, adjustable
5
Air volume control for right center
air vent
6
Air volume control for side air vent
7
Side air vent, adjustable
8
Side defroster vent, fixed
9
Automatic climate control paneliFor draft-free ventilation, move the slid-
ers for the center air vents to the mid-
dle position.
Item
1
Temperature control, left, raising
2
Left-side air distribution (automatic
or manual operation)
3
Activated charcoal filter
4
Display
5
Right-side air distribution (automat-
ic or manual operation)
6
Temperature control, right, raising
7
Temperature control, right, lower-
ing
8
Rear window defroster
9
AC cooling on/off (AC
OFF
)
Residual heat/ventilation
10
Air volume control
11
Automatic climate control on/off
(complete system)
12
Air recirculation
13
Defrosting
14
Temperature control, left, lowering
S203 MY03_A.book Page 153 Tuesday, January 28, 2003 2:22 PM

154 Controls in detailAutomatic climate control*The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the economy mode AC
OFF
is se-
lected (
page 159).
Setting the temperature
Use temperature controls1 and14 for the
left side or6 and7 for the right side to
separately adjust the air temperature on
each side of the passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C).Increasing

Push temperature control1 and/or6.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Decreasing

Push temperature control14
and/or7.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Adding outside air

Turn thumbwheel3 in dashboard
(page 153) to increase airflow of out-
side air through air vents for center, left
and right sides and rear passenger
compartment.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iIf the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.
S203 MY03_A.book Page 154 Tuesday, January 28, 2003 2:22 PM

155 Controls in detail
Automatic climate control*
Adjusting air distribution
Use air distribution controls2 and5
(page 153) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:Adjusting manually

Press left or right
U
button.
Air distribution can be adjusted manu-
ally.
Adjusting automatically

Press left or right
U
button again.
Air distribution is adjusted automatical-
ly.
Windshield fogged on the outside

Switch the windshield wipers on.

Switch to manual mode.

Turn the air distribution control
to
a
or
Y
.
Adjusting air volume
Adjusting manually
Seven blower speeds are available.
Press left
M
or right
Q
side of air
volume control switch until the re-
quested blower speed is attained.
The display “Auto” disappears and the
automatic mode is switched off. The
selected blower speed is shown in the
display.
Adjusting automatically

Press left or right
U
button.
The air volume is adjusted automatical-
ly.
Symbol
Function
a
Directs air through the center,
side and rear passenger
compartment air vents
Z
Directs air to the windows
X
Directs air into the entire
vehicle interior
Y
Directs air to the footwells
S203 MY03_A.book Page 155 Tuesday, January 28, 2003 2:22 PM

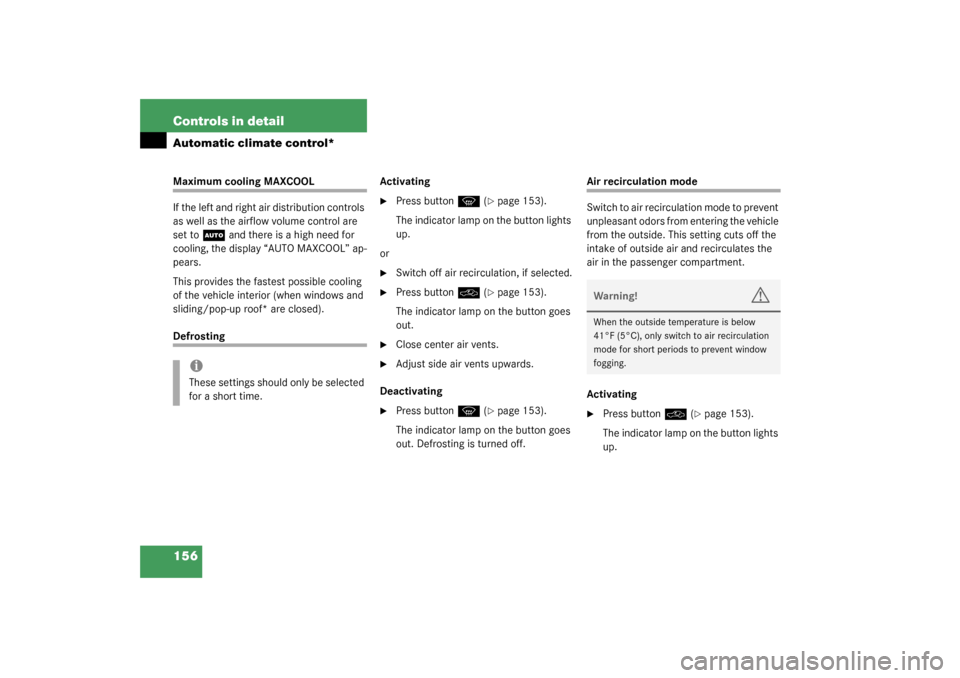

156 Controls in detailAutomatic climate control*Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set to
U
and there is a high need for
cooling, the display “AUTO MAXCOOL” ap-
pears.
This provides the fastest possible cooling
of the vehicle interior (when windows and
sliding/pop-up roof* are closed).
DefrostingActivating

Press button
P
(page 153).
The indicator lamp on the button lights
up.
or

Switch off air recirculation, if selected.

Press button
O
(page 153).
The indicator lamp on the button goes
out.

Close center air vents.

Adjust side air vents upwards.
Deactivating

Press button
P
(page 153).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
Activating
Press button
O
(page 153).
The indicator lamp on the button lights
up.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
S203 MY03_A.book Page 156 Tuesday, January 28, 2003 2:22 PM

157 Controls in detail
Automatic climate control*
Deactivating
Press button
O
(page 153).
The indicator lamp on the button goes
out.
The air recirculation mode is deactivated
automatically:


after five minutes if the outside temper-
ature is below approximately 41°F
(5 °C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5 °C)At outside temperatures above 79°F
(26 °C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.

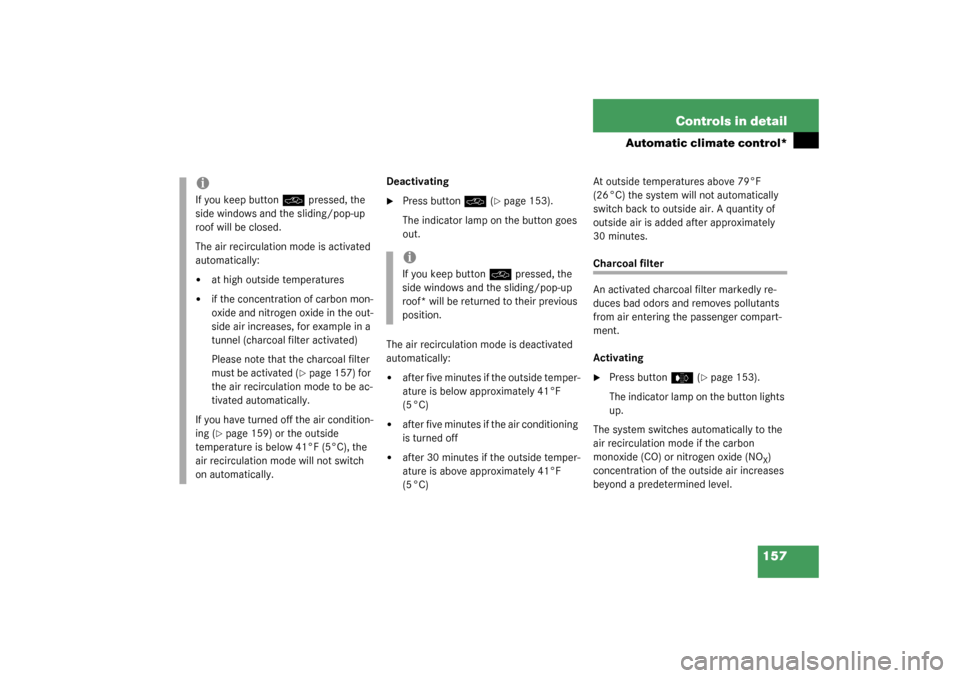

Charcoal filter
An activated charcoal filter markedly re-
duces bad odors and removes pollutants
from air entering the passenger compart-
ment.
Activating
Press button
e
(page 153).
The indicator lamp on the button lights
up.
The system switches automatically to the
air recirculation mode if the carbon
monoxide (CO) or nitrogen oxide (NO
X)
concentration of the outside air increases
beyond a predetermined level.
iIf you keep button
O
pressed, the
side windows and the sliding/pop-up
roof will be closed.
The air recirculation mode is activated
automatically:


at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases, for example in a
tunnel (charcoal filter activated)
Please note that the charcoal filter
must be activated (
page 157) for
the air recirculation mode to be ac-
tivated automatically.
If you have turned off the air condition-
ing (
page 159) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.
iIf you keep button
O
pressed, the
side windows and the sliding/pop-up
roof* will be returned to their previous
position.
S203 MY03_A.book Page 157 Tuesday, January 28, 2003 2:22 PM

158 Controls in detailAutomatic climate control*Deactivating
Press button
e
(page 153).
The indicator lamp on the button goes
out.
The automatic air recirculation mode does
not function if economy mode AC
OFF
is se-
lected or if the outside temperature has
fallen below 41°F (5°C).The activated charcoal filter should be
switched off when windows fog up on the
inside, or if the passenger compartment
needs to be quickly heated or cooled
down.

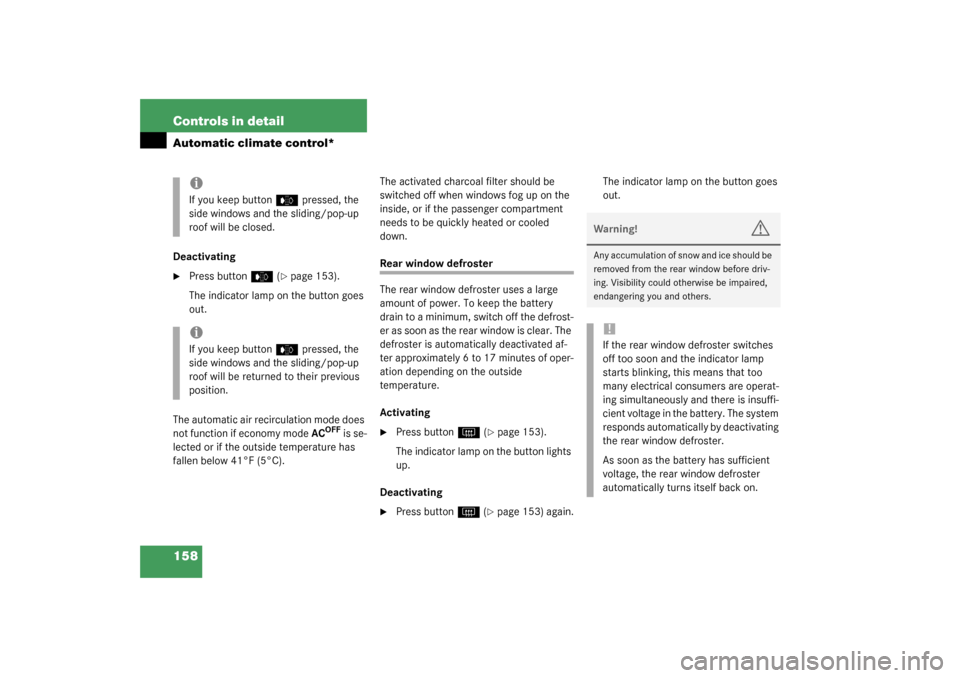

Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press button
F
(page 153).
The indicator lamp on the button lights
up.
Deactivating

Press button
F
(page 153) again.The indicator lamp on the button goes
out.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be closed.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be returned to their previous
position.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster
automatically turns itself back on.
