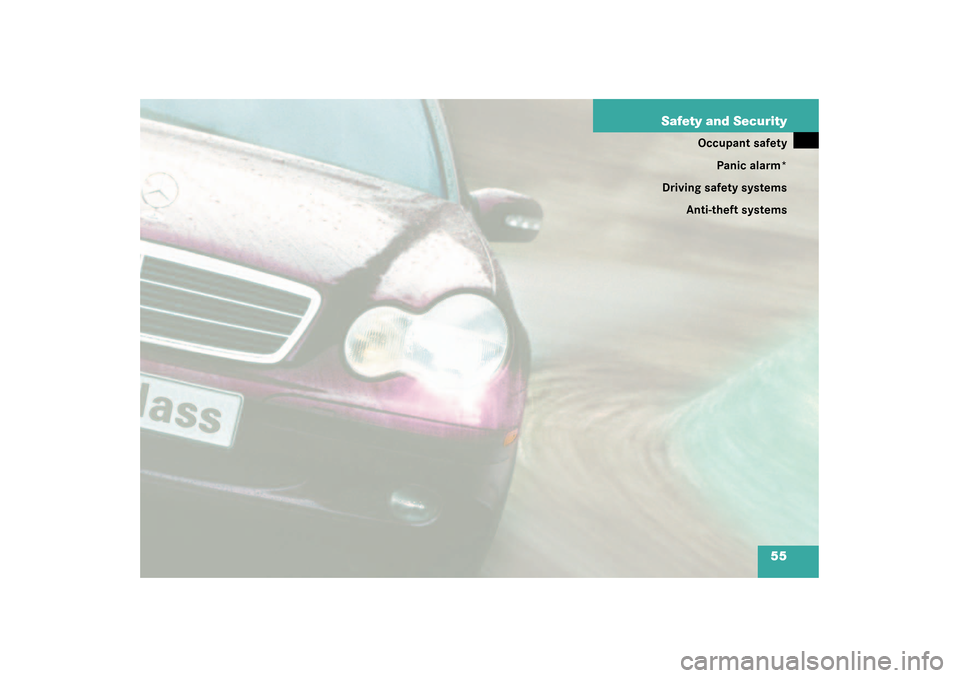

2003 MERCEDES-BENZ C320 4MATIC WAGON Owner's Manual

55 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems
S203 MY03_A.book Page 55 Tuesday, January 28, 2003 2:22 PM

56 Safety and SecurityOccupant safety
Occupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts


Emergency tensioning device


Airbags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems their protective
effects work in conjunction with each oth-
er.The
1
warning lamp in the instrument
cluster lights up:


for about 4 seconds when you turn the
key in the starter switch to position1.


for about 4 seconds when you start the
engine by turning the key.The warning lamp goes out shortly after
you start the engine. This shows that the
restraint systems are operational.
A malfunction in the system has been de-
tected if the
1
warning lamp:


fails to extinguish after approximately
4seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
More information can be found in the
“Practical hints” section (
page 253).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 65).
iThe warning lamp remains lit if the key
is turned to position2 and left there.
The warning lamp will go out when you
start the engine.
S203 MY03_A.book Page 56 Tuesday, January 28, 2003 2:22 PM

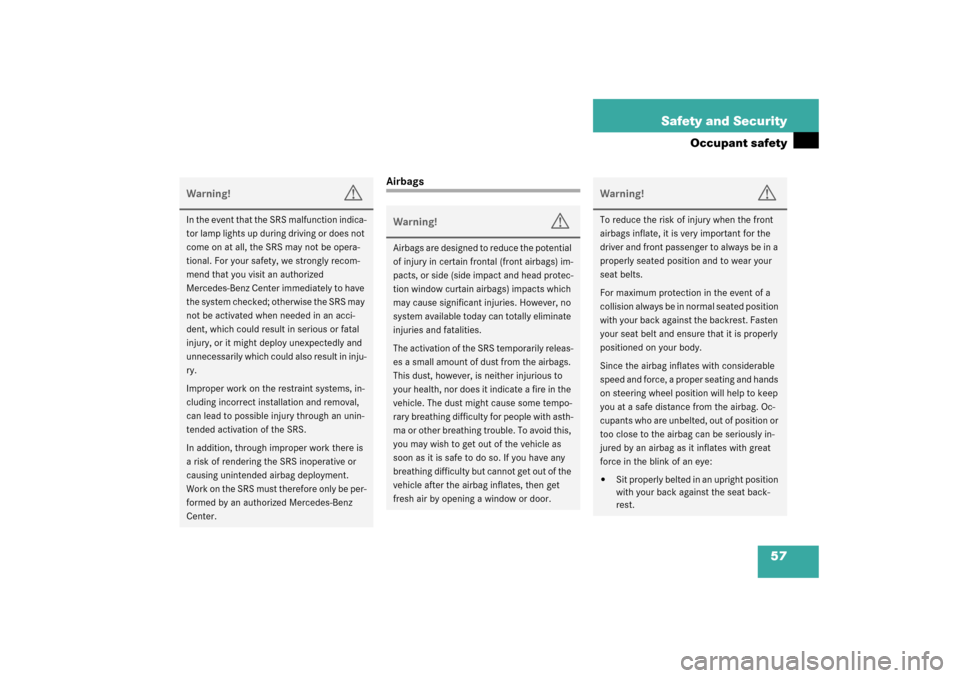

57 Safety and Security
Occupant safety
Airbags
Warning!
G
In the event that the SRS malfunction indica-
tor lamp lights up during driving or does not
come on at all, the SRS may not be opera-
tional. For your safety, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in inju-
ry.
Improper work on the restraint systems, in-
cluding incorrect installation and removal,
can lead to possible injury through an unin-
tended activation of the SRS.
In addition, through improper work there is
a risk of rendering the SRS inoperative or
causing unintended airbag deployment.
W o r k o n t h e S R S m u s t t h e r e f o r e o n l y b e p e r -
formed by an authorized Mercedes-Benz
Center.
Warning!
G
Airbags are designed to reduce the potential
of injury in certain frontal (front airbags) im-
pacts, or side (side impact and head protec-
tion window curtain airbags) impacts which
may cause significant injuries. However, no
system available today can totally eliminate
injuries and fatalities.
The activation of the SRS temporarily releas-
es a small amount of dust from the airbags.
This dust, however, is neither injurious to
your health, nor does it indicate a fire in the
vehicle. The dust might cause some tempo-
rary breathing difficulty for people with asth-
ma or other breathing trouble. To avoid this,
you may wish to get out of the vehicle as
soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the airbag inflates, then get
fresh air by opening a window or door.
Warning!
G
To reduce the risk of injury when the front
airbags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear your
seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and ensure that it is properly
positioned on your body.
Since the airbag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the airbag. Oc-
cupants who are unbelted, out of position or
too close to the airbag can be seriously in-
jured by an airbag as it inflates with great
force in the blink of an eye:

Sit properly belted in an upright position
with your back against the seat back-
rest.
S203 MY03_A.book Page 57 Tuesday, January 28, 2003 2:22 PM

58 Safety and SecurityOccupant safety

Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the airbag cover on
the steering wheel must be at least ten
inches (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front airbag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never lean their heads in the area of the
door where the side airbag inflates. This
could result in serious injuries or death
should the airbag be triggered. Always
sit upright, properly use the seat belts
and appropriate size infant or child re-
straint system.


Children 12 years old and under must
never ride in the front seat, except in a
Mercedes-Benz authorized
BabySmart
TM compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger side front airbag
when it is properly installed. Otherwise
they will be struck by the airbag when it
inflates in a crash. If this happens, seri-
ous or fatal injury will result.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle you are responsible
to make the buyer aware of these points. Be
sure to give the buyer this Operator’s Manu-
al.
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat. Should you choose to place a child
12 years old or under in the front passenger
seat of your vehicle, you must properly use
a BabySmart
TM child restraint which will
turn off the passenger side front airbag.
BabySmart
TM will not, however, turn off any
side impact airbag.
It should be noted that with respect to both
front and rear side impact airbags there is a
possibility for a side airbag related injury if
occupants, especially children, are not prop-
erly seated or restrained when next to a side
airbag which needs to deploy rapidly in a
side impact in order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side airbag inflates. This could
S203 MY03_A.book Page 58 Tuesday, January 28, 2003 2:22 PM

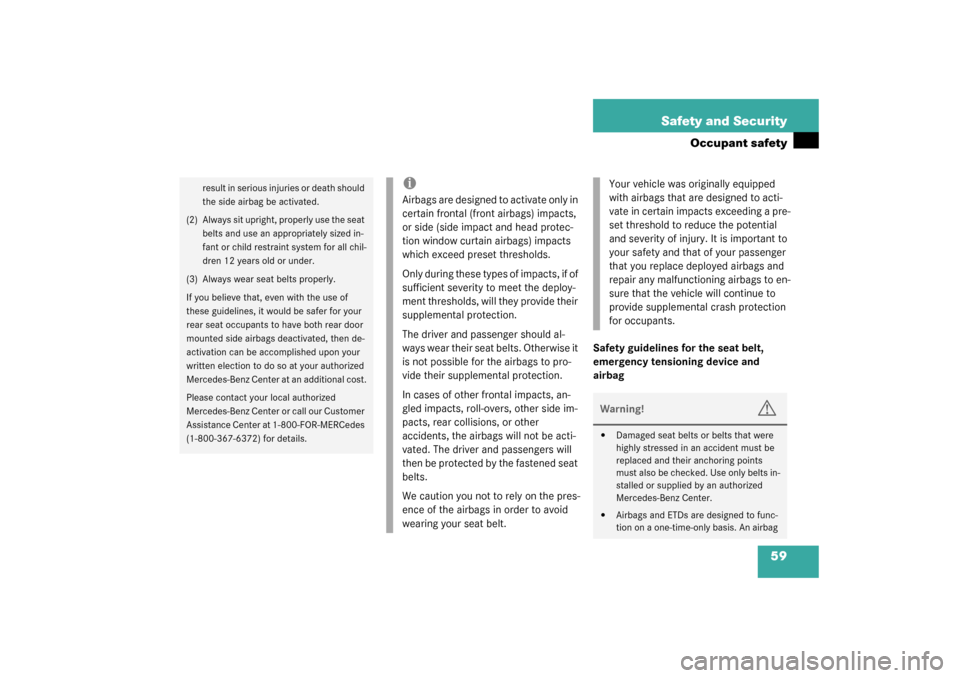

59 Safety and Security
Occupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
airbag
result in serious injuries or death should
the side airbag be activated.
(2) Always sit upright, properly use the seat
belts and use an appropriately sized in-
fant or child restraint system for all chil-
dren 12 years old or under.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have both rear door
mounted side airbags deactivated, then de-
activation can be accomplished upon your
written election to do so at your authorized
Mercedes-Benz Center at an additional cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
iAirbags are designed to activate only in
certain frontal (front airbags) impacts,
or side (side impact and head protec-
tion window curtain airbags) impacts
which exceed preset thresholds.
Only during these types of impacts, if of
sufficient severity to meet the deploy-
ment thresholds, will they provide their
supplemental protection.
The driver and passenger should al-
ways wear their seat belts. Otherwise it
is not possible for the airbags to pro-
vide their supplemental protection.
In cases of other frontal impacts, an-
gled impacts, roll-overs, other side im-
pacts, rear collisions, or other
accidents, the airbags will not be acti-
vated. The driver and passengers will
then be protected by the fastened seat
belts.
We caution you not to rely on the pres-
ence of the airbags in order to avoid
wearing your seat belt.
Your vehicle was originally equipped
with airbags that are designed to acti-
vate in certain impacts exceeding a pre-
set threshold to reduce the potential
and severity of injury. It is important to
your safety and that of your passenger
that you replace deployed airbags and
repair any malfunctioning airbags to en-
sure that the vehicle will continue to
provide supplemental crash protection
for occupants.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Use only belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Airbags and ETDs are designed to func-
tion on a one-time-only basis. An airbag
S203 MY03_A.book Page 59 Tuesday, January 28, 2003 2:22 PM

60 Safety and SecurityOccupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.

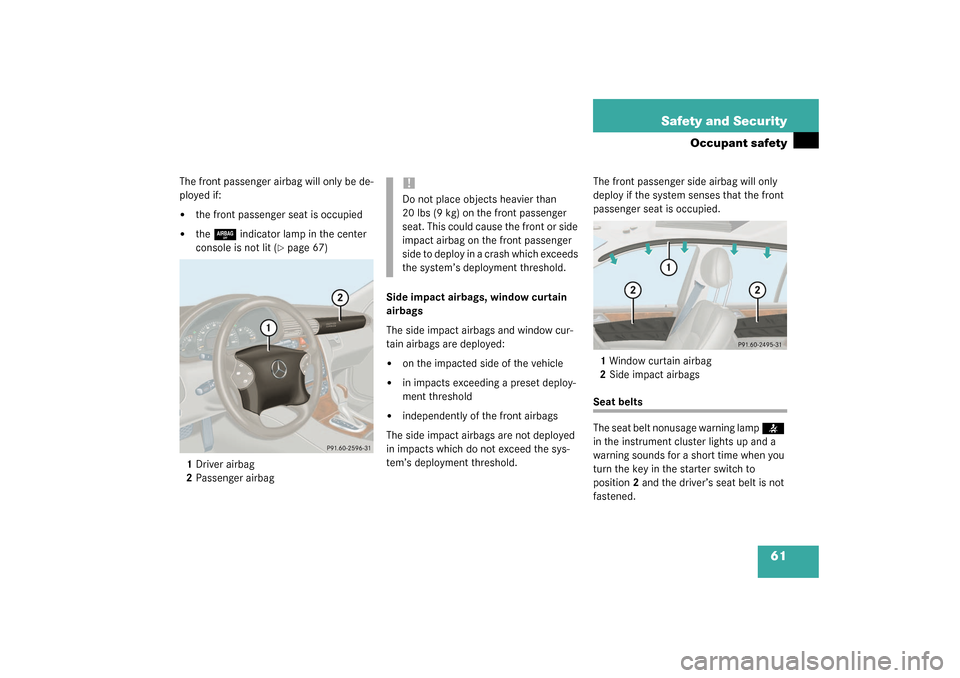

Front airbags
Driver and passenger airbags are de-
ployed:

in the event of a frontal impact


if impact exceeds a preset deployment
threshold


independently of the side impact air-
bags
The airbags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
or emergency tensioning device (ETD)
that was activated must be replaced.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges etc. over the steering
wheel hub, front passenger airbag cov-
er, door trim panels, or door frame
trims, and installation of additional elec-
trical/electronic equipment on or near
SRS components and wiring. Keep area
between airbags and occupants free
from objects (e.g. packages, purses,
umbrellas, etc.).


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


D o no t h a ng i te ms su ch a s c o at ha n ger s
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain airbag is deployed.


An airbag system component within the
steering wheel gets hot after the airbag
has inflated. Do not touch.


Improper work on the system, including
incorrect installation and removal, can
lead to possible injury through an unin-
tended activation of the SRS.


In addition, through improper work
there is a risk of rendering the SRS inop-
erative or causing unintended airbag de-
ployment. Work on the SRS must
therefore only be performed by an au-
thorized Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the airbag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed and the textile structure of the
airbags, there is the possibility of abra-
sions or other injuries resulting from air-
bag deployment.
S203 MY03_A.book Page 60 Tuesday, January 28, 2003 2:22 PM

61 Safety and Security
Occupant safety
The front passenger airbag will only be de-
ployed if:

the front passenger seat is occupied


the
7
indicator lamp in the center
console is not lit (
page 67)
1Driver airbag
2Passenger airbagSide impact airbags, window curtain
airbags
The side impact airbags and window cur-
tain airbags are deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front airbags
The side impact airbags are not deployed
in impacts which do not exceed the sys-
tem’s deployment threshold.The front passenger side airbag will only
deploy if the system senses that the front
passenger seat is occupied.
1Window curtain airbag
2Side impact airbags
Seat belts
The seat belt nonusage warning lamp
<

in the instrument cluster lights up and a
warning sounds for a short time when you
turn the key in the starter switch to
position2 and the driver’s seat belt is not
fastened.
!Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front or side
impact airbag on the front passenger
side to deploy in a crash which exceeds
the system’s deployment threshold.
S203 MY03_A.book Page 61 Tuesday, January 28, 2003 2:22 PM

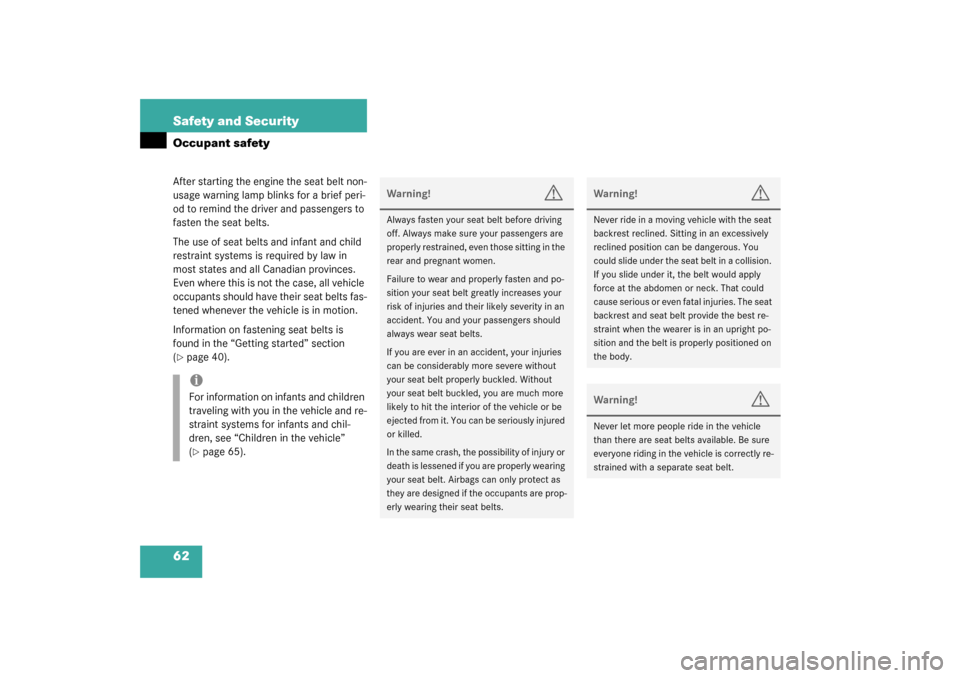

62 Safety and SecurityOccupant safetyAfter starting the engine the seat belt non-
usage warning lamp blinks for a brief peri-
od to remind the driver and passengers to
fasten the seat belts.
The use of seat belts and infant and child
restraint systems is required by law in
most states and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
Information on fastening seat belts is
found in the “Getting started” section
(page 40).iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 65).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Airbags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!
G
Never ride in a moving vehicle with the seat
backrest reclined. Sitting in an excessively
reclined position can be dangerous. You
could slide under the seat belt in a collision.
If you slide under it, the belt would apply
force at the abdomen or neck. That could
cause serious or even fatal injuries. The seat
backrest and seat belt provide the best re-
straint when the wearer is in an upright po-
sition and the belt is properly positioned on
the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt.
S203 MY03_A.book Page 62 Tuesday, January 28, 2003 2:22 PM
