2003 MERCEDES-BENZ C320 4MATIC WAGON Owner's Manual

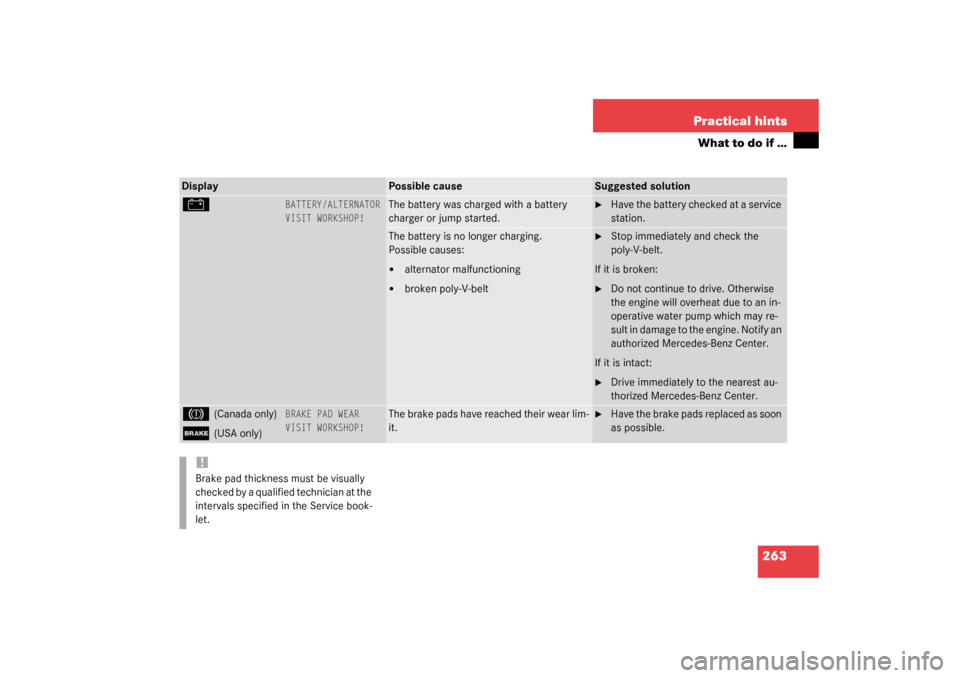

263 Practical hints
What to do if …
Display
Possible cause
Suggested solution
#
BATTERY/ALTERNATOR
VISIT WORKSHOP!
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify an
authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest au-
thorized Mercedes-Benz Center.
3
(Canada only)
;
(USA only)
BRAKE PAD WEAR
VISIT WORKSHOP!
The brake pads have reached their wear lim-
it.

Have the brake pads replaced as soon
as possible.
!Brake pad thickness must be visually
checked by a qualified technician at the
intervals specified in the Service book-
let.
S203 MY03_A.book Page 263 Tuesday, January 28, 2003 2:22 PM

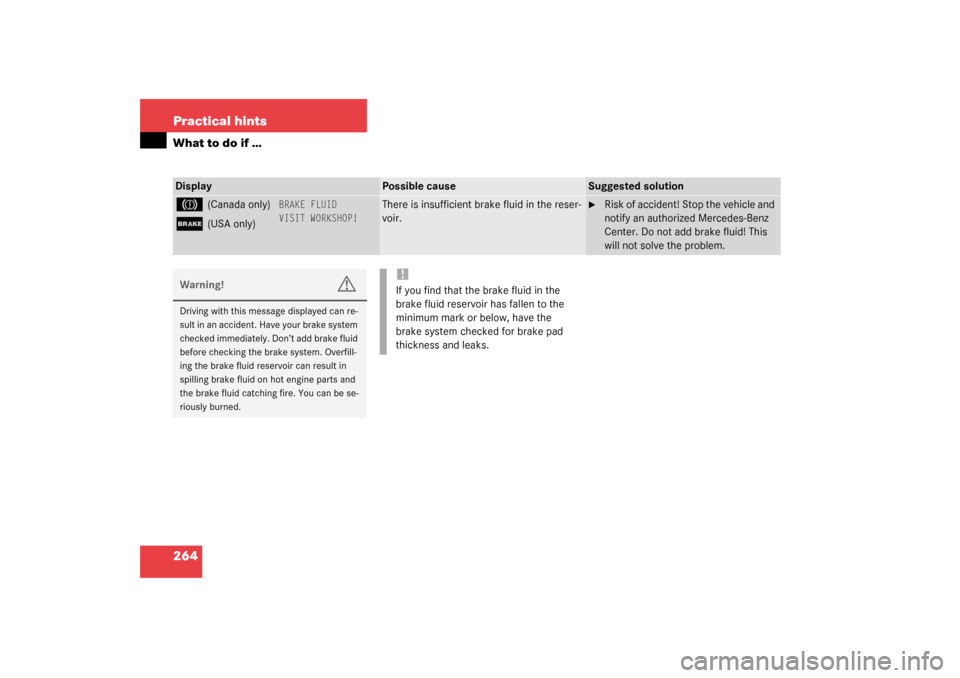

264 Practical hintsWhat to do if …Display
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)
BRAKE FLUID
VISIT WORKSHOP!
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Stop the vehicle and
notify an authorized Mercedes-Benz
Center. Do not add brake fluid! This
will not solve the problem.
Warning!
G
Driving with this message displayed can re-
sult in an accident. Have your brake system
checked immediately. Don’t add brake fluid
before checking the brake system. Overfill-
ing the brake fluid reservoir can result in
spilling brake fluid on hot engine parts and
the brake fluid catching fire. You can be se-
riously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
S203 MY03_A.book Page 264 Tuesday, January 28, 2003 2:22 PM

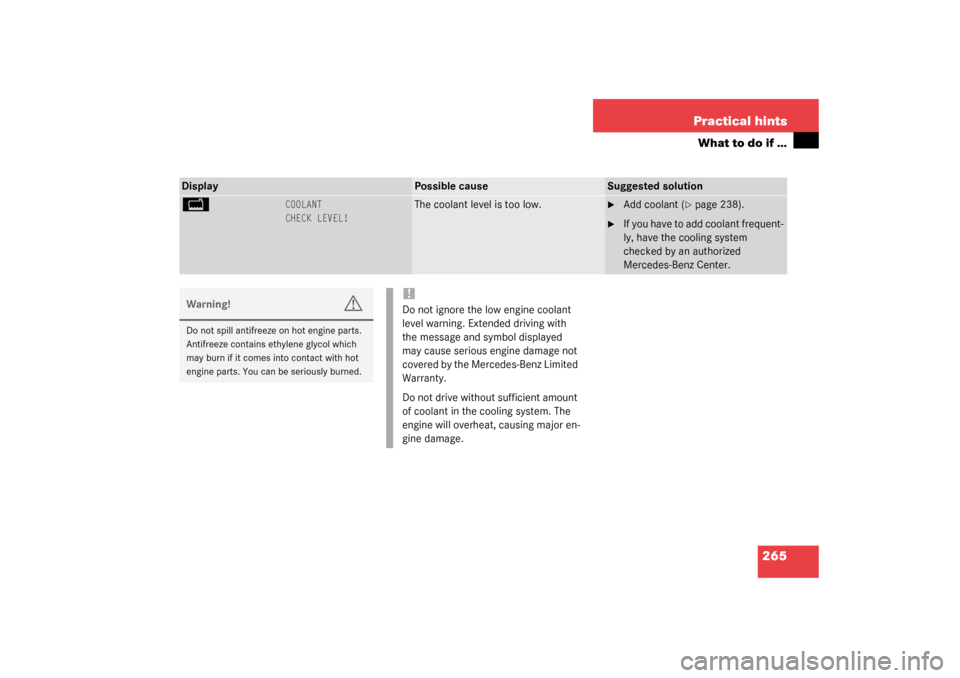

265 Practical hints
What to do if …
Display
Possible cause
Suggested solution
B
COOLANT
CHECK LEVEL!
The coolant level is too low.

Add coolant (
page 238).

If you have to add coolant frequent-
ly, have the cooling system
checked by an authorized
Mercedes-Benz Center.
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.
!Do not ignore the low engine coolant
level warning. Extended driving with
the message and symbol displayed
may cause serious engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Do not drive without sufficient amount
of coolant in the cooling system. The
engine will overheat, causing major en-
gine damage.
S203 MY03_A.book Page 265 Tuesday, January 28, 2003 2:22 PM

266 Practical hintsWhat to do if …
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 120°C.
Display
Possible cause
Suggested solution
Ï
COOLANT
STOP, ENGINE OFF!
The coolant is too hot.

Stop the vehicle and turn off the
engine.

Only start the engine again after
the message disappears. You could
otherwise damage the engine.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.
!The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.
S203 MY03_A.book Page 266 Tuesday, January 28, 2003 2:22 PM

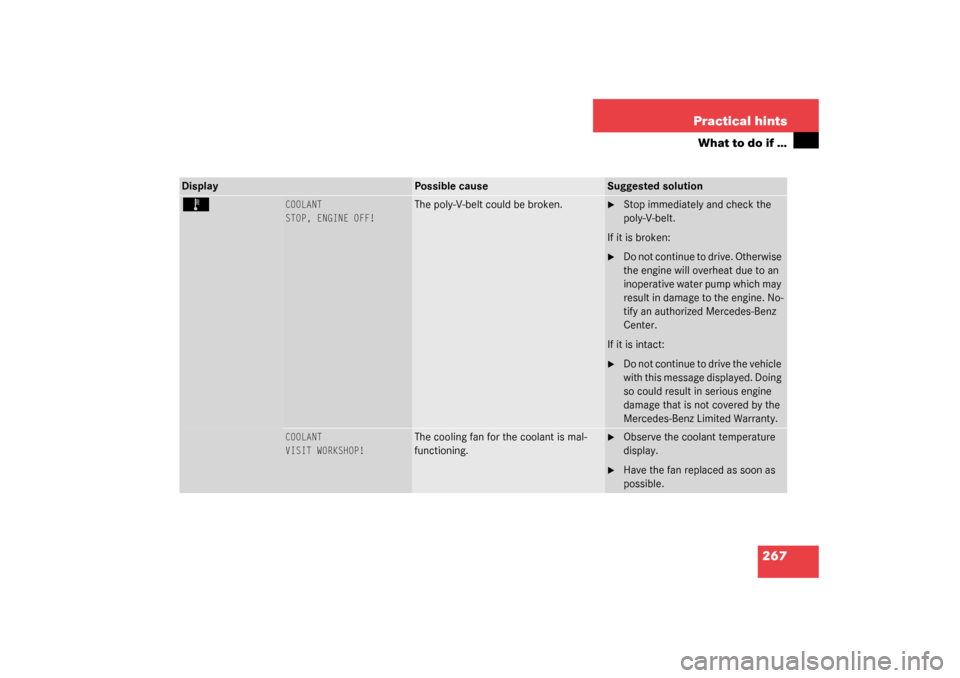

267 Practical hints
What to do if …
Display
Possible cause
Suggested solution
Ï
COOLANT
STOP, ENGINE OFF!
The poly-V-belt could be broken.

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an
inoperative water pump which may
result in damage to the engine. No-
tify an authorized Mercedes-Benz
Center.
If it is intact:

Do not continue to drive the vehicle
with this message displayed. Doing
so could result in serious engine
damage that is not covered by the
Mercedes-Benz Limited Warranty.
COOLANT
VISIT WORKSHOP!
The cooling fan for the coolant is mal-
functioning.

Observe the coolant temperature
display.

Have the fan replaced as soon as
possible.
S203 MY03_A.book Page 267 Tuesday, January 28, 2003 2:22 PM

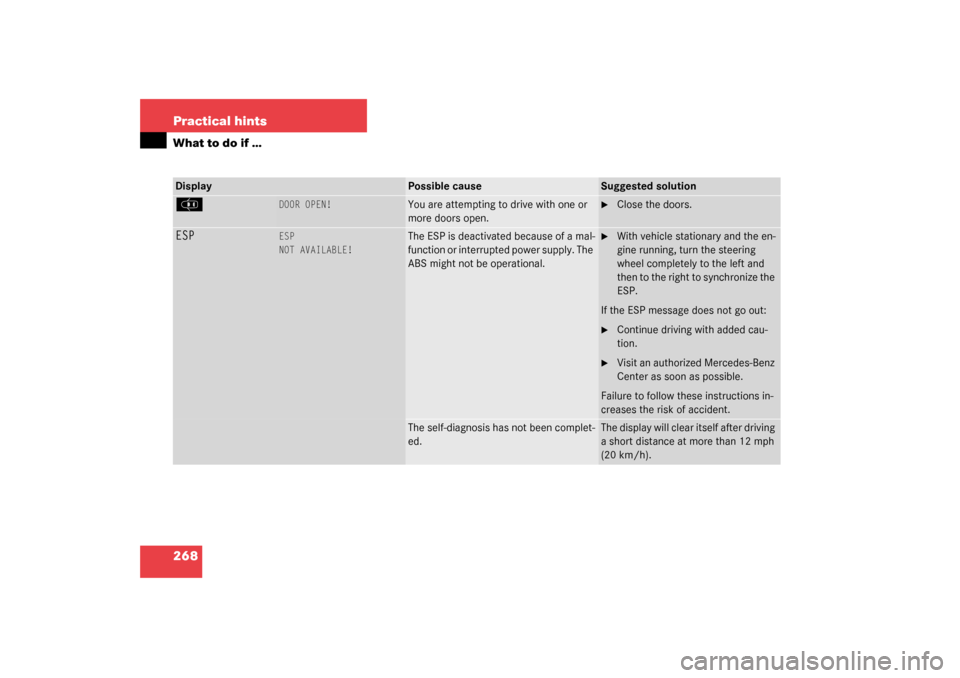

268 Practical hintsWhat to do if …Display
Possible cause
Suggested solution
J
DOOR OPEN!
You are attempting to drive with one or
more doors open.

Close the doors.
ESP
ESP
NOT AVAILABLE!
The ESP is deactivated because of a mal-
function or interrupted power supply. The
ABS might not be operational.

With vehicle stationary and the en-
gine running, turn the steering
wheel completely to the left and
then to the right to synchronize the
ESP.
If the ESP message does not go out:

Continue driving with added cau-
tion.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
The self-diagnosis has not been complet-
ed.
The display will clear itself after driving
a short distance at more than 12 mph
(20 km/h).
S203 MY03_A.book Page 268 Tuesday, January 28, 2003 2:22 PM

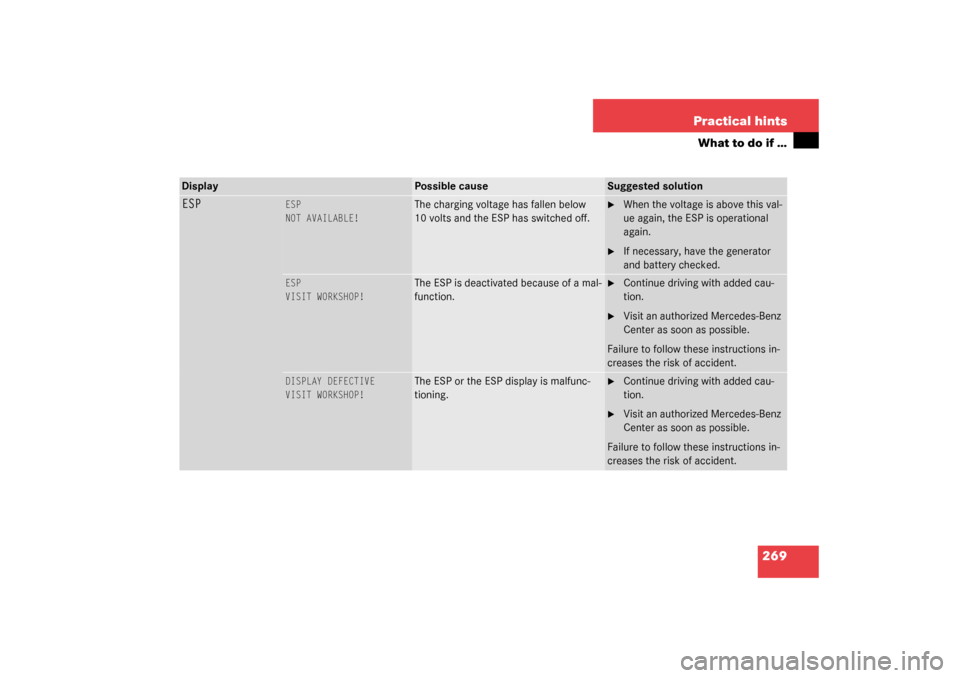

269 Practical hints
What to do if …
Display
Possible cause
Suggested solution
ESP
ESP
NOT AVAILABLE!
The charging voltage has fallen below
10 volts and the ESP has switched off.

When the voltage is above this val-
ue again, the ESP is operational
again.

If necessary, have the generator
and battery checked.
ESP
VISIT WORKSHOP!
The ESP is deactivated because of a mal-
function.

Continue driving with added cau-
tion.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
DISPLAY DEFECTIVE
VISIT WORKSHOP!
The ESP or the ESP display is malfunc-
tioning.

Continue driving with added cau-
tion.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
S203 MY03_A.book Page 269 Tuesday, January 28, 2003 2:22 PM

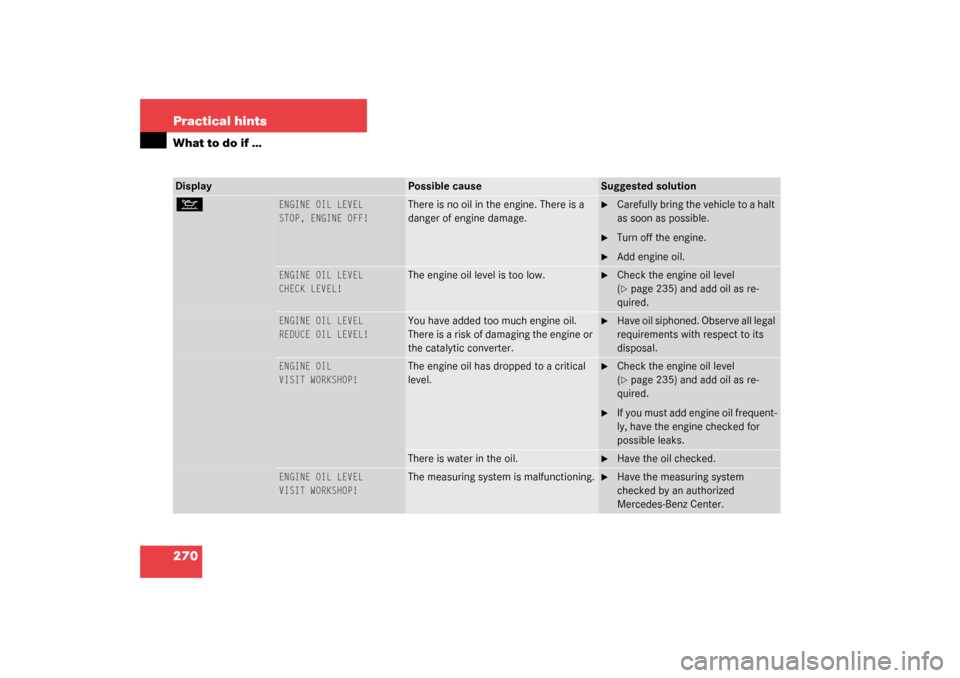

270 Practical hintsWhat to do if …Display
Possible cause
Suggested solution
:
ENGINE OIL LEVEL
STOP, ENGINE OFF!
There is no oil in the engine. There is a
danger of engine damage.

Carefully bring the vehicle to a halt
as soon as possible.

Turn off the engine.

Add engine oil.
ENGINE OIL LEVEL
CHECK LEVEL!
The engine oil level is too low.

Check the engine oil level
(page 235) and add oil as re-
quired.
ENGINE OIL LEVEL
REDUCE OIL LEVEL!
You have added too much engine oil.
There is a risk of damaging the engine or
the catalytic converter.

Have oil siphoned. Observe all legal
requirements with respect to its
disposal.
ENGINE OIL
VISIT WORKSHOP!
The engine oil has dropped to a critical
level.

Check the engine oil level
(page 235) and add oil as re-
quired.

If you must add engine oil frequent-
ly, have the engine checked for
possible leaks.
There is water in the oil.

Have the oil checked.
ENGINE OIL LEVEL
VISIT WORKSHOP!
The measuring system is malfunctioning.

Have the measuring system
checked by an authorized
Mercedes-Benz Center.
S203 MY03_A.book Page 270 Tuesday, January 28, 2003 2:22 PM
