Page 2970 of 4500

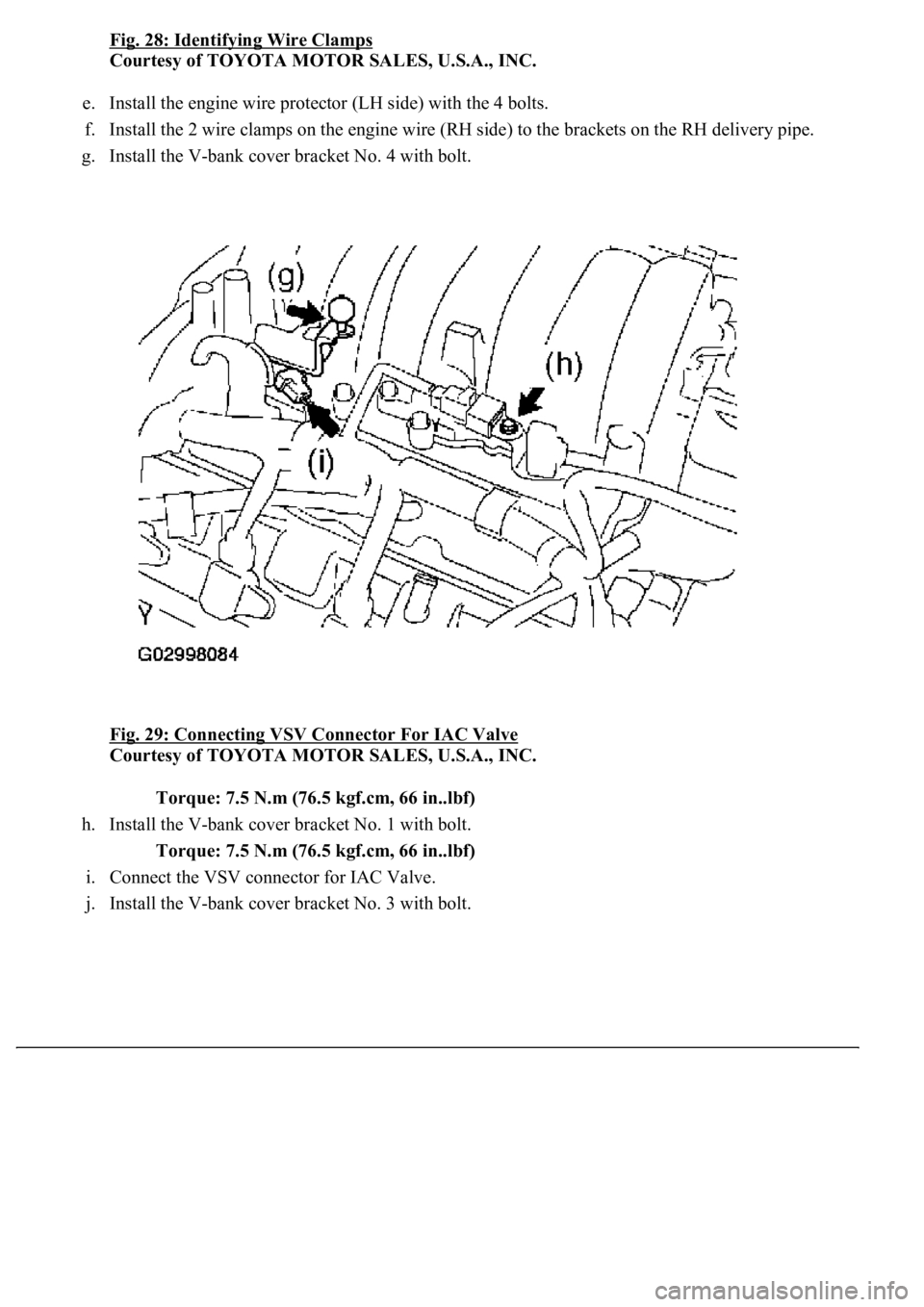

Fig. 28: Identifying Wire Clamps
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Install the engine wire protector (LH side) with the 4 bolts.
f. Install the 2 wire clamps on the engine wire (RH side) to the brackets on the RH delivery pipe.
g. Install the V-bank cover bracket No. 4 with bolt.
Fig. 29: Connecting VSV Connector For IAC Valve
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Torque: 7.5 N.m (76.5 kgf.cm, 66 in..lbf)
h. Install the V-bank cover bracket No. 1 with bolt.
Torque: 7.5 N.m (76.5 kgf.cm, 66 in..lbf)
i. Connect the VSV connector for IAC Valve.
j. Install the V-
bank cover bracket No. 3 with bolt.
Page 2973 of 4500

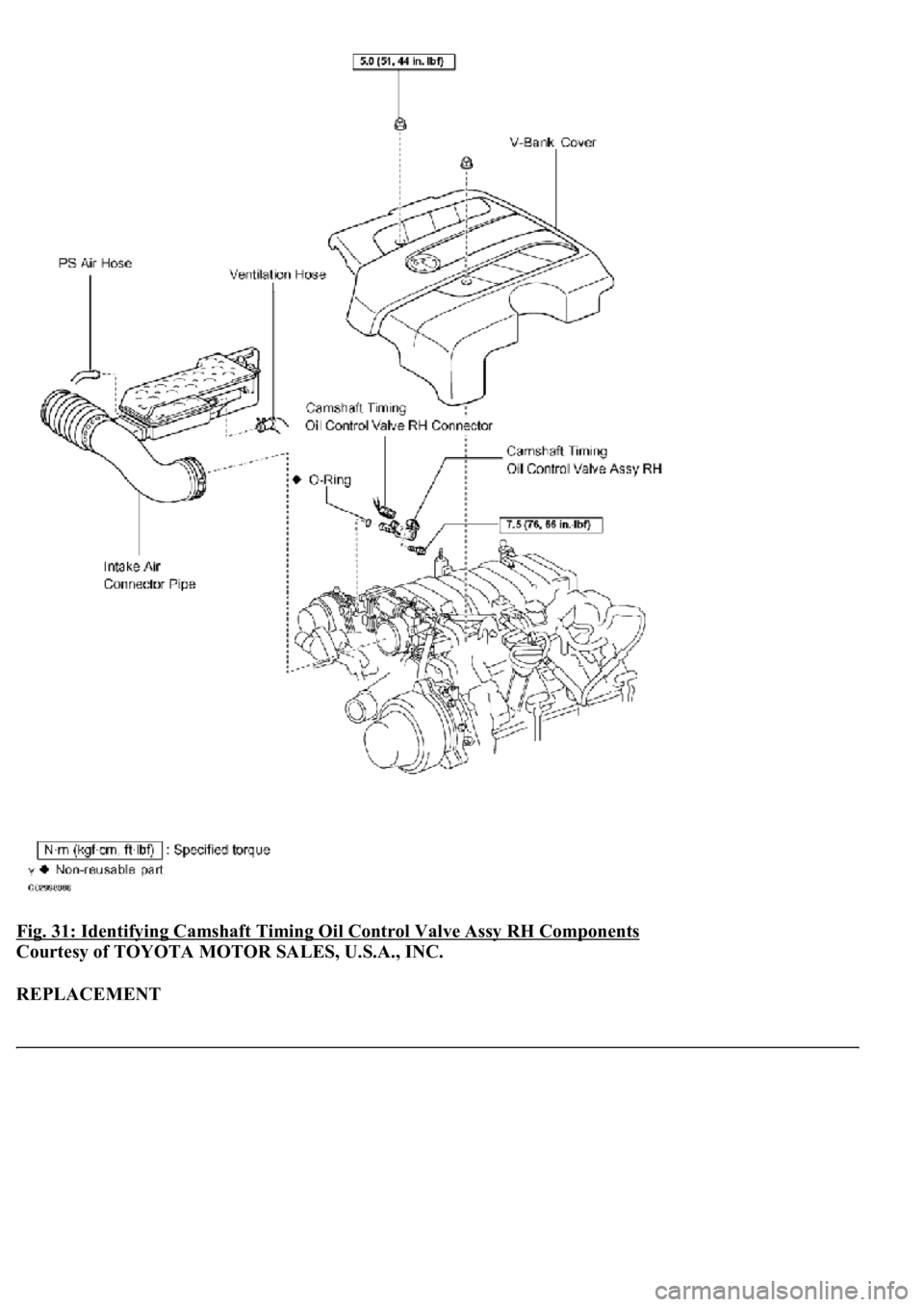

Fig. 31: Identifying Camshaft Timing Oil Control Valve Assy RH Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
Page 2975 of 4500
Fig. 32: Identifying Camshaft Timing Oil Control Valve Assy LH Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
Page 2977 of 4500

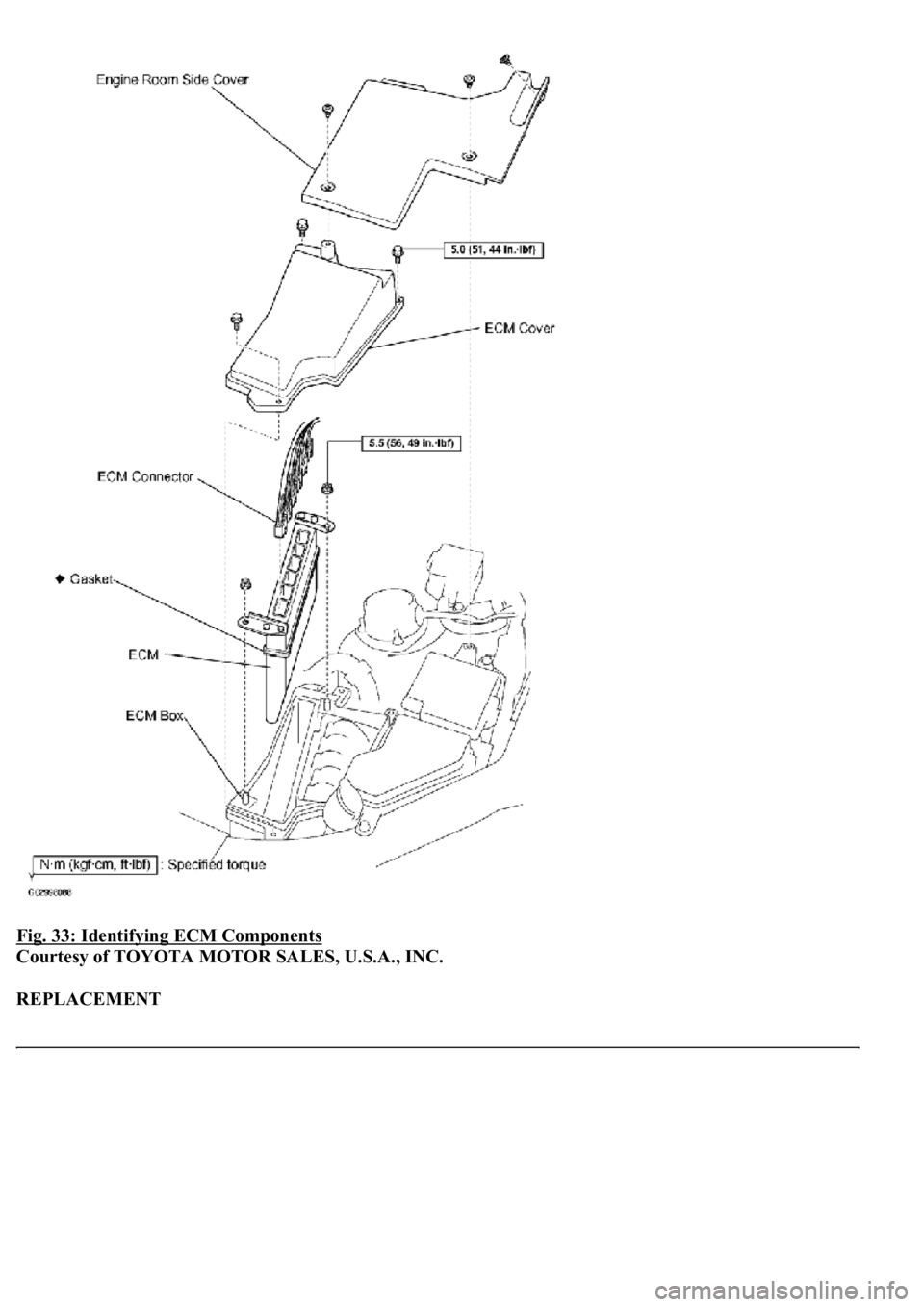

Fig. 33: Identifying ECM Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
Page 2985 of 4500

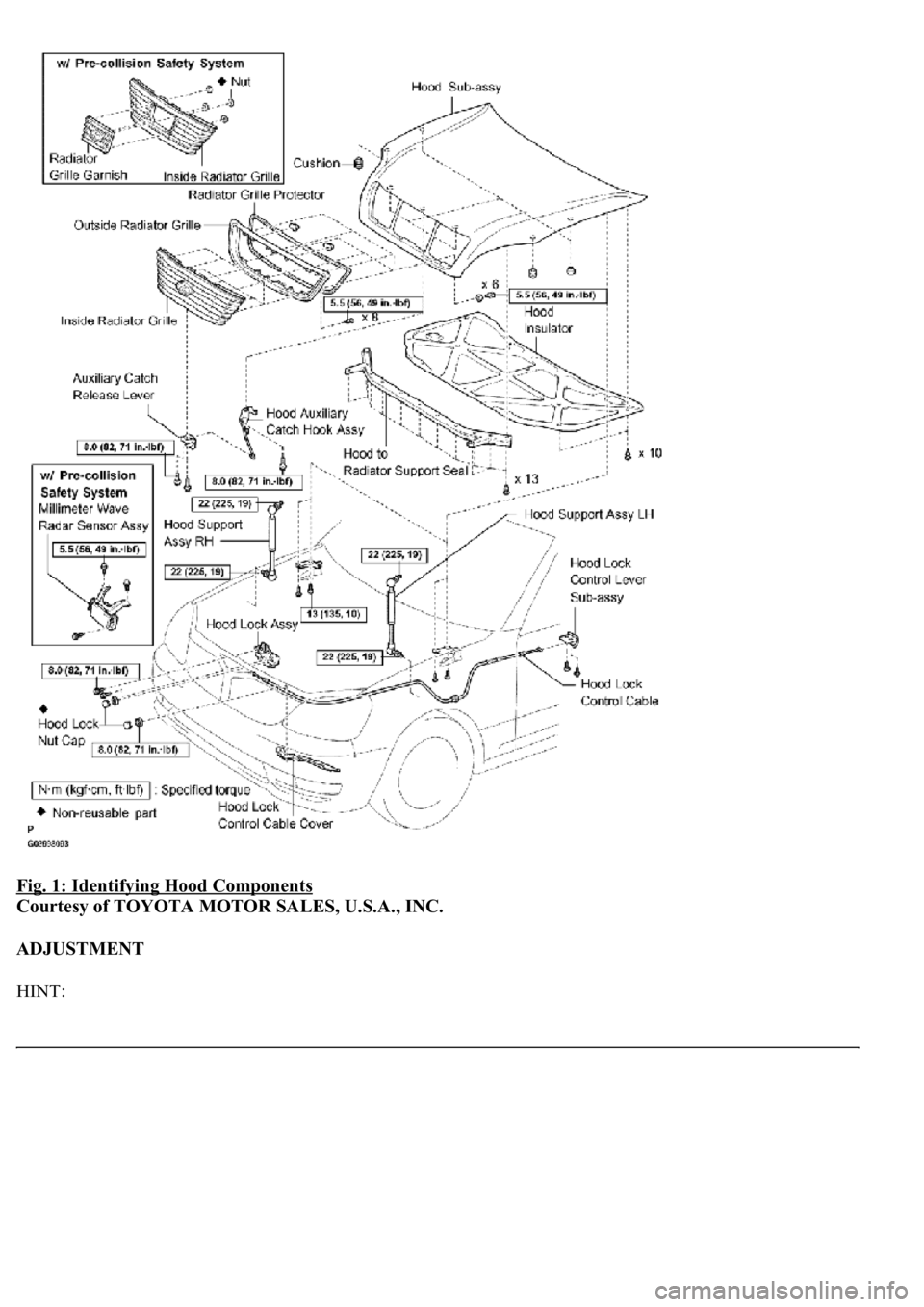

Fig. 1: Identifying Hood Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ADJUSTMENT
HINT:
Page 2986 of 4500

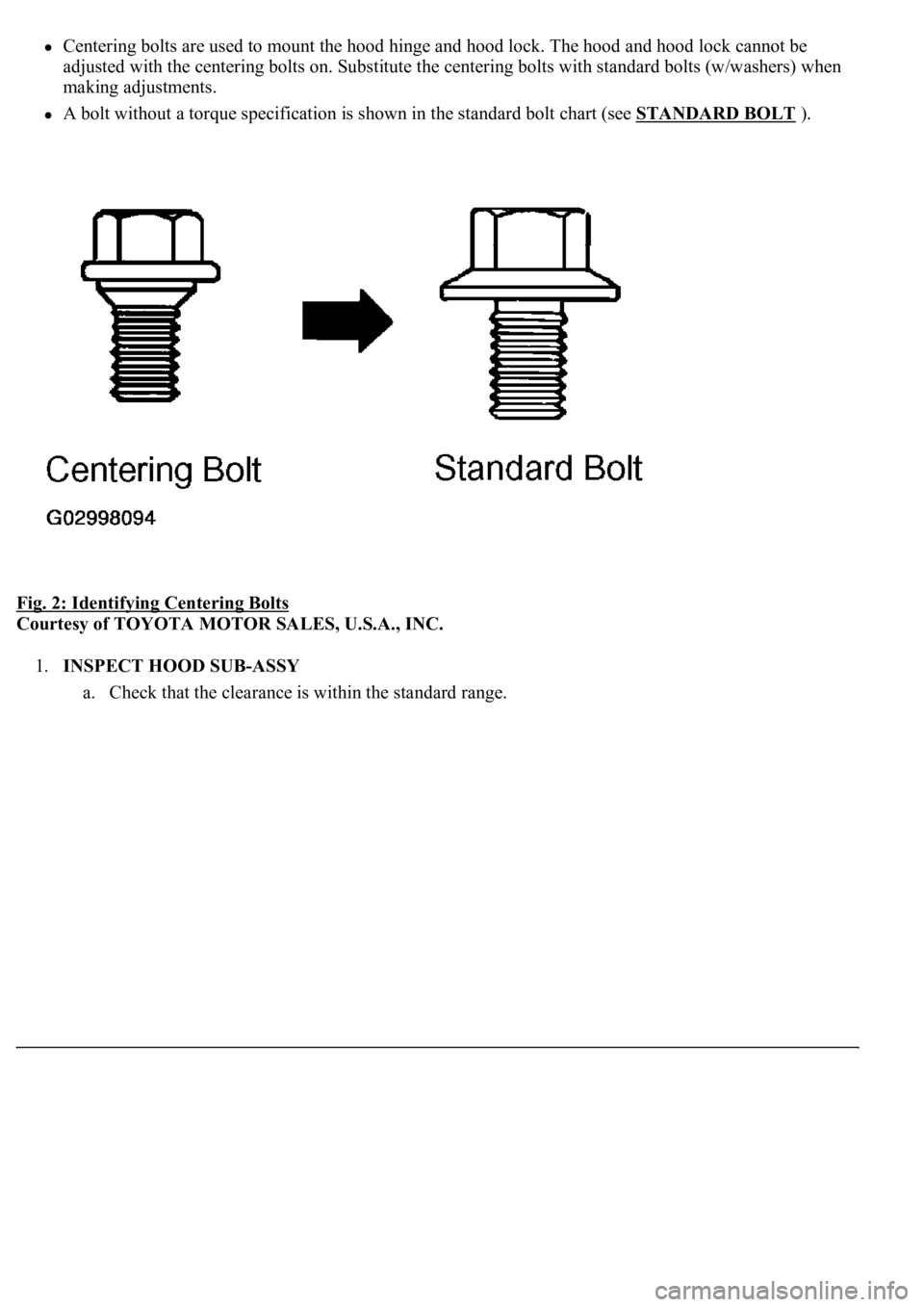

Centering bolts are used to mount the hood hinge and hood lock. The hood and hood lock cannot be
adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when
making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
Fig. 2: Identifying Centering Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.INSPECT HOOD SUB-ASSY
a. Check that the clearance is within the standard range.
Page 3016 of 4500

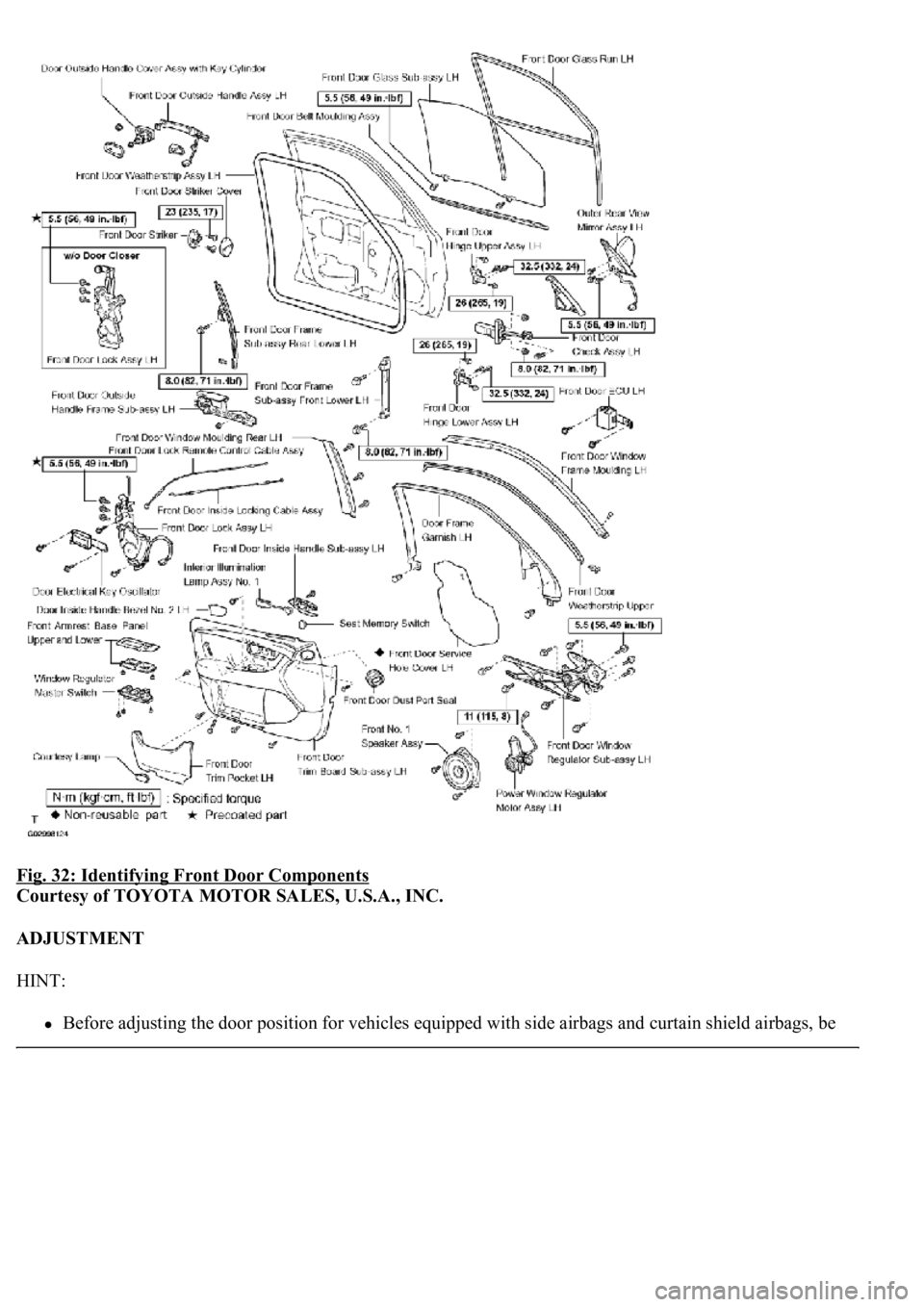

Fig. 32: Identifying Front Door Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ADJUSTMENT
HINT:
Before adjusting<00030057004b0048000300470052005200550003005300520056004c0057004c005200510003004900520055000300590048004b004c0046004f004800560003004800540058004c00530053004800470003005a004c0057004b00030056004c0047004800
030044004c005500450044[gs and curtain shield airbags, be
Page 3017 of 4500

sure to disconnect the battery. After adjustment, inspect the SRS warning lamp, the side airbag system
and the curtain shield airbag system for normal operation (see DIAGNOSIS SYSTEM
). Then initialize
both airbag systems (see INITIALIZATION
).
<00380056004800030057004b0048000300560044005000480003005300550052004600480047005800550048000300490052005500030057004b004800030035002b00030056004c0047004800030044005100470003002f002b00030056004c0047004800
1100030003[
The procedures listed below are for the LH side.
Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be
adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when
making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
Fig. 33: Identifying Centering Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.INSPECT FRONT DOOR PANEL SUB-ASSY LH
a. Check that the clearance is within the standard ran
ge.
