2003 LEXUS LS430 Identifying condition

Fig. 61: Identifying Absorber Control Actuator Front Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (FRONT LH)
Tester ConnectionSpecified Condition
A21-5 (FAL+) - S5-2 (FAL+)Below 1 ohms
A21-6 (FBL+) - S5-1 (FBL+)Below 1 ohms
A21-14 (FAL-) - S5-5 (FAL-)Below 1 ohms
A21-16 (FBL-) - S5-4 (FBL-)Below 1 ohms
A21-5 (FAL+) - Body ground10 Kohms or higher
A21-6 (FBL+) - Body ground10 Kohms or higher
A21-14 (FAL-) - Body ground10 Kohms or higher
A21-16 (FBL-) - Body ground10 Kohms or higher
S5-3 (GND) - Body groundBelow 1 ohms

Fig. 63: Identifying Absorber Control Actuator Front Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (REAR RH)
Tester ConnectionSpecified Condition
A22-2 (RAR+) - S33-2 (RAR+)Below 1 ohms
A22-3 (RAR-) - S33-5 (RAR-)Below 1 ohms
A22-4 (RBR+) - S33-1 (RBR+)Below 1 ohms
A22-5 (RBR-) - S33-4 (RBR-)Below 1 ohms
A22-2 (RAR+) - Body ground10 Kohms or higher
A22-3 (RAR-) - Body ground10 Kohms or higher
A22-4 (RBR+) - Body ground10 Kohms or higher
A22-5 (RBR-) - Body ground10 Kohms or higher
S33-3 (ERR) - Body groundBelow 1 ohms

Fig. 65: Identifying Absorber Control Actuator Rear RH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (REAR LH)
Tester ConnectionSpecified Condition
A22-6 (RAL+) - S32-2 (RAL+)Below 1 ohms
A22-7 (RAL-) S32-5 (RAL-)Below 1 ohms
A22-8 (RBL+) - S32-1 (RBL+)Below 1 ohms
A22-9 (RBL-) - S32-4 (RBL-)Below 1 ohms
A22-6 (RAL+) - Body ground10 Kohms or higher
A22-7 (RAL-) - Body ground10 Kohms or higher
A22-8 (RBL+) - Body ground10 Kohms or higher
A22-9 (RBL-) - Body ground10 Kohms or higher
S32-3 (ERL) - Body groundBelow 1 ohms

Fig. 70: Identifying Exhaust Solenoid Valve Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.CHECK HARNESS AND CONNECTOR (SUSPENSION CONTROL ECU - EXHAUST
SOLENOID VALVE) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Disconnect the suspension control ECU A20 connector.
b. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
A20-5 (SLEX) - H12-1 (SLEX)Below 1 ohms
A20-5 (SLEX) - Body ground10 Kohms or higher

Fig. 72: Identifying Exhaust Solenoid Valve Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK:Go to next step
4.CHECK HARNESS AND CONNECTOR (EXHAUST SOLENOID VALVE - BODY GROUND)
(SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition

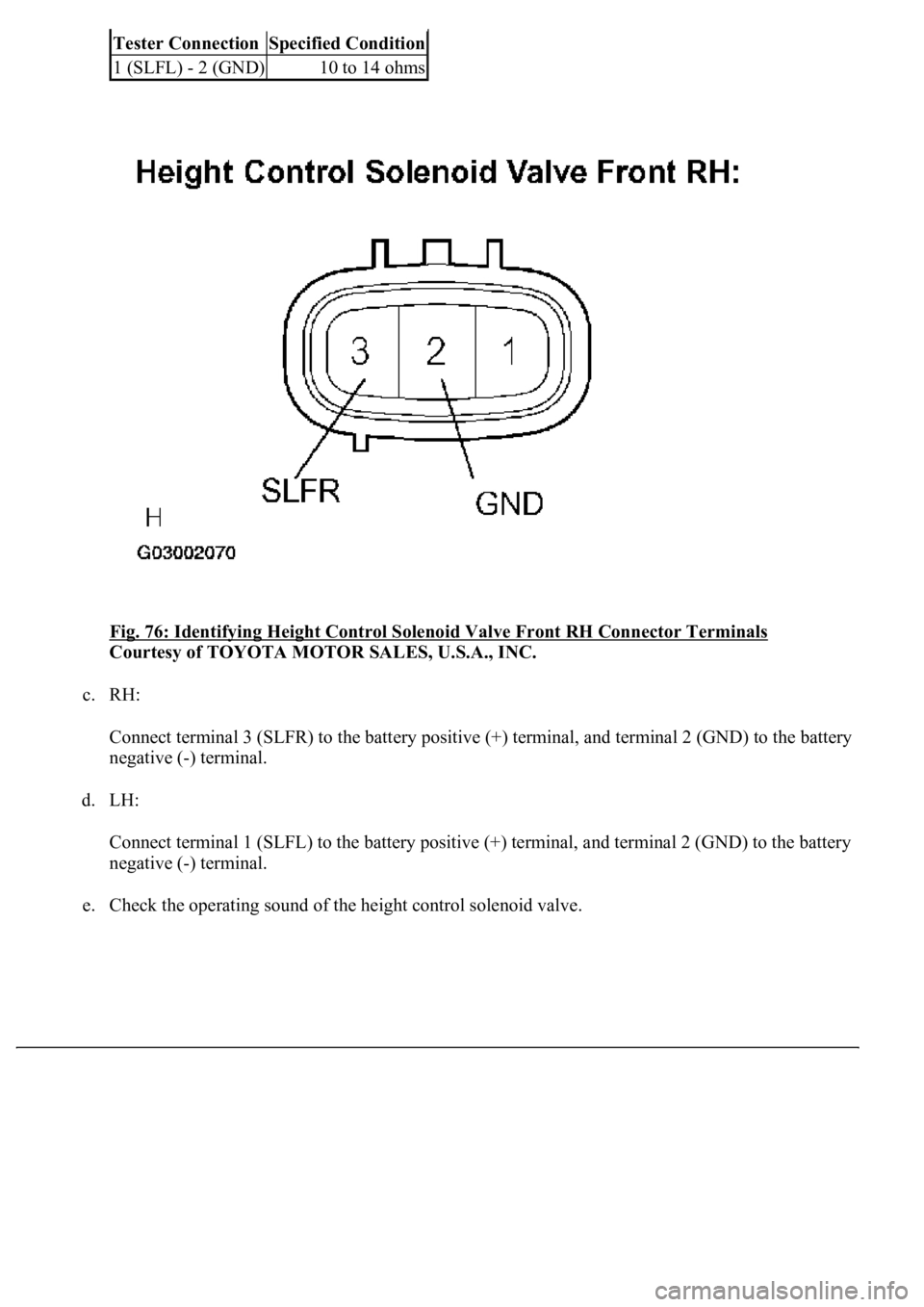

Fig. 76: Identifying Height Control Solenoid Valve Front RH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. RH:
Connect terminal 3 (SLFR) to the battery positive (+) terminal, and terminal 2 (GND) to the battery
negative (-) terminal.
d. LH:
Connect terminal 1 (SLFL) to the battery positive (+) terminal, and terminal 2 (GND) to the battery
negative (-) terminal.
e. Check the operating sound of the height control solenoid valve.
Tester ConnectionSpecified Condition
1 (SLFL) - 2 (GND)10 to 14 ohms

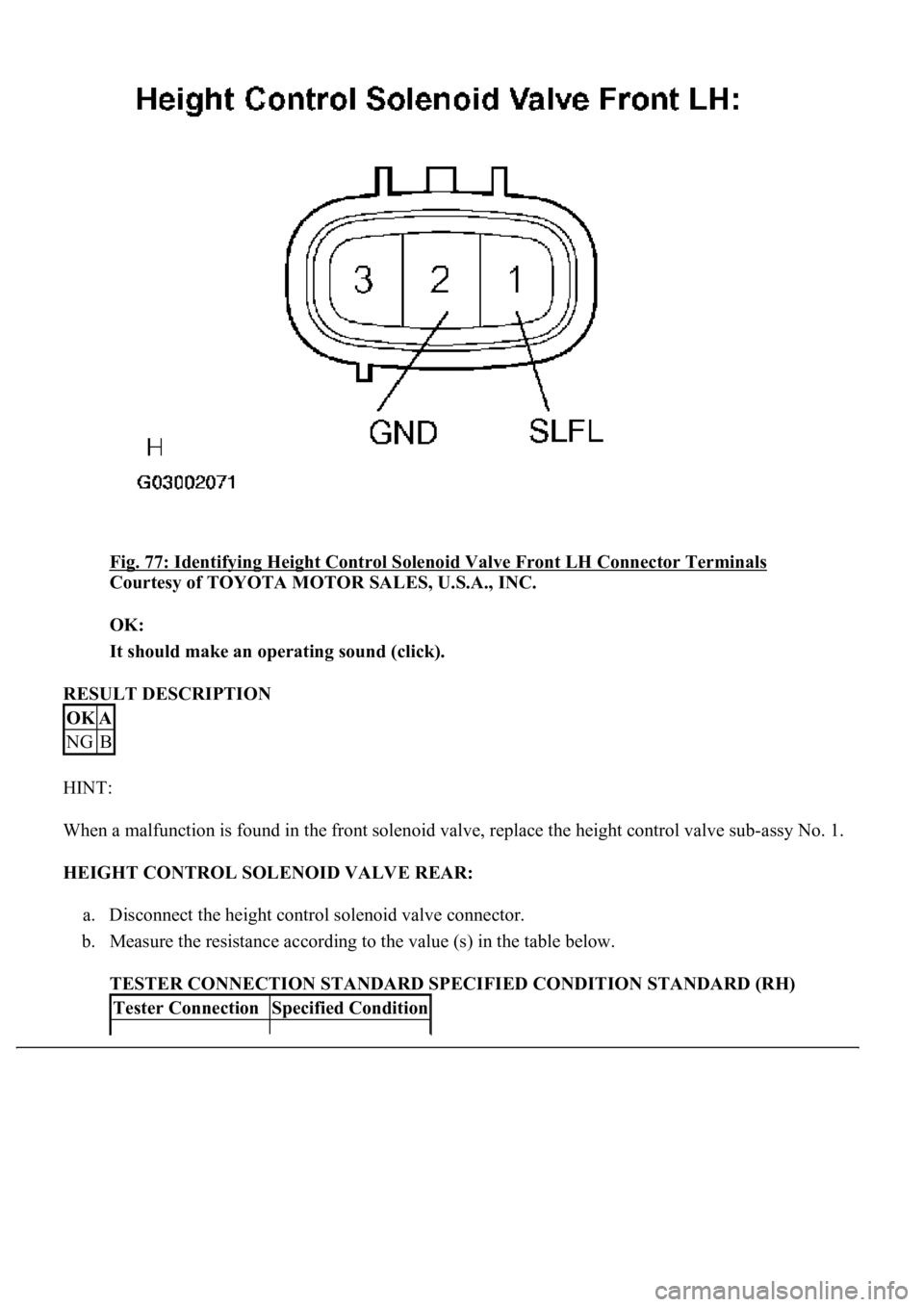

Fig. 77: Identifying Height Control Solenoid Valve Front LH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK:
It should make an operating sound (click).
RESULT DESCRIPTION
HINT:
When a malfunction is found in the front solenoid valve, replace the height control valve sub-assy No. 1.
HEIGHT CONTROL SOLENOID VALVE REAR:
a. Disconnect the height control solenoid valve connector.
b. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (RH)
OKA
NGB
Tester ConnectionSpecified Condition

TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (LH)

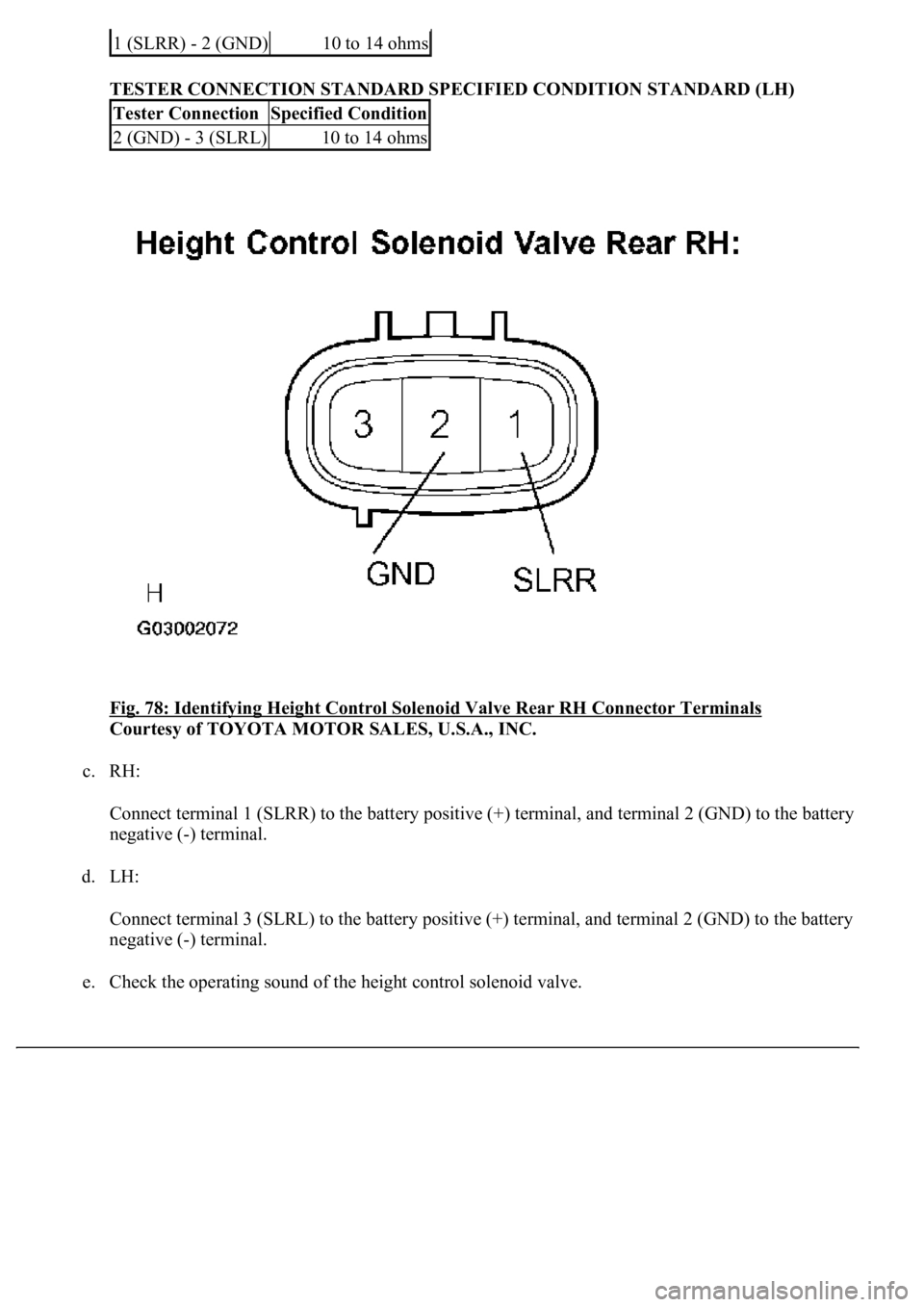

Fig. 78: Identifying Height Control Solenoid Valve Rear RH Connector Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. RH:
Connect terminal 1 (SLRR) to the battery positive (+) terminal, and terminal 2 (GND) to the battery
negative (-) terminal.
d. LH:
Connect terminal 3 (SLRL) to the battery positive (+) terminal, and terminal 2 (GND) to the battery
negative (-) terminal.
e. Check the operatin
g sound of the height control solenoid valve.
1 (SLRR) - 2 (GND)10 to 14 ohms
Tester ConnectionSpecified Condition
2 (GND) - 3 (SLRL)10 to 14 ohms
