2003 LEXUS LS430 Identifying condition

Fig. 97: Identifying Air Sus Relay Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK:Go to next step
6.CHECK HARNESS AND CONNECTOR (AIR SUS RELAY - BODY GROUND) (SEE
ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the voltage according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
4 (for AIR SUS relay) - Body ground10 to 14 V

Fig. 98: Identifying Air Sus Relay Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK:Go to next step
7.INSPECT HEIGHT CONTROL SOLENOID VALVE
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position and turn the hand-held tester main switch on.
c. Select the item below in the ACTIVE TEST and operate it with the hand-held tester.
VEHICLE CONDITION / TEST DETAILS AIRSUS
ItemVehicle Condition / Test DetailsDiagnostic Note
FR SOLTurn OFF right front solenoid valve one second
after turning it ONOperation of solenoid (clicking sound)
can be heard
FL SOLTurn OFF left front solenoid valve one second
after turning it ONOperation of solenoid (clicking sound)
can be heard
RR SOLTurn OFF right rear solenoid valve one second
after turning it ONOperation of solenoid (clicking sound)
can be heard
RL SOLTurn OFF left rear solenoid valve one second Operation of solenoid (clicking sound)

POWER SOURCE CIRCUIT ).
NG: REPAIR CIRCUIT INDICATED BY OUTPUT CODE
OK:Go to next step
2.CHECK HARNESS AND CONNECTOR (HEIGHT CONTROL SENSOR SUB-ASSY POWER
SOURCE) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Disconnect the height control sensor sub-assy connector.
b. Turn the ignition switch to the ON position.
c. Measure the voltage according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (FRONT
RH)
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (FRONT
LH):
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (REAR RH)
TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (REAR LH)
NG: CHECK HEIGHT CONTROL SENSOR SUB-ASSY CIRCUIT (SEE DTC C1711 RIGHT
FRONT HEIGHT CONTROL SENSOR CIRCUIT, DTC C1712 LEFT FRONT HEIGHT
CONTROL SENSOR CIRCUIT,DTC C1713 RIGHT REAR HEIGHT CONTROL SENSOR
CIRCUIT, DTC C1714 LEFT REAR HEIGHT CONTROL SENSOR CIRCUIT )
Fig. 110: Identifying Front Height Control Sensor Sub
-Assy Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester ConnectionSpecified Condition
H14-1 (SHB) - H14-4 (SHG)4.5 to 5.5 V
Tester ConnectionSpecified Condition
H13-1 (SHB) - H13-4 (SHG)4.5 to 5.5 V
Tester ConnectionSpecified Condition
H31-1 (SHB) - H31-3 (SHG)4.5 to 5.5 V
Tester ConnectionSpecified Condition
H30-1 (SHG) - H30-3 (SHB)4.5 to 5.5 V

Fig. 111: Identifying Rear Height Control Sensor Sub-Assy Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK:Go to next step
3.CHECK HARNESS AND CONNECTOR (SUSPENSION CONTROL ECU - BODY GROUND)
(SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Turn the ignition switch off.
b. Disconnect the suspension control ECU A21 connector.
c. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK:Go to next step
Tester ConnectionSpecified Condition
A21-23 (SBL3) - Body ground10 Kohms or higher

Fig. 112: Identifying Suspension Control ECU Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSPECT SUSPENSION CONTROL ECU (ECU POWER SOURCE)
a. Turn the ignition switch off.
b. Measure the voltage according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
A20-1 (B) - A20-4 (GND)10 to 14 V

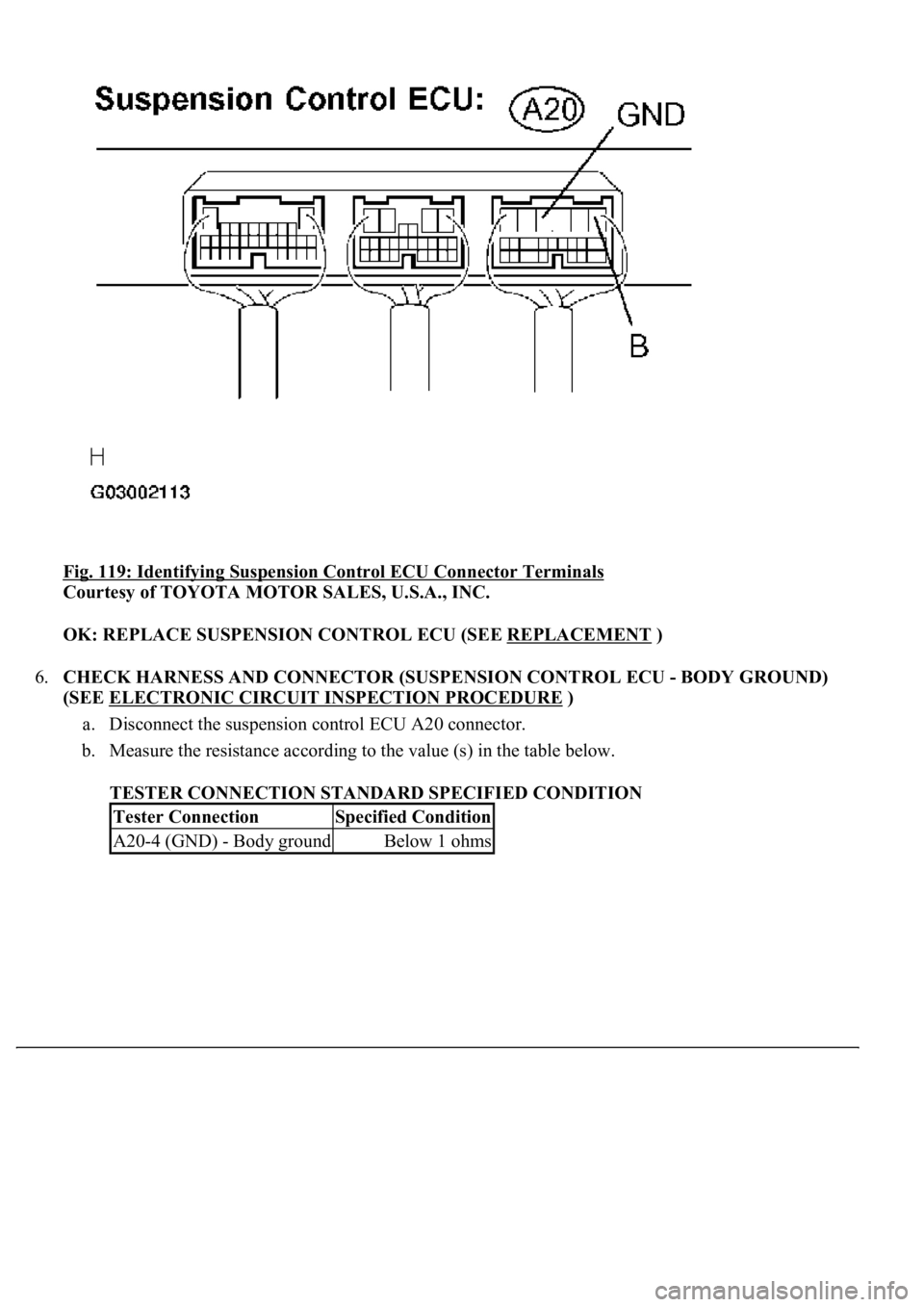

Fig. 119: Identifying Suspension Control ECU Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE SUSPENSION CONTROL ECU (SEE REPLACEMENT
)
6.CHECK HARNESS AND CONNECTOR (SUSPENSION CONTROL ECU - BODY GROUND)
(SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Disconnect the suspension control ECU A20 connector.
b. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
A20-4 (GND) - Body groundBelow 1 ohms

Fig. 126: Identifying Steering Sensor S16 Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE STEERING SENSOR (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
The height control switch turns on when it is pressed to the "HIGH" side and turns off when pressed to the
"NORM" side. The ECU detects the height control switch condition and raises or lowers the vehicle height
accordingly.
B
y controlling the height control switch, the vehicle height can be set 30 mm (1.18 in.) higher in "HIGH" mode.

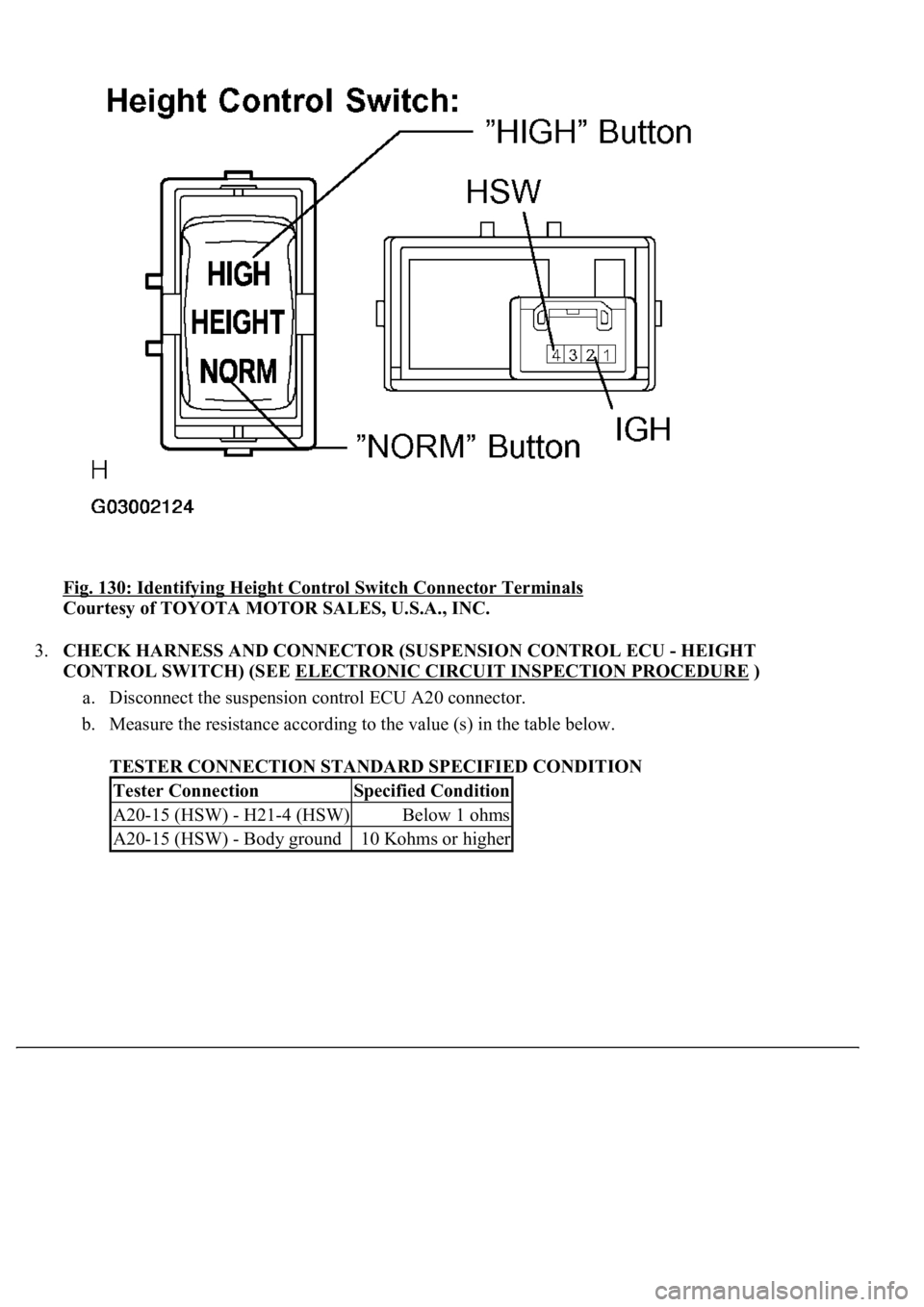

Fig. 130: Identifying Height Control Switch Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.CHECK HARNESS AND CONNECTOR (SUSPENSION CONTROL ECU - HEIGHT
CONTROL SWITCH) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Disconnect the suspension control ECU A20 connector.
b. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
A20-15 (HSW) - H21-4 (HSW)Below 1 ohms
A20-15 (HSW) - Body ground10 Kohms or higher
