exceeds the limit, code 2-3 will be output from the security indicator. The output details are
shown below.
Security Indicator
Fig. 5: Automatic Key Code Registration Output Codes (Security Indicator)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Finish the automatic key code registration mode.

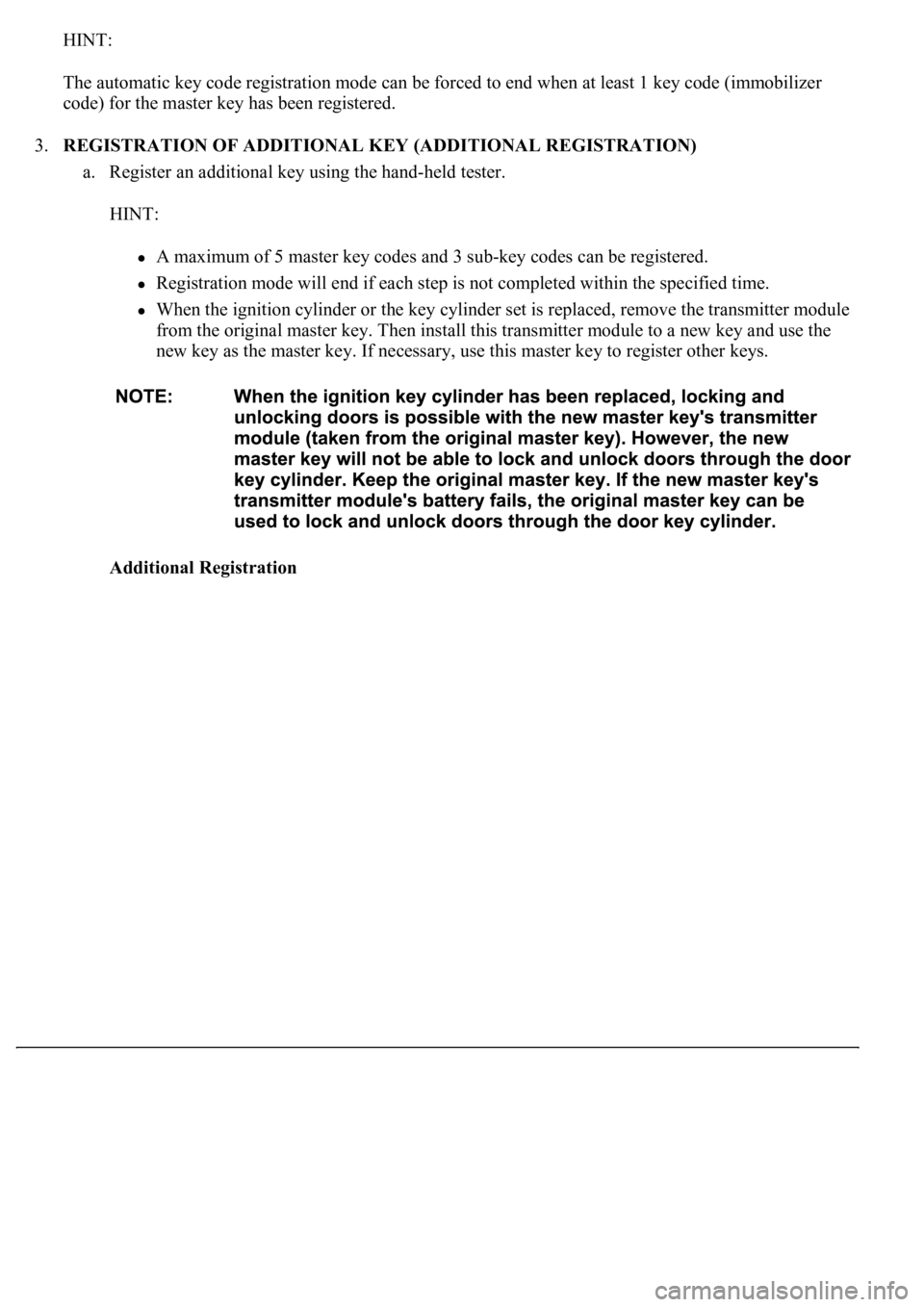

HINT:
The automatic key code registration mode can be forced to end when at least 1 key code (immobilizer
code) for the master key has been registered.
3.REGISTRATION OF ADDITIONAL KEY (ADDITIONAL REGISTRATION)
a. Register an additional key using the hand-held tester.
HINT:
A maximum of 5 master key codes and 3 sub-key codes can be registered.
Registration mode will end if each step is not completed within the specified time.
When the ignition cylinder or the key cylinder set is replaced, remove the transmitter module
from the original master key. Then install this transmitter module to a new key and use the
new key as the master key. If necessary, use this master key to register other keys.
Additional Registration

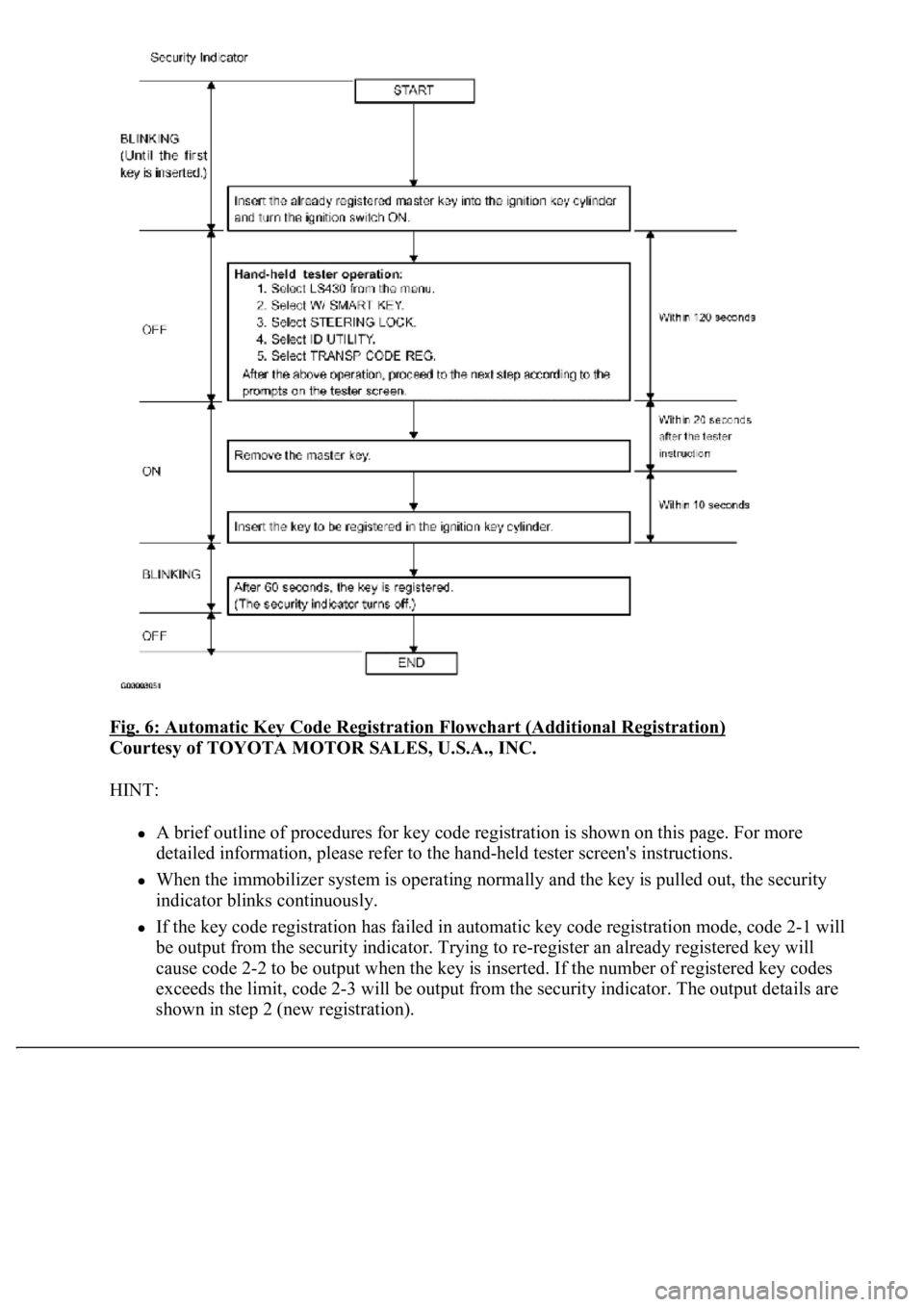

Fig. 6: Automatic Key Code Registration Flowchart (Additional Registration)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
A brief outline of procedures for key code registration is shown on this page. For more
detailed information, please refer to the hand-held tester screen's instructions.
When the immobilizer system is operating normally and the key is pulled out, the security
indicator blinks continuously.
If the key code registration has failed in automatic key code registration mode, code 2-1 will
be output from the security indicator. Trying to re-register an already registered key will
cause code 2-2 to be output when the key is inserted. If the number of registered key codes
exceeds the limit, code 2-3 will be output from the security indicator. The output details are
shown in step 2 (new re
gistration).

4.ERASURE OF KEY CODE
a. Erase key codes using the hand-held tester.
HINT:
All key codes are erased except for the master key, which is used for erasing the key codes.
In order to use a key whose code has been erased, a new key code must be registered.
Registration will be cancelled if each step is not completed within the specified time.
Erasing Key Code
Fig. 7: Erasing Key Code Flowchart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
A brief outline of procedures for key code erasure is shown in this information. For more
detailed information, please refer to the hand-held tester screen's instructions.
When the immobilizer system is operating normally and the key is pulled out, the security
indicator blinks continuously.
5.ECU COMMUNICATION ID REGISTRATION

a. Register the ECU communication ID.
1. Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
Fig. 9: Connecting Terminals TC And CG Of DLC3 Using SST

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Turn the ignition switch ON (do not start the engine) and leave it as is for 30 minutes.
3. Turn the ignition switch OFF and disconnect terminals TC and CG.
4. Check that the engine starts.
Fig. 10: Problem Symptoms Table
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1.CHECK TRANSPONDER KEY AMPLIFIER

Fig. 11: Checking Transponder Key Amplifier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the T8 amplifier connector.
b. Measure the resistance of the wire harness side connector.
Standard:
TRANSPONDER KEY AMPLIFIER - RESISTANCE TABLE
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the T8 amplifier connector.
Symbols
(Terminal No.)
Wiring Color
Terminal
Description
Condition
Specified
Condition
GND (T8-7) -
Body groundV - Body groundGroundAlwaysBelow 1 ohms

d. Measure the voltage and resistance of the connector.
Standard:
TRANSPONDER KEY AMPLIFIER - VOLTAGE TABLE
If the result is not as specified, the amplifier may have a malfunction.
e. Inspect using an oscilloscope.
Waveform 1 (Reference):
WAVEFORM 1 REFERENCE TABLE
Symbols
(Terminal No.)
Wiring Color
Terminal
Description
Condition
Specified
Condition
VC5 (T8-1) - GND
(T8-7)R - VPower sourceNo key in ignition
key cylinder ->
Key inserted0 V -> 4.6 to 5.4 V
RXCK (T8-3) -
GND (T8-7)L - VDemodulated signal
of key code dataNo key in ignition
key cylinder ->
Key insertedPulse generation
(see waveform 1)
CODE (T8-4) -
GND (T8-7)O - VDemodulated signal
of key code dataNo key in ignition
key cylinder ->
Key insertedPulse generation
(see waveform 2)
TXCT (T8-5) -
GND (T8-7)Y-B - VKey code output
signalNo key in ignition
key cylinder ->
Key insertedPulse generation
(see waveform 3)
GND (T8-7) -
Body groundV - Body groundGroundAlwaysBelow 1 ohms
TerminalRXCK - GND
Tool Setting5 V/DIV., 50 ms/DIV.
ConditionNo key in ignition key cylinder -> Key inserted

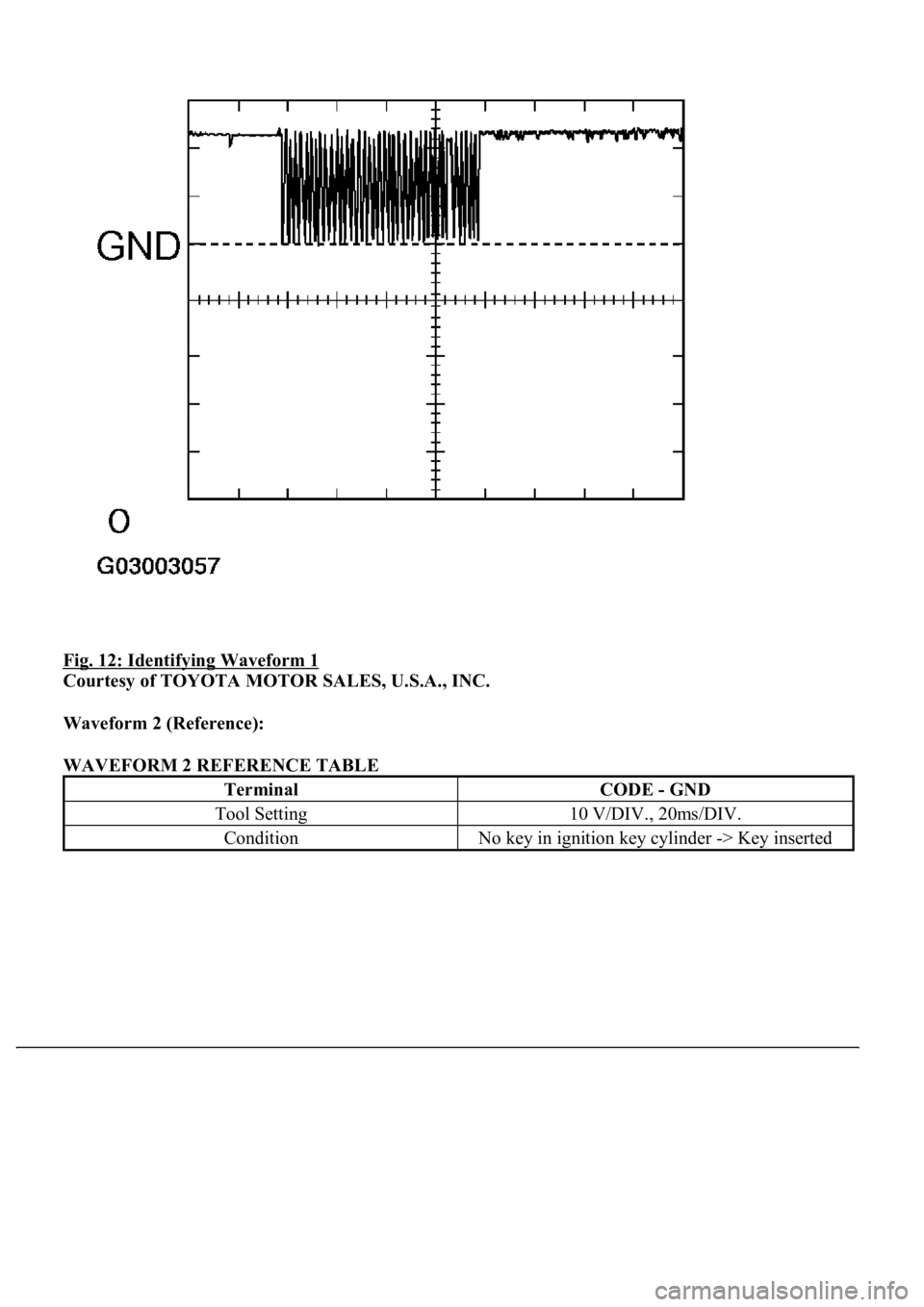

Fig. 12: Identifying Waveform 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 2 (Reference):
WAVEFORM 2 REFERENCE TABLE
TerminalCODE - GND
Tool Setting10 V/DIV., 20ms/DIV.
ConditionNo key in ignition key cylinder -> Key inserted
