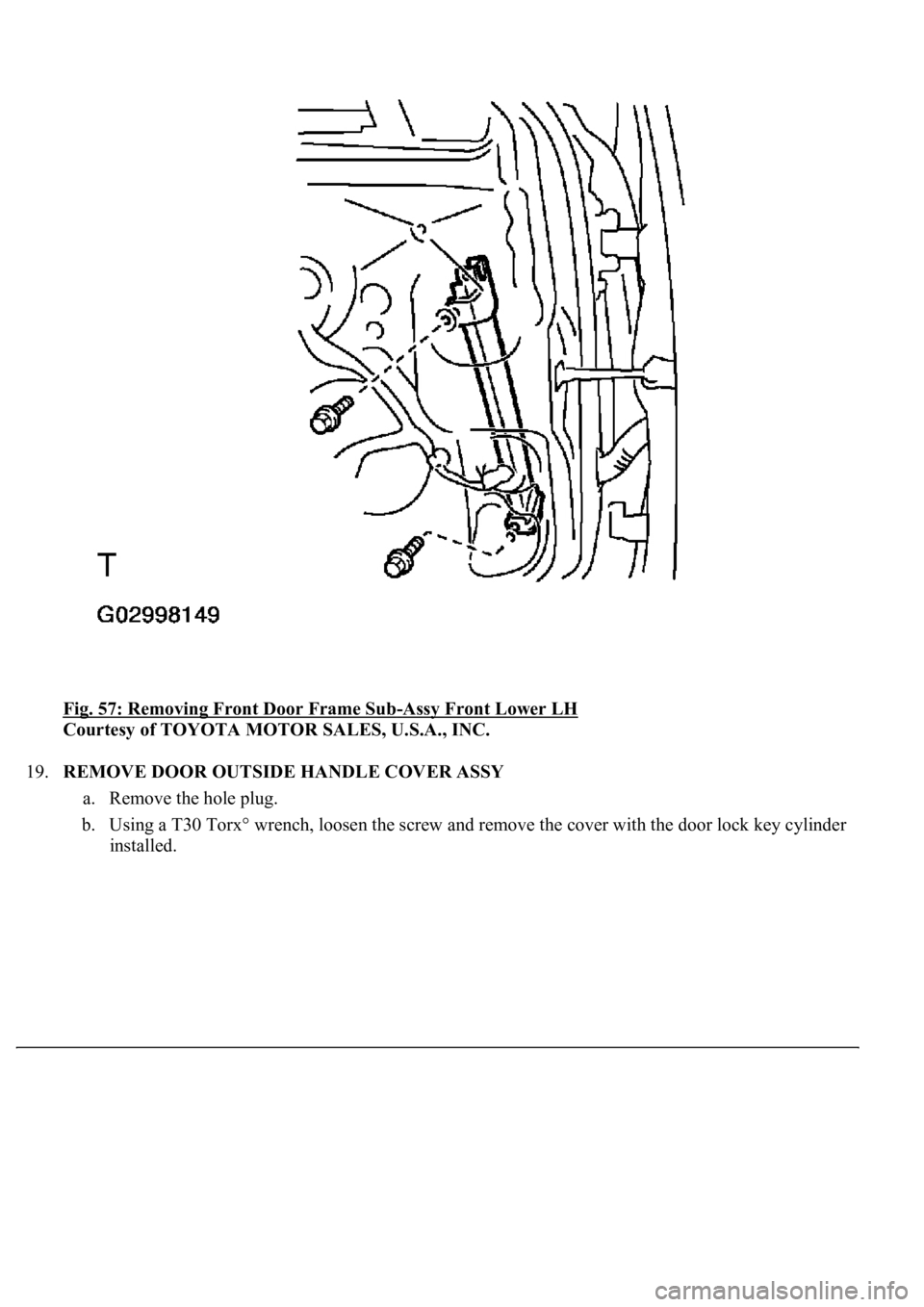

Fig. 57: Removing Front Door Frame Sub-Assy Front Lower LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
19.REMOVE DOOR OUTSIDE HANDLE COVER ASSY
a. Remove the hole plug.
b. Using a T30 Torx° wrench, loosen the screw and remove the cover with the door lock key cylinder
installed.

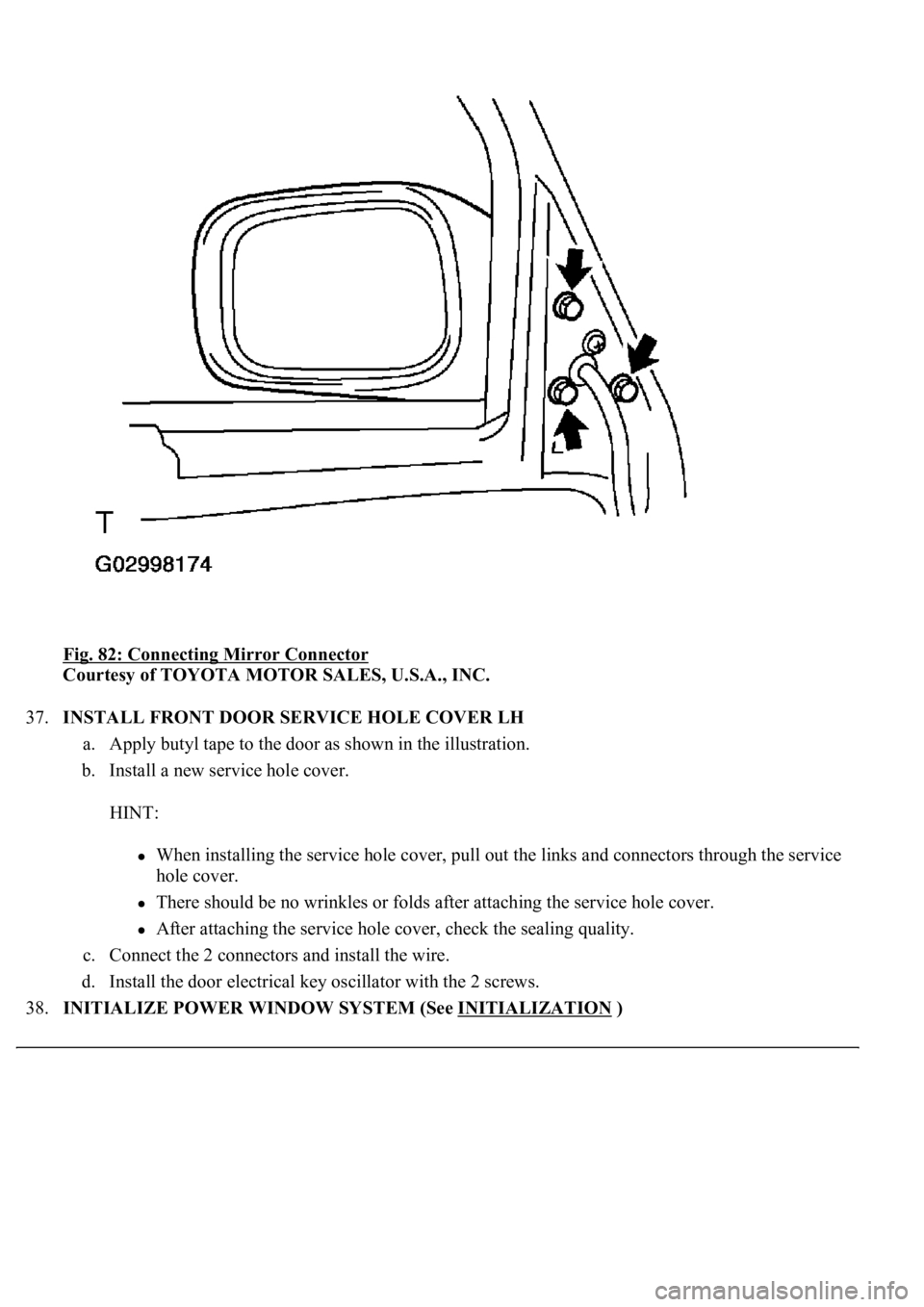

Fig. 82: Connecting Mirror Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.INSTALL FRONT DOOR SERVICE HOLE COVER LH
a. Apply butyl tape to the door as shown in the illustration.
b. Install a new service hole cover.
HINT:
When installing the service hole cover, pull out the links and connectors through the service
hole cover.
There should be no wrinkles or folds after attaching the service hole cover.
After attaching the service hole cover, check the sealing quality.
c. Connect the 2 connectors and install the wire.
d. Install the door electrical key oscillator with the 2 screws.
38.INITIALIZE POWER WINDOW SYSTEM (See INITIALIZATION
)

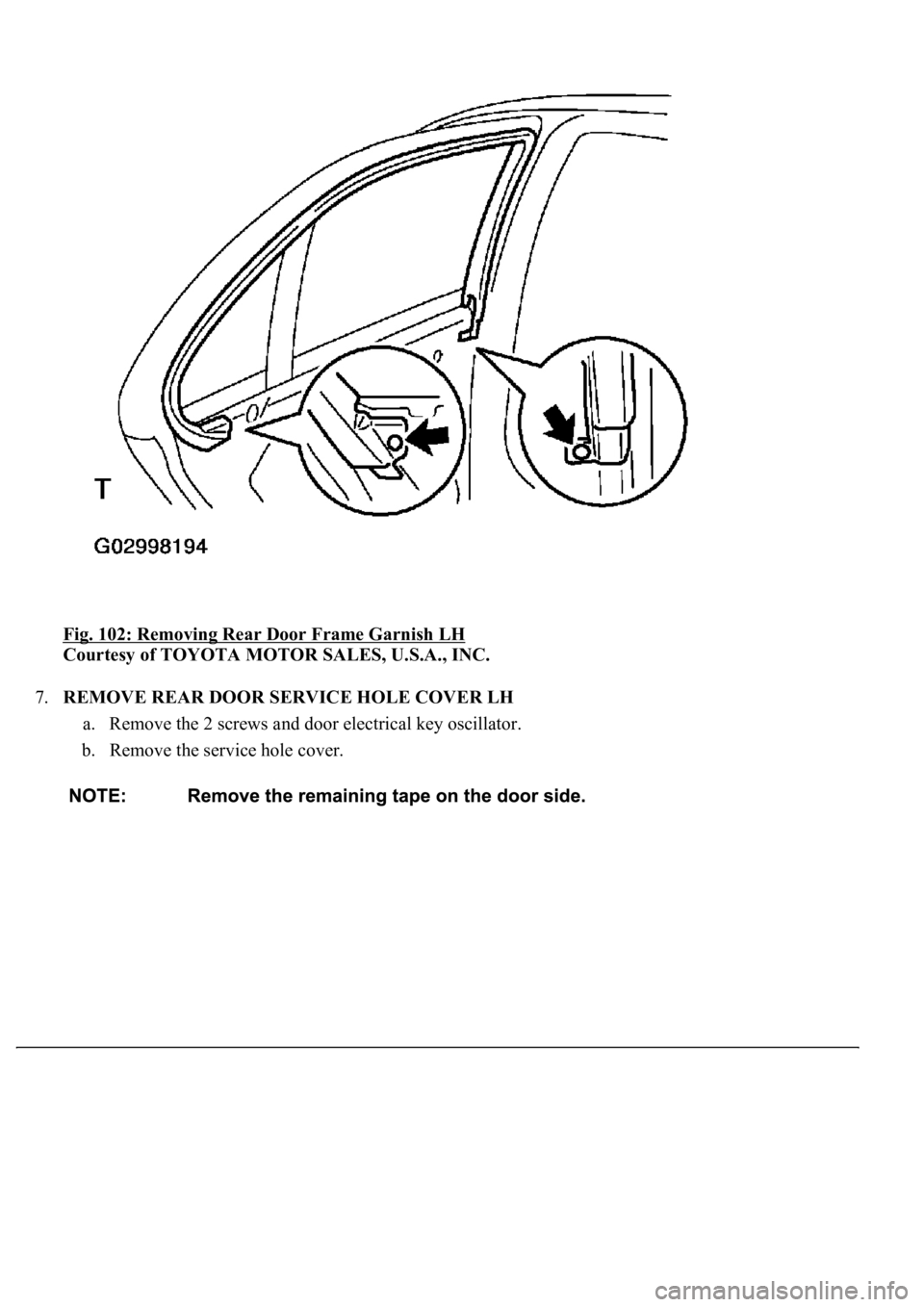

Fig. 102: Removing Rear Door Frame Garnish LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE REAR DOOR SERVICE HOLE COVER LH
a. Remove the 2 screws and door electrical key oscillator.
b. Remove the service hole cover.

22.REMOVE DOOR OUTSIDE HANDLE COVER ASSY
a. Remove the bolt and cover.

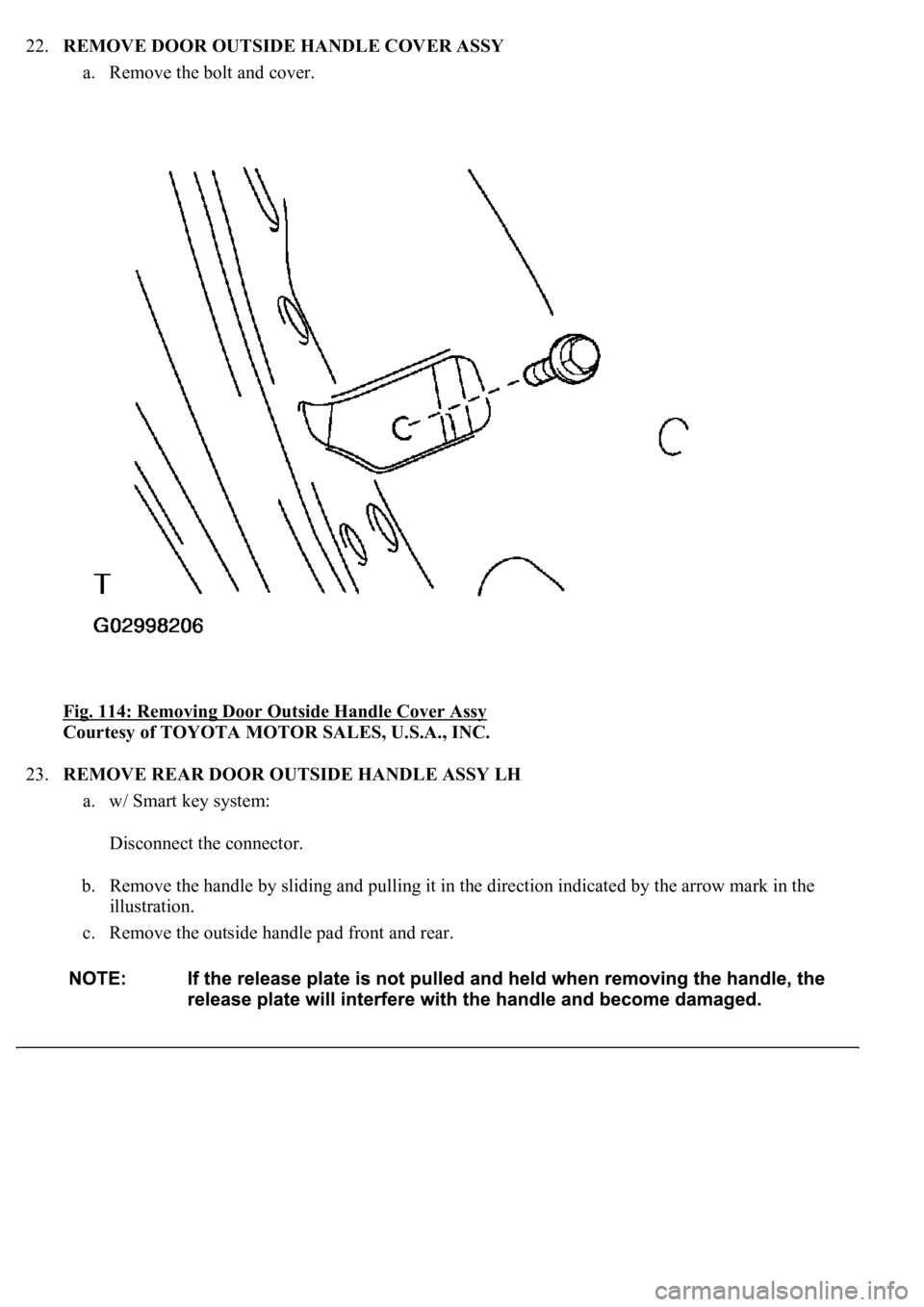

Fig. 114: Removing Door Outside Handle Cover Assy

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23.REMOVE REAR DOOR OUTSIDE HANDLE ASSY LH
a. w/ Smart key system:
Disconnect the connector.
b. Remove the handle by sliding and pulling it in the direction indicated by the arrow mark in the
illustration.
c. Remove the outside handle pad front and rear.

d. w/ Smart key system:
Connect the connector.
Fig. 121: Connecting Connector

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.INSTALL REAR DOOR INSIDE HANDLE COVER
a. Install the cover with the bolt.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

Fig. 148: Removing Luggage Compartment Door Assist Grip
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE REAR LAMP ASSY LH (See OVERHAUL
)
8.REMOVE REAR LAMP ASSY RH
9.REMOVE LICENSE PLATE LAMP LENS (See REPLACEMENT
)
10.REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE (See
REPLACEMENT
)
w/ Smart key system:
11.REMOVE LUGGAGE ELECTRICAL KEY SWITCH
a. Disconnect the connector.
b. Remove the 2 nuts and key switch.
12.w/o Smart key system:
REMOVE LUGGAGE ELECTRICAL KEY SWITCH COVER
a. Remove the 2 nuts and cover.

Fig. 149: Removing Luggage Electrical Key Switch Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSY
a. Disconnect the connector.
b. Remove the 2 nuts and lock cylinder.

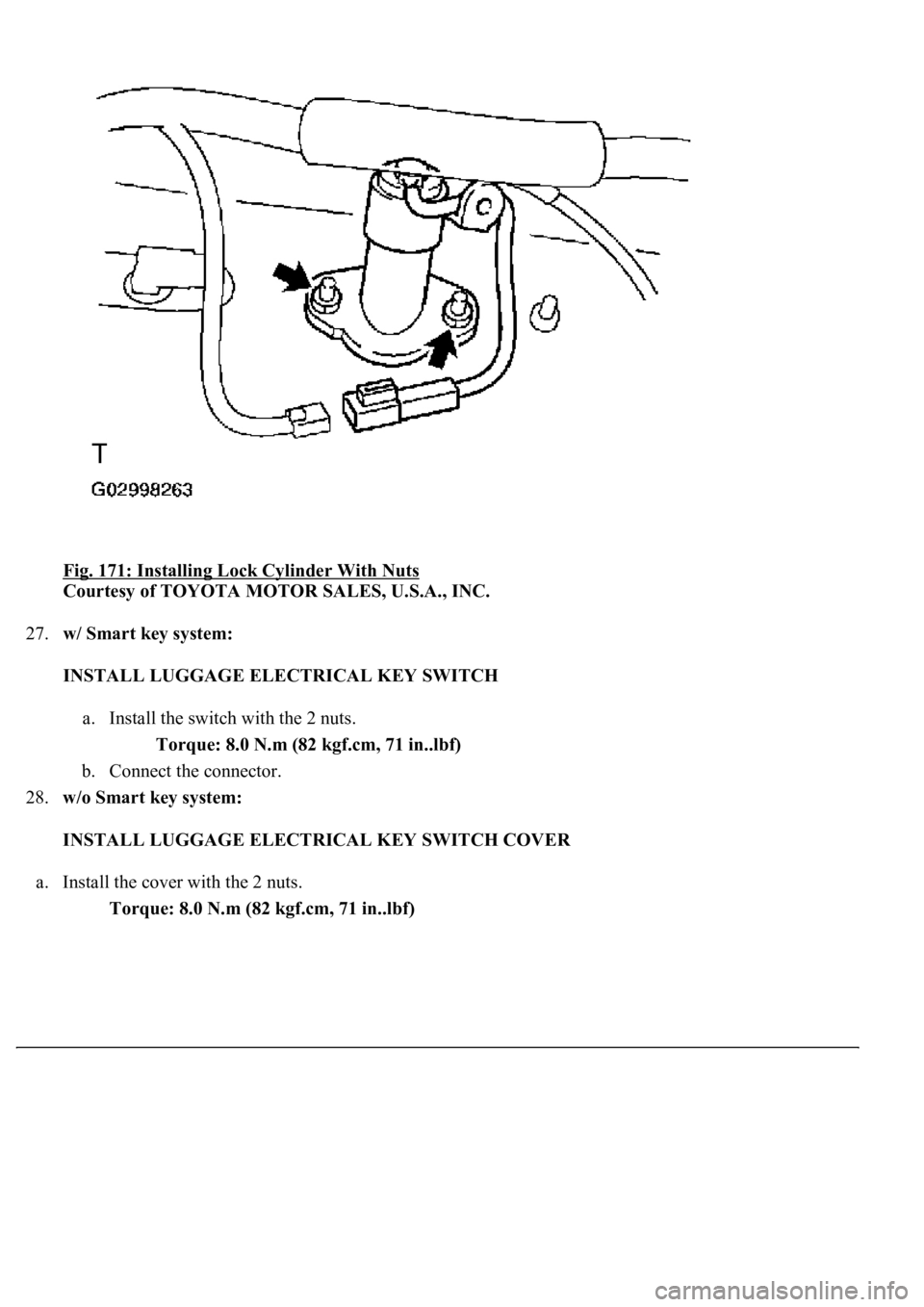

Fig. 171: Installing Lock Cylinder With Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.w/ Smart key system:
INSTALL LUGGAGE ELECTRICAL KEY SWITCH
a. Install the switch with the 2 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
b. Connect the connector.
28.w/o Smart key system:
INSTALL LUGGAGE ELECTRICAL KEY SWITCH COVER
a. Install the cover with the 2 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
