POWER WINDOW CONTROL SYSTEM DIAGNOSTIC TROUBLE CODE (DTC)
IDENTIFICATION
STEERING LOCK SYSTEM DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
DTC B2602 KEY UNLOCK WARNING SWITCH CIRCUIT
MALFUNCTION
DTC B2610 TILT POSITION SENSOR OR TILT MOTOR
CIRCUIT MALFUNCTION
DTC B2611 TELESCOPIC POSITION SENSOR OR
TELESCOPIC MOTOR CIRCUIT
MALFUNCTION
DTC B2620 ECU POWER SOURCE CIRCUIT
MALFUNCTION
DTC B2621 COMMUNICATION INTERRUPTION
DTCDescription
DTC B1221 POWER WINDOW SWITCH CIRCUIT ON DRIVER DOOR
DTC B1223 POWER WINDOW SWITCH CIRCUIT ON PASSENGER DOOR
DTC B1226 POWER WINDOW SWITCH CIRCUIT ON REAR LEFT DOOR
DTC B1225 POWER WINDOW SWITCH CIRCUIT ON REAR RIGHT DOOR
DTC B1231, B1232 JAM PROTECTION LIMIT SWITCH CIRCUIT ON DRIVER DOOR, JAM
PROTECTION PULSE SWITCH CIRCUIT ON DRIVER DOOR
DTC B1233, B1234 JAM PROTECTION LIMIT SWITCH CIRCUIT ON PASSENGER DOOR, JAM
PROTECTION PULSE SWITCH CIRCUIT ON PASSENGER DOOR
DTC B1237, B1238 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR LEFT DOOR, JAM
PROTECTION PULSE SWITCH CIRCUIT ON REAR LEFT DOOR
DTC B1235, B1236 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR RIGHT DOOR,
JAM PROTECTION PULSE SWITCH CIRCUIT ON REAR RIGHT DOOR
DTCDescription
DTC B2775 INTERIOR VERIFICATION ABNORMAL (TO
THEFT DETERRENT ECU)
DTC B2776 STEERING LOCK MOTOR MALFUNCTION
DTC B2777 +B CIRCUIT MALFUNCTION
DTC B2778 INTERLOCK CABLE MALFUNCTION
DTC B2780 PUSH SWITCH/KEY UNLOCK WARNING
SWITCH MALFUNCTION
DTC B2799 ENGINE IMMOBILIZER SYSTEM
MALFUNCTION

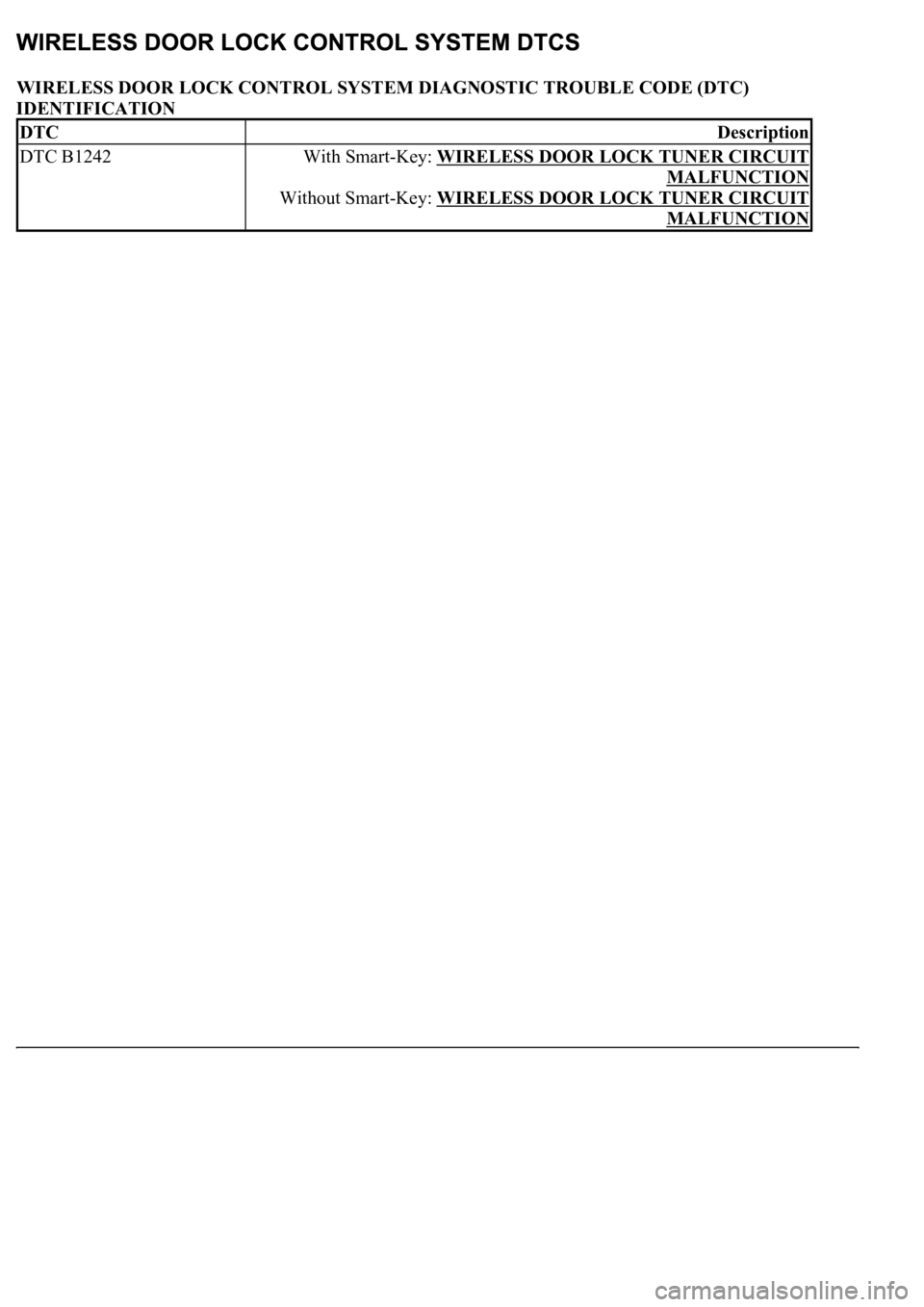

WIRELESS DOOR LOCK CONTROL SYSTEM DIAGNOSTIC TROUBLE CODE (DTC)
IDENTIFICATION
DTCDescription
DTC B1242With Smart-Key: WIRELESS DOOR LOCK TUNER CIRCUIT
MALFUNCTION
Without Smart-Key: WIRELESS DOOR LOCK TUNER CIRCUIT
MALFUNCTION

BUZZERS, RELAYS & TIMERS LOCATION
CIRCUIT PROTECTION DEVICES LOCATION
ComponentLocation
ABS CUT RelayOn engine room No. 3 R/B. See Fig. 7 .
ABS MTR RelayOn engine room No. 3 R/B. See Fig. 7 .
A/C COMP RelayOn engine room No. 1 R/B. See Fig. 5 .
AIR SUS RelayOn fusible link block. See Fig. 8 .
Clearance Sonar Buzzer (Front)Behind left side of dash. See Fig. 2 .
Clearance Sonar Buzzer (Rear)Near center of rear speaker shelf, at base of rear
window. See Fig. 19
.
C/OPN RelayOn engine room No. 1 R/B. See Fig. 5 .
D-ACC RelayOn driver side J/B. See Fig. 9 .
DEFOG RelayOn engine room No. 2 R/B. See Fig. 6 .
D-IG1 RelayOn driver side J/B. See Fig. 9 .
EFI MAIN RelayOn engine room No. 1 R/B. See Fig. 5 .
FAN RelayOn fusible link block. See Fig. 8 .
F/PMP RelayOn engine room No. 1 R/B. See Fig. 5 .
Headlight Cleaner Control RelayBelow left headlight. See Fig. 1 .
HEAD LP RelayOn engine room No. 1 R/B. See Fig. 5 .
IG1 RelayOn engine room No. 1 R/B. See Fig. 5 .
IG2 RelayOn engine room No. 1 R/B. See Fig. 5 .
Keyless BuzzerInside top of left front fender, near base of "A"
pillar. See Fig. 14
.
L-ACC RelayOn luggage room J/B. See Fig. 11 .
L-IG1 RelayOn luggage room J/B. See Fig. 11 .
P-ACC RelayOn driver side J/B. See Fig. 10 .
P-IG1 RelayOn driver side J/B. See Fig. 10 .
Rear Sunshade Control RelayBelow center of rear speaker shelf. See Fig. 4 .
RR S/SHADE RelayOn luggage room J/B. See Fig. 11 .
STARTER RelayOn fusible link block. See Fig. 8 .
Telephone Transceiver & Speaker RelayOn left side of luggage compartment. See Fig. 4 .
VSC Warning BuzzerBehind lower left side of dash. See Fig. 18 .
ComponentLocation

MOTORS LOCATION
Navigation ECUFig. 4 .
Passenger Side J/B ECUAt right kick panel. See Fig. 17 .
Power Tilt & Power Telescopic ECUBehind left side of dash. See Fig. 17 .
PPS ECURight side of dash. See Fig. 17 .
Rear Door LH ECUInside left rear door. See Fig. 4 .
Rear Door RH ECUInside right rear door. See Fig. 4 .
Rear LH Seat ECUBehind left side of rear seat back. See Fig. 32 .
Rear RH Seat ECUBehind right side of rear seat back. See Fig. 32 .
Seat Belt Control ECULeft side of luggage compartment. See Fig. 4 .
Seat Climate Controller Front LH (Seat Back)In driver's seat back. See Fig. 31 .
Seat Climate Controller Front RH (Seat Back)In passenger's seat back. See Fig. 31 .
Seat Climate Controller Rear LH (Seat Back)In left rear seat back. See Fig. 32 .
Seat Climate Controller Rear LH (Seat Cushion)In left rear seat cushion. See Fig. 32 .
Seat Climate Controller Rear RH (Seat Back)In right rear seat back. See Fig. 32 .
Seat Climate Controller Rear RH (Seat Cushion)In right rear seat cushion. See Fig. 32 .
Shift Lock Control ECUBelow shift lever, in center console. See Fig. 18 .
Skid Control ECU W/ActuatorBehind left side of dash. See Fig. 1 .
Steering Lock ECULeft side of dash. See Fig. 18 .
Stereo Component TunerOn lower right side of luggage compartment. See
Fig. 4
.
Television Camera ECURight rear of luggage compartment. See Fig. 4 .
Theft Deterrent ECUBehind upper right center of dash. See Fig. 18 .
Transponder Key ComputerBehind upper center of dash. See Fig. 18 .
Vibration Seat ECU LHBehind left rear seat back. See Fig. 32 .
Vibration Seat ECU RHIn rear seat assembly. See Fig. 32 .
ComponentLocation
Air Inlet Control Servo MotorRight side of dash. See Fig. 2 .
Air Mix Control Servo Motor (Driver Side)Center of dash. See Fig. 2 .
Air Mix Control Servo Motor (Front Passenger
Side)Right side of dash. See Fig. 2 .
Air Vent Mode Control Servo Motor (Driver Side)Center of dash. See Fig. 2 .
Air Vent Mode Control Servo Motor (Front
Passenger Side)Center of dash. See Fig. 2 .
Blower MotorBehind lower right side of dash. See Fig. 2 .
Cool Air Bypass Servo Motor (Driver's Side)Left side of dash. See Fig. 2 .
Cool Air Bypass Servo Motor (Front Passenger
Side)Right side of dash. See Fig. 2 .
Front Wiper MotorBelow left side of windshield. See Fig. 13 .

SOLENOIDS & SOLENOID VALVES LOCATION
SWITCHES LOCATION
Washer Level SensorOn washer fluid reservoir, below left headlight. See
Fig. 15
.
Yaw Rate SensorBelow rear of center console. See Fig. 18 .
ComponentLocation
Camshaft Timing Oil Control Valve LHOn front of left cylinder head. See Fig. 12 .
Camshaft Timing Oil Control Valve RHOn front of right cylinder head. See Fig. 12 .
Electronically Controlled Transmission SolenoidOn left side of transmission. See Fig. 12 .
Front Height Control ValveOn right front of engine compartment. See Fig. 13 .
Heated Control Exhaust ValveRight front of vehicle, behind bumper. See Fig. 13 .
PPS SolenoidOn left front of engine compartment. See Fig. 15 .
Rear Height Control ValveNear front of engine compartment. See Fig. 29 .
Rear Magnetic ValveIn rear luggage compartment. See Fig. 29 .
Tension Reducer Solenoid LHNear base of left "B" pillar. See Fig. 30 .
Tension Reducer Solenoid RHNear base of left "B" pillar. See Fig. 30 .
VSV (ACIS)On right rear of engine. See Fig. 15 .
VSV (Canister Closed Valve)On right side of engine compartment. See Fig. 15 .
VSV (EVAP)On left rear of engine. See Fig. 15 .
VSV (Pressure Switching Valve)Below right rear of vehicle. See Fig. 30 .
ComponentLocation
Brake Fluid Level Warning SwitchOn brake master cylinder reservoir. See Fig. 12 .
Brake Pedal Load Sensing SwitchOn brake pedal bracket, above brake pedal. See Fig.
2 .
Buckle SW Front LHInside of left front seat belt buckle. See Fig. 31 .
Buckle SW Front RHInside of right front seat belt buckle. See Fig. 31 .
Climate Control Seat SW (Rear)In rear seat assembly. See Fig. 32 .
Door Courtesy SW Front LHAt left "B" pillar. See Fig. 19 .
Door Courtesy SW Front RHAt right "B" pillar. See Fig. 19 .
Door Courtesy SW Rear LHAt left "C" pillar. See Fig. 19 .
Door Courtesy SW Rear RHAt right "C" pillar. See Fig. 19 .
Door Key Lock Motor & Door Unlock Detection
SW Front RHIn right front door. See Fig. 19 .
Door Key Lock & Unlock SW & Door Lock Motor
& Door Unlock Detection SW Front LHIn driver's door. See Fig. 19 .
Door Lock Motor & Door Unlock Detection SW

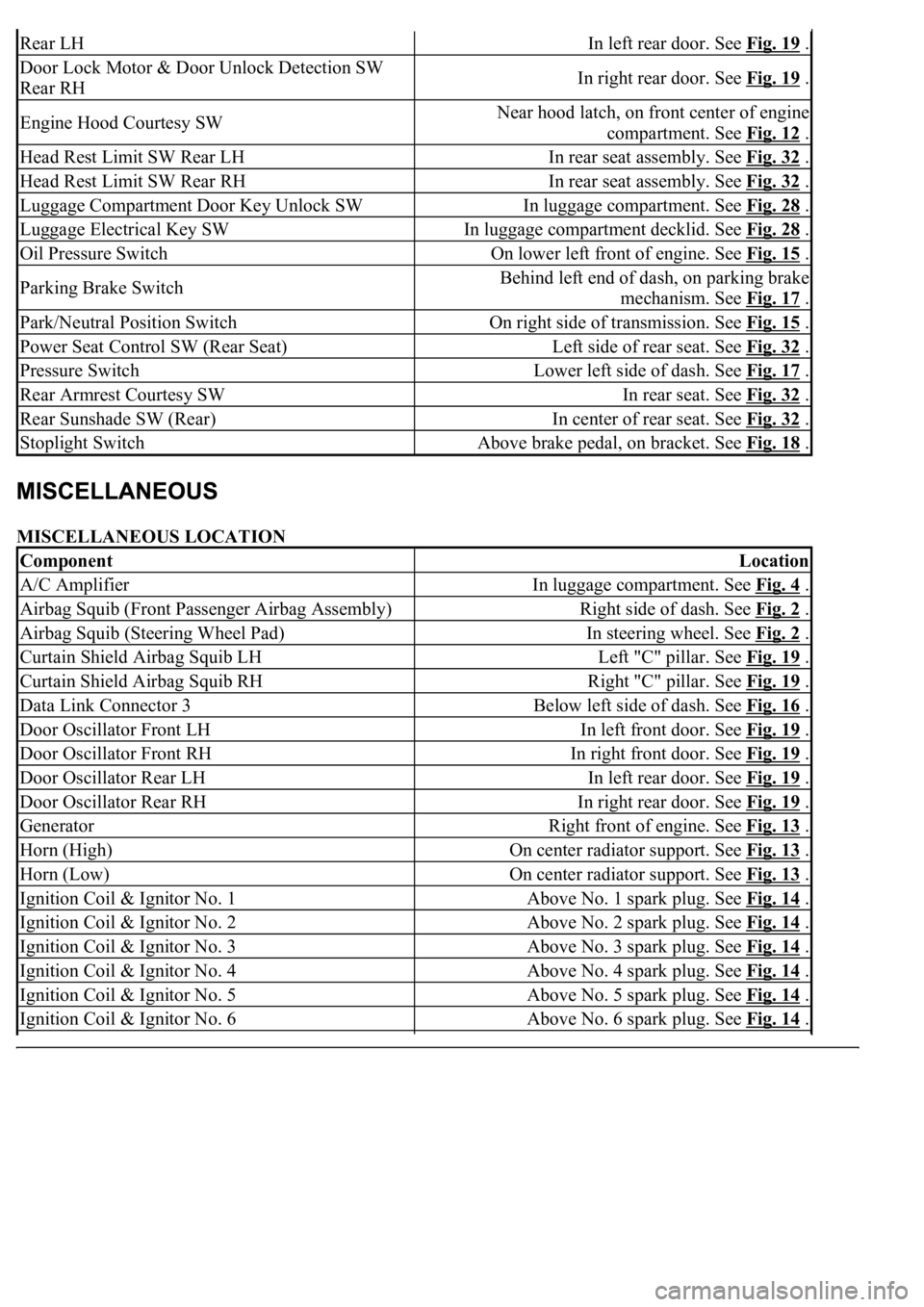

MISCELLANEOUS LOCATION
Rear LHIn left rear door. See Fig. 19 .
Door Lock Motor & Door Unlock Detection SW
Rear RHIn right rear door. See Fig. 19 .
Engine Hood Courtesy SWNear hood latch, on front center of engine
compartment. See Fig. 12
.
Head Rest Limit SW Rear LHIn rear seat assembly. See Fig. 32 .
Head Rest Limit SW Rear RHIn rear seat assembly. See Fig. 32 .
Luggage Compartment Door Key Unlock SWIn luggage compartment. See Fig. 28 .
Luggage Electrical Key SWIn luggage compartment decklid. See Fig. 28 .
Oil Pressure SwitchOn lower left front of engine. See Fig. 15 .
Parking Brake SwitchBehind left end of dash, on parking brake
mechanism. See Fig. 17
.
Park/Neutral Position SwitchOn right side of transmission. See Fig. 15 .
Power Seat Control SW (Rear Seat)Left side of rear seat. See Fig. 32 .
Pressure SwitchLower left side of dash. See Fig. 17 .
Rear Armrest Courtesy SWIn rear seat. See Fig. 32 .
Rear Sunshade SW (Rear)In center of rear seat. See Fig. 32 .
Stoplight SwitchAbove brake pedal, on bracket. See Fig. 18 .
ComponentLocation
A/C AmplifierIn luggage compartment. See Fig. 4 .
Airbag Squib (Front Passenger Airbag Assembly)Right side of dash. See Fig. 2 .
Airbag Squib (Steering Wheel Pad)In steering wheel. See Fig. 2 .
Curtain Shield Airbag Squib LHLeft "C" pillar. See Fig. 19 .
Curtain Shield Airbag Squib RHRight "C" pillar. See Fig. 19 .
Data Link Connector 3Below left side of dash. See Fig. 16 .
Door Oscillator Front LHIn left front door. See Fig. 19 .
Door Oscillator Front RHIn right front door. See Fig. 19 .
Door Oscillator Rear LHIn left rear door. See Fig. 19 .
Door Oscillator Rear RHIn right rear door. See Fig. 19 .
GeneratorRight front of engine. See Fig. 13 .
Horn (High)On center radiator support. See Fig. 13 .
Horn (Low)On center radiator support. See Fig. 13 .
Ignition Coil & Ignitor No. 1Above No. 1 spark plug. See Fig. 14 .
Ignition Coil & Ignitor No. 2Above No. 2 spark plug. See Fig. 14 .
Ignition Coil & Ignitor No. 3Above No. 3 spark plug. See Fig. 14 .
Ignition Coil & Ignitor No. 4Above No. 4 spark plug. See Fig. 14 .
Ignition Coil & Ignitor No. 5Above No. 5 spark plug. See Fig. 14 .
Ignition Coil & Ignitor No. 6Above No. 6 spark plug. See Fig. 14 .

CONNECTORS LOCATION
Luggage Oscillator (Outer)Behind right side of rear bumper. See Fig. 28 .
Noise FilterOn luggage room J/B. See Fig. 11 .
Noise Filter (Ignition) (Left Bank)On left rear of engine. See Fig. 15 .
Noise Filter (Ignition) (Right Bank)On right front of engine. See Fig. 15 .
Noise Filter (Rear Window Defogger)Behind left headlight. See Fig. 15 .
Pretensioner Front LHNear base of left "B" pillar. See Fig. 29 .
Pretensioner Front RHNear base of right "B" pillar. See Fig. 29 .
Pretensioner Rear LHNear base of left "C" pillar. See Fig. 29 .
Pretensioner Rear RHIn right rear door. See Fig. 29 .
Rear Window DefoggerAt rear window. See Fig. 29 .
RheostatLeft side of dash. See Fig. 18 .
Room Oscillator (Front)In center console. See Fig. 18 .
Room Oscillator (Rear)Center of passenger compartment. See Fig. 29 .
Seat Heater Front LHIn left front seat. See Fig. 31 .
Seat Heater Front RHIn right front seat. See Fig. 31 .
Seat Heater Rear LHIn left rear seat. See Fig. 32 .
Seat Heater Rear LHIn left side of rear seat. See Fig. 32 .
Seat Heater Rear RHIn right rear seat. See Fig. 32 .
Seat Heater Rear RHIn right side of rear seat. See Fig. 32 .
Short Connector 1Left front of engine compartment. See Fig. 15 .
Short Connector 2Left front of engine compartment. See Fig. 15 .
Short Connector 8 (Height Control)Right end of dash. See Fig. 18 .
Short Connector 9 (Height Control)Right end of dash. See Fig. 18 .
Short Connector 43Right end of dash. See Fig. 17 .
Short Connector 43Right end of dash. See Fig. 18 .
Side Airbag Squib LHIn left front seat. See Fig. 31 .
Side Airbag Squib RHIn right front seat. See Fig. 31 .
Stereo Component AmplifierOn right side of luggage compartment, behind trim.
See Fig. 4
.
Telephone Transceiver & Speaker RelayOn right side of luggage compartment. See Fig. 4 .
Theft Deterrent HornOn right rear of engine compartment. See Fig. 15 .
Transponder Key AmplifierOn right side of steering column. See Fig. 18 .
Vibrator LHIn left rear seat. See Fig. 32 .
Vibrator RHIn right rear seat. See Fig. 32 .
ComponentLocation
BA1 (White, 6 Pin)At left "B" pillar. See Fig. 23 .
BA2 (White, 10 Pin)At left "B" pillar. See Fig. 23 .

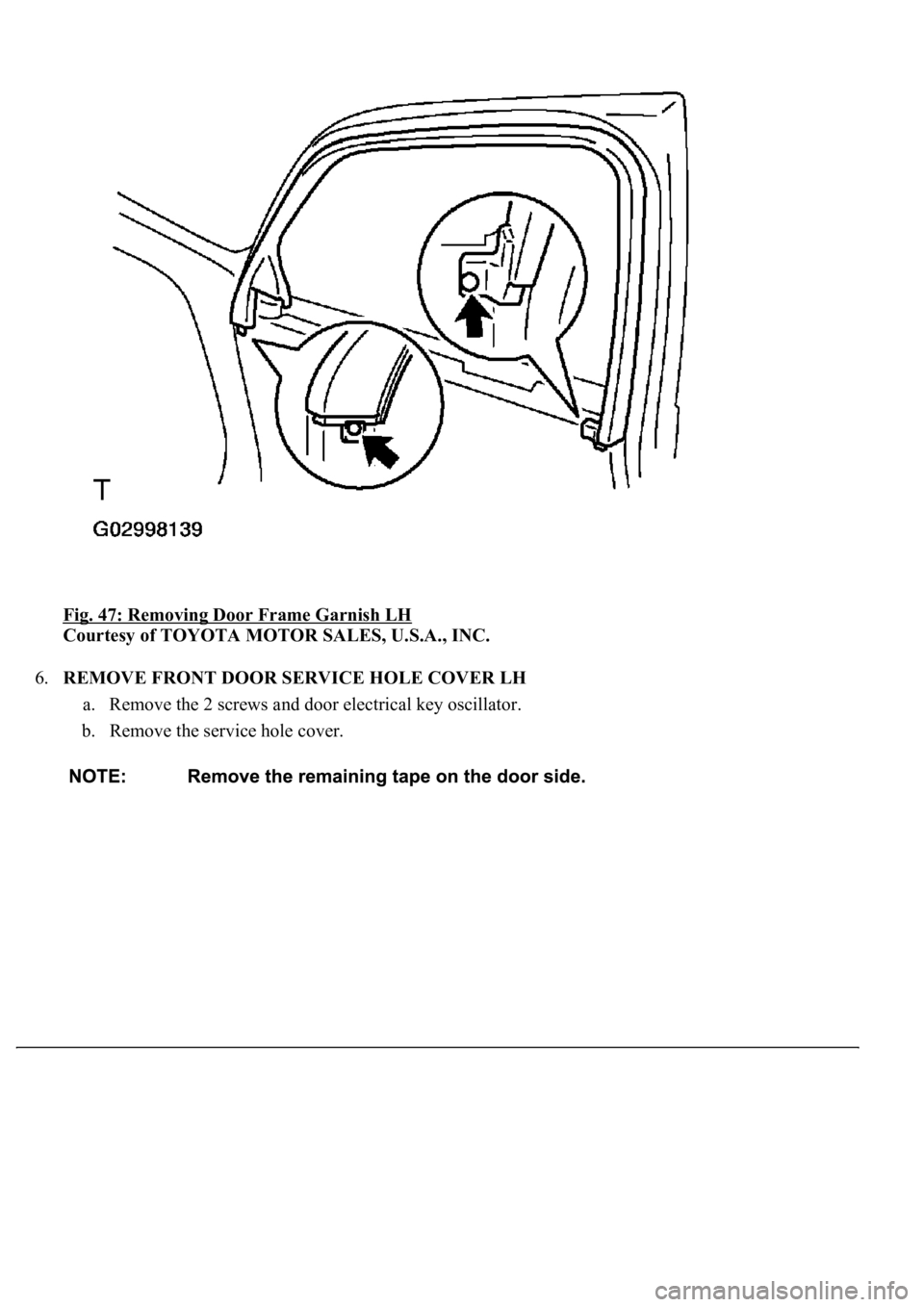

Fig. 47: Removing Door Frame Garnish LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE FRONT DOOR SERVICE HOLE COVER LH
a. Remove the 2 screws and door electrical key oscillator.
b. Remove the service hole cover.
