Page 907 of 4500
Fig. 85: Installing 20 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL TRANSMISSION WIRE
a. Coat a new O-ring of the ATF temperature sensor with ATF.
b. Connect the 9 connectors to the solenoid valves.
c. Install the 2 clamps with the 2 bolts.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
d. Install the ATF temperature sensor and lock plate with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
Page 909 of 4500
Fig. 87: Installing O-ring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the oil strainer with the 4 bolts.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
Page 911 of 4500

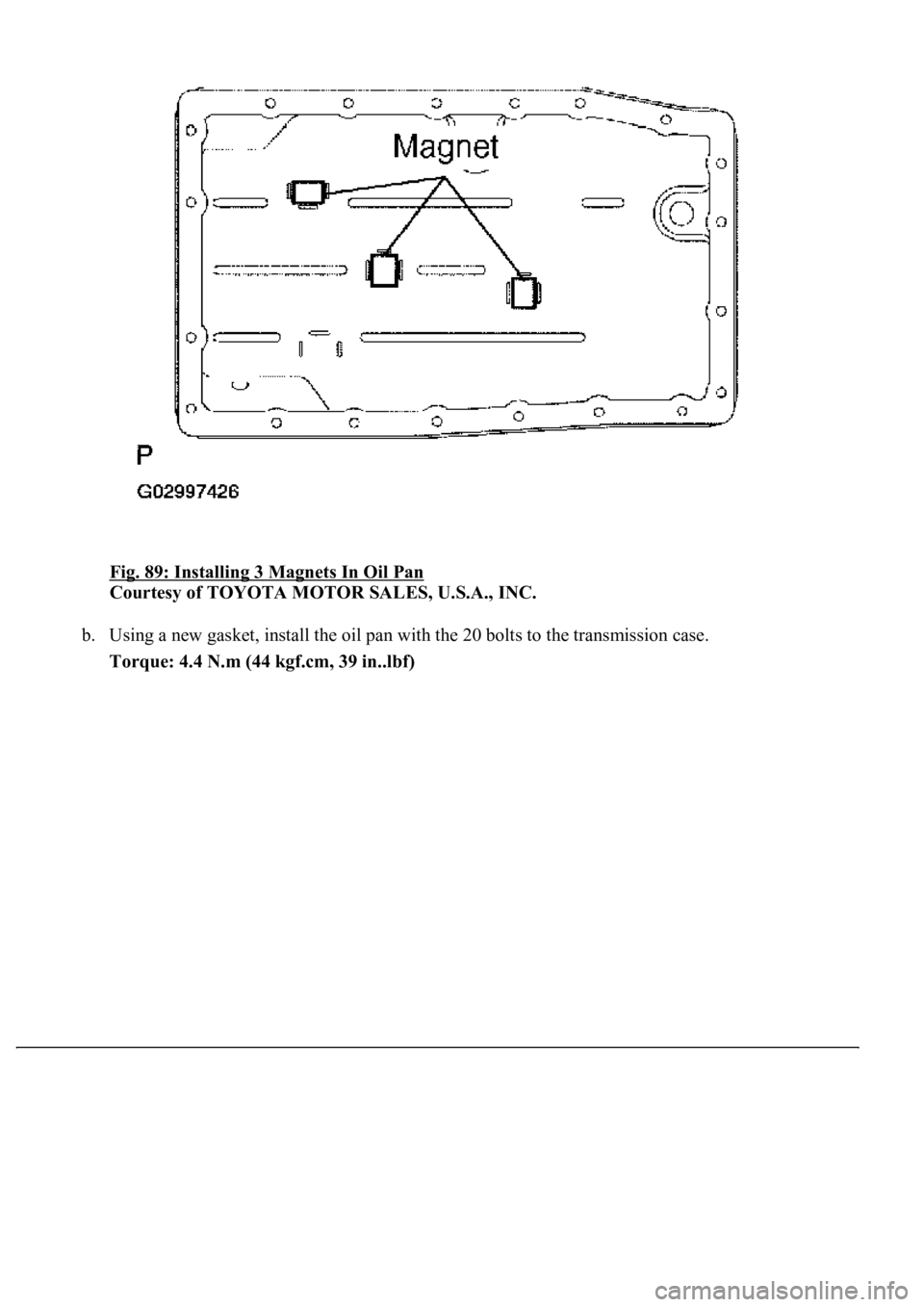

Fig. 89: Installing 3 Magnets In Oil Pan
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a new gasket, install the oil pan with the 20 bolts to the transmission case.
Torque: 4.4 N.m (44 kgf.cm, 39 in..lbf)
Page 913 of 4500

6.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE REPLACEMENT )
7.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE REPLACEMENT
)
8.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE REPLACEMENT
)
9.REMOVE CONSOLE BOX CARPET (SEE REPLACEMENT
)
10.REMOVE REAR CONSOLE ARMREST ASSY (SEE REPLACEMENT
)
11.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT
)
12.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE
REPLACEMENT
)
13.REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT
)
14.REMOVE CONSOLE BOX (SEE REPLACEMENT
)
15.SEPARATE OXYGEN SENSOR (SEE REPLACEMENT
)
16.REMOVE EXHAUST PIPE ASSY (SEE REPLACEMENT
)
17.REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (SEE OVERHAUL
)
18.DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug, gasket and drain the ATF.
b. Install a new gasket and the drain plug.
Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
19.REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSY
a. Using SST and a hammer, loosen the staked part of the nut.
SST 09930-00010
HINT:
Move the shift lever to the P position.
Page 919 of 4500

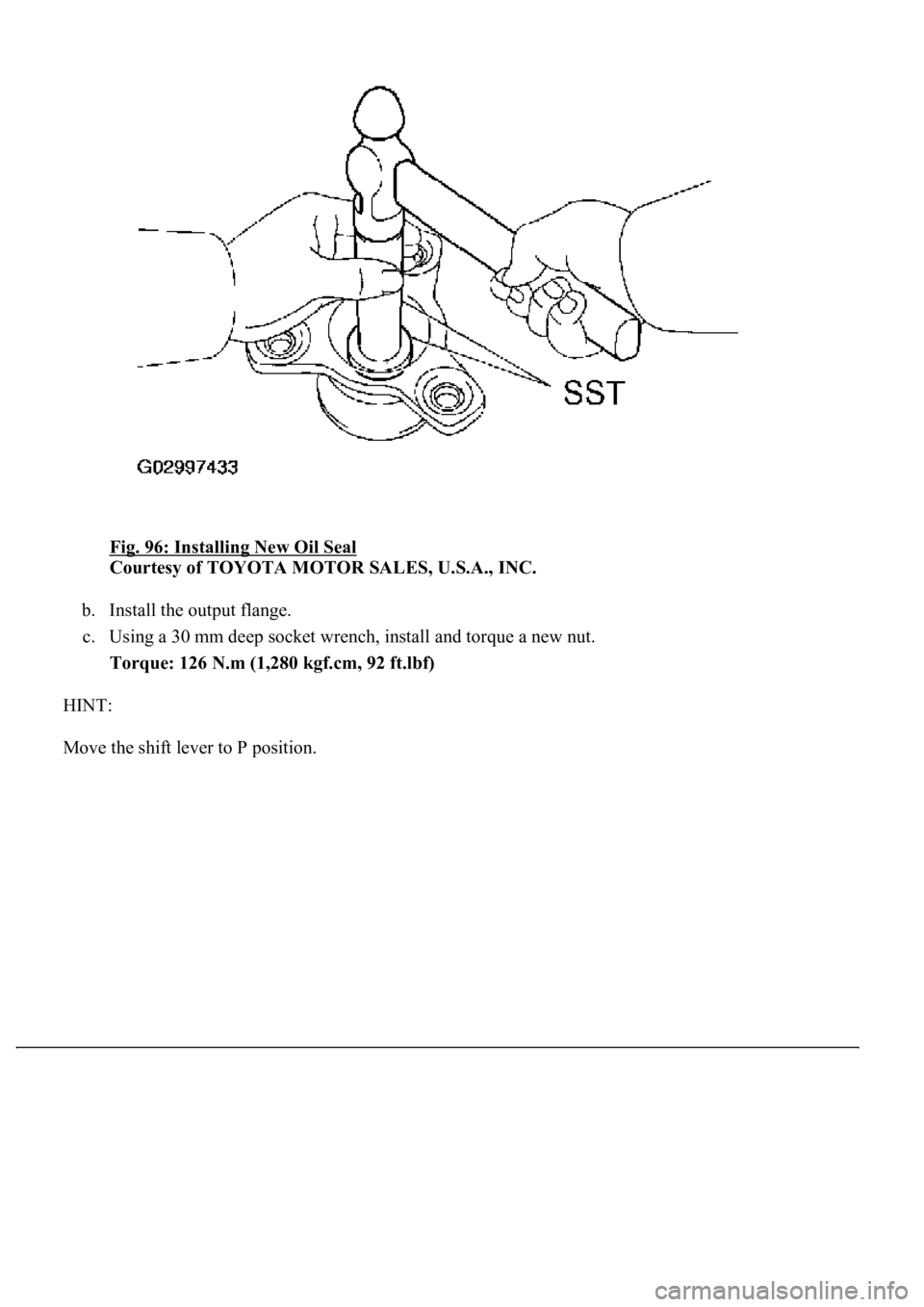

Fig. 96: Installing New Oil Seal
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the output flange.
c. Using a 30 mm deep socket wrench, install and torque a new nut.
Torque: 126 N.m (1,280 kgf.cm, 92 ft.lbf)
HINT:
Move the shift lever to P position.
Page 920 of 4500

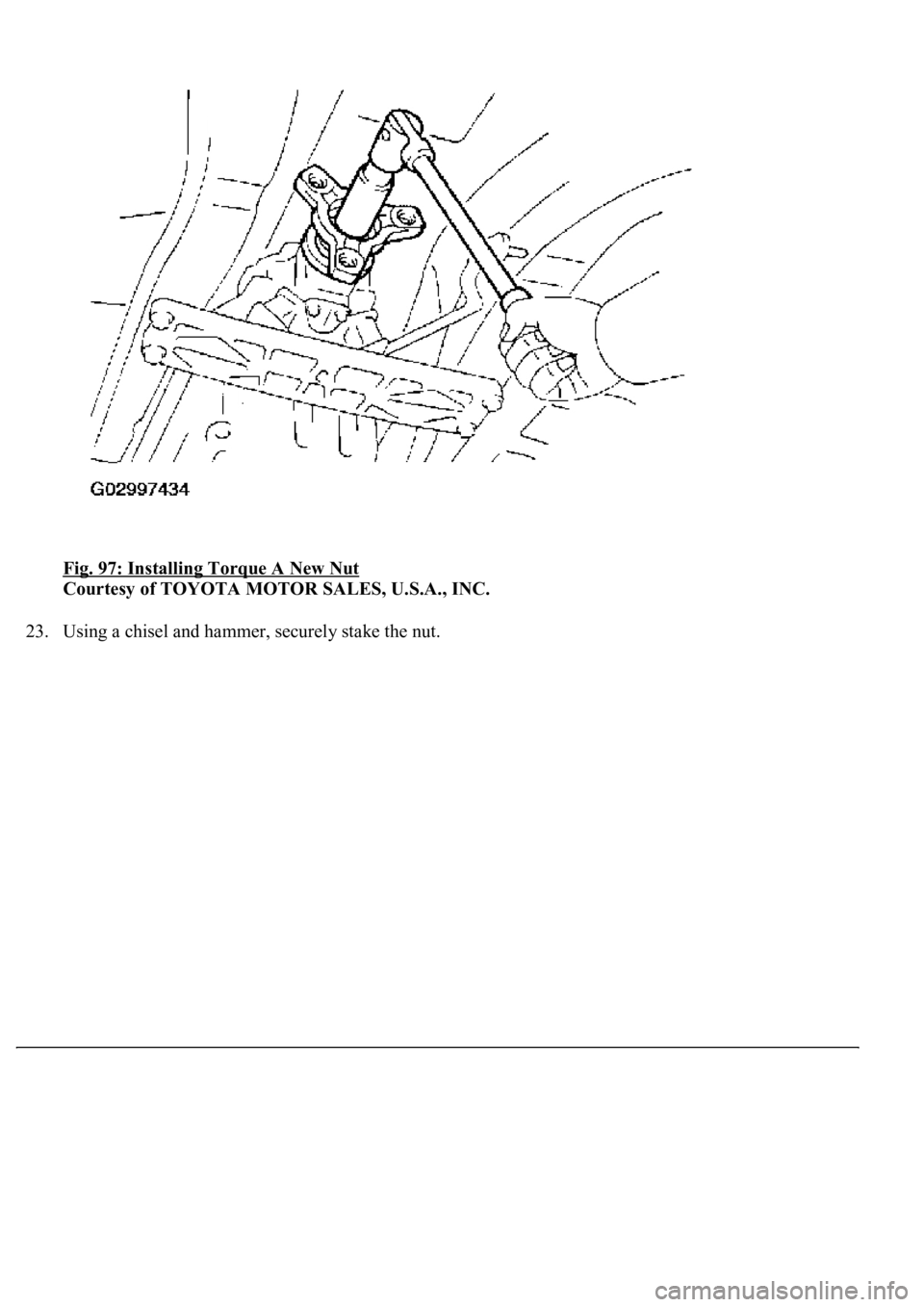

Fig. 97: Installing Torque A New Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23. Usin
g a chisel and hammer, securely stake the nut.
Page 958 of 4500
Fig. 133: Installing Shift Lever Knob Sub-Assy To Floor Shift Lever Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
48.INSTALL INDOOR ELECTRICAL KEY OSCILLATOR (W/ SMART KEY)
a. Install the indoor electrical key oscillator to the shift lever plate with the 2 screws.
49.INSTALL FLOOR SHIFT ASSY
a. Install the floor shift assy with the 4 bolts.
Torque: 8.3 N.m (85 kgf.cm, 74 in.lbf)
b. Connect the connector to the floor shift assy.
Page 959 of 4500

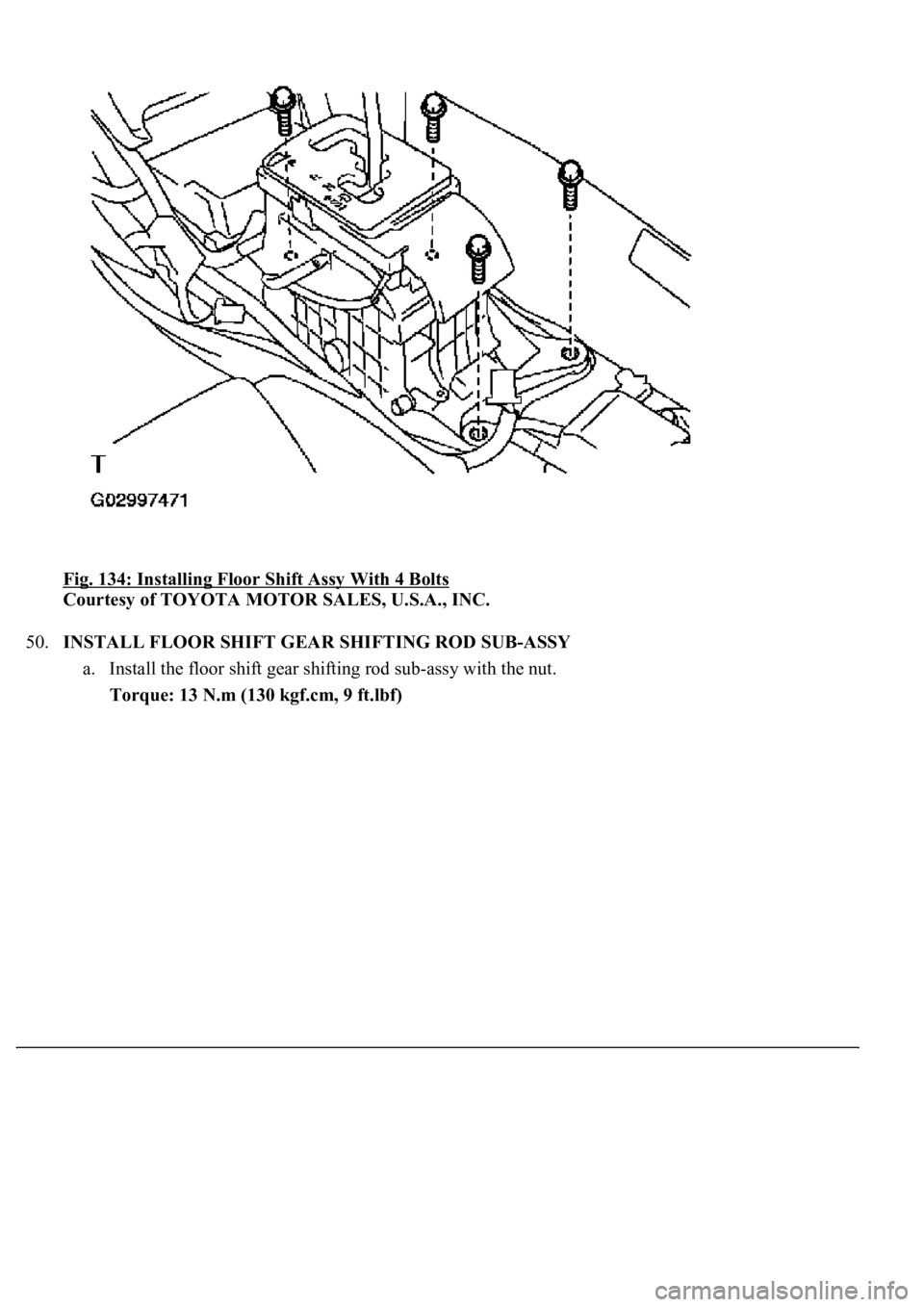

Fig. 134: Installing Floor Shift Assy With 4 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
50.INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
a. Install the floor shift gear shifting rod sub-assy with the nut.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
