2003 LEXUS LS430 torque

Fig. 22: Removing Bolt And Transmission Revolution Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.INSTALL TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
a. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
b. Install the transmission revolution sensor with the bolt.
Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
c. Connect the transmission revolution sensor connector.

Fig. 23: Installing Transmission Revolution Sensor With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSTALL TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
a. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
b. Install the transmission revolution sensor with the bolt.
Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
c. Connect the transmission revolution sensor connector.

3.REMOVE ENGINE UNDER COVER NO.2
4.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT
)
5.REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE REPLACEMENT
)
6.REMOVE INSTRUMENT PANEL FINISH PANEL (SEE REPLACEMENT
)
7.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE REPLACEMENT
)
8.REMOVE SWITCH BRACE HOLE COVER (SEE REPLACEMENT
)
9.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE REPLACEMENT
)
10.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE REPLACEMENT
)
11.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE REPLACEMENT
)
12.REMOVE CONSOLE BOX CARPET (SEE REPLACEMENT
)
13.REMOVE REAR CONSOLE ARMREST ASSY (SEE REPLACEMENT
)
14.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT
)
15.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE
REPLACEMENT
)
16.REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT
)
17.REMOVE CONSOLE BOX (SEE REPLACEMENT
)
18.SEPARATE OXYGEN SENSOR (SEE REPLACEMENT
)
a. Separate the 2 heated oxygen sensors.
19.REMOVE FRONT FLOOR BRACE CENTER (SEE REPLACEMENT
)
20.REMOVE EXHAUST PIPE ASSY (SEE REPLACEMENT
)
21.REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (SEE OVERHAUL
)
22.REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (SEE OVERHAUL
)
SST 09922-10010
23.DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug, gasket and drain the ATF.
b.Install a new gasket and the drain plug.
Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
24.REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSY
a. Remove the 2 bolts and exhaust pipe No.1 support bracket sub-ass
y.

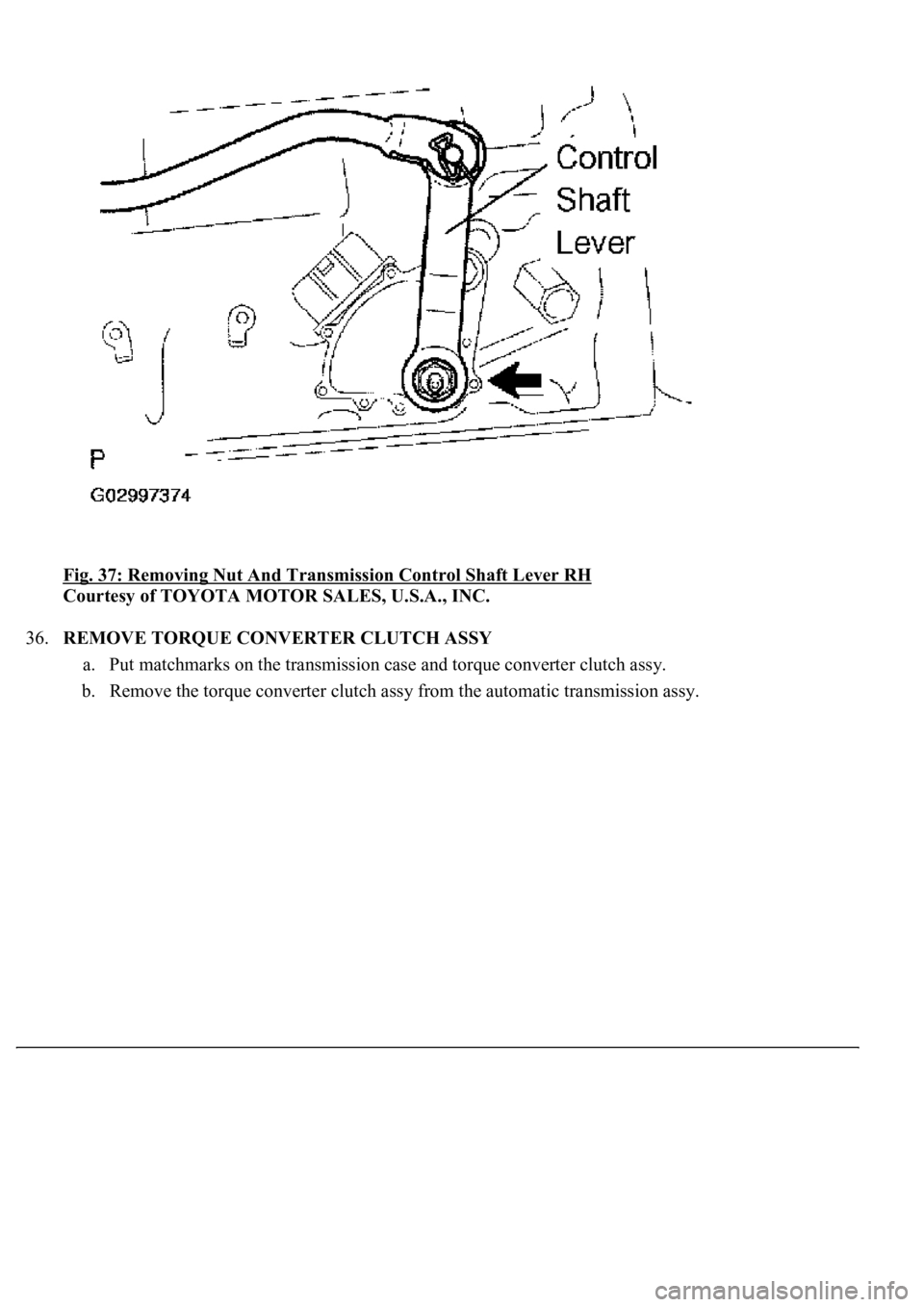

Fig. 37: Removing Nut And Transmission Control Shaft Lever RH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
36.REMOVE TORQUE CONVERTER CLUTCH ASSY
a. Put matchmarks on the transmission case and torque converter clutch assy.
b. Remove the torque converter clutch assy from the automatic transmission assy.

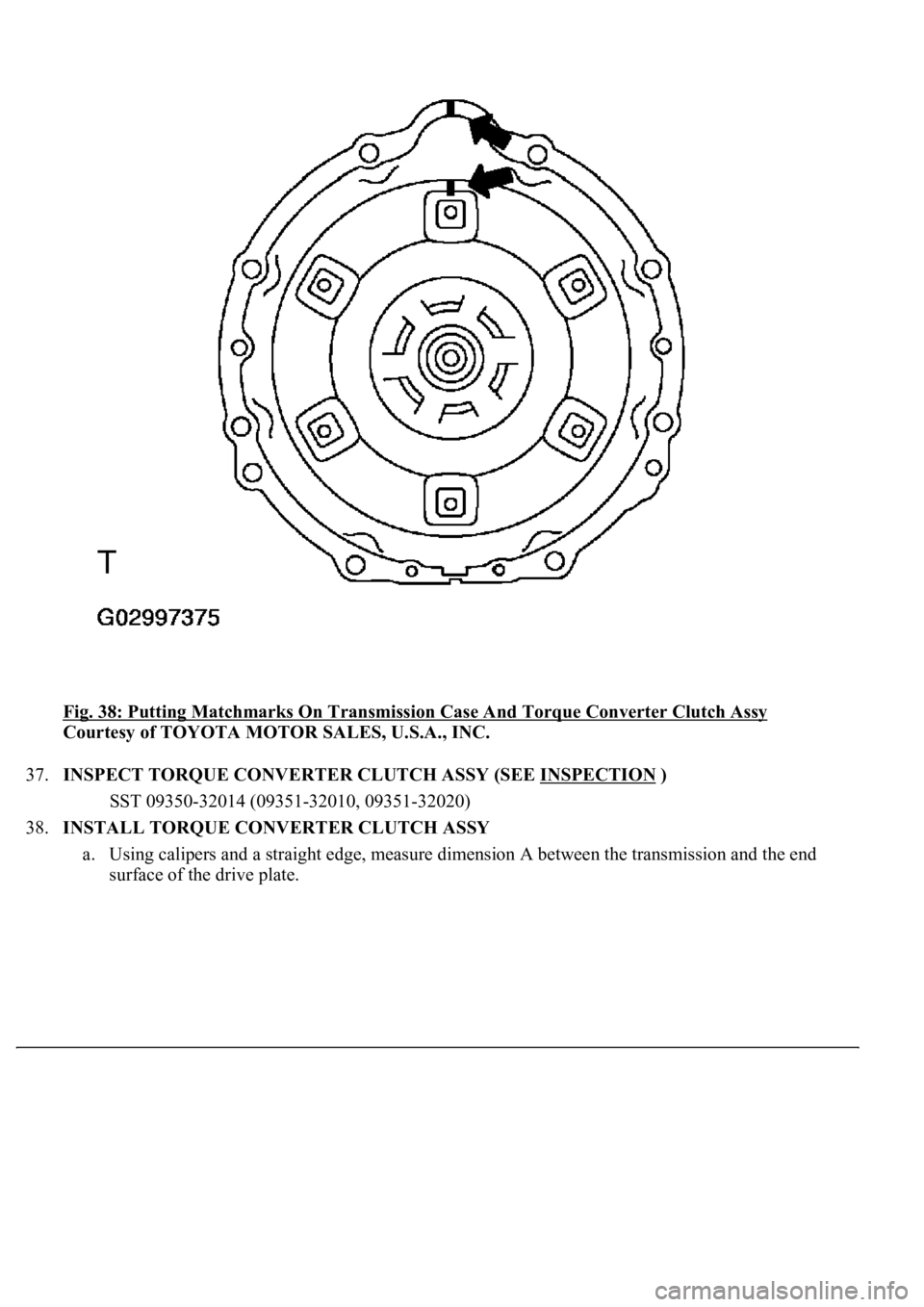

Fig. 38: Putting Matchmarks On Transmission Case And Torque Converter Clutch Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.INSPECT TORQUE CONVERTER CLUTCH ASSY (SEE INSPECTION
)
SST 09350-32014 (09351-32010, 09351-32020)
38.INSTALL TORQUE CONVERTER CLUTCH ASSY
a. Using calipers and a straight edge, measure dimension A between the transmission and the end
surface of the drive plate.

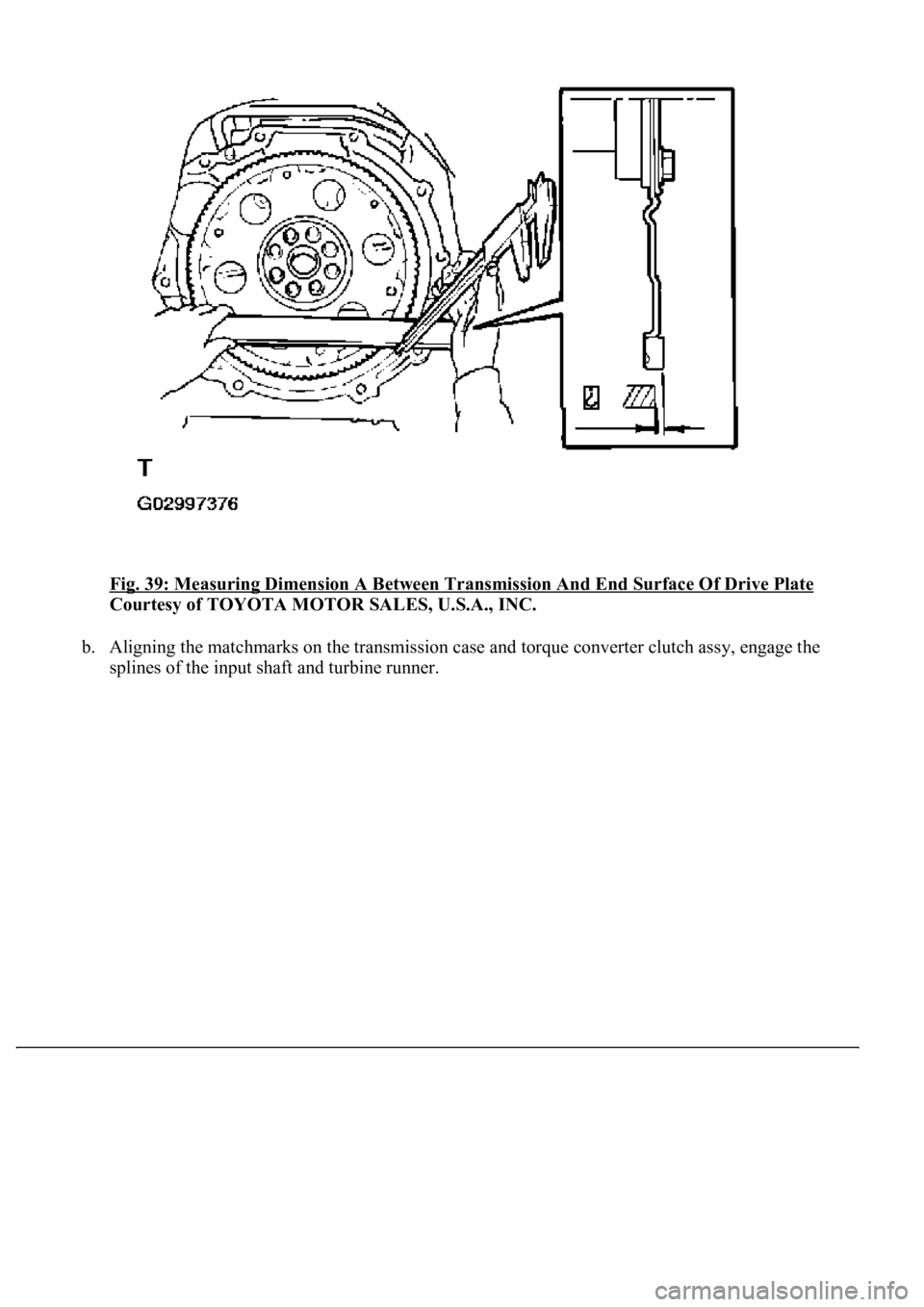

Fig. 39: Measuring Dimension A Between Transmission And End Surface Of Drive Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Aligning the matchmarks on the transmission case and torque converter clutch assy, engage the
splines of the input shaft and turbine runner.

Fig. 40: Aligning Matchmarks On Transmission Case And Torque Converter Clutch Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Engage the splines of the stator shaft and stator while turning the torque converter clutch assy.
HINT:
Turn the torque converter clutch assy approximately 180°.

<0029004c004a0011000300170014001d000300280051004a0044004a004c0051004a000300360053004f004c005100480056000300320049000300360057004400570052005500030036004b00440049005700030024005100470003003600570044005700
520055[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Turn the torque converter clutch assy and align the matchmarks on the torque converter clutch assy
and transmission case to engage the key of the oil pump drive gear into the slot on the torque
converter clutch assy.
