2003 LEXUS LS430 torque

HINT:
If you cannot add the listed amount of fluid, do the following:
1. Install the refill plug.
2. Allow the engine to idle with air conditioning OFF.
3. Move the shift lever through entire gear range to circulate fluid.
4. Wait for 30 seconds with the engine idling.
5. Stop the engine.
6. Remove the refill plug and add fluid.
7. Reinstall the refill plug.
4.FLUID CIRCULATION
a. Allow the engine to idle with the air conditioning OFF.
b. Move the shift lever through entire gear range to circulate fluid.
5.FLUID TEMPERATURE CHECK
a. With hand-held tester
1. Connect the han
d-held tester to the DLC3.
Output shaft oil seal replacement0.4 liters (0.42 US qts, 0.35 Imp. qts)
Transmission pan and drain plug removal1.3 liters (1.37 US qts, 1.14 Imp. qts)
Transmission valve body removal3.9 liters (4.12 US qts, 3.43 Imp. qts)
Torque converter replacement5.3 liters (5.60 US qts, 4.66 Imp. qts)
Entire transmission assembly7.2 liters (7.61 US qts, 6.34 Imp. qts)

7.TRANSMISSION
a. Install the overflow plug.
b. Stop the engine.
c. Remove the refill plug.
d. Add 0.4 liters (0.42 US qts, 0.35 Imp. qts) of fluid.
e. Allow the engine to idle and wait for 10 seconds.
f. Proceed to next step.
8.COMPLETE
a. Install the overflow plug with a new gasket.
b. Stop the engine.
c. Install the refill plug with a new gasket.
d. Install the transmission case cover with the two bolts.
Torque:
20 N.m (204 kgf.cm, 15 ft.lbf) for overflow plug
39 N.m (400 kgf.cm, 53 ft.lbf) for refill plug
REPLACEMENT
1.DISCONNECT BATTERY NEGATIVE TERMINAL
2.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT
)
3.REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE REPLACEMENT
)
4.REMOVE INSTRUMENT PANEL FINISH PANEL (SEE REPLACEMENT
)
5.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE REPLACEMENT
)
6.REMOVE SWITCH BRACE HOLE COVER (SEE REPLACEMENT
)
7.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE REPLACEMENT
)
8.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE REPLACEMENT
)
9.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE REPLACEMENT
)
10.REMOVE CONSOLE BOX CARPET (SEE REPLACEMENT
)
11.REMOVE REAR CONSOLE ARMREST ASSY (SEE REPLACEMENT
)
12.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT
)
13.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE
REPLACEMENT
)
14.REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT
)
15.REMOVE CONSOLE BOX (SEE REPLACEMENT
)
16.SEPARATE OXYGEN SENSOR (SEE REPLACEMENT
)

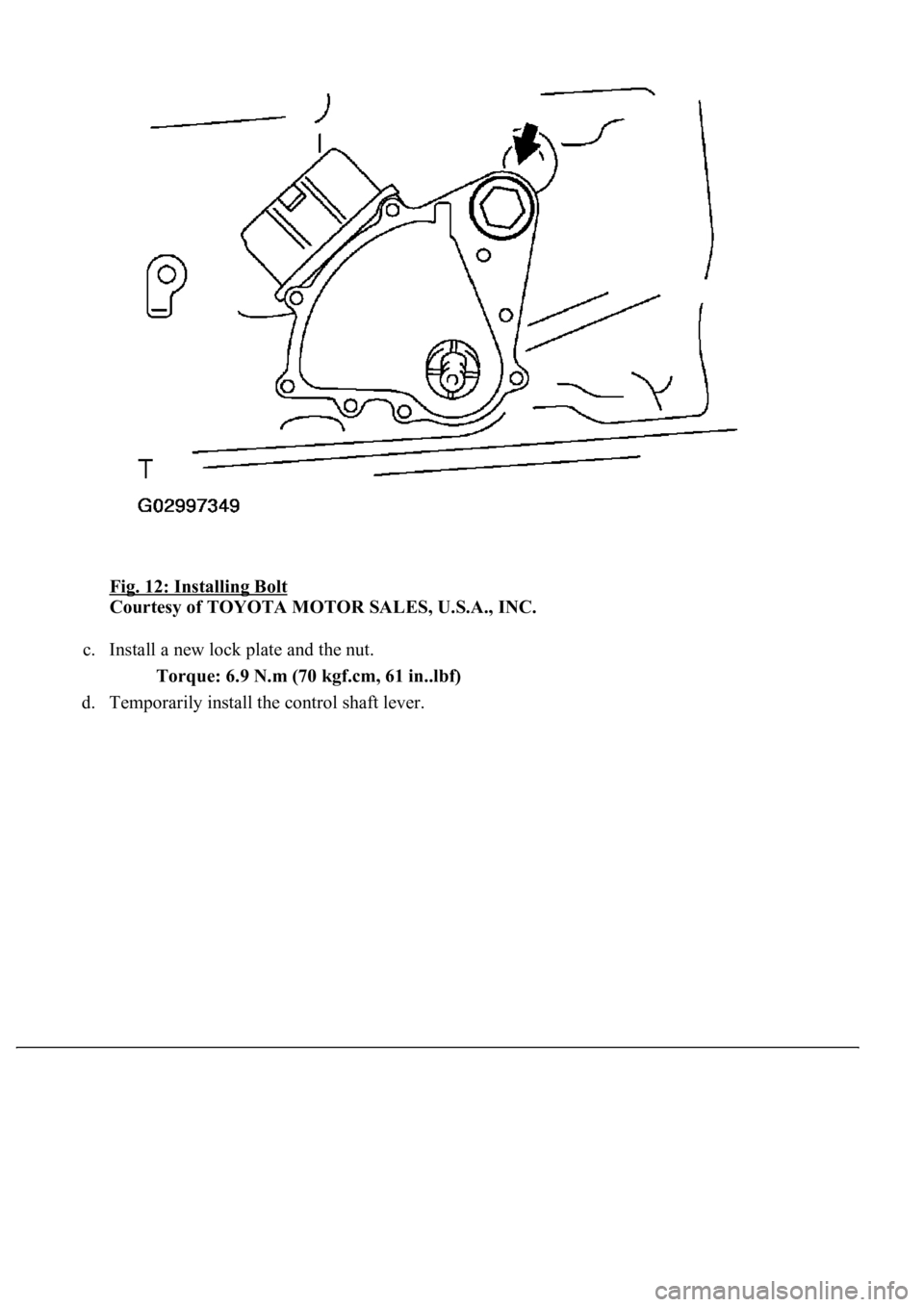

Fig. 12: Installing Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install a new lock plate and the nut.
Torque: 6.9 N.m (70 kgf.cm, 61 in..lbf)
d. Temporaril
y install the control shaft lever.

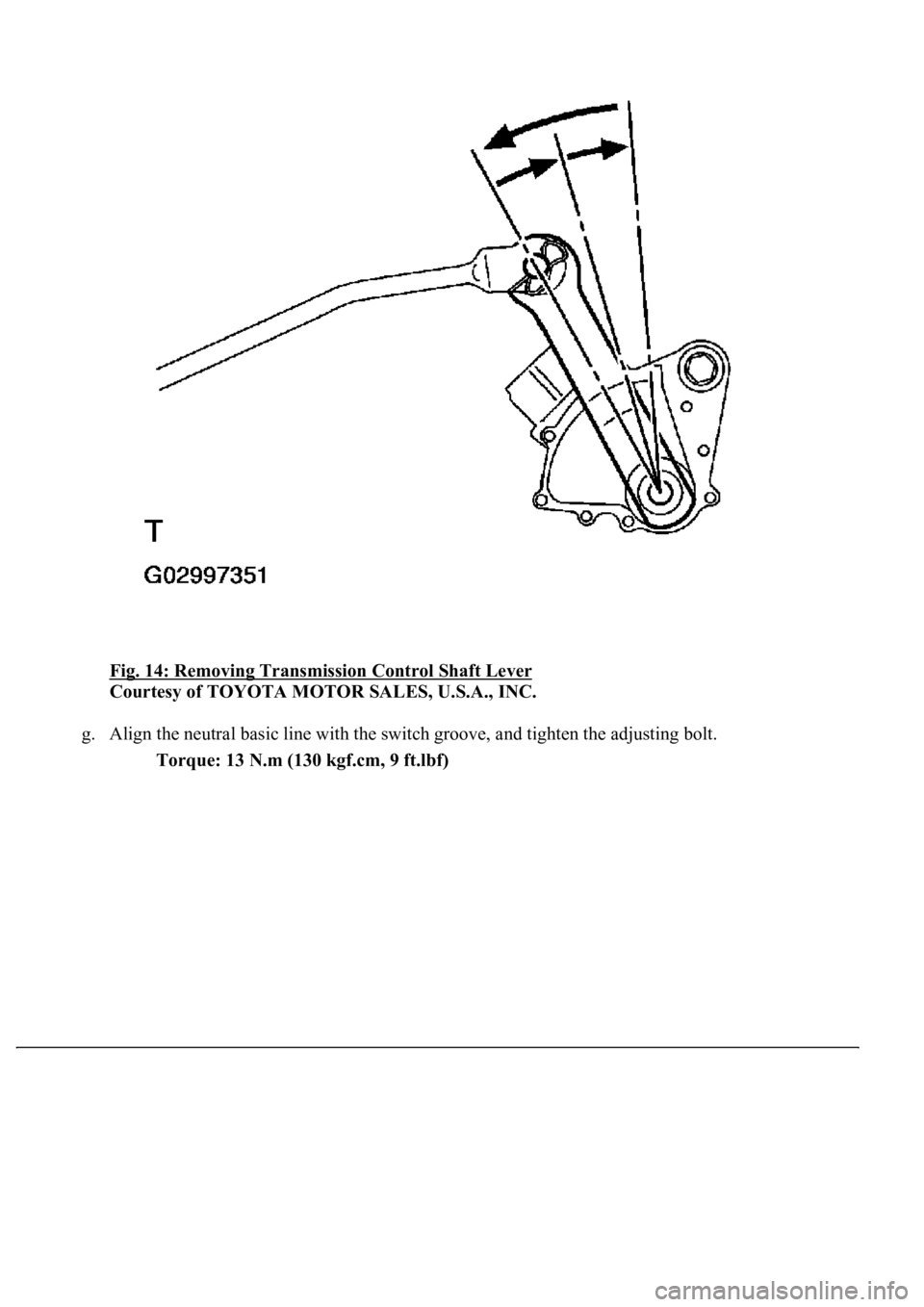

Fig. 14: Removing Transmission Control Shaft Lever
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
g. Align the neutral basic line with the switch groove, and tighten the adjusting bolt.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

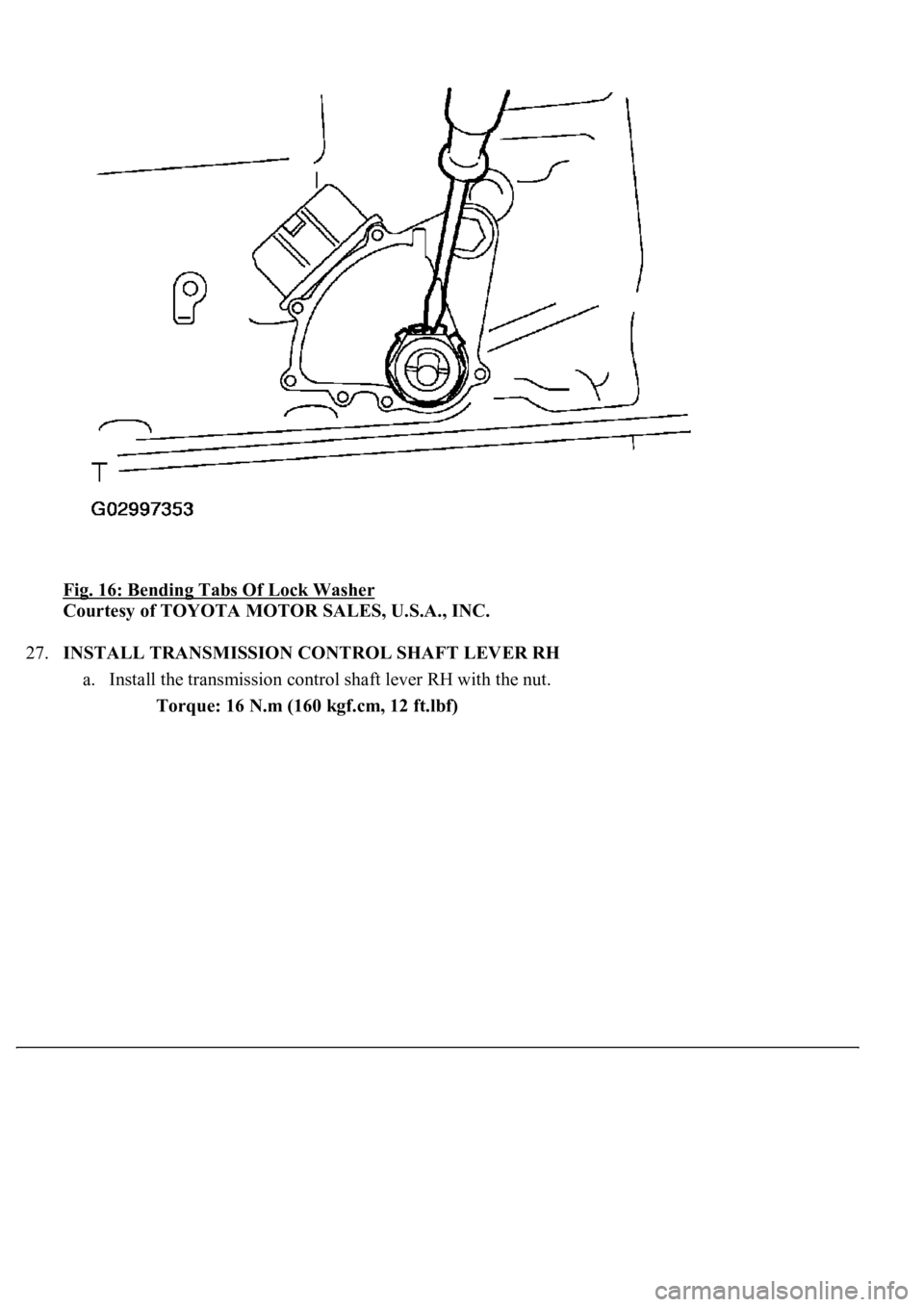

Fig. 16: Bending Tabs Of Lock Washer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.INSTALL TRANSMISSION CONTROL SHAFT LEVER RH
a. Install the transmission control shaft lever RH with the nut.
Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

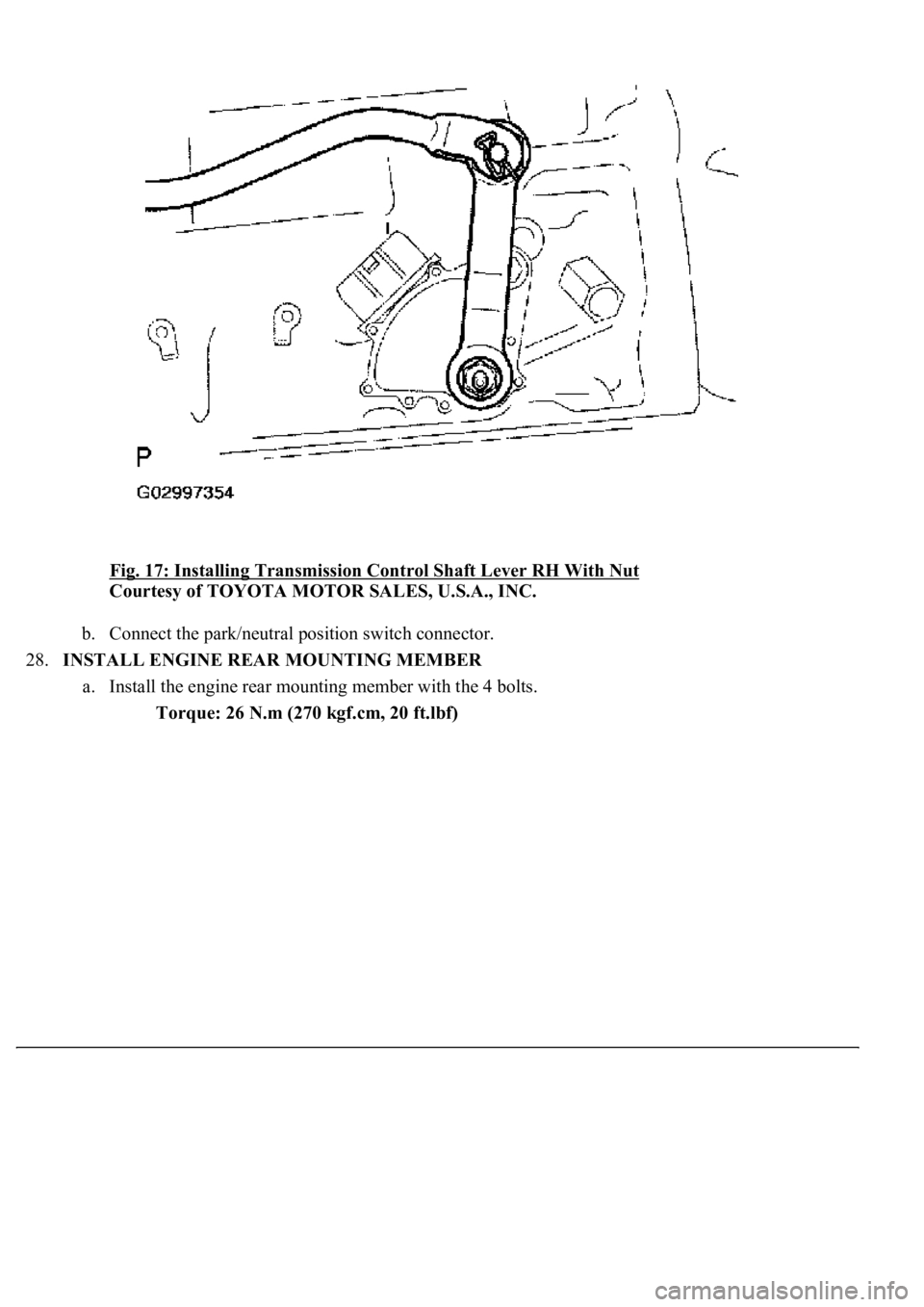

Fig. 17: Installing Transmission Control Shaft Lever RH With Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Connect the park/neutral position switch connector.
28.INSTALL ENGINE REAR MOUNTING MEMBER
a. Install the engine rear mounting member with the 4 bolts.
Torque: 26 N.m (270 kgf.cm, 20 ft.lbf)

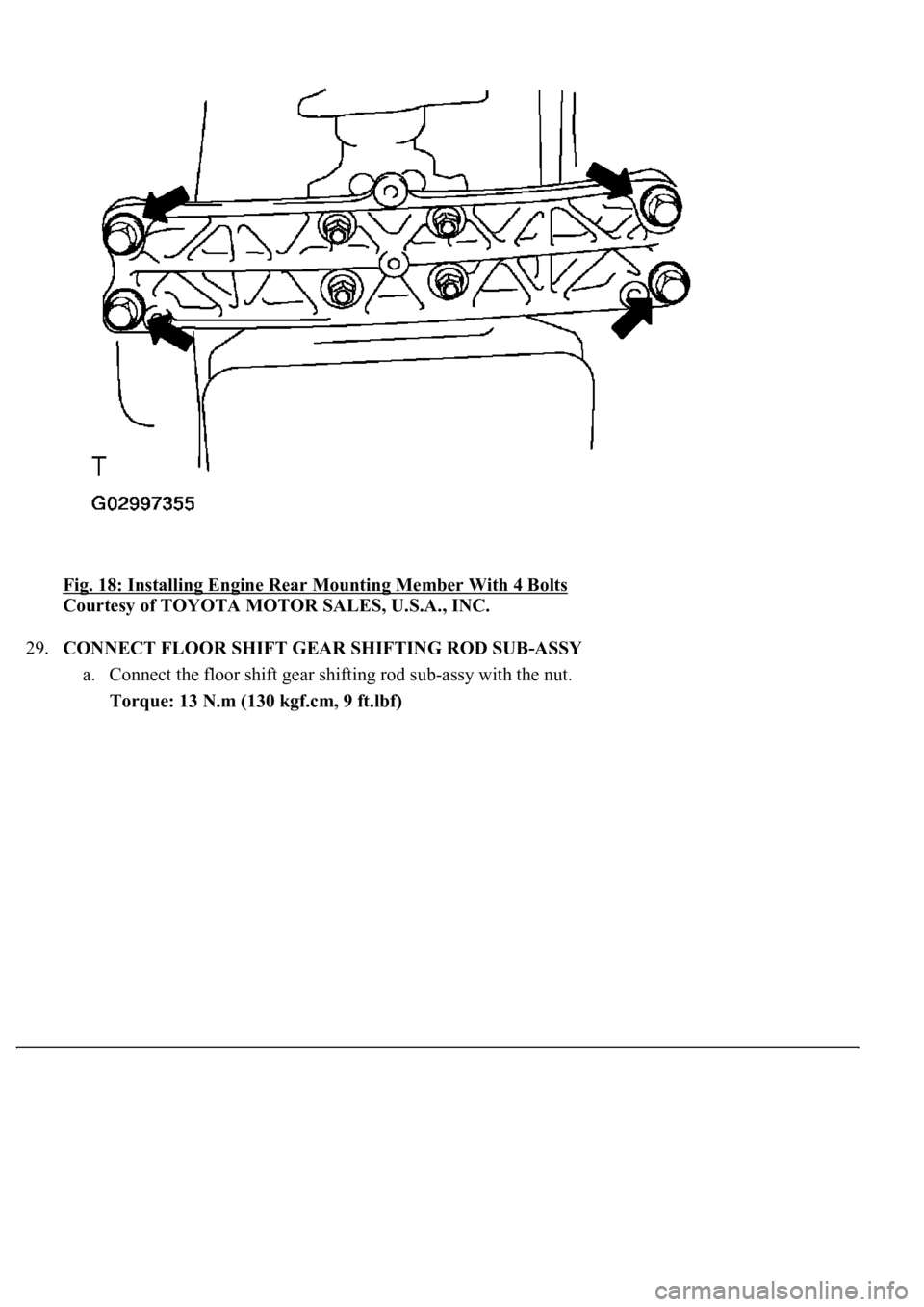

Fig. 18: Installing Engine Rear Mounting Member With 4 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29.CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
a. Connect the floor shift gear shifting rod sub-assy with the nut.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

If a failure is found, check the park/neutral position switch for continuity.
2.ADJUST PARK/NEUTRAL POSITION SWITCH ASSY
a. Loosen the bolt of the park/neutral position switch and move the shift lever to the N position.
b. Align the groove and the neutral basic line.
c. Hold the switch in position and tighten the bolt.
Torque: 13.0 N.m (130 kgf.cm, 9 ft.lbf)
d. After adjustment, perform the inspection described in step 1.
Fig. 20: Aligning Groove And Neutral Basic Line

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.REMOVE TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
a. Disconnect the transmission revolution sensor connector.
b. Remove the bolt and transmission revolution sensor.
