2003 LEXUS LS430 sensor

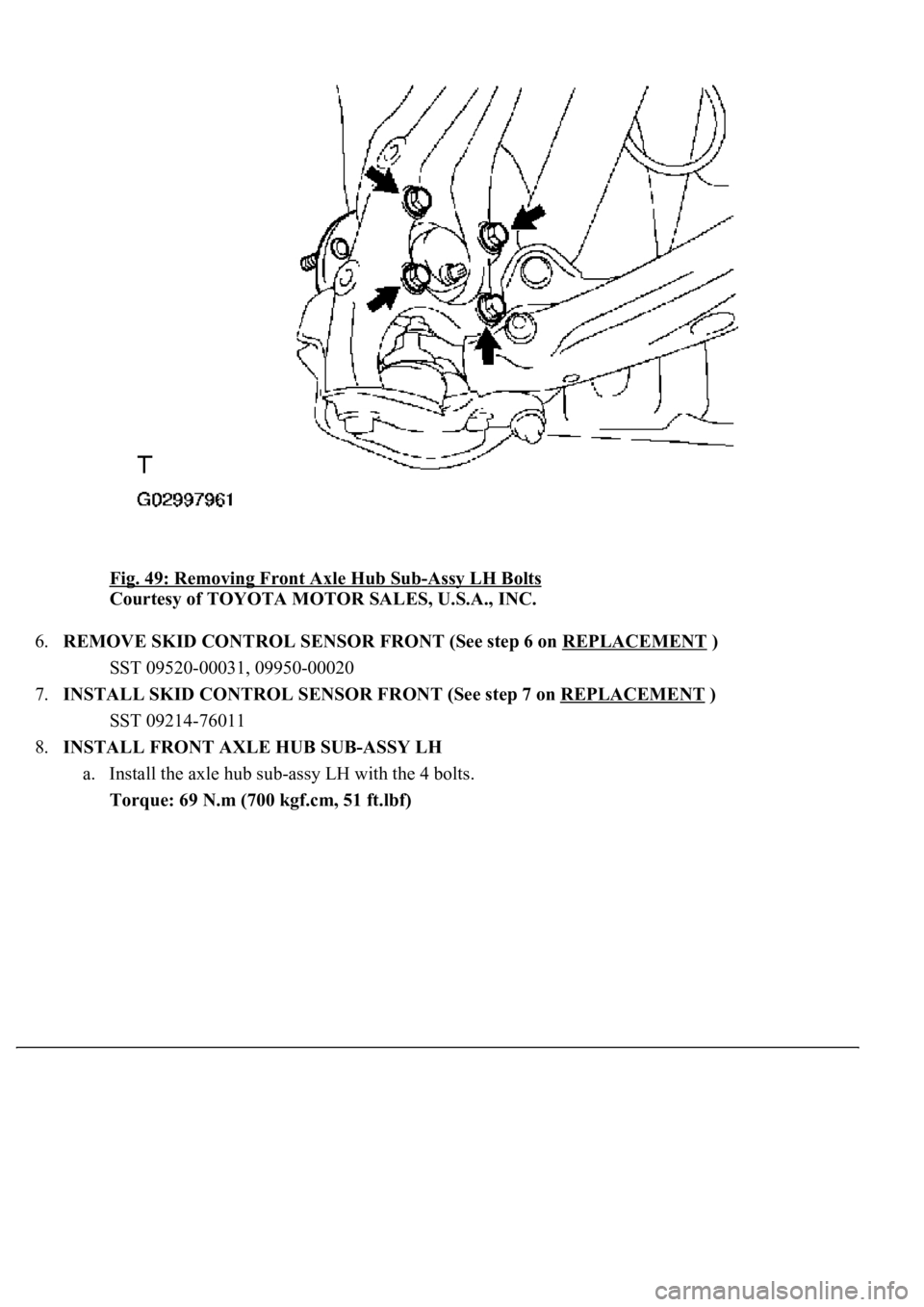

Fig. 49: Removing Front Axle Hub Sub-Assy LH Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE SKID CONTROL SENSOR FRONT (See step 6 on REPLACEMENT
)
SST 09520-00031, 09950-00020
7.INSTALL SKID CONTROL SENSOR FRONT (See step 7 on REPLACEMENT
)
SST 09214-76011
8.INSTALL FRONT AXLE HUB SUB-ASSY LH
a. Install the axle hub sub-assy LH with the 4 bolts.
Torque: 69 N.m (700 kgf.cm, 51 ft.lbf)

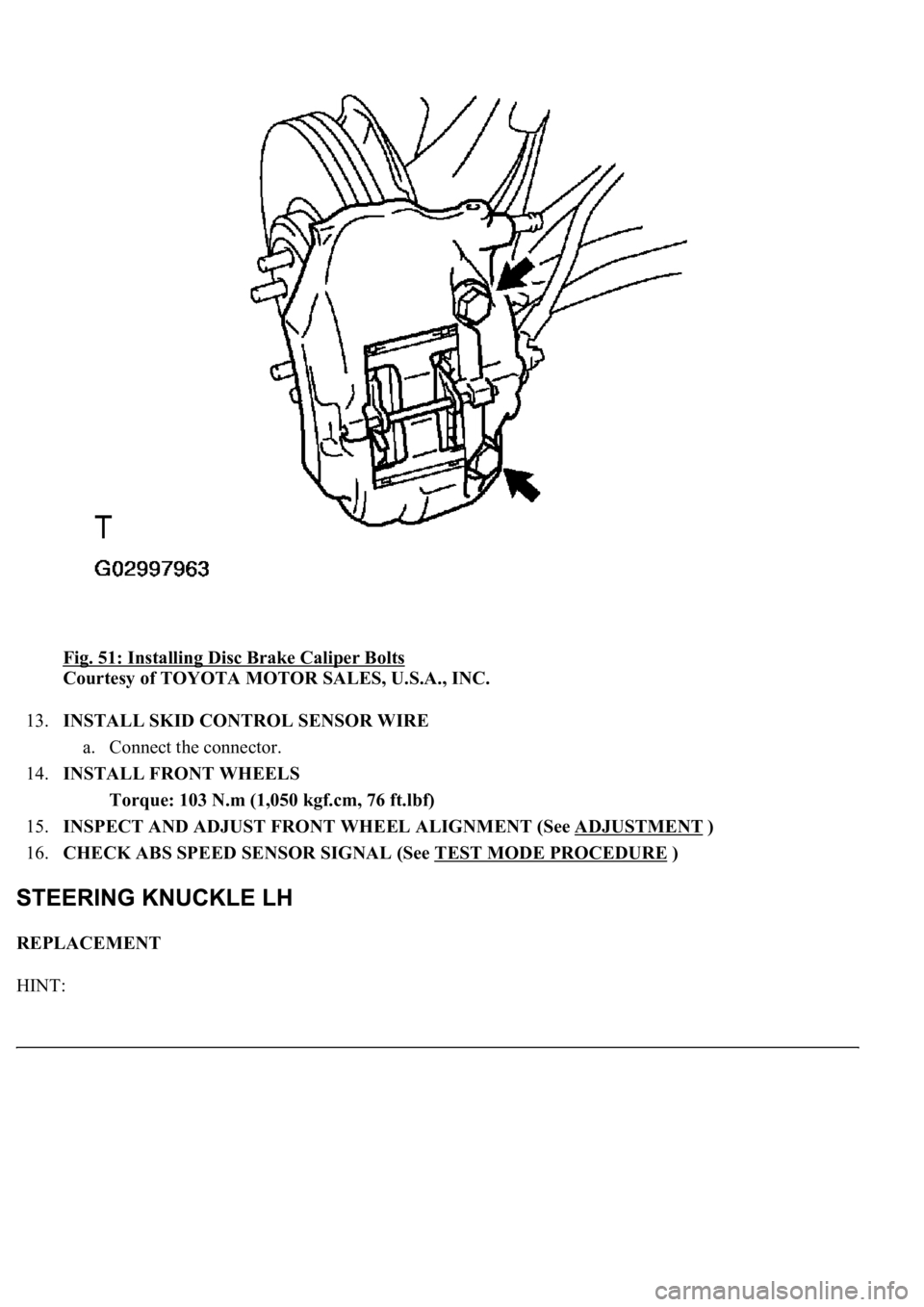

Fig. 51: Installing Disc Brake Caliper Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.INSTALL SKID CONTROL SENSOR WIRE
a. Connect the connector.
14.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
15.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)
16.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)
REPLACEMENT
HINT:

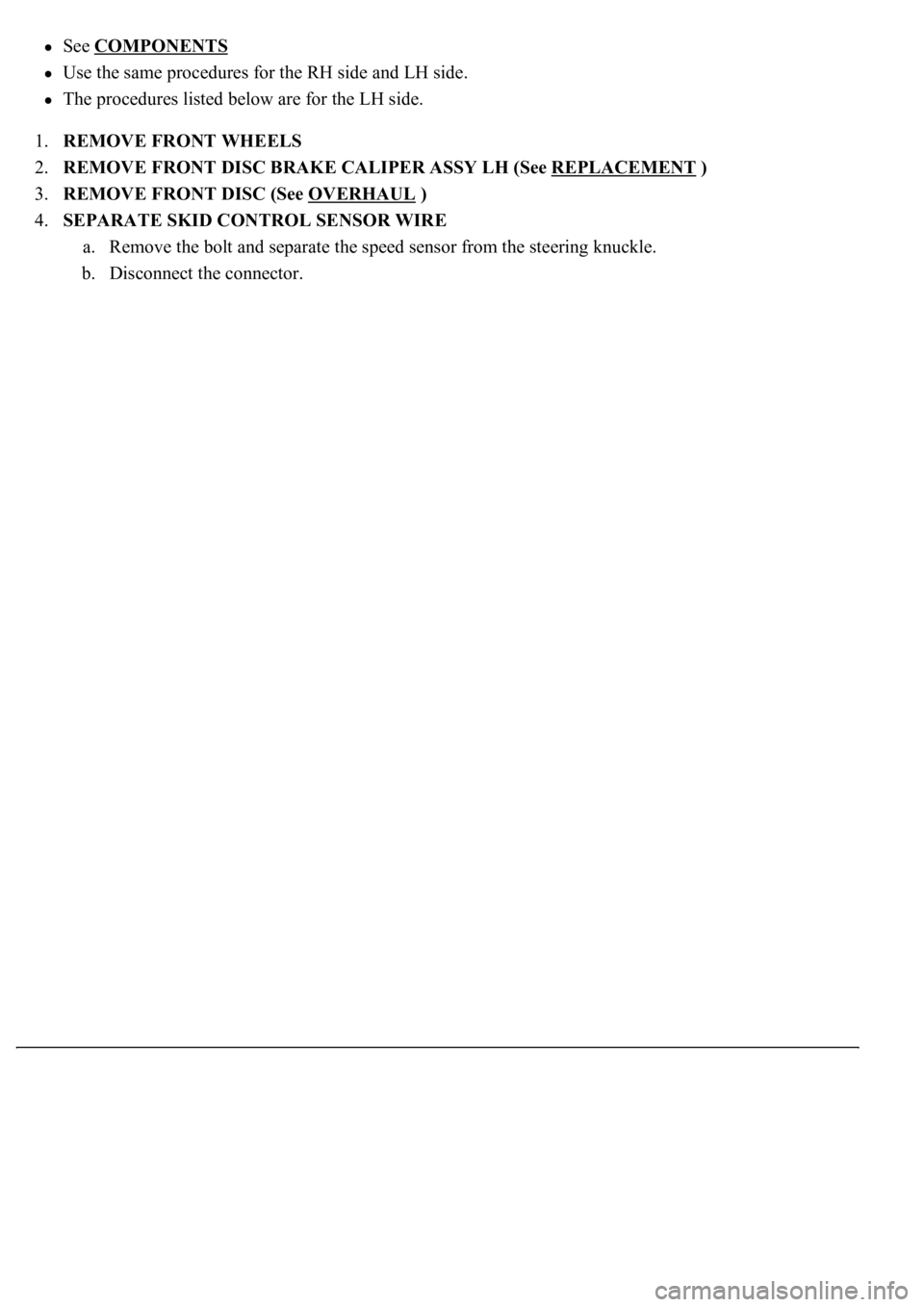

See COMPONENTS
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE FRONT WHEELS
2.REMOVE FRONT DISC BRAKE CALIPER ASSY LH (See REPLACEMENT
)
3.REMOVE FRONT DISC (See OVERHAUL
)
4.SEPARATE SKID CONTROL SENSOR WIRE
a. Remove the bolt and separate the speed sensor from the steering knuckle.
b. Disconnect the connector.

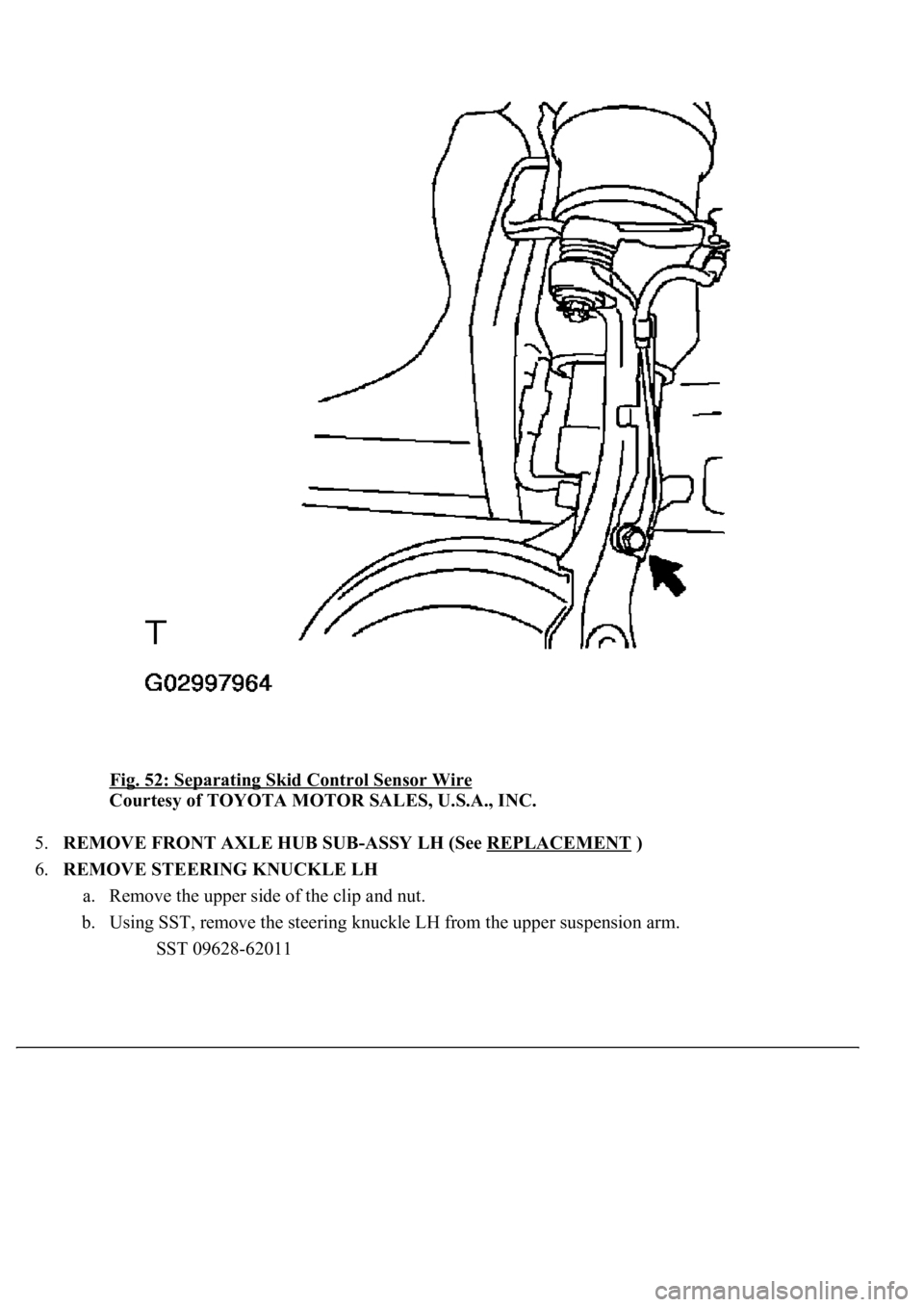

Fig. 52: Separating Skid Control Sensor Wire
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.REMOVE FRONT AXLE HUB SUB-ASSY LH (See REPLACEMENT
)
6.REMOVE STEERING KNUCKLE LH
a. Remove the upper side of the clip and nut.
b. Using SST, remove the steering knuckle LH from the upper suspension arm.
SST 09628-62011

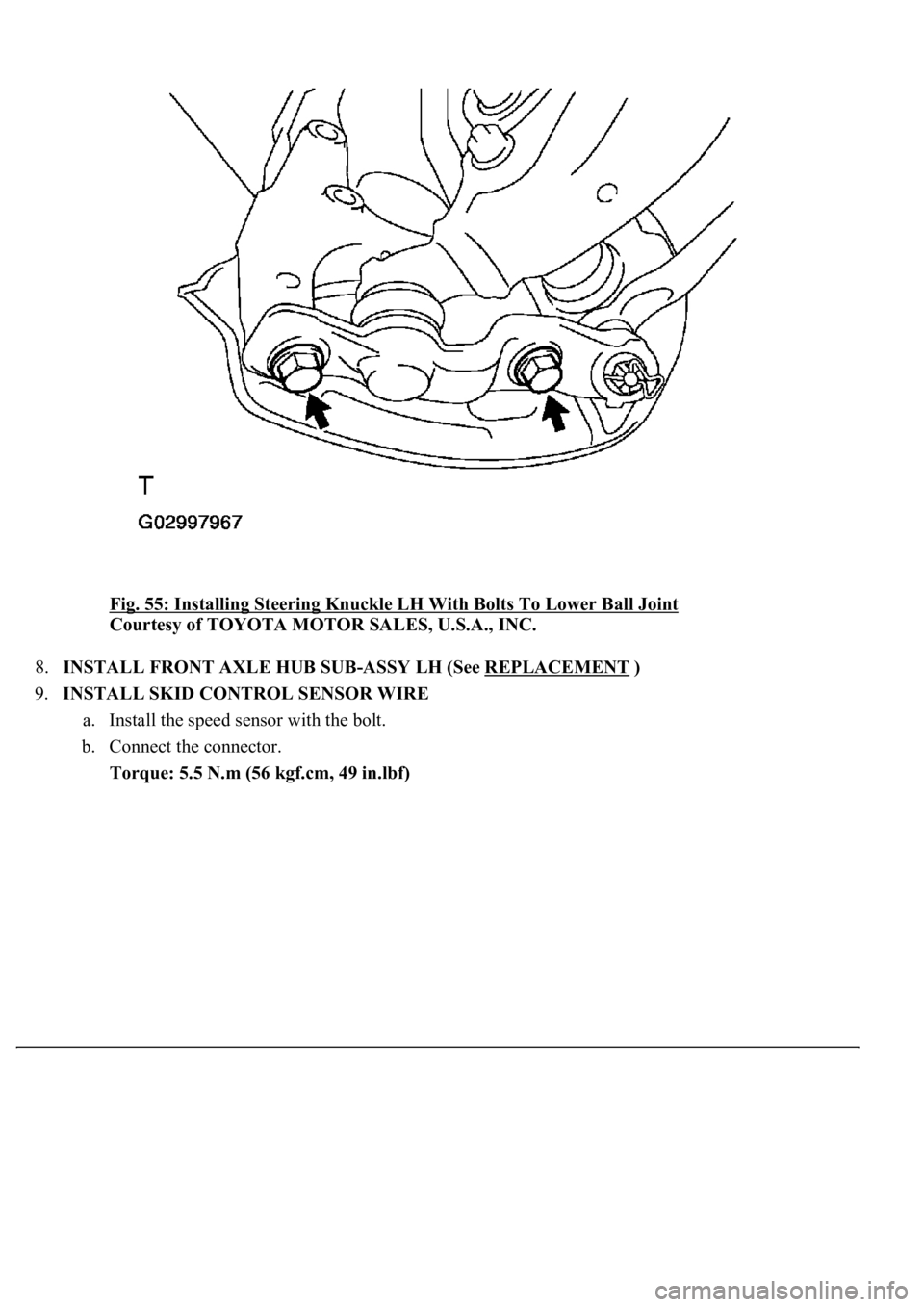

Fig. 55: Installing Steering Knuckle LH With Bolts To Lower Ball Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL FRONT AXLE HUB SUB-ASSY LH (See REPLACEMENT
)
9.INSTALL SKID CONTROL SENSOR WIRE
a. Install the speed sensor with the bolt.
b. Connect the connector.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

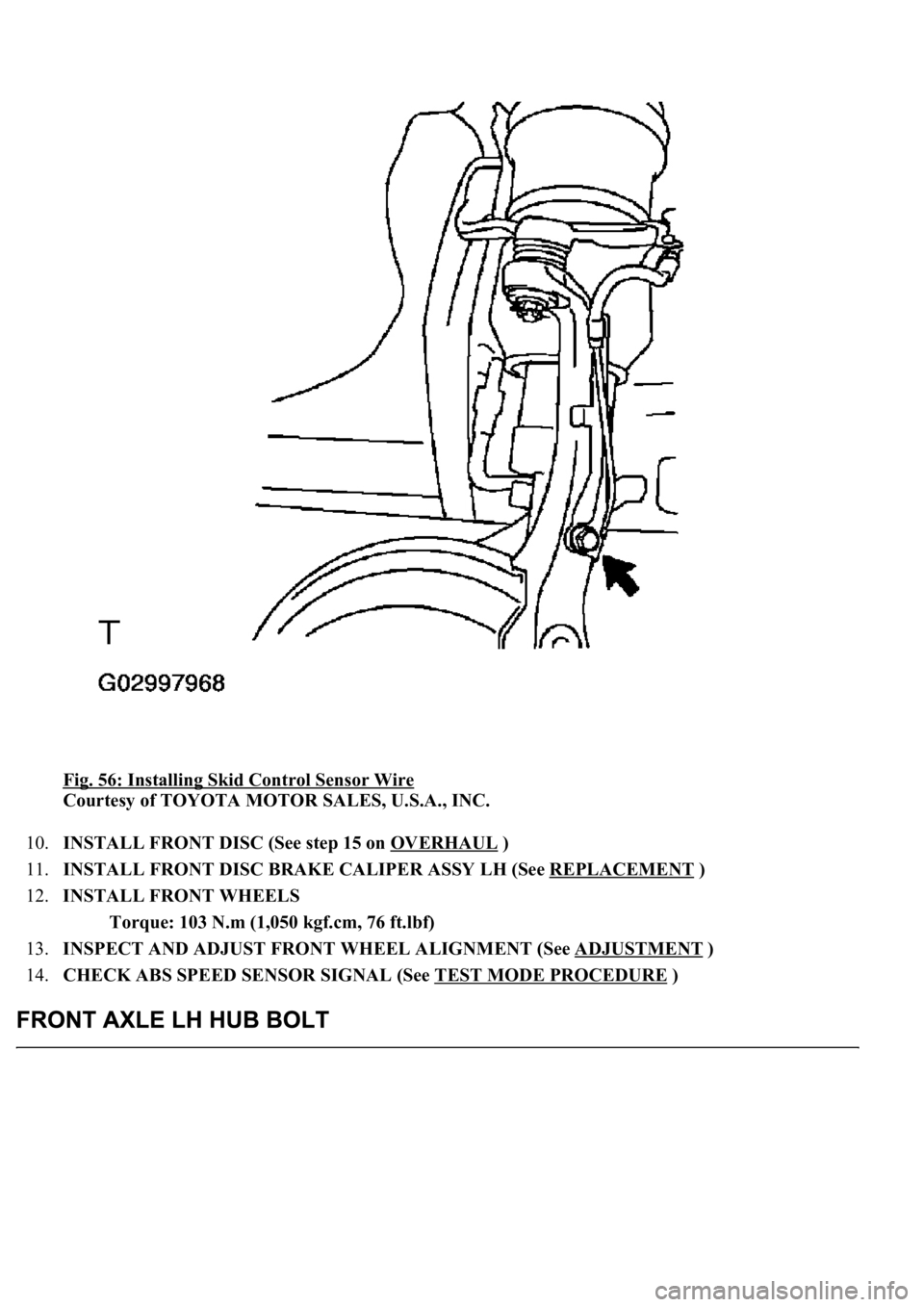

Fig. 56: Installing Skid Control Sensor Wire
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.INSTALL FRONT DISC (See step 15 on OVERHAUL
)
11.INSTALL FRONT DISC BRAKE CALIPER ASSY LH (See REPLACEMENT
)
12.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
13.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)
14.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)

The procedures listed below are for the LH side.
1.REMOVE REAR TIRE
2.SEPARATE HEIGHT CONTROL SENSOR LINK SUB-ASSY REAR
a. Place matchmarks on the height control sensor link and bracket.
b. Remove the nut from the height control sensor link.

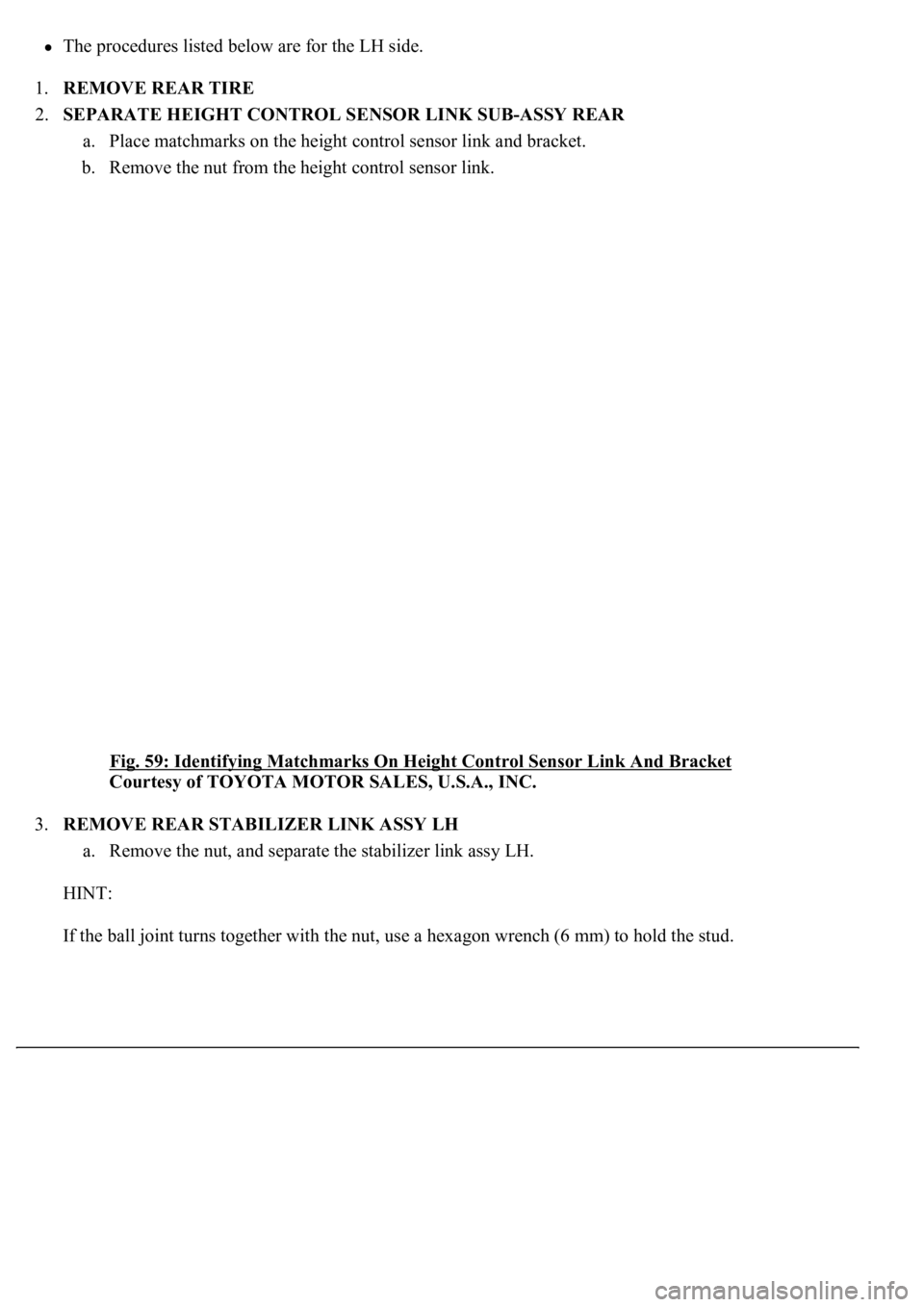

Fig. 59: Identifying Matchmarks On Height Control Sensor Link And Bracket

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.REMOVE REAR STABILIZER LINK ASSY LH
a. Remove the nut, and separate the stabilizer link assy LH.
HINT:
If the ball
joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.

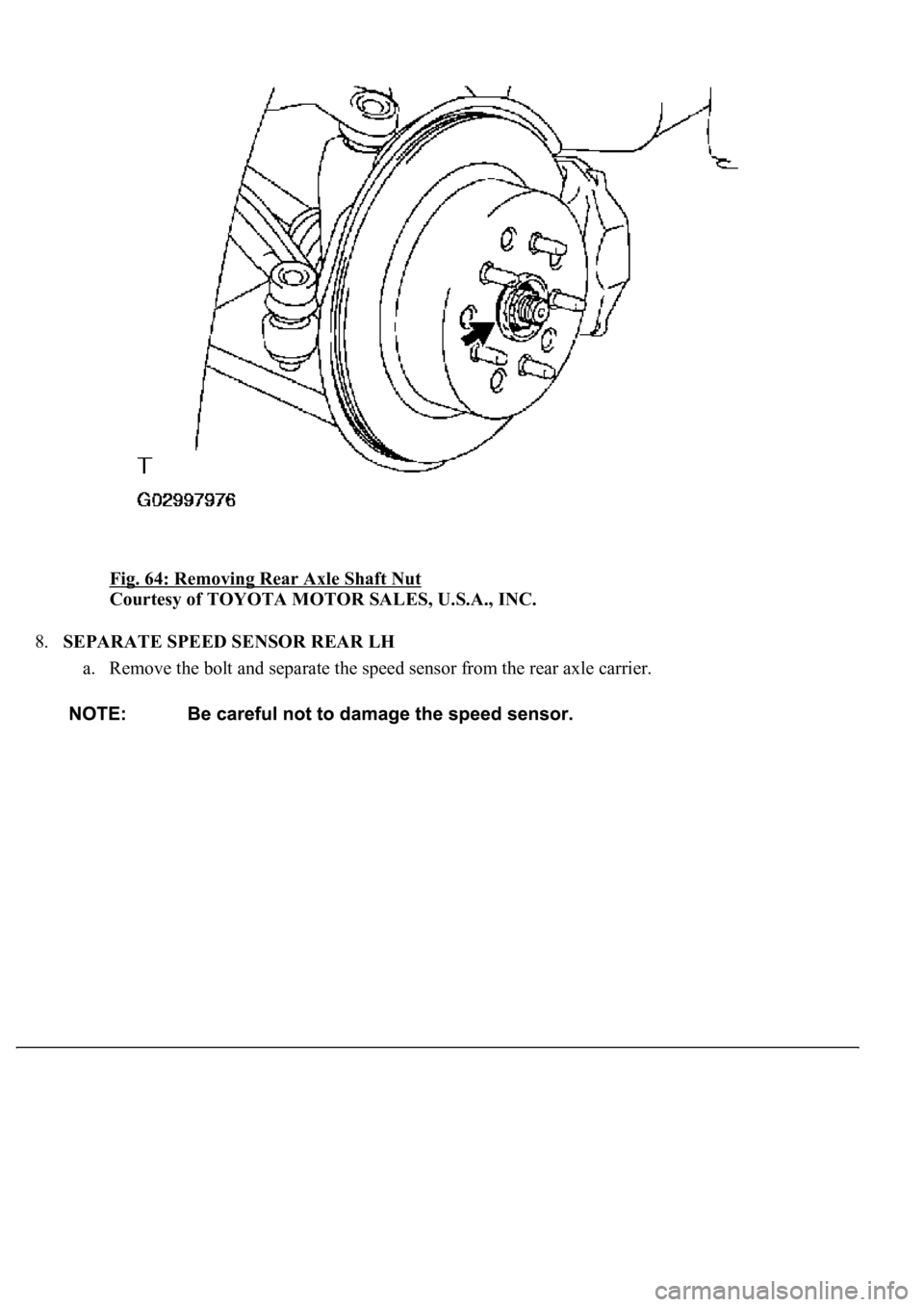

Fig. 64: Removing Rear Axle Shaft Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.SEPARATE SPEED SENSOR REAR LH
a. Remove the bolt and separate the speed sensor from the rear axle carrier.
