2003 LEXUS LS430 Identifying condition

Fig. 9: Identifying Connector Terminals Heated Oxygen Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Bank 1 sensor 2, bank 2 sensor 2:
Disconnect the sensor connector.
d. Measure the resistance between terminals 1 (HT) and 2 (+B).
Standard:
RESISTANCE CONDITION
If the result is not as specified, replace the sensor.
ConditionSpecified Condition
20°C (68°F)11 to 16 ohms

Fig. 12: Identifying Waveform 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 2 (Reference):
WAVEFORM 2 REFERENCE TABLE
TerminalCODE - GND
Tool Setting10 V/DIV., 20ms/DIV.
ConditionNo key in ignition key cylinder -> Key inserted

Fig. 13: Identifying Waveform 2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 3 (Reference):
WAVEFORM 3 REFERENCE TABLE
TerminalTXCT - GND
Tool Setting5 V/DIV., 20ms/DIV.
ConditionNo key in ignition key cylinder -> Key inserted

Fig. 16: Identifying Waveform 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 2 (Reference):
WAVEFORM 2 REFERENCE TABLE
TerminalRXCK - GND
Tool Setting5 V/DIV., 10 ms/DIV.
ConditionIgnition switch OFF -> ON
TerminalTXCT - GND
Tool Setting5 V/DIV., 20ms/DIV.
ConditionIgnition switch OFF -> ON

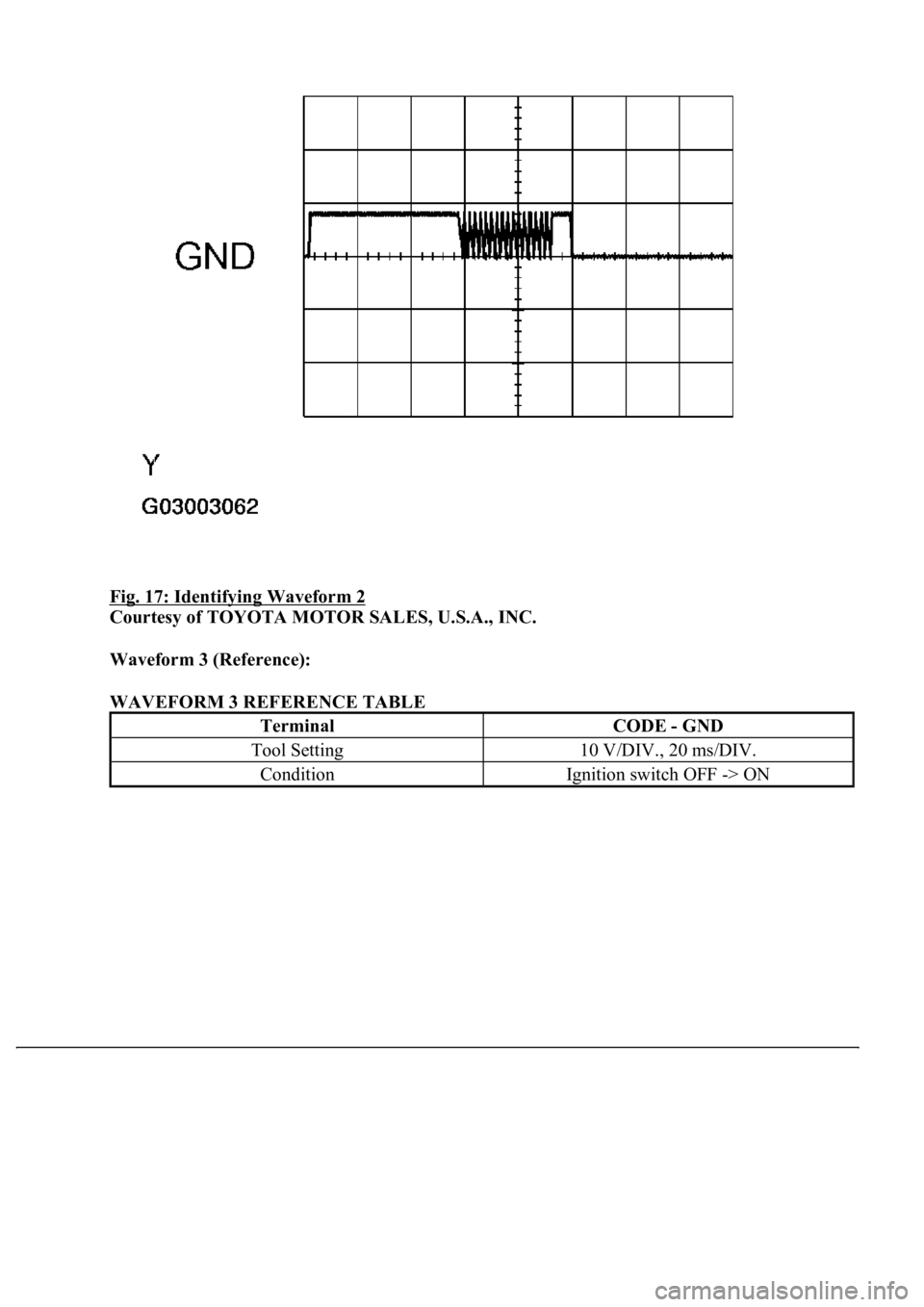

Fig. 17: Identifying Waveform 2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 3 (Reference):
WAVEFORM 3 REFERENCE TABLE
TerminalCODE - GND
Tool Setting10 V/DIV., 20 ms/DIV.
ConditionIgnition switch OFF -> ON

Fig. 18: Identifying Waveform 3
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 4 (Reference):
WAVEFORM 4 REFERENCE TABLE
TerminalEFIO - GND
Tool Setting10 V/DIV., 500 ms/DIV.
ConditionIgnition switch OFF -> ON

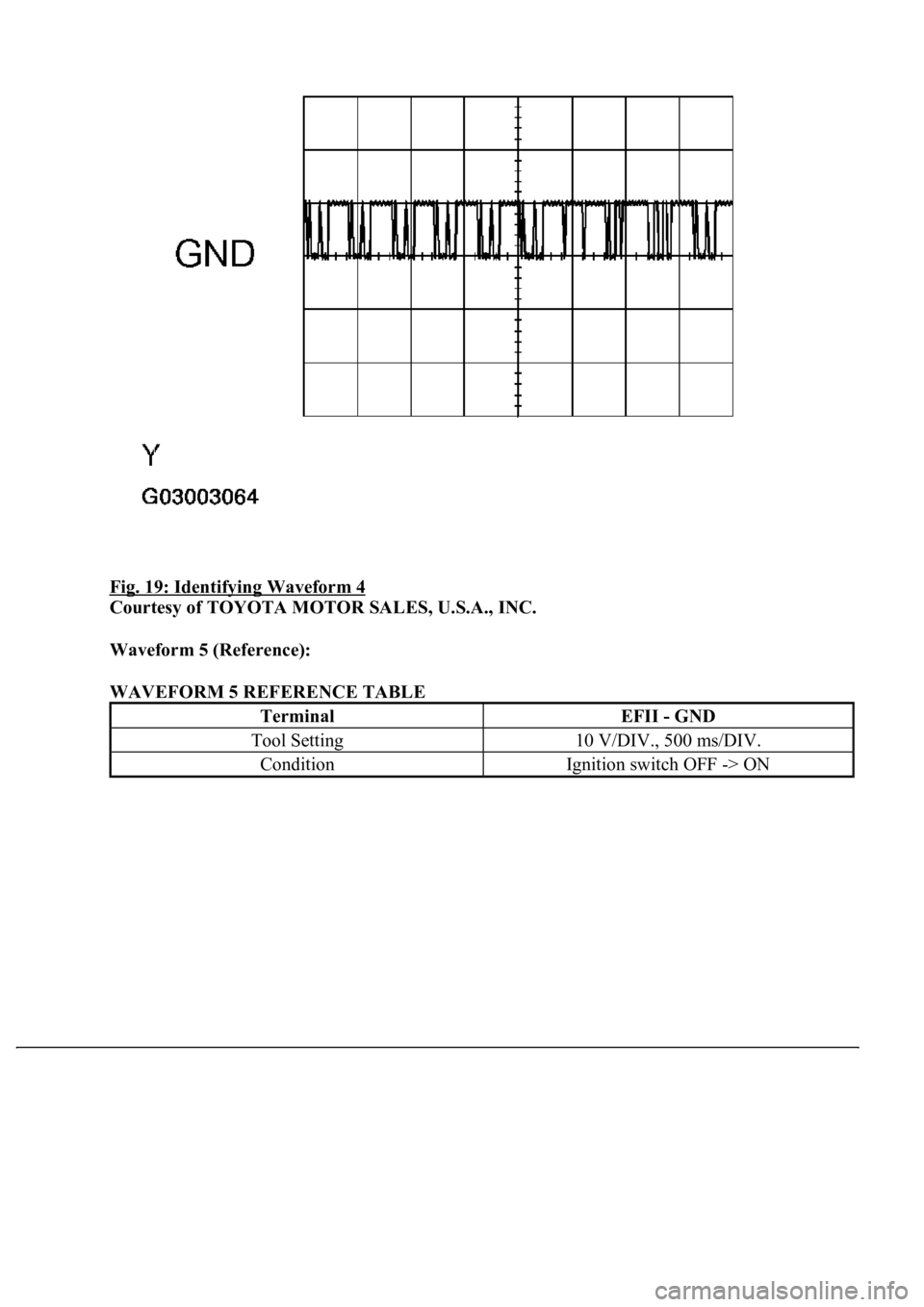

Fig. 19: Identifying Waveform 4
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 5 (Reference):
WAVEFORM 5 REFERENCE TABLE
TerminalEFII - GND
Tool Setting10 V/DIV., 500 ms/DIV.
ConditionIgnition switch OFF -> ON

Fig. 22: Identifying Waveform 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Waveform 2 (Reference):
WAVEFORM 2 REFERENCE TABLE
TerminalIMO - GND
Tool Setting10 V/DIV., 500 ms/DIV.
ConditionNo key in ignition key cylinder -> Key inserted
