2003 LEXUS LS430 display

4.Select a color bar from the "Color Bar Check Mode" screen.
HINT:
The entire screen turns to the color or stripe selected.
Touching the display will return to the "Color Bar Check" screen.
HINT:
This mode checks the touch switch operation condition on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore,
some detailed areas may not be shown exactly the same as on the actual vehicle.
1.Enter diagnostic mode (see DIAGNOSTIC START
-UP/FINISH ).

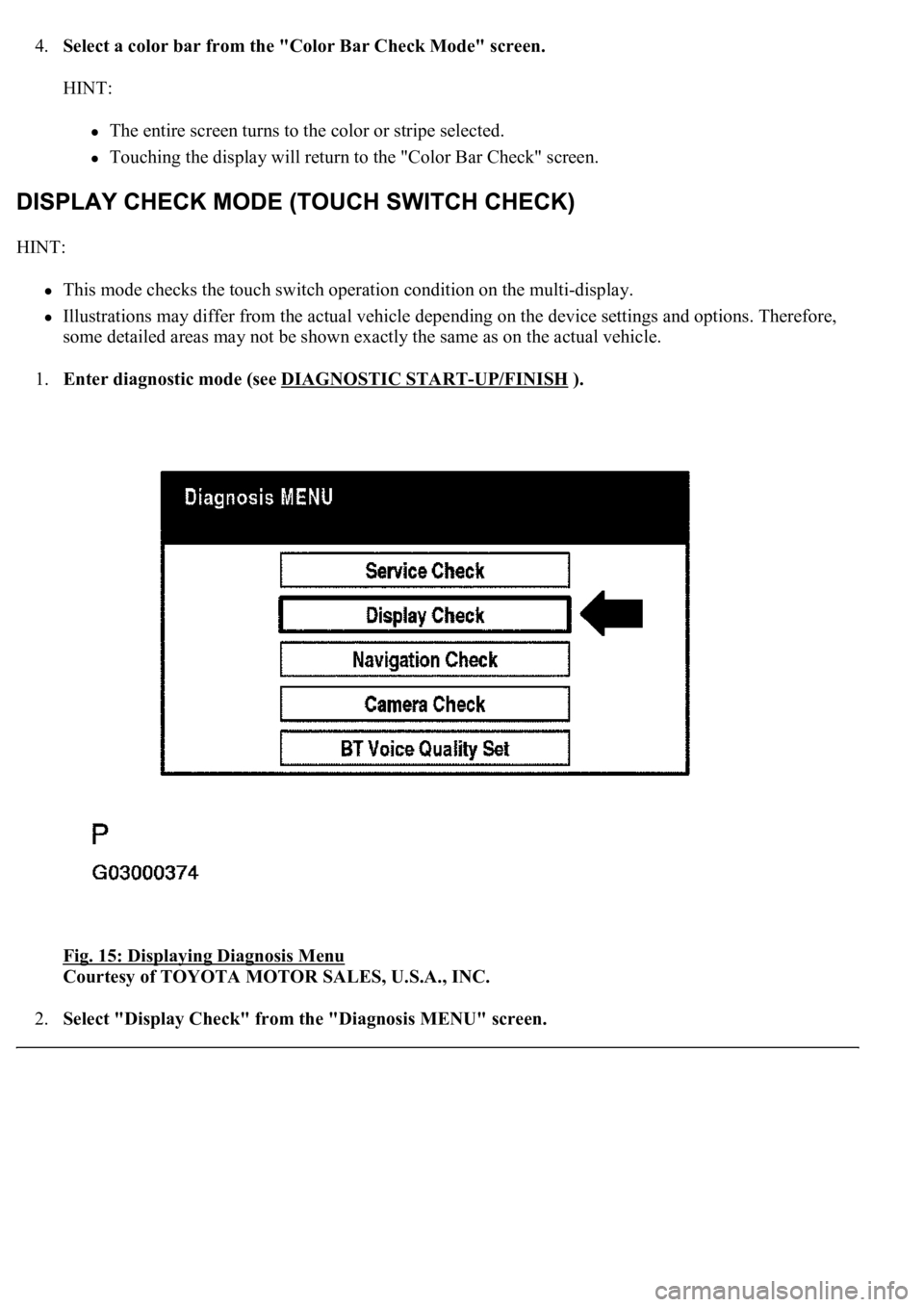

Fig. 15: Displaying Diagnosis Menu

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.Select "Display Check" from the "Diagnosis MENU" screen.

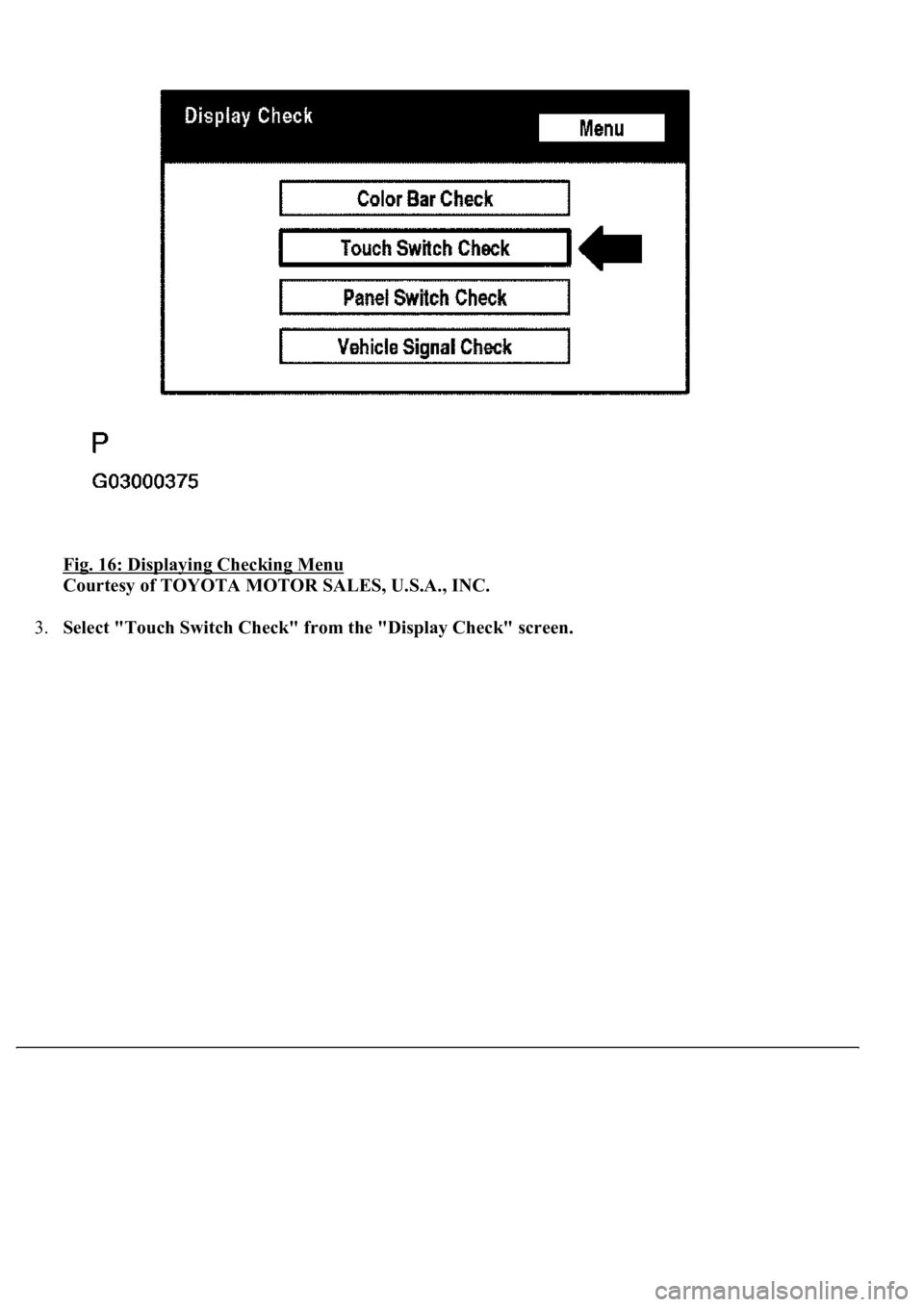

Fig. 16: Displaying Checking Menu
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.Select "Touch Switch Check" from the "Display Check" screen.

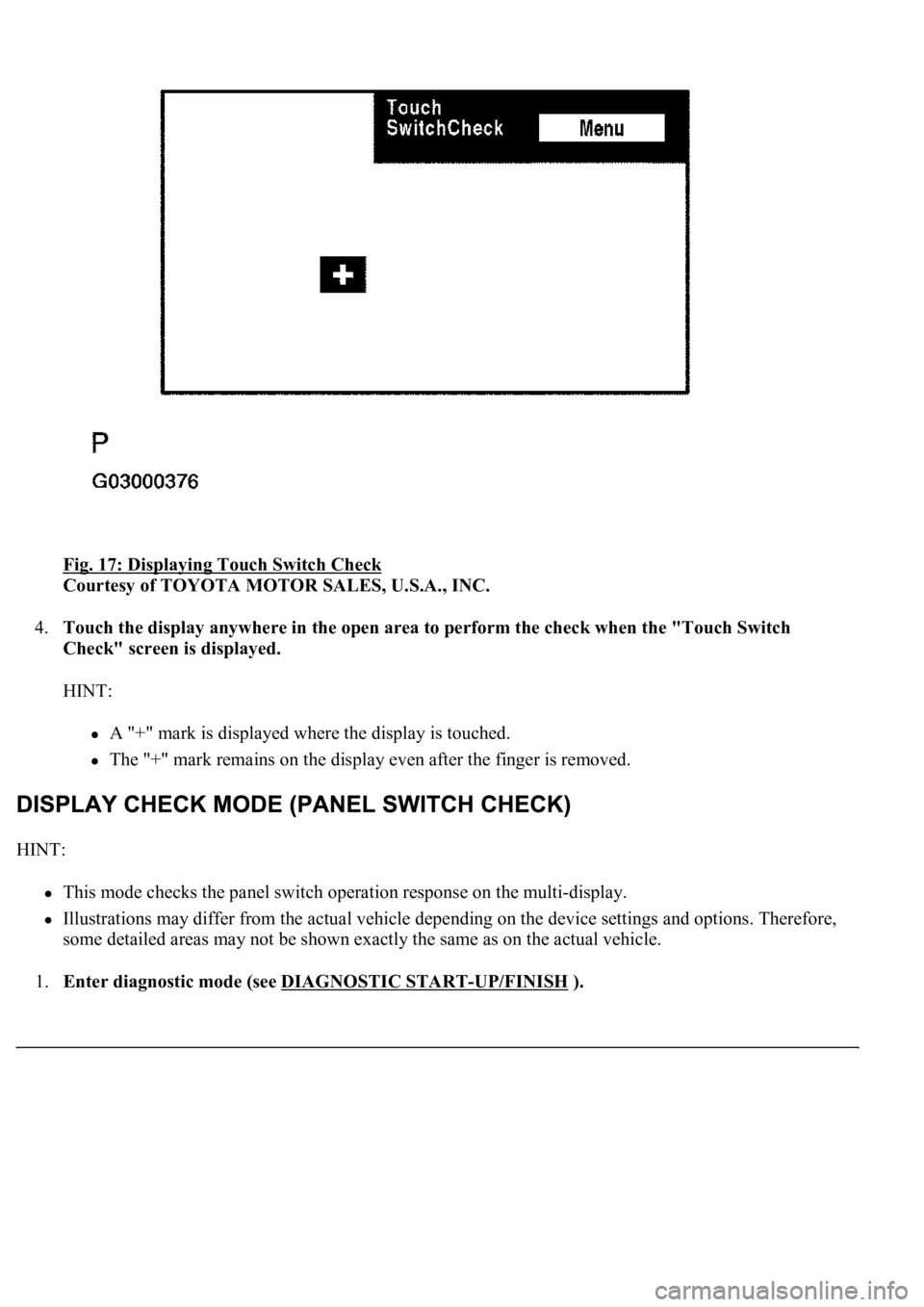

Fig. 17: Displaying Touch Switch Check
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.Touch the display anywhere in the open area to perform the check when the "Touch Switch
Check" screen is displayed.
HINT:
A "+" mark is displayed where the display is touched.
The "+" mark remains on the display even after the finger is removed.
HINT:
This mode checks the panel switch operation response on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore,
some detailed areas may not be shown exactly the same as on the actual vehicle.
1.Enter diagnostic mode (see DIAGNOSTIC START
-UP/FINISH ).

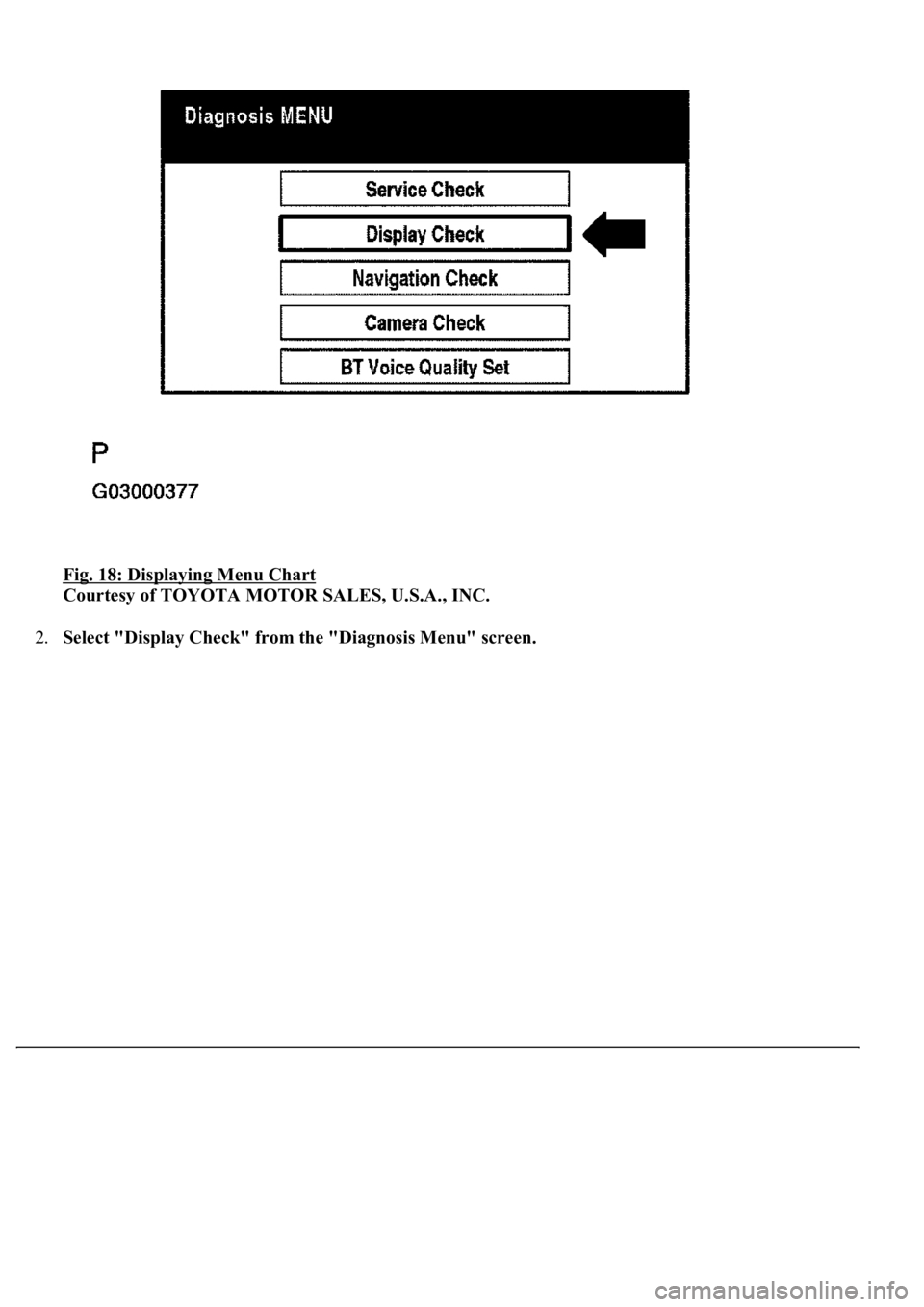

Fig. 18: Displaying Menu Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.Select "Display Check" from the "Diagnosis Menu" screen.

Fig. 19: Displaying Check Menu
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.Select "Panel Switch Check" from the "Display Check" screen.

Fig. 20: Displaying Panel Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.Operate each switch and check that the switch name and condition is correctly displayed.
Fig. 21: Identifying Panel Switch Check Mode

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
This mode checks the vehicle signal status input to the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore,
some detailed areas ma
y not be shown exactly the same as on the actual vehicle.

1.Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

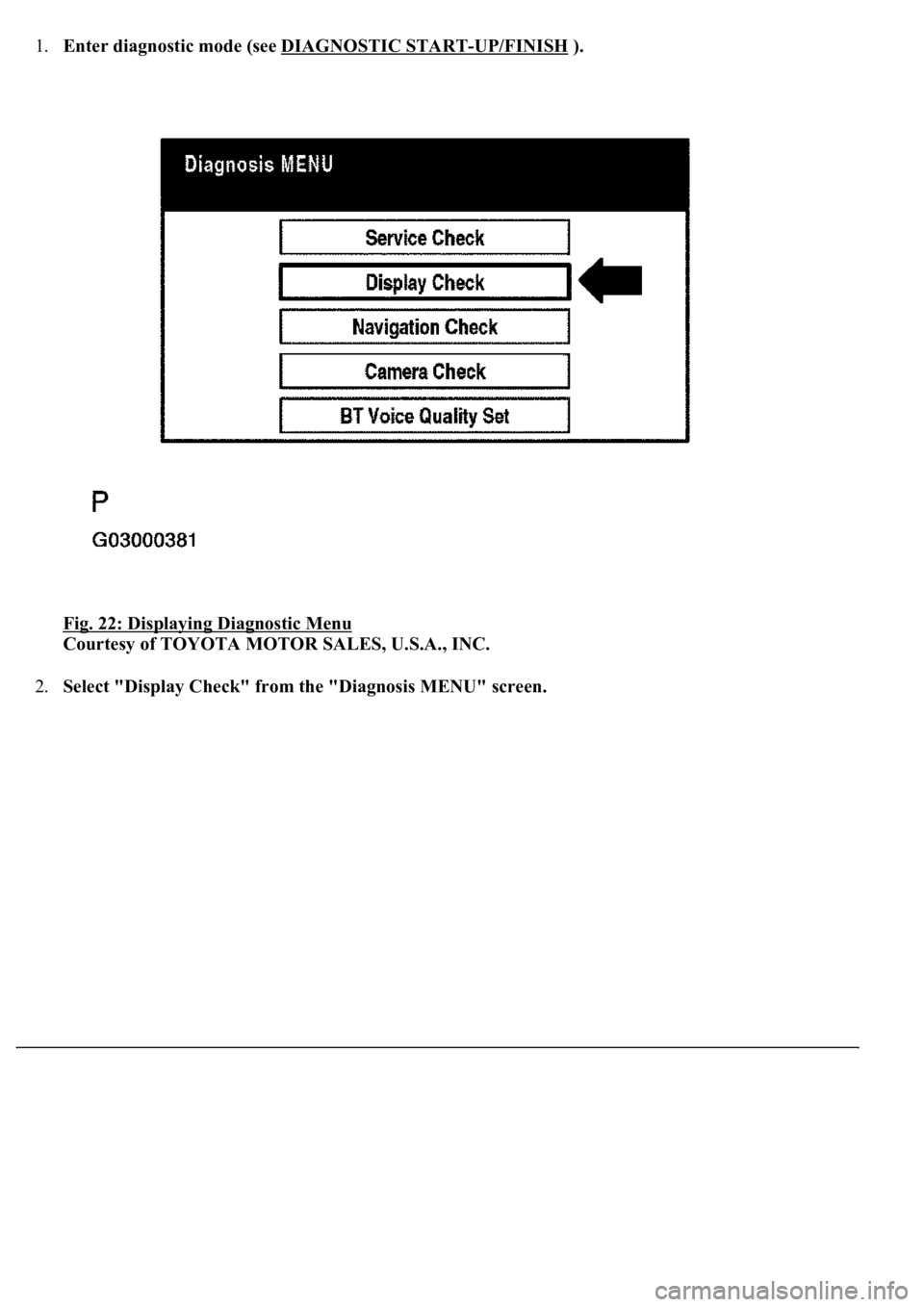

Fig. 22: Displaying Diagnostic Menu

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.Select "Display Check" from the "Diagnosis MENU" screen.

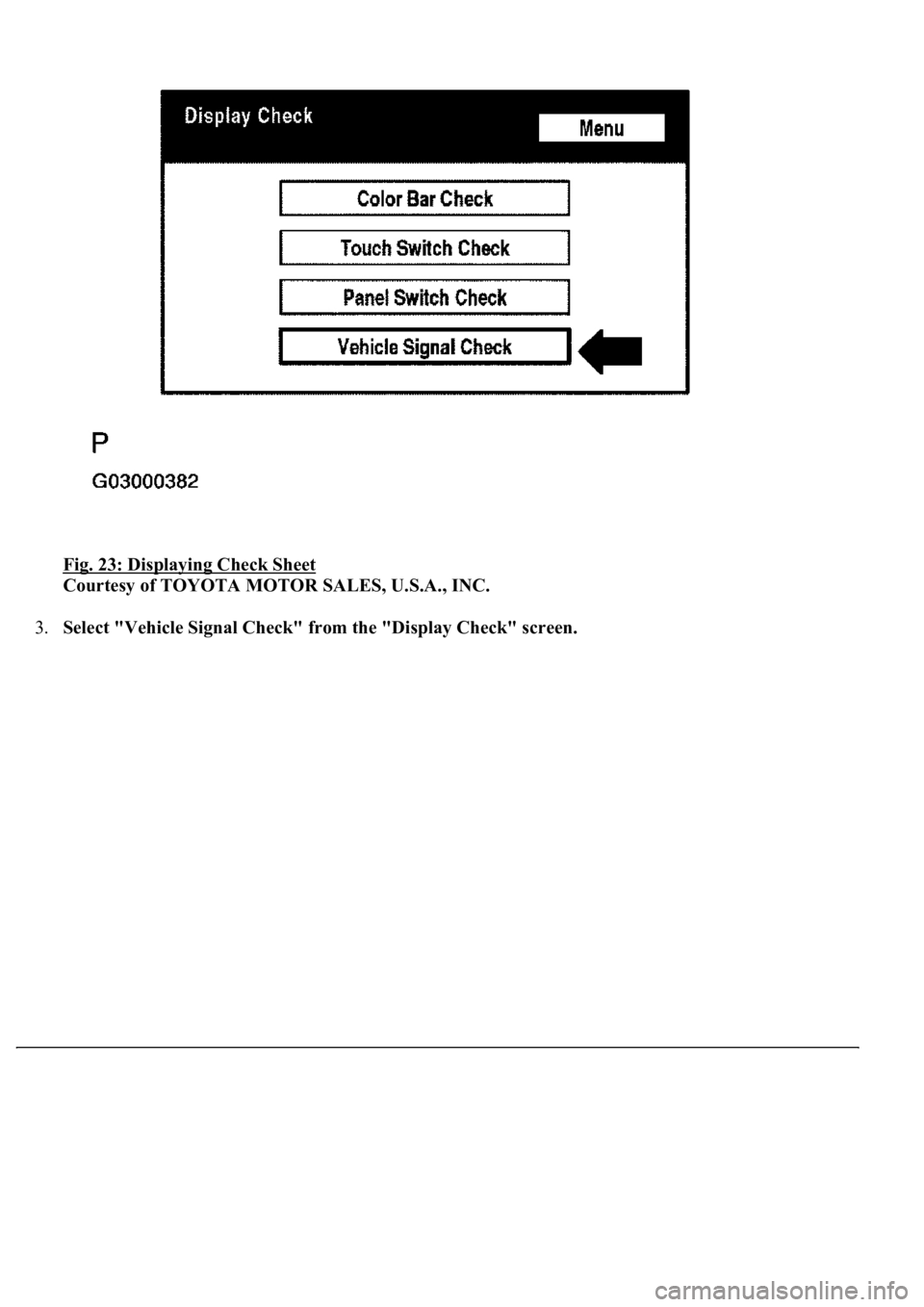

Fig. 23: Displaying Check Sheet
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.Select "Vehicle Signal Check" from the "Display Check" screen.
