2003 LEXUS LS430 display

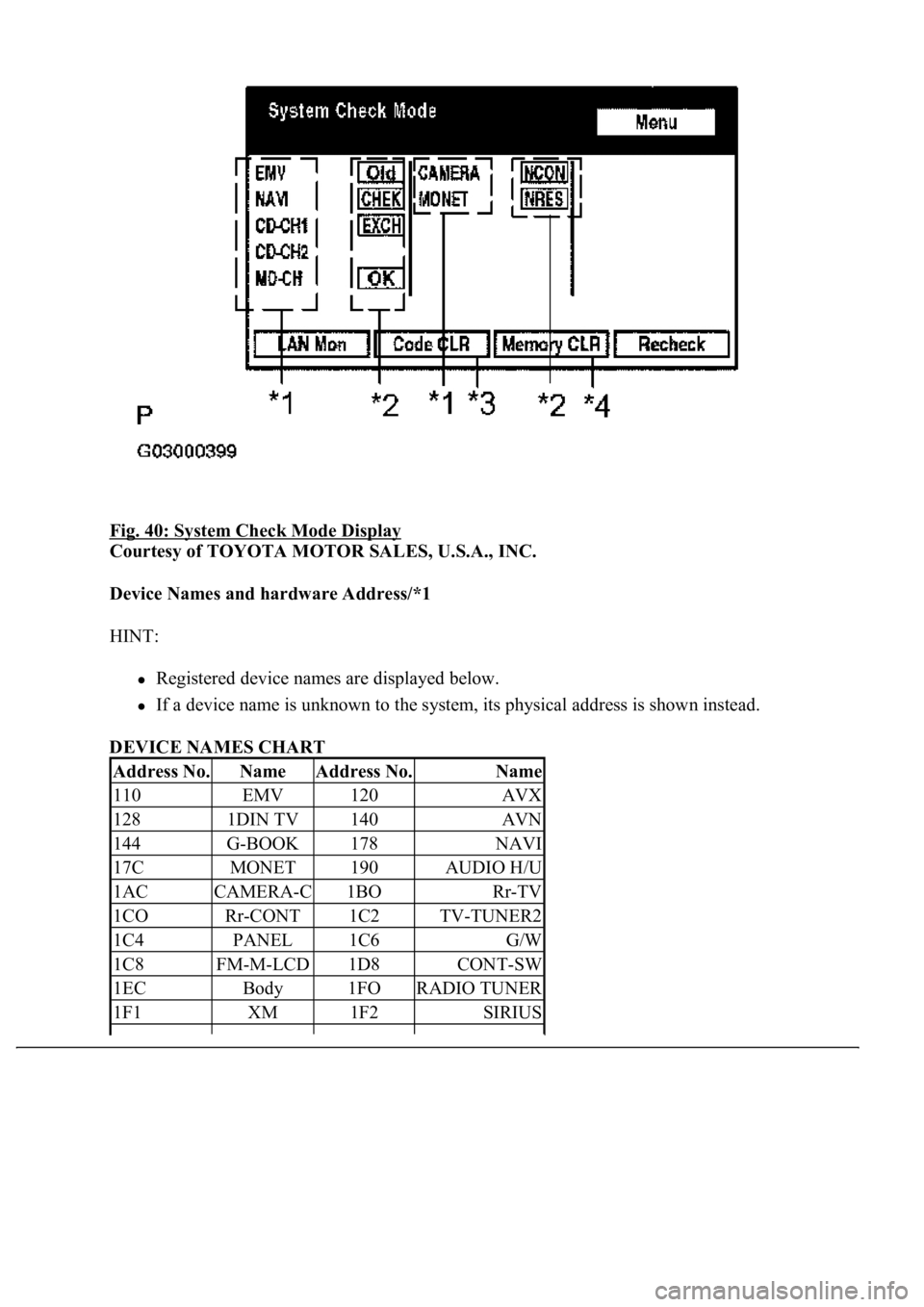

Fig. 40: System Check Mode Display
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Device Names and hardware Address/*1
HINT:
Registered device names are displayed below.
If a device name is unknown to the system, its physical address is shown instead.
DEVICE NAMES CHART
Address No.NameAddress No.Name
110EMV120AVX
1281DIN TV140AVN
144G-BOOK178NAVI
17CMONET190AUDIO H/U
1ACCAMERA-C1BORr-TV
1CORr-CONT1C2TV-TUNER2
1C4PANEL1C6G/W
1C8FM-M-LCD1D8CONT-SW
1ECBody1FORADIO TUNER
1F1XM1F2SIRIUS

Check Result/*2
HINT:
Result codes for all devices are shown below.

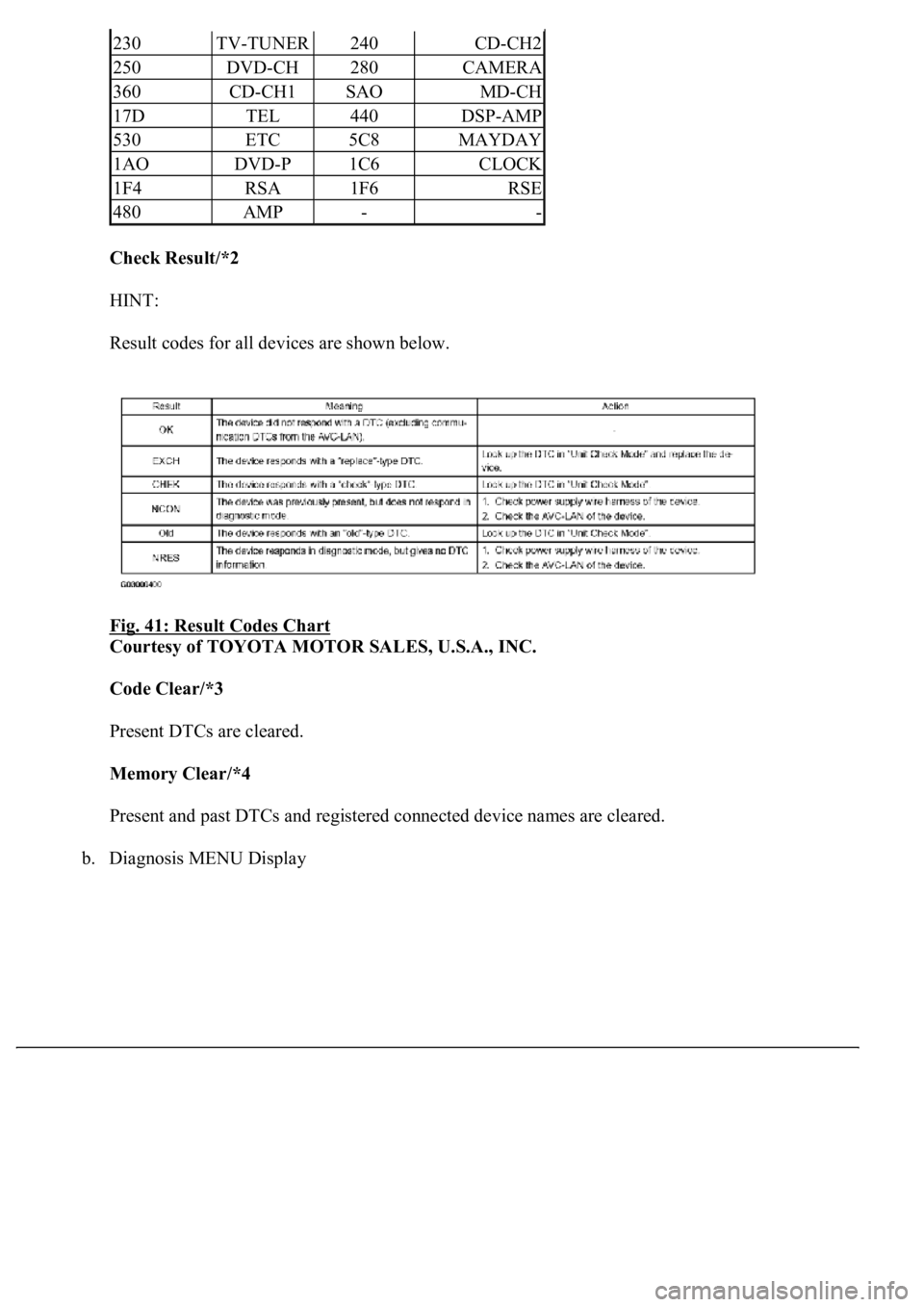

Fig. 41: Result Codes Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Code Clear/*3
Present DTCs are cleared.
Memory Clear/*4
Present and past DTCs and registered connected device names are cleared.
b.Diagnosis MENU Display
230TV-TUNER240CD-CH2
250DVD-CH280CAMERA
360CD-CH1SAOMD-CH
17DTEL440DSP-AMP
530ETC5C8MAYDAY
1AODVD-P1C6CLOCK
1F4RSA1F6RSE
480AMP--

Fig. 42: Diagnosis Menu Display
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Each item is grayed out or not displayed based on the device settings.
c. Unit Check Mode Screen

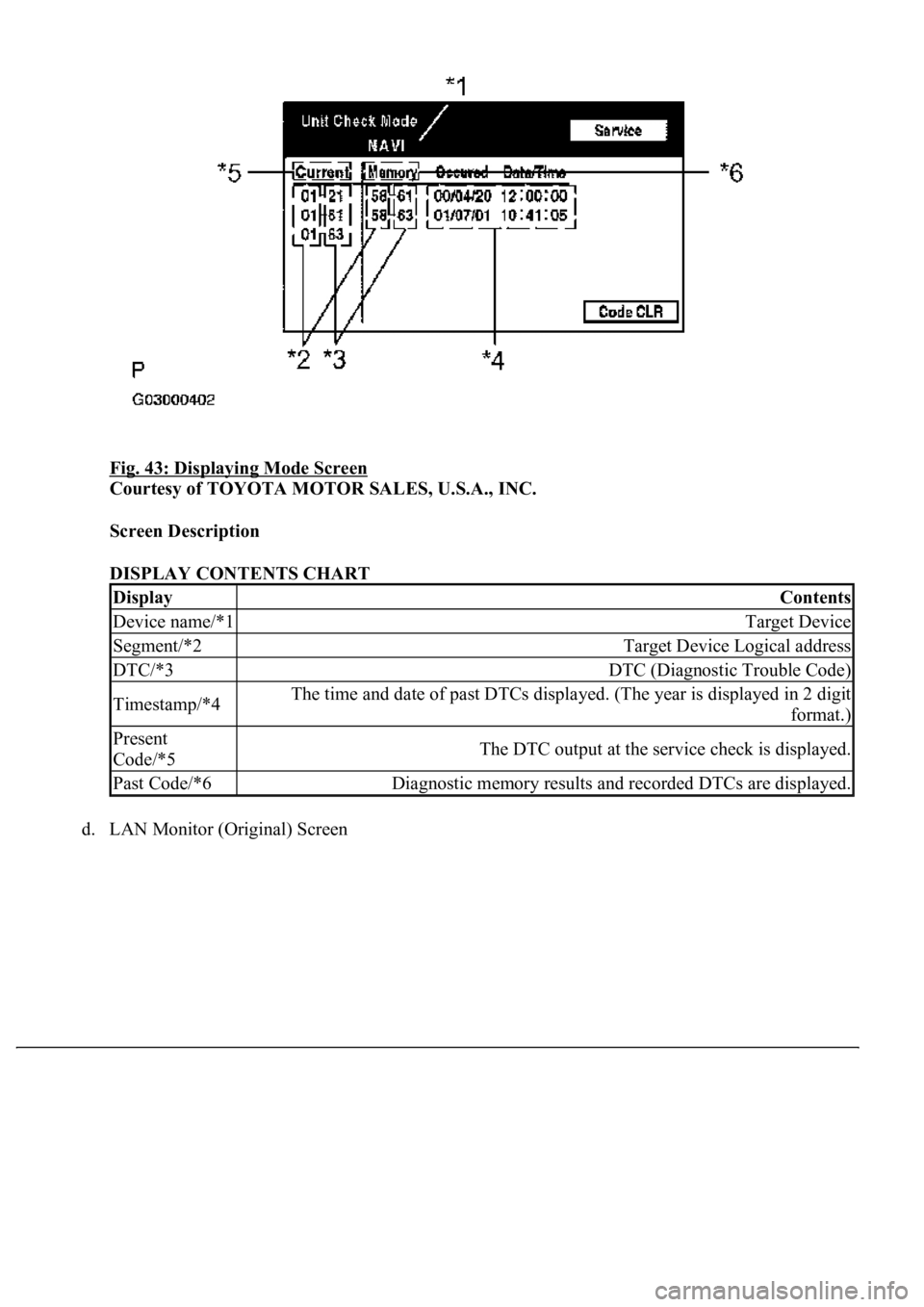

Fig. 43: Displaying Mode Screen
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Screen Description
DISPLAY CONTENTS CHART
d. LAN Monitor (Original) Screen
DisplayContents
Device name/*1Target Device
Segment/*2Target Device Logical address
DTC/*3DTC (Diagnostic Trouble Code)
Timestamp/*4The time and date of past DTCs displayed. (The year is displayed in 2 digit
format.)
Present
Code/*5The DTC output at the service check is displayed.
Past Code/*6Diagnostic memory results and recorded DTCs are displayed.

Fig. 44: Displaying LAN Monitor (Original) Screen
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Check result
HINT:
Check results of all the devices are displayed.
Fig. 45: Identifying Results Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. LAN Monitor (Individual) Screen

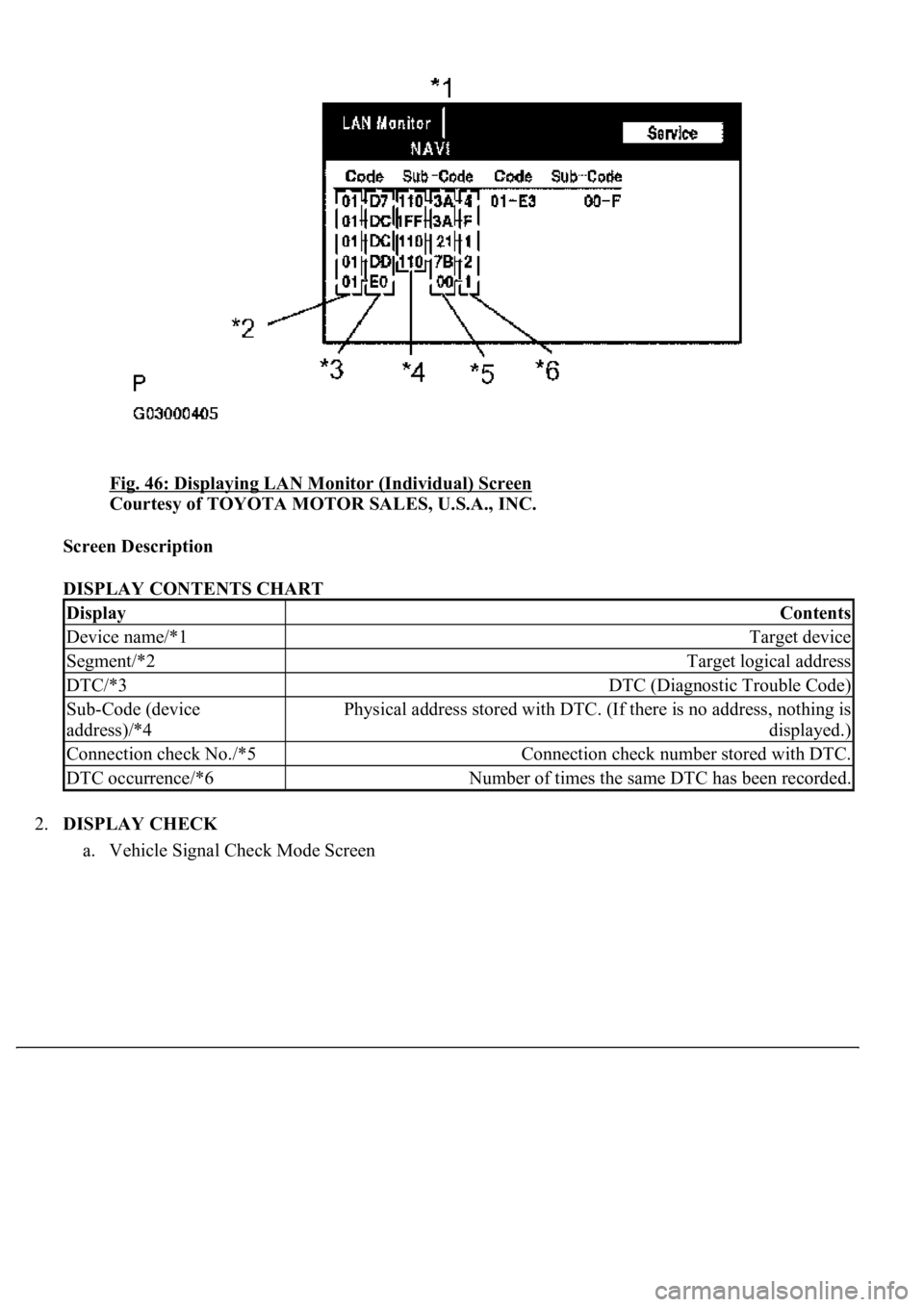

Fig. 46: Displaying LAN Monitor (Individual) Screen
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Screen Description
DISPLAY CONTENTS CHART
2.DISPLAY CHECK
a. Vehicle Signal Check Mode Screen
DisplayContents
Device name/*1Target device
Segment/*2Target logical address
DTC/*3DTC (Diagnostic Trouble Code)
Sub-Code (device
address)/*4Physical address stored with DTC. (If there is no address, nothing is
displayed.)
Connection check No./*5Connection check number stored with DTC.
DTC occurrence/*6Number of times the same DTC has been recorded.

Fig. 47: Displaying Vehicle Signal Check Mode Screen
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Screen Description
NAME CONTENTS
HINT:
Only items sending a vehicle signal will be displayed.
This screen is updated once per second when input signals to the vehicle are changed.
3.NAVIGATION CHECK
a. Navigation Check MENU Screen
NameContents
BatteryBattery voltage is displayed.
PKBParking brake ON/OFF state is displayed.
REVReverse signal ON/OFF state is displayed.
IGIG switch ON/OFF state is displayed.
ADIM/TCANBrightness state DIM (with)/ BRIGHT (without) is displayed.
SPEEDThe vehicle speed, displayed in km/h.
TAILTAIL signal (Head lamp dimmer switch) ON/OFF state is displayed.

Fig. 48: Displaying Navigation Check Menu Screen
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Each item is grayed out or not displayed based on the device settings.
b. GPS information Screen
Fig. 49: Displaying GPS Information Screen

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
