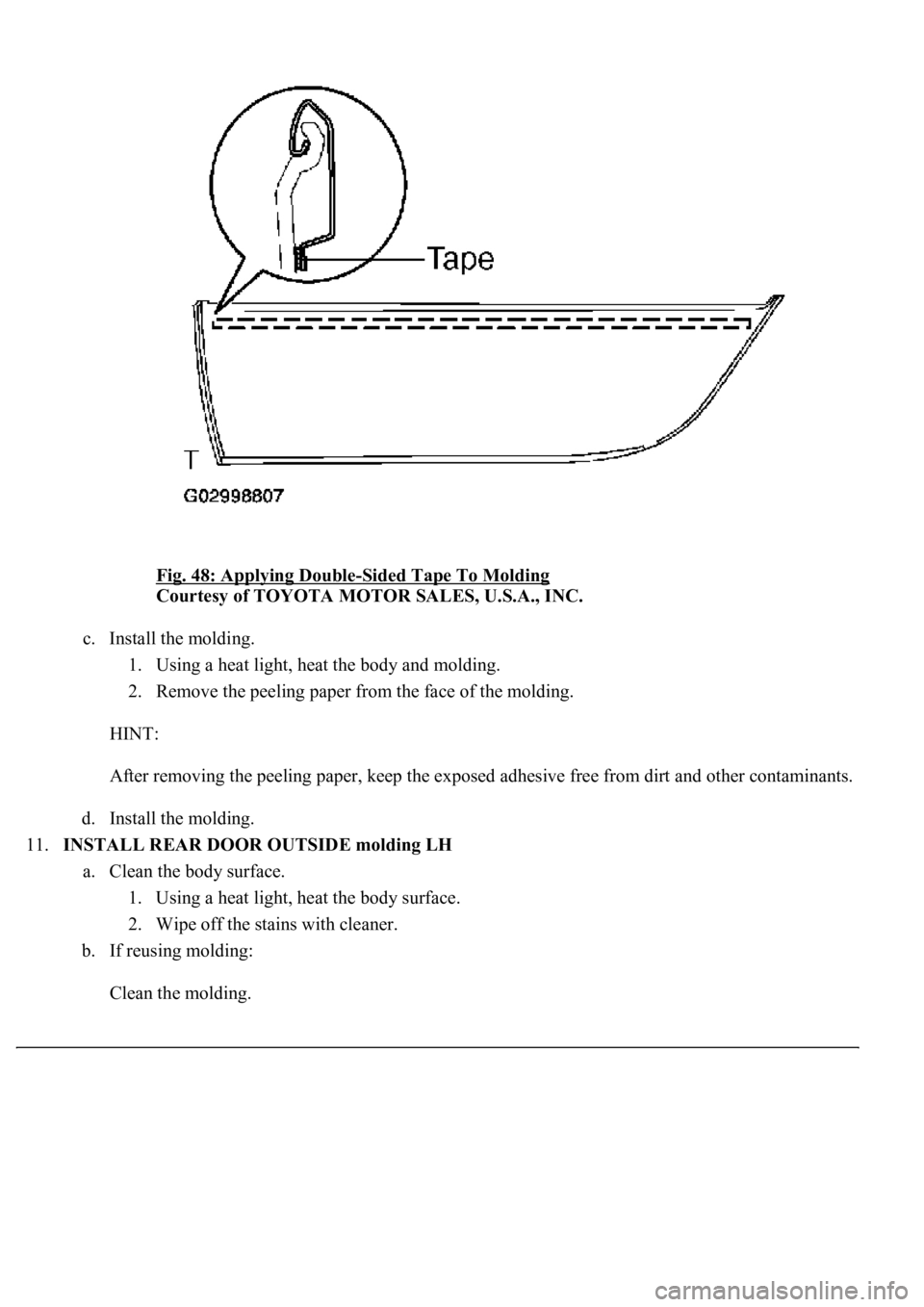

Fig. 48: Applying Double-Sided Tape To Molding
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the molding.
1. Using a heat light, heat the body and molding.
2. Remove the peeling paper from the face of the molding.
HINT:
After removing the peeling paper, keep the exposed adhesive free from dirt and other contaminants.
d. Install the molding.
11.INSTALL REAR DOOR OUTSIDE molding LH
a. Clean the body surface.
1. Using a heat light, heat the body surface.
2. Wipe off the stains with cleaner.
b. If reusing molding:
Clean the moldin
g.

1. Using a heat light, heat the molding.
2. Remove the double-sided tape from the molding.
3. Wipe off the stains with cleaner.
4. Apply new double-sided tape to the molding, as shown in Fig. 49
.

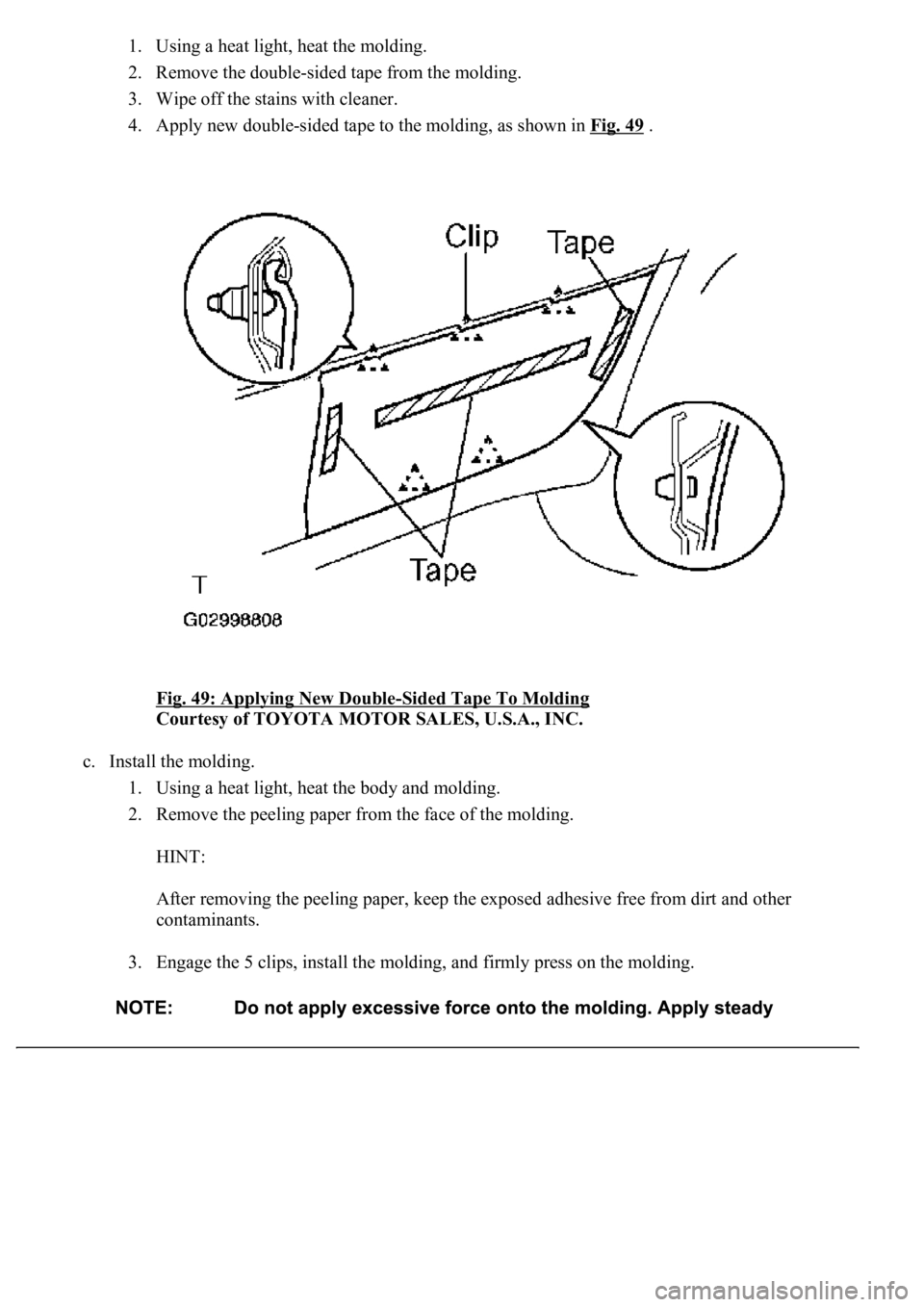

Fig. 49: Applying New Double
-Sided Tape To Molding
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the molding.
1. Using a heat light, heat the body and molding.
2. Remove the peeling paper from the face of the molding.
HINT:
After removing the peeling paper, keep the exposed adhesive free from dirt and other
contaminants.
3. Engage the 5 clips, install the molding, and firmly press on the molding.

Fig. 51: Installing Front Door Outside Molding Lower LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.INSTALL FRONT DOOR OUTSIDE MOLDING UPPER LH
a. Clean the body surface.
1. Using a heat light, heat the body surface.
2. Remove the double-sided tape from the body.
3. Wipe off the stains with cleaner.
b. If reusing molding:
Clean the molding.
1. Using a heat light, heat the molding.
2. Remove the double-sided tape from the molding.
3. Wipe off the stains with cleaner.
4. Appl
y new double-sided tape to the molding, as shown in Fig. 52 .

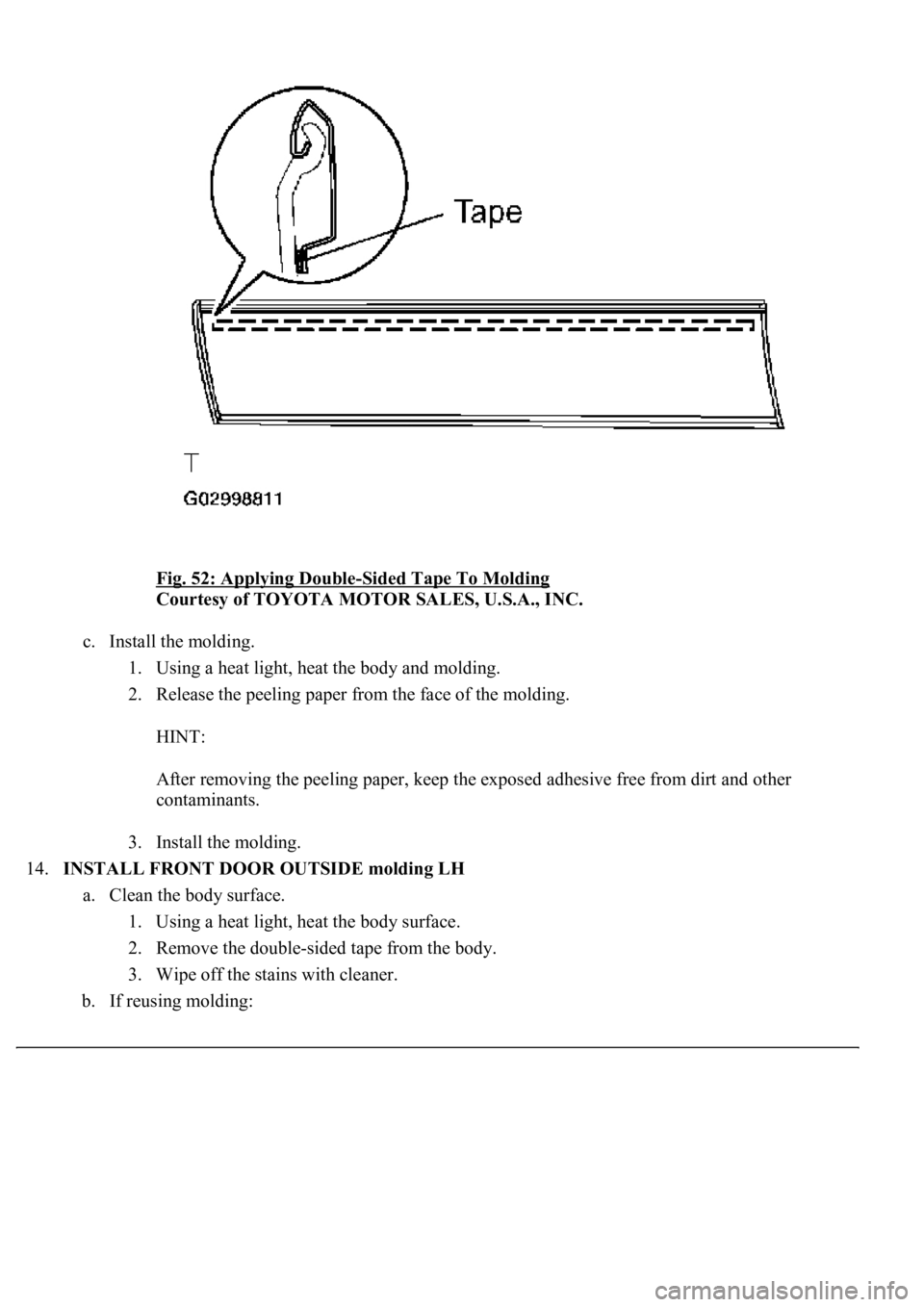

Fig. 52: Applying Double-Sided Tape To Molding
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the molding.
1. Using a heat light, heat the body and molding.
2. Release the peeling paper from the face of the molding.
HINT:
After removing the peeling paper, keep the exposed adhesive free from dirt and other
contaminants.
3. Install the molding.
14.INSTALL FRONT DOOR OUTSIDE molding LH
a. Clean the body surface.
1. Using a heat light, heat the body surface.
2. Remove the double-sided tape from the body.
3. Wipe off the stains with cleaner.
b. If reusing molding:

Clean the molding.
1. Using a heat light, heat the molding.
2. Remove the double-sided tape from the molding.
3. Wipe off the stains with cleaner.
4. Apply new double-sided tape to the molding, as shown in Fig. 53
.

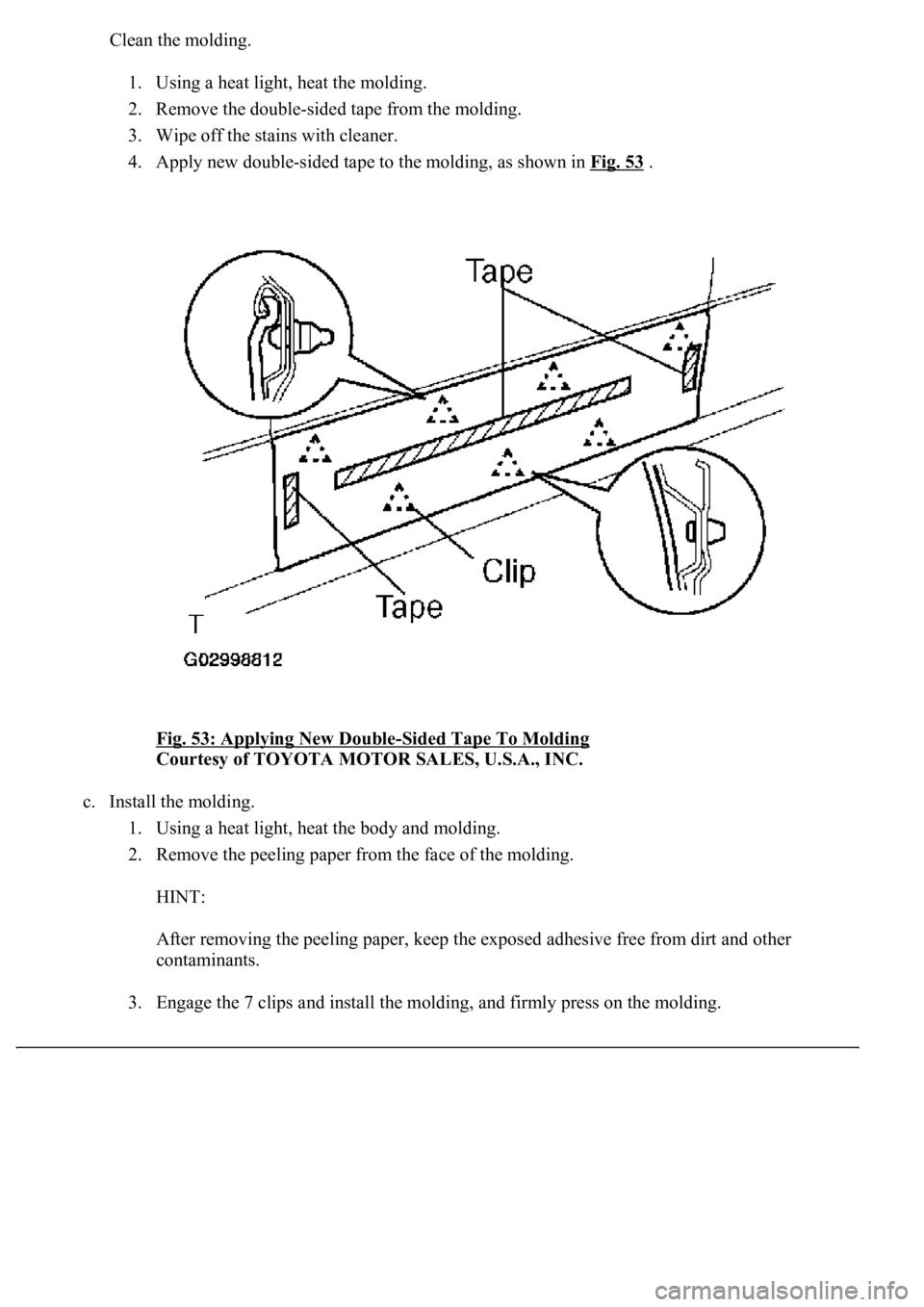

Fig. 53: Applying New Double
-Sided Tape To Molding
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the molding.
1. Using a heat light, heat the body and molding.
2. Remove the peeling paper from the face of the molding.
HINT:
After removing the peeling paper, keep the exposed adhesive free from dirt and other
contaminants.
3. Engage the 7 clips and install the molding, and firmly press on the molding.

d. Install the molding with the 4 nuts.
Fig. 54: Installing Molding With Nuts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Install the hole cover.
15.INSTALL FRONT FENDER OUTSIDE molding LH
a. Clean the body surface.
1. Using a heat light, heat the body surface.
2. Remove the double-sided tape from the body.
3. Wipe off the stains with cleaner.
b. If reusing molding:
Clean the molding.
1. Remove the double-sided tape from the molding.
2. Wipe off the stains with cleaner.
3. Appl
y new double-sided tape to the molding, as shown in Fig. 55 .

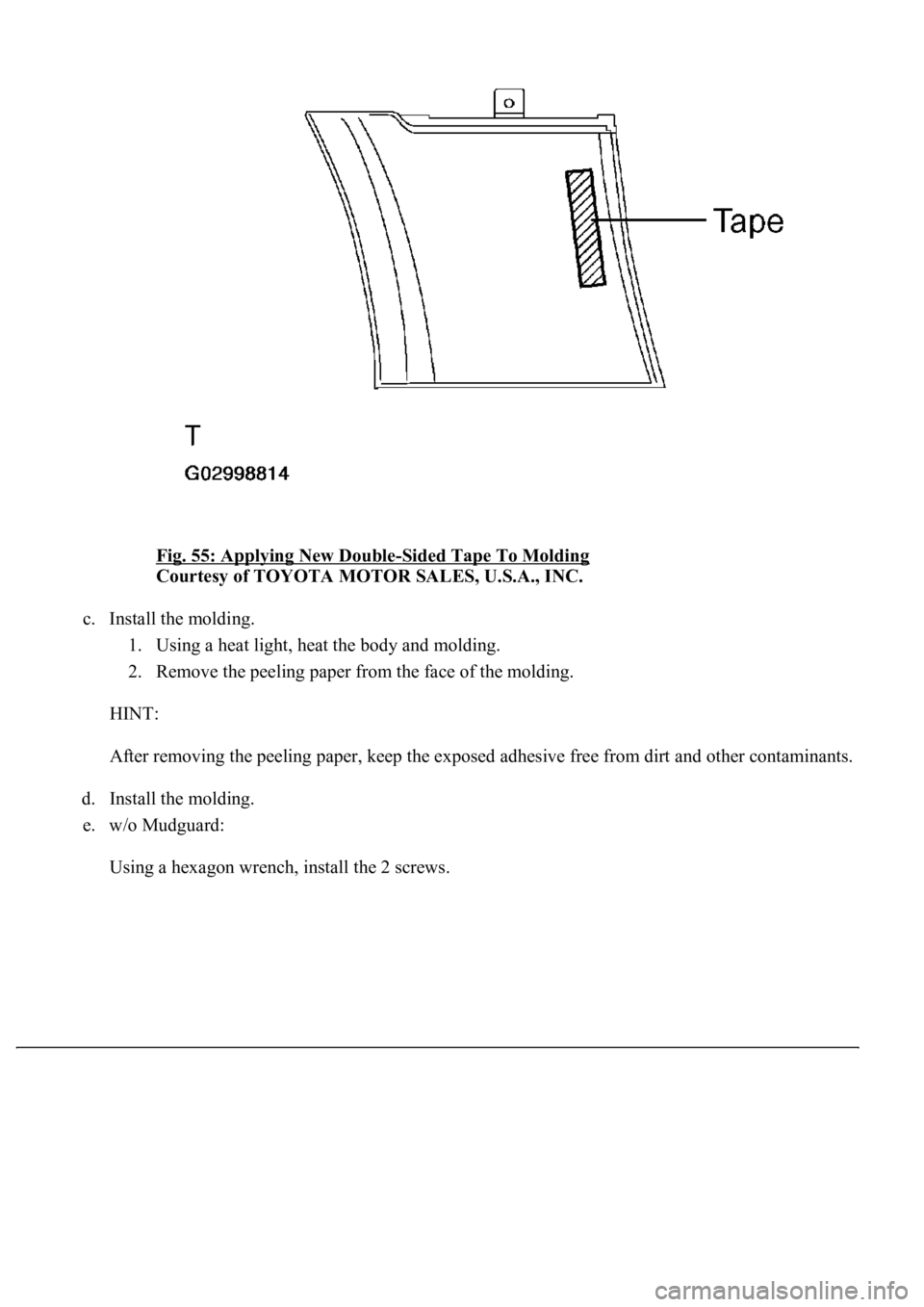

Fig. 55: Applying New Double-Sided Tape To Molding
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the molding.
1. Using a heat light, heat the body and molding.
2. Remove the peeling paper from the face of the molding.
HINT:
After removing the peeling paper, keep the exposed adhesive free from dirt and other contaminants.
d. Install the molding.
e. w/o Mudguard:
Usin
g a hexagon wrench, install the 2 screws.

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE
FOR STANDARD BOLTS ).
When replacing the molding, heat the body and molding using a heat light.
Heating temperature:
HEATING TEMPERATURE CHART
1.REMOVE FRONT FENDER MUDGUARD SUB-ASSY LH (W/ MUDGUARD)
a. Remove the 3 screws and mudguard.
2.REMOVE FRONT FENDER OUTSIDE MOLDING LH (See REPLACEMENT
)
3.REMOVE ROCKER PANEL MOLDING FRONT LH
a. Remove the 5 screws and the 4 clips labeled A.
b.Using a molding remover, disengage the clip labeled B and remove the molding.
ItemTemperature
Body40 to 60°C (104 to 140°F)
molding20 to 30°C (68 to 86°F)
