2003 LEXUS LS430 torque

Fig. 56: Installing Skid Control Sensor Wire
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.INSTALL FRONT DISC (See step 15 on OVERHAUL
)
11.INSTALL FRONT DISC BRAKE CALIPER ASSY LH (See REPLACEMENT
)
12.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
13.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)
14.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)

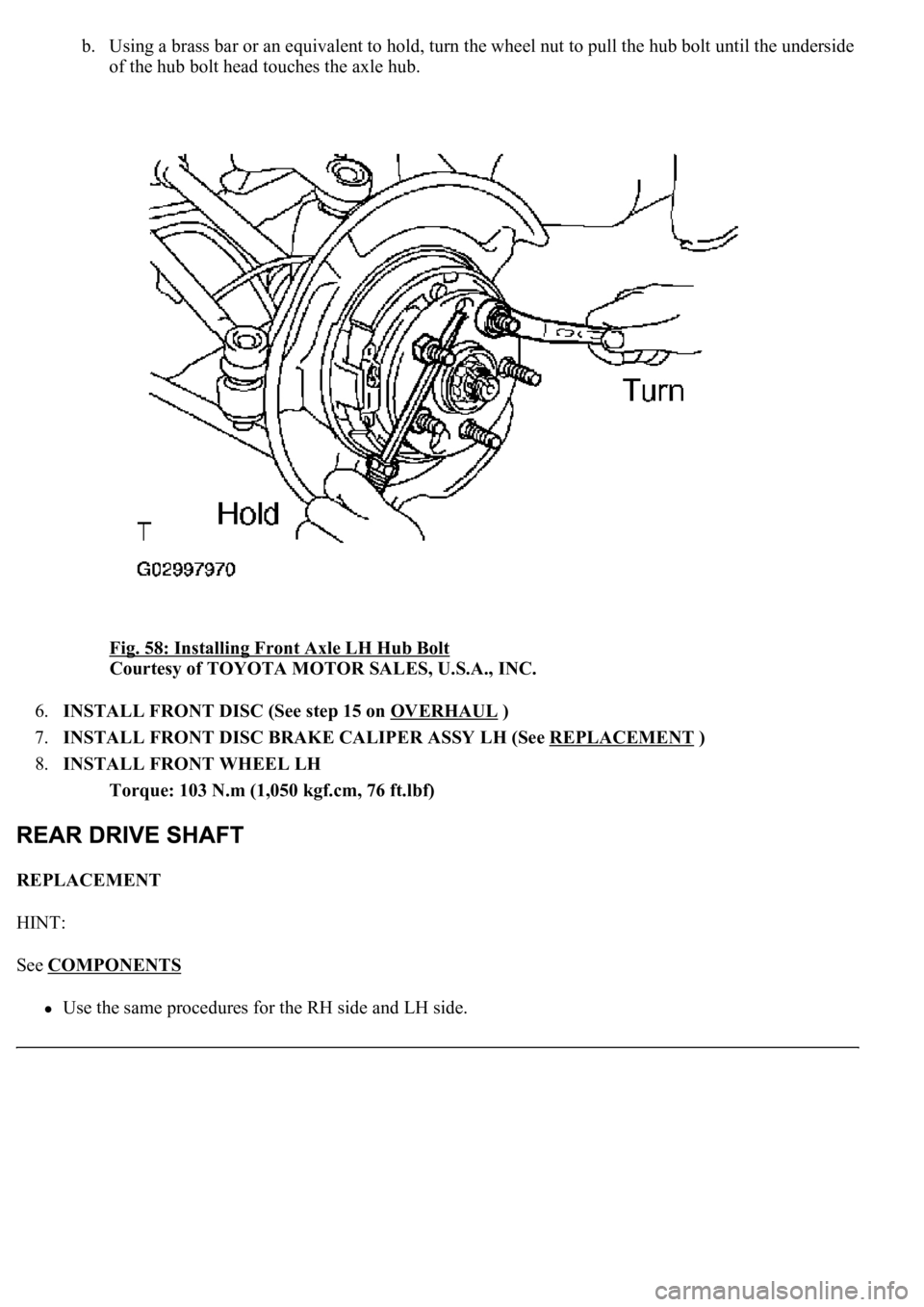

b. Using a brass bar or an equivalent to hold, turn the wheel nut to pull the hub bolt until the underside
of the hub bolt head touches the axle hub.
Fig. 58: Installing Front Axle LH Hub Bolt

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.INSTALL FRONT DISC (See step 15 on OVERHAUL
)
7.INSTALL FRONT DISC BRAKE CALIPER ASSY LH (See REPLACEMENT
)
8.INSTALL FRONT WHEEL LH
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
REPLACEMENT
HINT:
See COMPONENTS

<00380056004800030057004b00480003005600440050004800030053005500520046004800470058005500480056000300490052005500030057004b004800030035002b00030056004c0047004800030044005100470003002f002b00030056004c004700
4800110003[

Fig. 73: Identifying Upper Control Arm Assy Rear LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

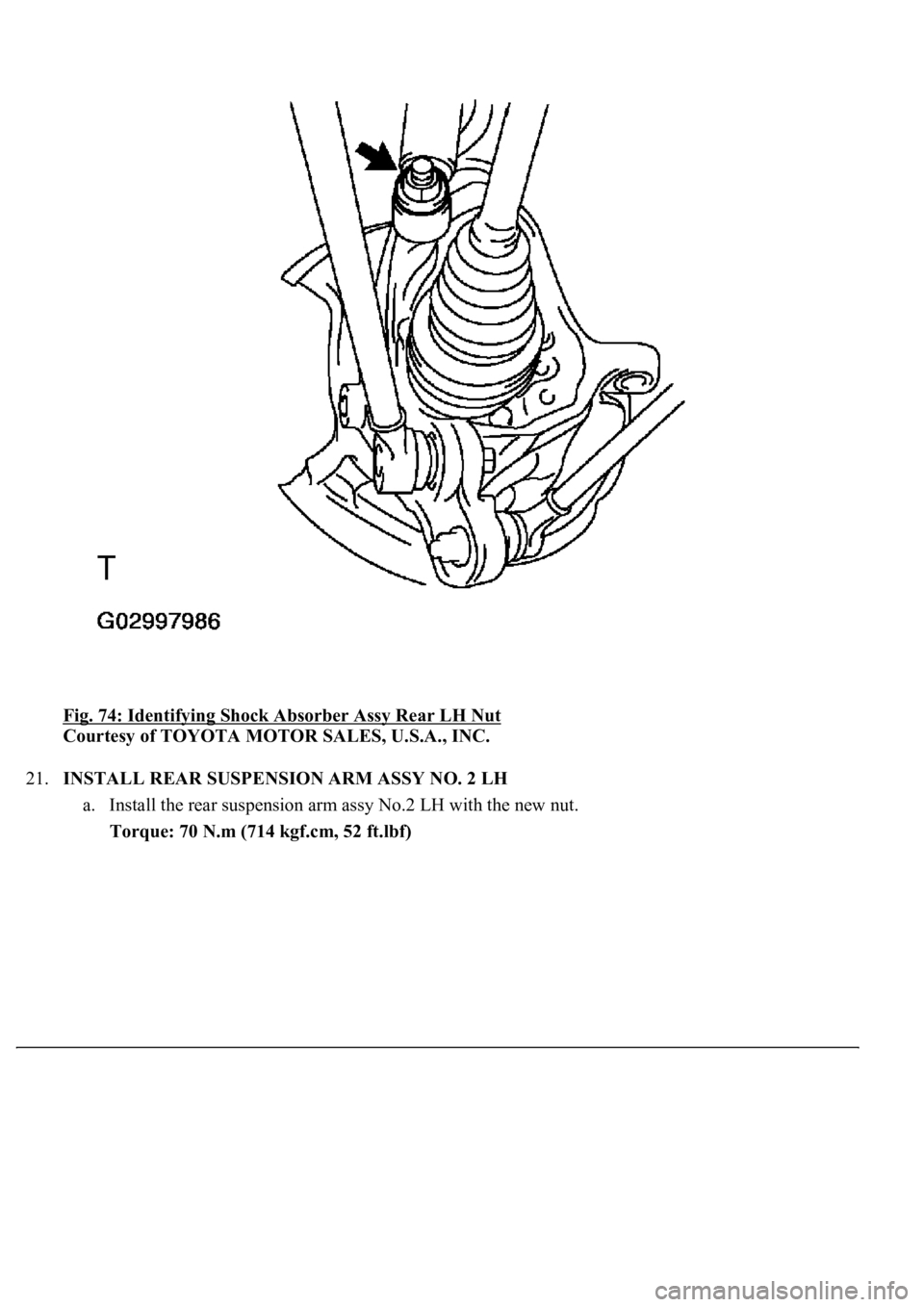

20.INSTALL SHOCK ABSORBER ASSY REAR LH
a. Install the shock absorber assy LH with the new nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

<0029004c004a00110003001a0017001d0003002c0047004800510057004c0049005c004c0051004a00030036004b00520046004e0003002400450056005200550045004800550003002400560056005c000300350048004400550003002f002b0003003100
580057[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
21.INSTALL REAR SUSPENSION ARM ASSY NO. 2 LH
a. Install the rear suspension arm assy No.2 LH with the new nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

Fig. 75: Identifying Rear Suspension Arm Assy No. 2 LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
22.INSTALL TOE CONTROL LINK SUB-ASSY LH
a. Install the toe control link assy LH with the new nut.
Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

Fig. 76: Installing Toe Control Link Sub-Assy LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

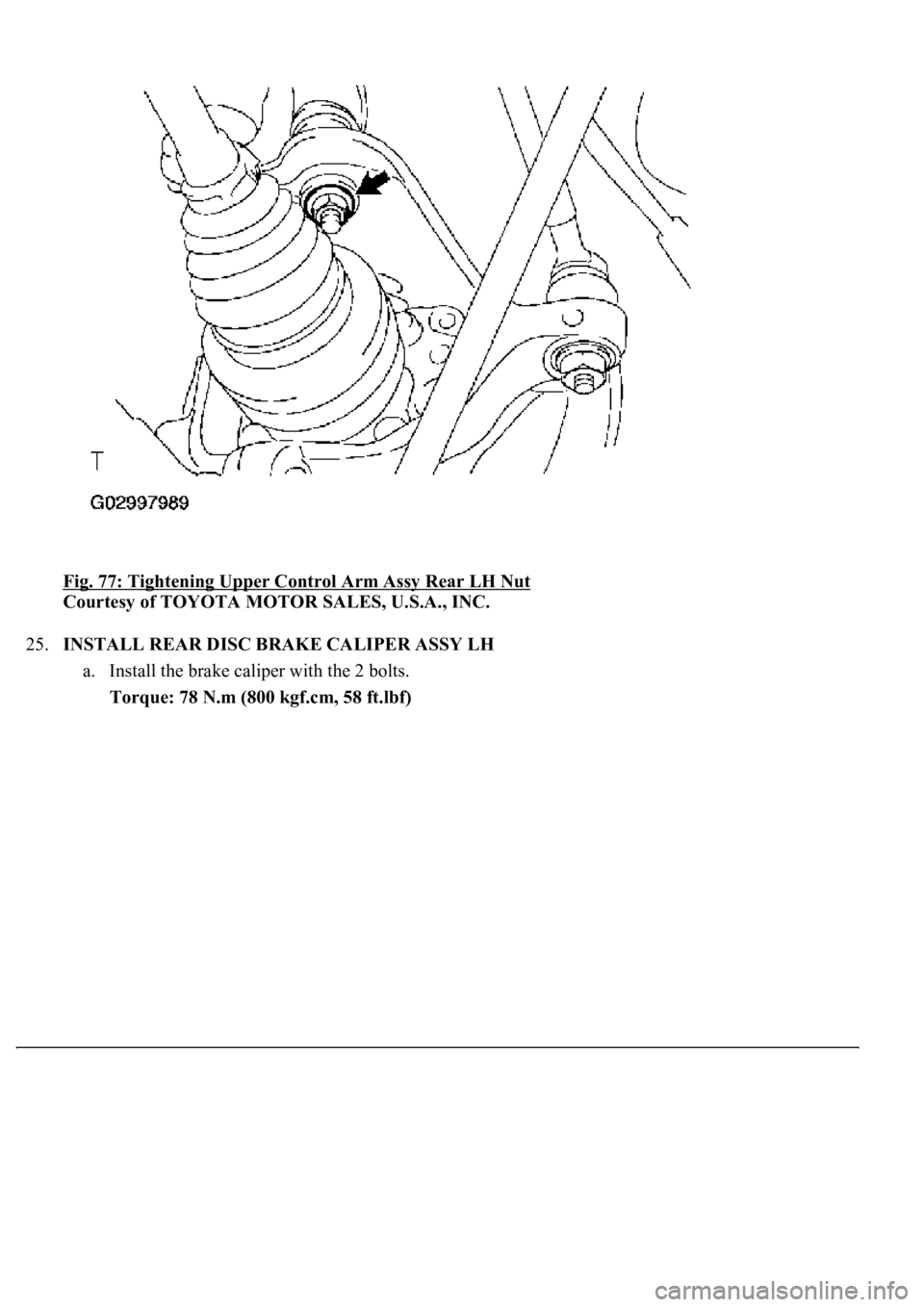

23.FULLY TIGHTEN UPPER CONTROL ARM ASSY REAR LH
a. Support the rear axle carrier.
b. Fully tighten the upper control arm assy LH with the nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)
24.INSTALL REAR DISC (See step 16 on OVERHAUL
)

<0029004c004a00110003001a001a001d00030037004c004a004b005700480051004c0051004a0003003800530053004800550003002600520051005700550052004f00030024005500500003002400560056005c000300350048004400550003002f002b00
03003100580057[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
25.INSTALL REAR DISC BRAKE CALIPER ASSY LH
a. Install the brake caliper with the 2 bolts.
Torque: 78 N.m (800 kgf.cm, 58 ft.lbf)

Fig. 78: Installing Rear Disc Brake Caliper Assy LH Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL SPEED SENSOR REAR LH
a. Install the speed sensor to the rear axle carrier with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
