2003 LEXUS LS430 torque

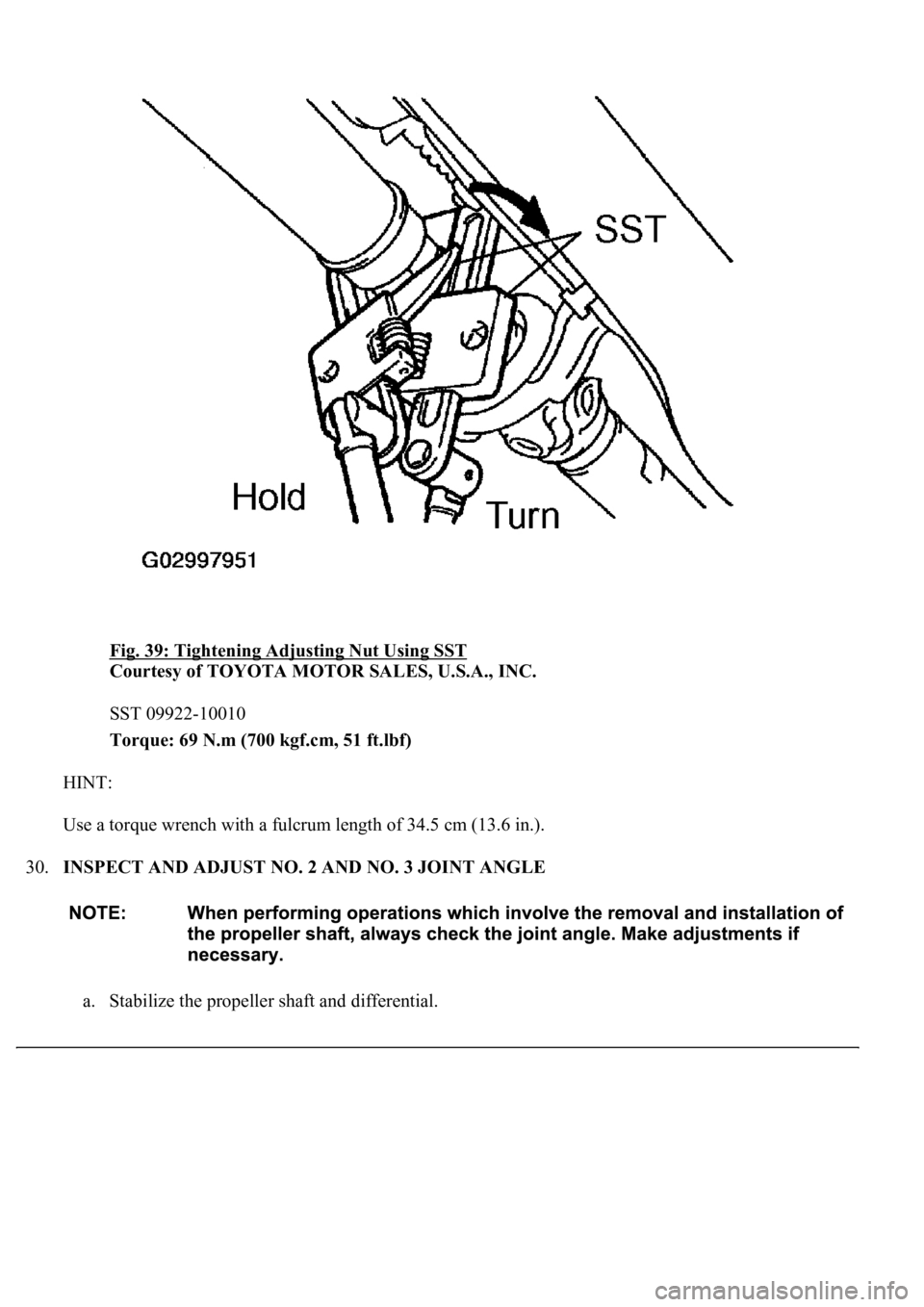

Fig. 39: Tightening Adjusting Nut Using SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
SST 09922-10010
Torque: 69 N.m (700 kgf.cm, 51 ft.lbf)
HINT:
Use a torque wrench with a fulcrum length of 34.5 cm (13.6 in.).
30.INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE
a. Stabilize the propeller shaft and differential.

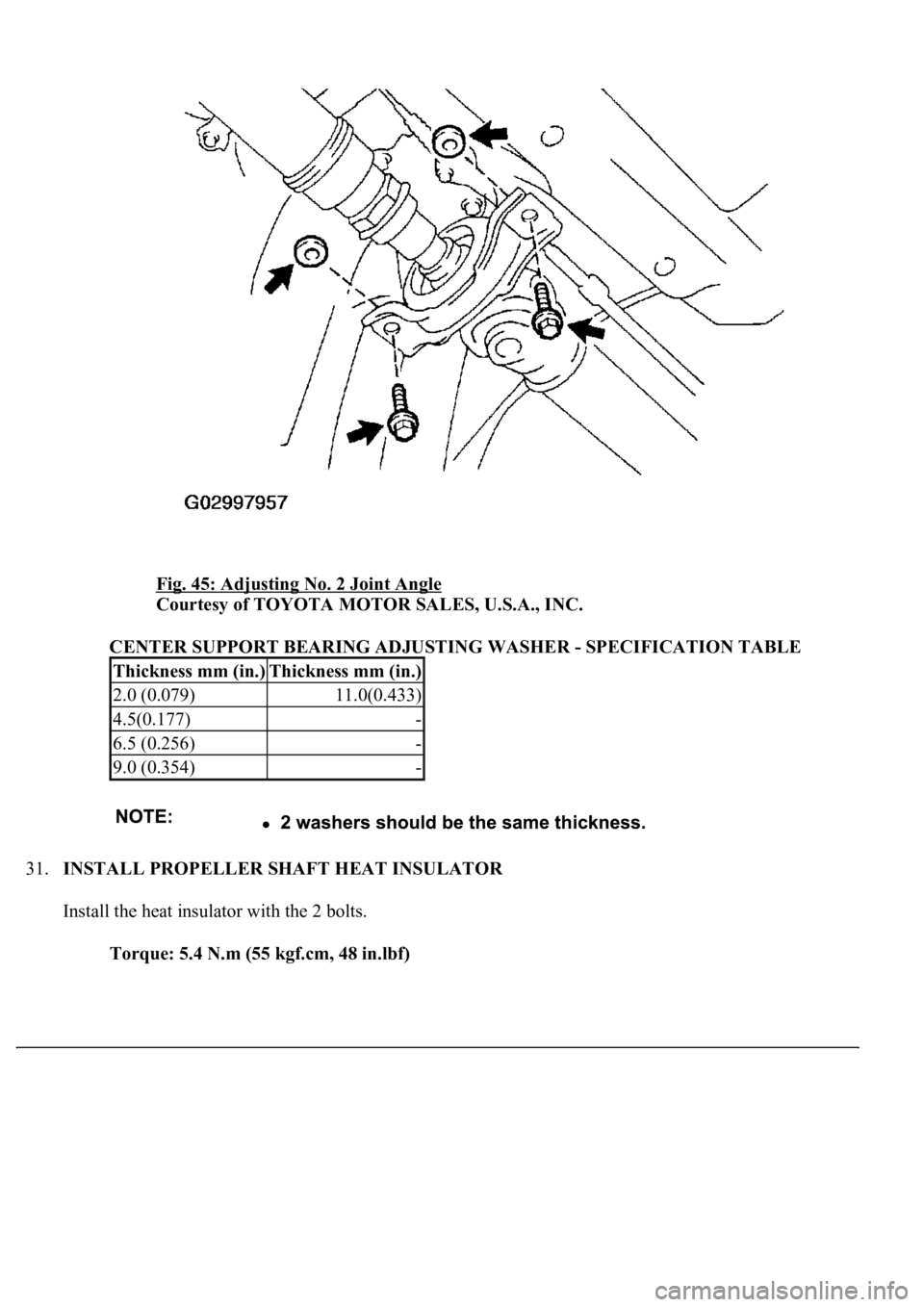

Fig. 45: Adjusting No. 2 Joint Angle
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
CENTER SUPPORT BEARING ADJUSTING WASHER - SPECIFICATION TABLE
31.INSTALL PROPELLER SHAFT HEAT INSULATOR
Install the heat insulator with the 2 bolts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
Thickness mm (in.)Thickness mm (in.)
2.0 (0.079)11.0(0.433)
4.5(0.177)-
6.5 (0.256)-
9.0 (0.354)-

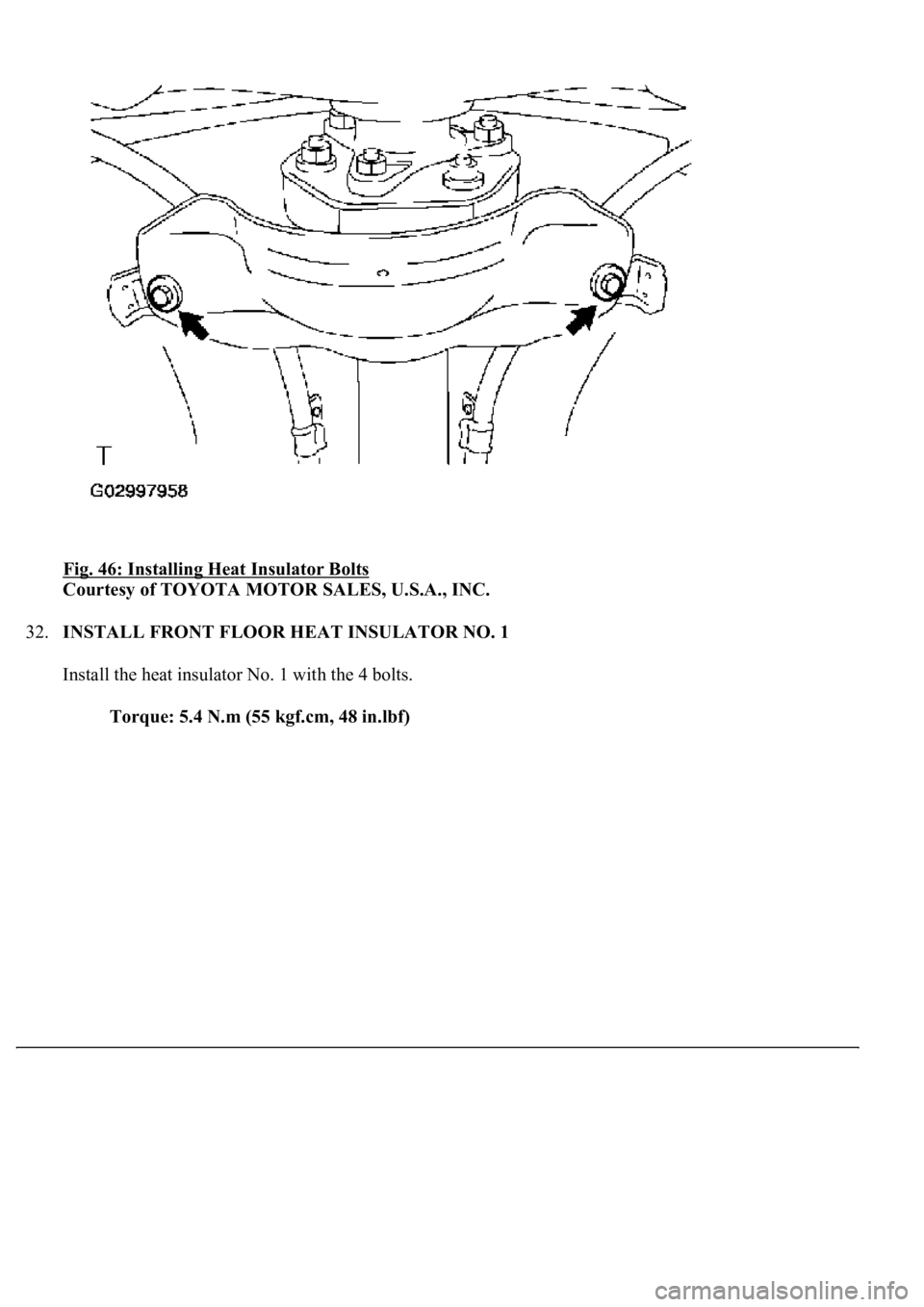

Fig. 46: Installing Heat Insulator Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.INSTALL FRONT FLOOR HEAT INSULATOR NO. 1
Install the heat insulator No. 1 with the 4 bolts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

Fig. 49: Removing Front Axle Hub Sub-Assy LH Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE SKID CONTROL SENSOR FRONT (See step 6 on REPLACEMENT
)
SST 09520-00031, 09950-00020
7.INSTALL SKID CONTROL SENSOR FRONT (See step 7 on REPLACEMENT
)
SST 09214-76011
8.INSTALL FRONT AXLE HUB SUB-ASSY LH
a. Install the axle hub sub-assy LH with the 4 bolts.
Torque: 69 N.m (700 kgf.cm, 51 ft.lbf)

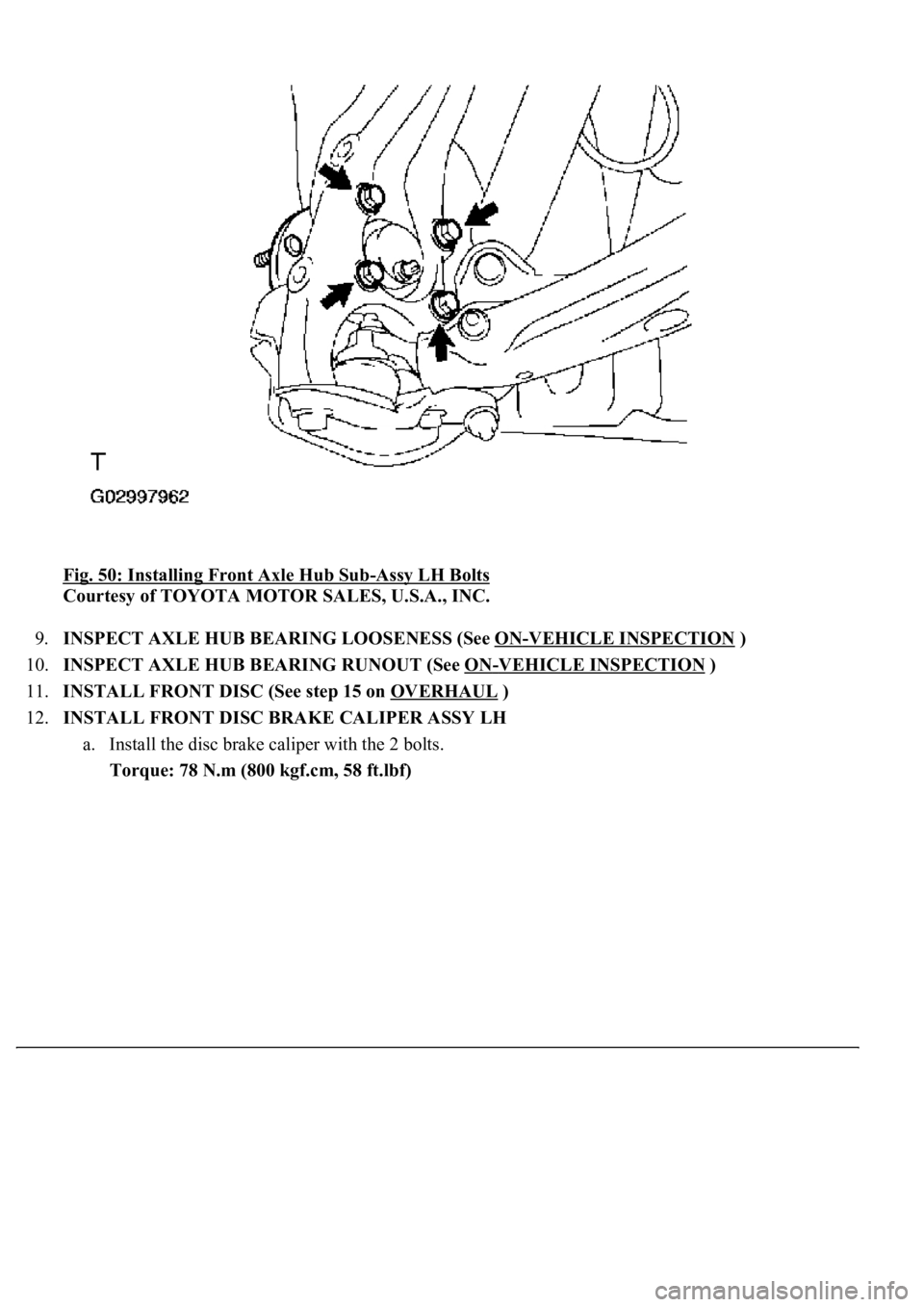

Fig. 50: Installing Front Axle Hub Sub-Assy LH Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSPECT AXLE HUB BEARING LOOSENESS (See ON
-VEHICLE INSPECTION )
10.INSPECT AXLE HUB BEARING RUNOUT (See ON
-VEHICLE INSPECTION )
11.INSTALL FRONT DISC (See step 15 on OVERHAUL
)
12.INSTALL FRONT DISC BRAKE CALIPER ASSY LH
a. Install the disc brake caliper with the 2 bolts.
Torque: 78 N.m (800 kgf.cm, 58 ft.lbf)

Fig. 51: Installing Disc Brake Caliper Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.INSTALL SKID CONTROL SENSOR WIRE
a. Connect the connector.
14.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
15.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)
16.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)
REPLACEMENT
HINT:

Fig. 54: Removing Steering Knuckle And Bolts From Lower Ball Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL STEERING KNUCKLE LH
a. Install the steering knuckle LH to the lower ball joint with the 2 bolts.
Torque: 113 N.m (1,150 kgf.cm, 83 ft.lbf)
b. Install the steering knuckle LH to the upper suspension arm with a nut and clip.
Torque: 87 N.m (887 kgf.cm, 64 ft.lbf)

Fig. 55: Installing Steering Knuckle LH With Bolts To Lower Ball Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL FRONT AXLE HUB SUB-ASSY LH (See REPLACEMENT
)
9.INSTALL SKID CONTROL SENSOR WIRE
a. Install the speed sensor with the bolt.
b. Connect the connector.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
