2003 LEXUS LS430 Identifying condition

Fig. 126: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CONNECT CONNECTOR
a. Reconnect the DLC3 sub bus line connector (J42) to the D-CAN J/C B side (w/o earth terminal).
3.CHECK CAN BUS LINES FOR SHORT CIRCUIT (CAN BUSES TO P-CAN J/C)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF1 Mohms or more

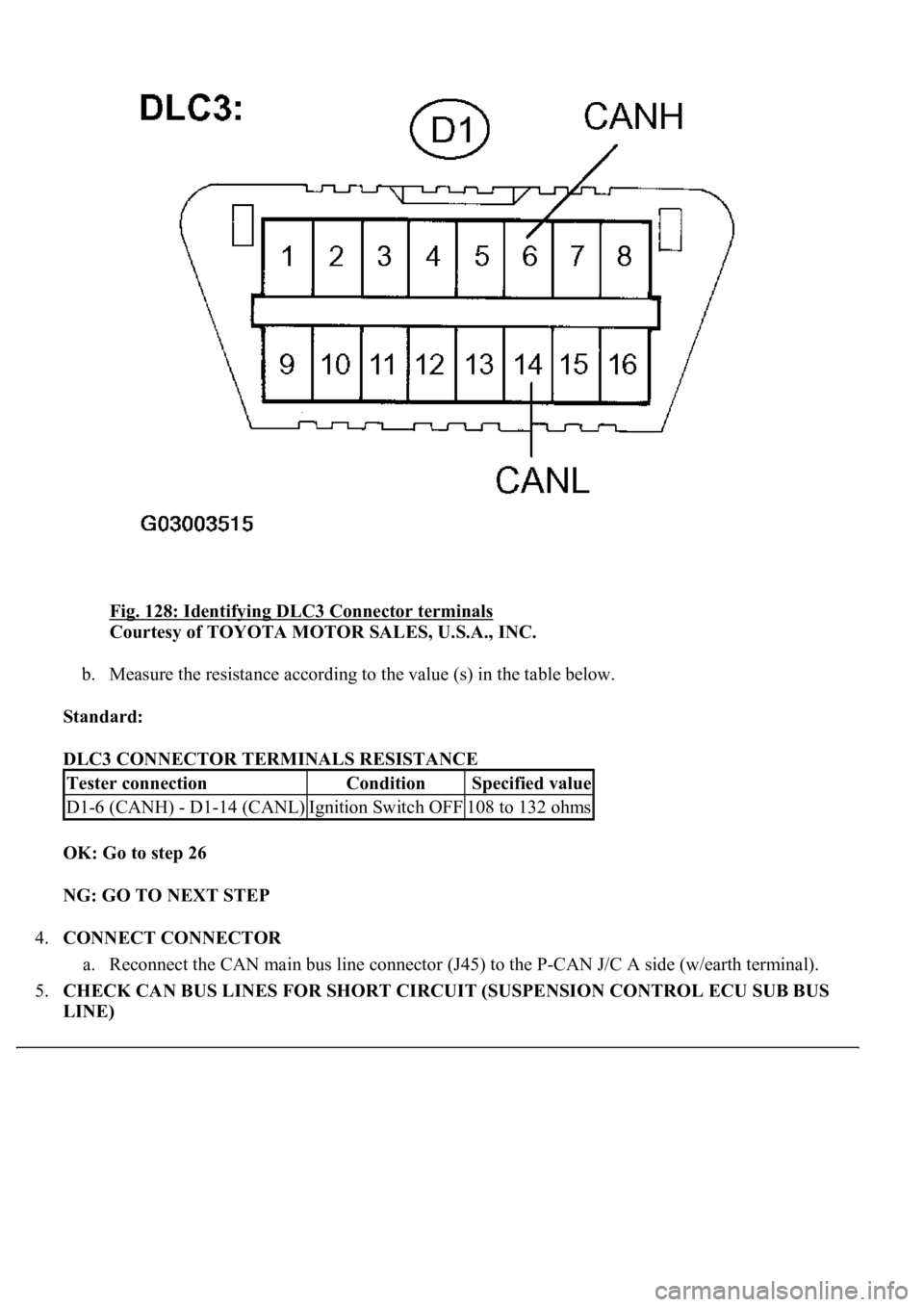

Fig. 128: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 26
NG: GO TO NEXT STEP
4.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
5.CHECK CAN BUS LINES FOR SHORT CIRCUIT (SUSPENSION CONTROL ECU SUB BUS
LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF108 to 132 ohms

Fig. 130: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 16
NG: GO TO NEXT STEP
6.CONNECT CONNECTOR
a. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side
(w/earth terminal).
7.CHECK CAN BUS LINES FOR SHORT CIRCUIT (GATEWAY ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

Fig. 132: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 18
NG: GO TO NEXT STEP
8.CONNECT CONNECTOR
a. Reconnect the gateway ECU sub bus line connector (J36) to the D-CAN J/C A side (w/earth
terminal).
9.CHECK CAN BUS LINES FOR SHORT CIRCUIT (ECM SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

Fig. 134: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 20
NG: GO TO NEXT STEP
10.CONNECT CONNECTOR
a. Reconnect the ECM sub bus line connector (J40) to the D-CAN J/C B side (w/o earth terminal).
11.CHECK CAN BUS LINES FOR SHORT CIRCUIT (SKID CONTROL ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

Fig. 136: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 22
NG: GO TO NEXT STEP
12.CONNECT CONNECTOR
a. Reconnect the skid control ECU sub bus line connector (J41) to the D-CAN J/C B side (w/o earth
terminal).
13.CHECK CAN BUS LINES FOR SHORT CIRCUIT (STEERING SENSOR SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

Fig. 138: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 24
NG: GO TO NEXT STEP
14.CONNECT CONNECTOR
a. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth
terminal).
15.CHECK CAN BUS LINES FOR SHORT CIRCUIT (D-CAN J/C)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

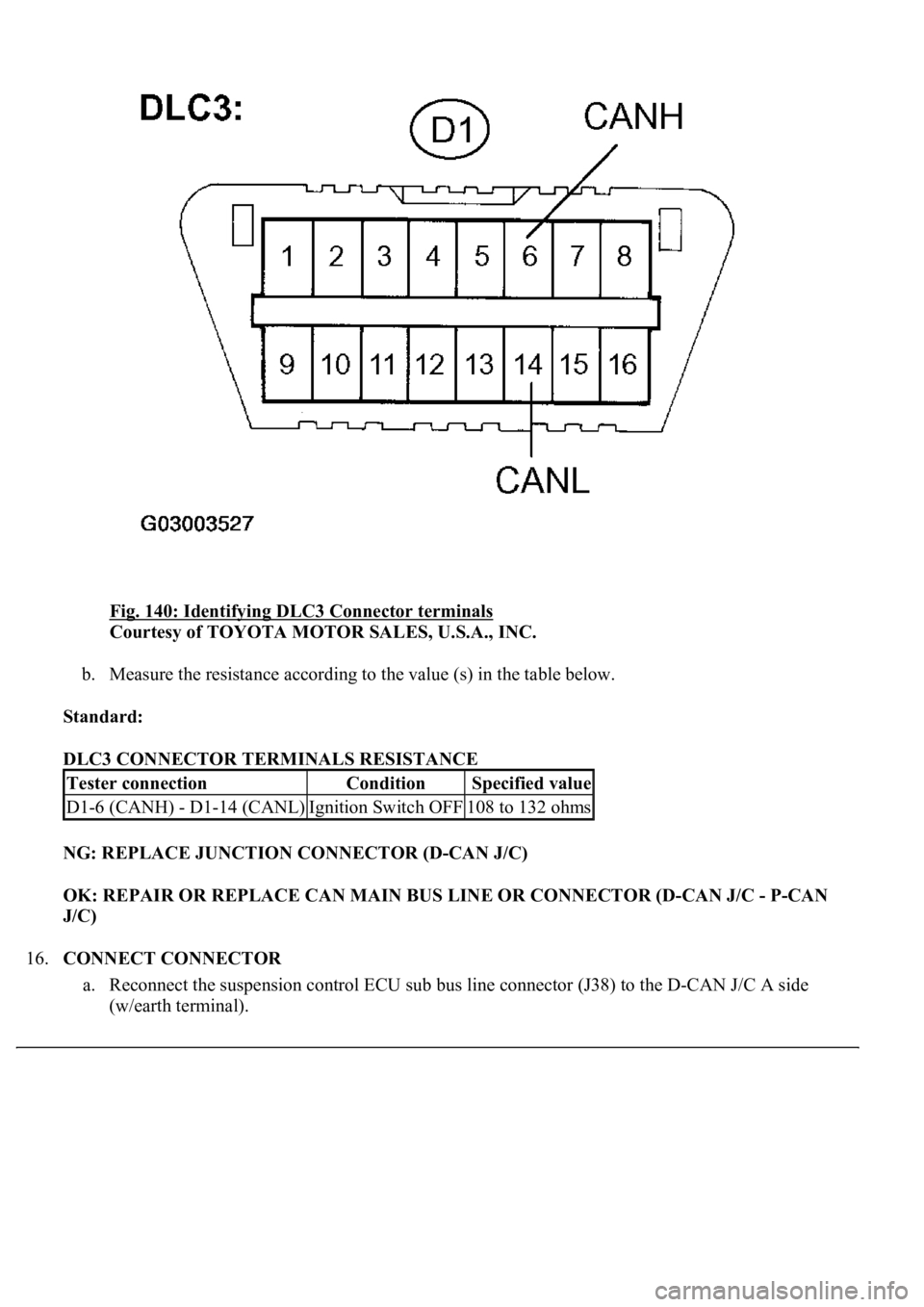

Fig. 140: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPLACE JUNCTION CONNECTOR (D-CAN J/C)
OK: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (D-CAN J/C - P-CAN
J/C)
16.CONNECT CONNECTOR
a. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side
(w/earth terminal).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF108 to 132 ohms
