2003 LEXUS LS430 Identifying condition

16.CONNECT CONNECTOR
a. Reconnect the gateway ECU sub bus line connector (J36) to the D-CAN J/C A side (w/earth
terminal).
17.CHECK CAN BUS LINE FOR SHORT TO +B (GATEWAY ECU SUB BUS LINE)

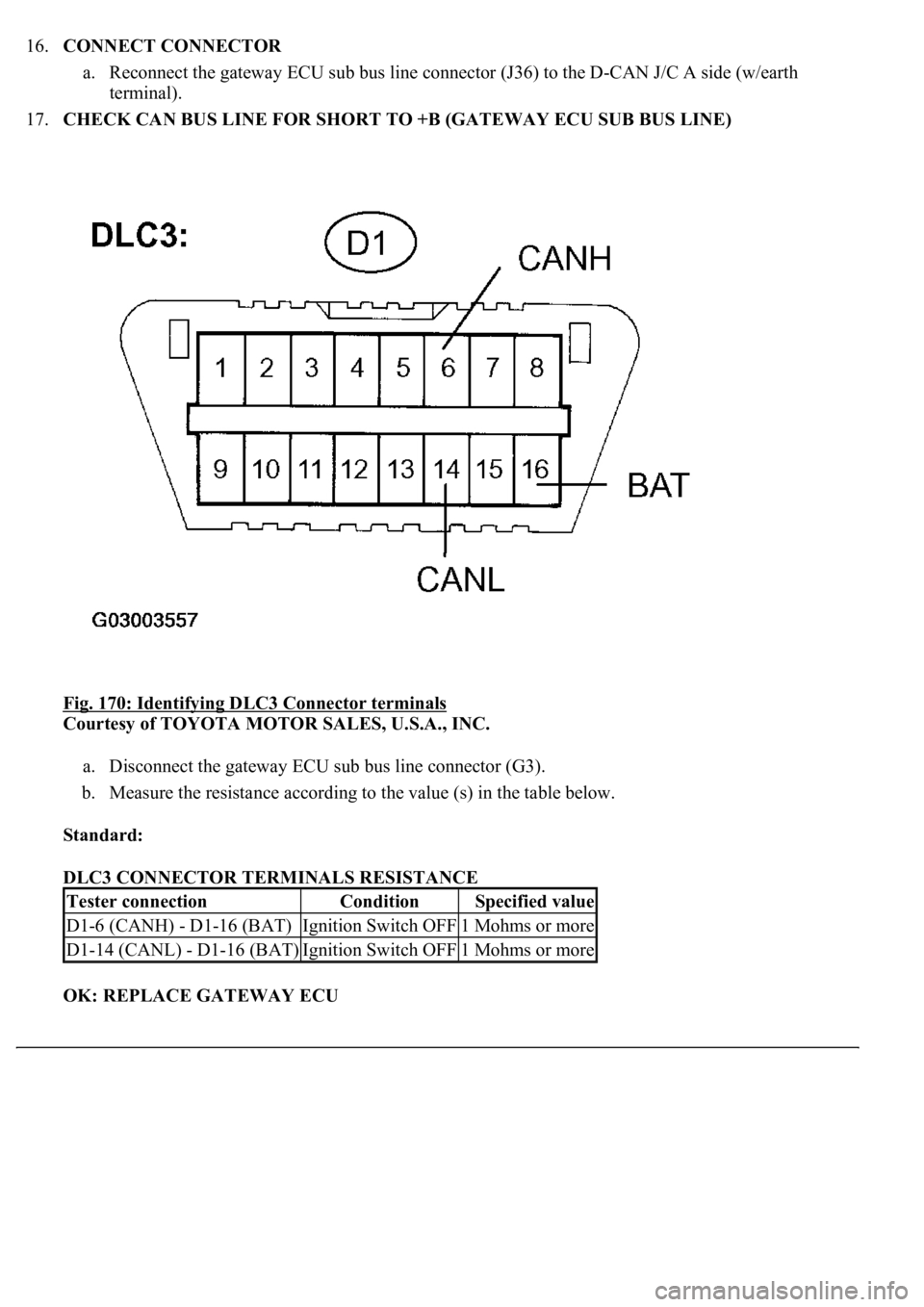

Fig. 170: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the gateway ECU sub bus line connector (G3).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE GATEWAY ECU
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

NG: REPAIR OR REPLACE GATEWAY ECU SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
18.CONNECT CONNECTOR
a. Reconnect the ECM sub bus line connector (J40) to the D-CAN J/C B side (w/o earth terminal).
19.CHECK CAN BUS LINE FOR SHORT TO +B (ECM SUB BUS LINE)

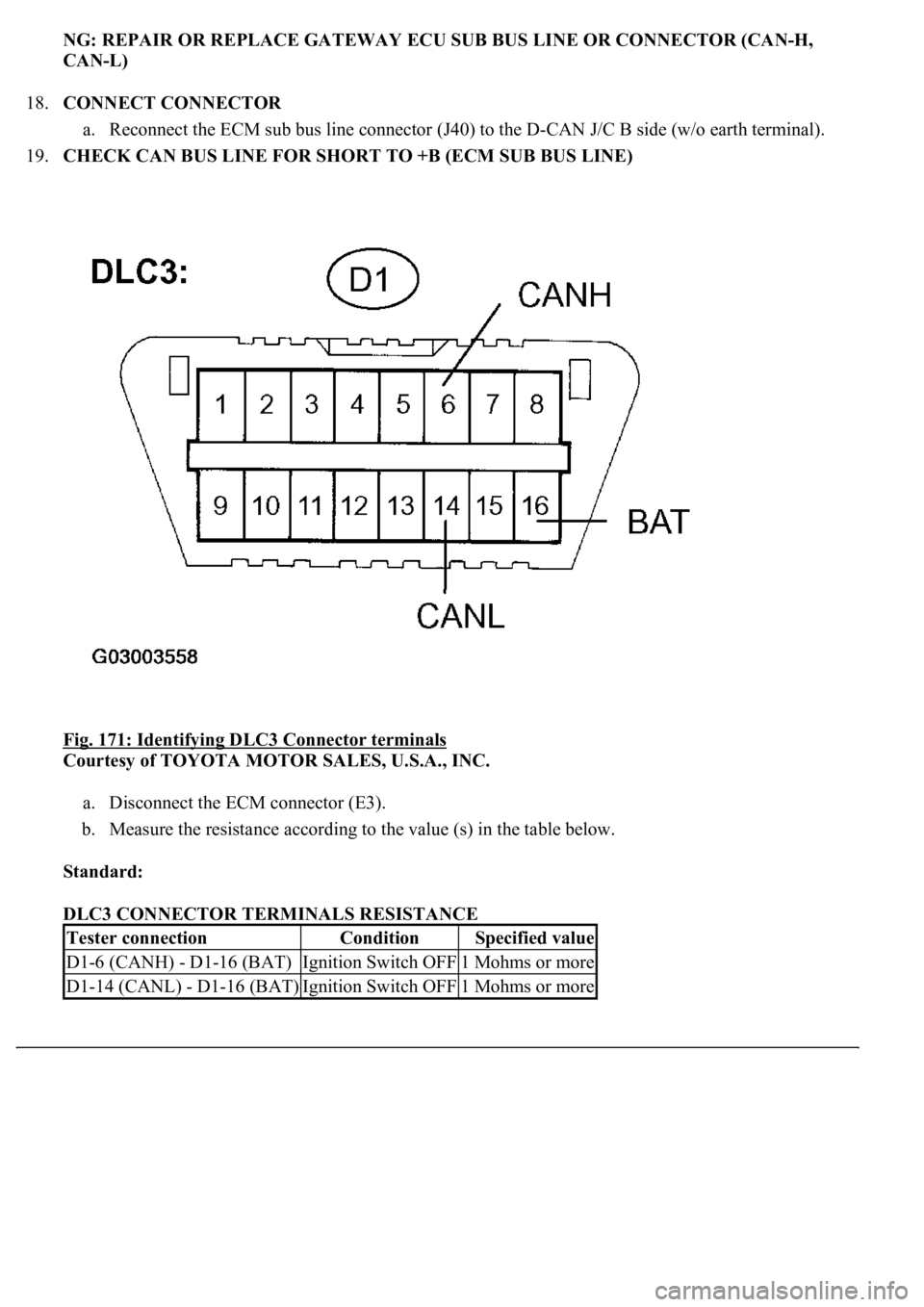

Fig. 171: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the ECM connector (E3).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

OK: REPLACE ECM (SEE REPLACEMENT)
NG: REPAIR OR REPLACE ECM SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
20.CONNECT CONNECTOR
a. Reconnect the skid control ECU sub bus line connector (J41) to the D-CAN J/C B side (w/o earth
terminal).
21.CHECK CAN BUS LINE FOR SHORT TO +B (SKID CONTROL ECU SUB BUS LINE)
Fig. 172: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the skid control ECU connector (S42).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

Fig. 175: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 34
NG: GO TO NEXT STEP
26.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J49) to the LUG-CAN J/C A side (w/earth terminal).
27.CHECK CAN BUS LINE FOR SHORT TO +B (DISTANCE CONTROL ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

Fig. 177: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 30
NG: GO TO NEXT STEP
28.CONNECT CONNECTOR
a. Reconnect the distance control ECU sub bus line connector (J48) to the P-CAN J/C B side (w/o
earth terminal).
29.CHECK CAN BUS LINE FOR SHORT TO +B (YAW RATE SENSOR SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

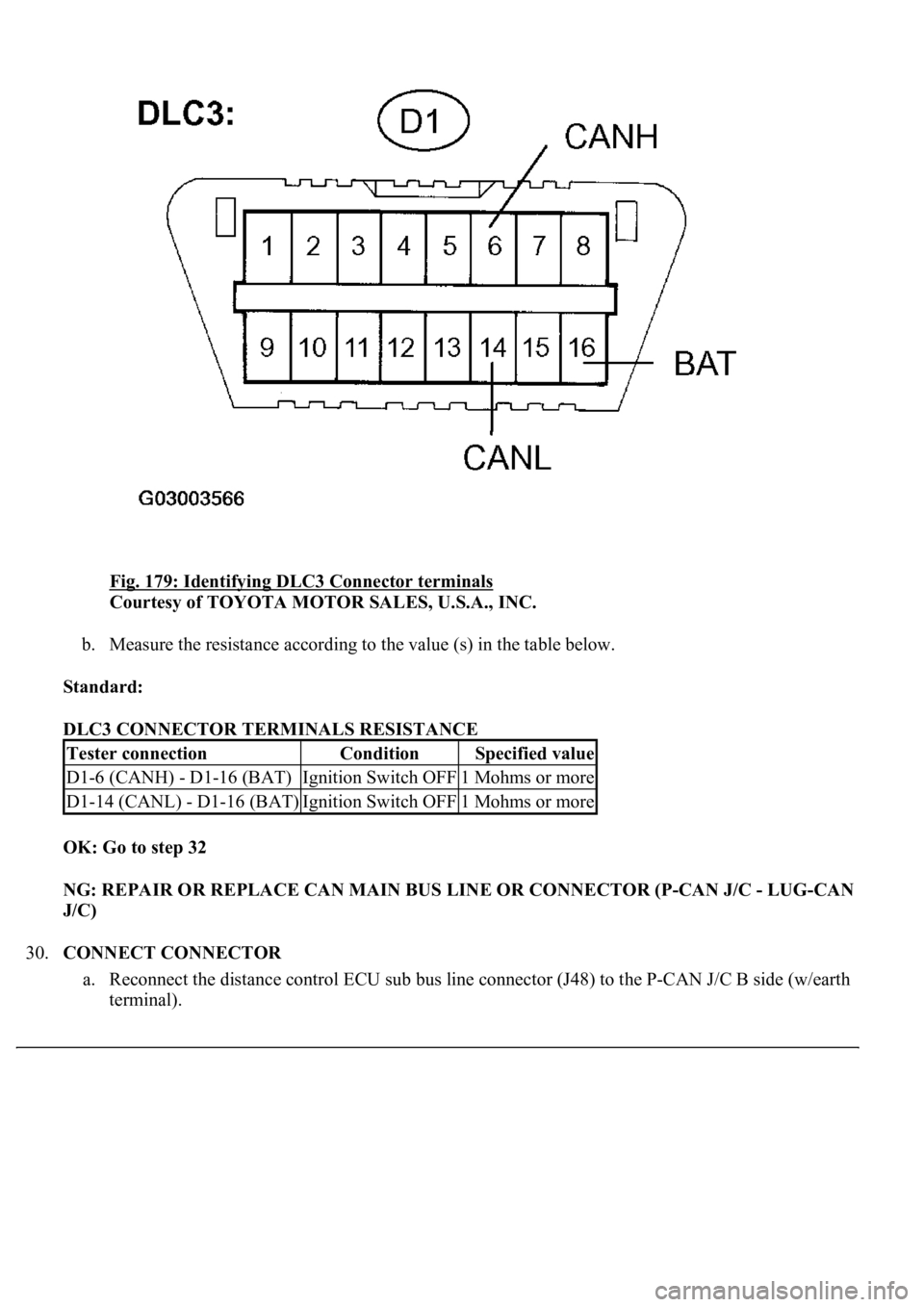

Fig. 179: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 32
NG: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (P-CAN J/C - LUG-CAN
J/C)
30.CONNECT CONNECTOR
a. Reconnect the distance control ECU sub bus line connector (J48) to the P-CAN J/C B side (w/earth
terminal).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

31.CHECK CAN BUS LINE FOR SHORT TO +B (DISTANCE CONTROL ECU SUB BUS LINE)
Fig. 180: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the distance control ECU connector (D2).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DISTANCE CONTROL ECU SUB BUS LINE OR CONNECTOR
(CAN-H, CAN-L)
OK: REPLACE DISTANCE CONTROL ECU ASSY (SEE REPLACEMENT
)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

32.CONNECT CONNECTOR
a. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth
terminal).
33.CHECK CAN BUS LINE FOR SHORT TO +B (YAW RATE SENSOR SUB BUS LINE)
Fig. 181: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the yaw rate sensor connector (Y1).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE YAW RATE SENSOR (SEE REPLACEMENT
)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
